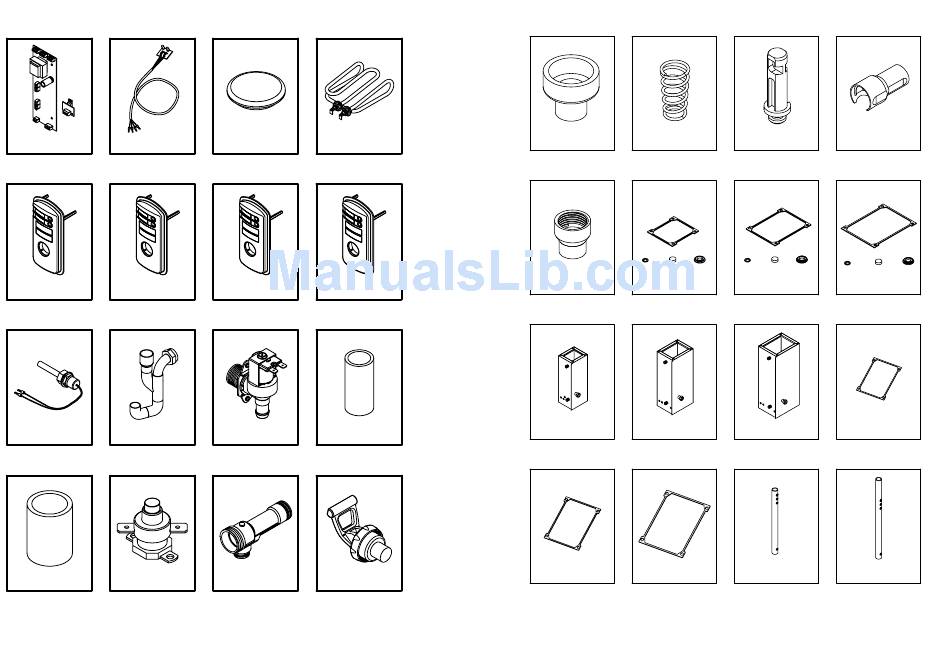

SPARE PARTS

(Refer to centre pages for location).
1 2
COMLPCBA
CASPCBT
PRINTED CIRCUIT LIGHT PCB
BOARD Inc.TRIAC
5 6
5PMFK 7.5PMFK
PLASTIC MOULDED PLASTIC MOULDED
FASCIA KIT FOR 5L FASCIA KIT FOR 7.5L
9 10
TAK NBWPT
THERMISTOR WATER PIPE
ASSEMBLY KIT
13 14
X1
NBTLC40 NBMR
Ø20mm SILICONE MANUAL RESET
TUBE CUT 40mm THERMAL CUTOUT
Page 16
3 4
NBPRG NBE3HK
PRESSURE RELIEF 3kW ELEMENT
GROMMET
7 8
10PMFK 15PMFK
PLASTIC MOULDED PLASTIC MOULDED
FASCIA KIT FOR 10L FASCIA KIT FOR 15L
11 12
NBSV NBTSC40
SOLENOID VALVE Ø15mm SILICONE
TUBE CUT 40mm
15 16
TBT GTT
DRAW OFF TAP TAP TOP
BODY ASSEMBLY
NB: Not to scale.
SPARE PARTS
(Refer to centre pages for location).
17 18
CBTCW CBTS
TAP CUP WASHER TAP SPRING
21 22
X8
TN2CK NB5GS
SLOW FILL NOZZLE GASKET SET FOR
MODEL 5L
25 26
NB5BA NB10BA
BODY FOR BODY FOR
MODEL 5L MODELS 7.5L & 10L
29
30
NB10BLG NB15BLG
BODY LID GASKET FOR BODY LID GASKET
MODELS 7.5L & 10L FOR MODEL 15L
NB: Not to scale.
19 20
CBTSS UTHSG
TAP SLOTTED GREY TAP BODY
STEM HEAT SHIELD
23 24
X8
X8
NB10GS NB15GS
GASKET SET FOR GASKET SET FOR
MODELS 7.5L & 10L MODEL 15L
27 28
NB15BA NB5BLG
BODY FOR BODY LID GASKET
MODEL 15L FOR MODEL 5L
31 32
NB5WLCPT NB7.5WLCPT
WATER LEVEL WATER LEVEL
CONTROL PIPE FOR 5L CONTROL PIPE FOR 7.5L
