INSTALLATION, OPERATION AND SERVICING INSTRUCTIONS
e-mail: service@calomax.co.uk
Calomax Limited
Lupton Avenue, Leeds LS9 7DD
Tel. 0113 249 6681 Fax. 0113 235 0358
MODEL: QUANTUM-
(Incorporating On/Off switch)
Please read these
instructions carefully
before operating your
boiler for the first time
www.calomax.co.uk
e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Calomax QUANTUM-e
Summary of Contents for Calomax QUANTUM-e

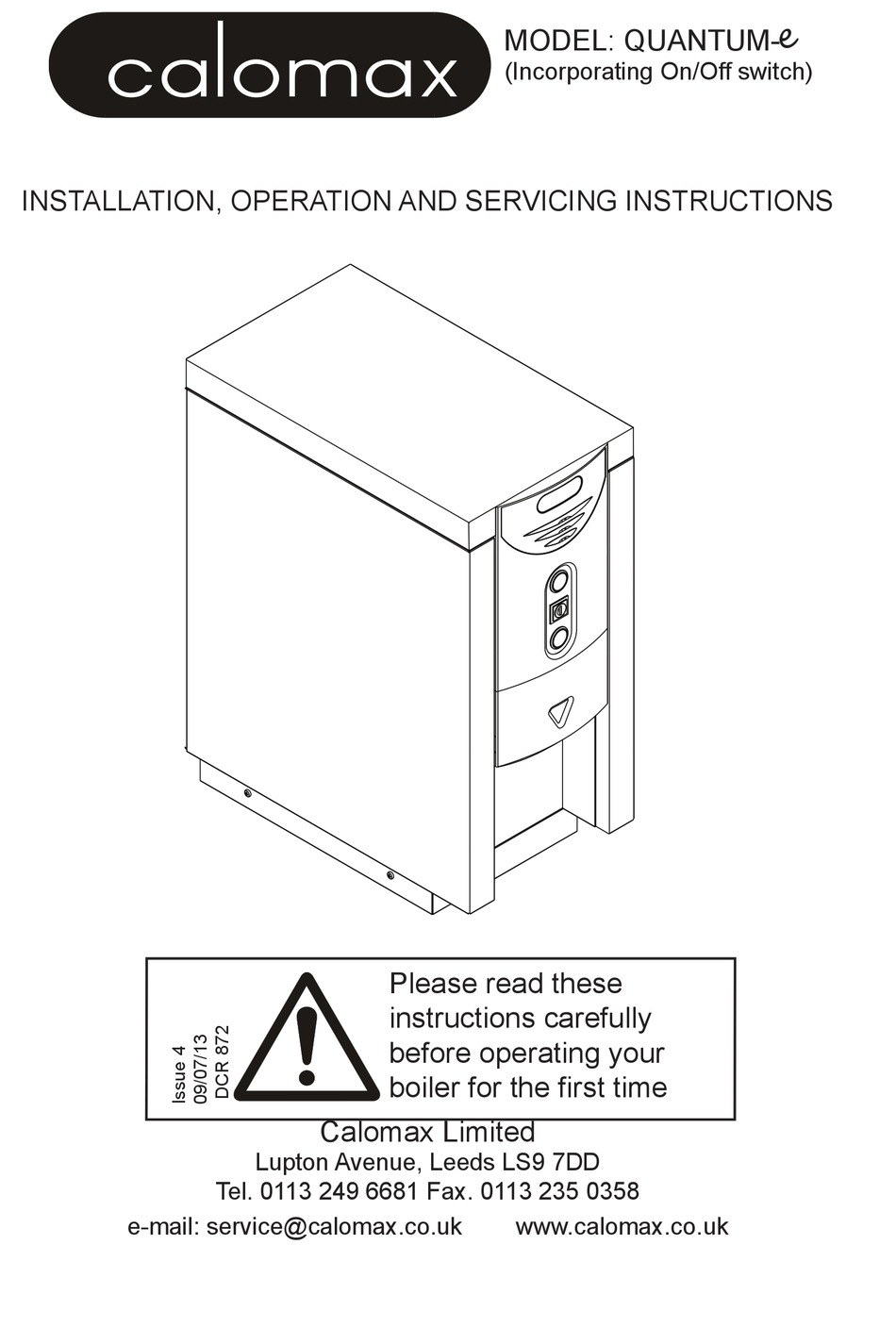

- Page 1 MODEL: QUANTUM- (Incorporating On/Off switch) INSTALLATION, OPERATION AND SERVICING INSTRUCTIONS Please read these instructions carefully before operating your boiler for the first time Calomax Limited Lupton Avenue, Leeds LS9 7DD Tel. 0113 249 6681 Fax. 0113 235 0358 e-mail: service@calomax.co.uk www.calomax.co.uk...
-
Page 2: Table Of Contents
CONTENTS PAGE INTRODUCTION CHECK LIST APPROVALS CONSTRUCTION INSTALLATION LOCATION COLD WATER INLET DIMENSIONS AND WEIGHTS VENT / OVERFLOW ELECTRICAL CONNECTIONS USER INSTRUCTIONS SCALE GENERAL OPERATION GENERAL NOTES CLEANING ACCESSORIES 9/10 SERVICE INSTRUCTIONS 11,14 &15 EXPLODED DIAGRAM 12/13 SPARE PARTS 16/17 WIRING DIAGRAM TROUBLE SHOOTING MAINTENANCE AND SERVICE HISTORY... -
Page 3: Introduction

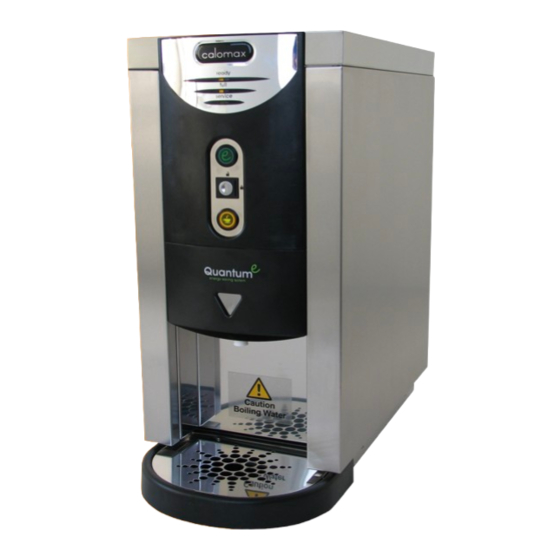

INTRODUCTION Thank you for purchasing a Calomax Quantum-e boiler. All our products are designed to give years of simple, reliable operation. To ensure this, it is important that the installation and subsequent servicing is carried out by a suitably qualified engineer in accordance with these instructions. -
Page 4: Construction
Allow adequate clearance for ventiation and for the easy removal of the outer casing lid and rear panel. Calomax ltd recommend a minimum clearance of 50mm on all sides of the boiler A suitably qualified engineer must install this unit. -
Page 5: Cold Water Inlet
COLD WATER INLET To comply with the U.K. Water Supply Regulation a single check- valve must be fitted to the supply. BEFORE CONNECTING, THE SUPPLY PIPE MUST BE THOROUGHLY FLUSHED OUT TO ENSURE THAT FOREIGN MATTER DOES NOT BLOCK OR ENTER THE SOLENOID VALVE The boiler must be connected to a potable water supply using the food grade hose provided, in a manner which complies with UK... -
Page 6: Vent / Overflow
VENT & OVERFLOW The vent / overflow pipe must be extended and laid with a continuous fall, discharging to a safe and visible point. The pipe should not be directly connected to a closed waste, as taste problems may occur and should never be allowed to become blocked or restricted. -
Page 7: Scale
On subsequent operation of the boiler The boiler will fill and heat in cycles. It will allow only a limited amount of water to enter the unit at any one time and then switch off the solenoid and energise the element. Note: When the green service indicator light on the front of the boiler is showing solid colour, the machine has been starved of water for in excess of 20... -
Page 8: General Operation
Misuse of such chemicals is not covered by the product warranty. The Quantum-e boiler benefits from an integral scale inhibitor, this is not a scale eliminator and its effects will differ according to the water quality in your area. -
Page 9: Accessories
Accessories Worktop-mounting Stainless Steel drip tray Ref. HSSDTK (freestanding) HSSDTWDK (with drain outlet) Boiler securing clamp (To fix boiler to a worktop) Ref. QEC Ingredient caddy Ref. IC3 (3 bay) - as shown IC4 (4 bay) Shelf unit Ref. SHU Page 9... - Page 10 Ref. 7DPIT Max 3kW Water filter kit (To reduce taste & odour problems) Ref. CWFK Filter Cartridge (Replacement filter for kit shown above) Ref. CWFC1 For more information visit our website at www.calomax.co.uk or call 0113 249 6681 Page 10...
-
Page 11: Service Instructions
The unit can be used normally while the service indicator is flashing a 4x pulse. For further assistance, contact our service department on 0113 249 6681 e-mail service@calomax.co.uk. or find a local service engineer at www.calomax.co.uk Note:... -
Page 12: Exploded Diagram
(Body cut away to show internal components & Outer Casing removed for clarity) If parts required are not iden please contact Calomax Lim Page 12... - Page 13 Exploded parts view for Quantum-e boiler (To be read in conjunction with the spare parts list) ntified, mited Includes nuts, washers, etc. Page 13...
- Page 14 which must be fitted the correct way round. The lid is labelled accordingly. To remove the lid, break the lid gasket seal and pull the lid forward and up, to the front of the machine before lifting it clear of the body. Note: Whenever the body lid has been removed from the boiler a new lid gasket may be required to ensure a steam-tight joint.
- Page 15 Heat transfer compound is also supplied with all replacement circuit boards. Adjusting the Water Temperature Set Point The temperature potentiometer (Pot) is pre-set at Calomax and will only require adjustment in exceptional circumstances. Contact Calomax for advice.
-
Page 16: Spare Parts
SPARE PARTS (Refer to centre pages for location). DVSK QDVMMK MULLER DISPENSE DISPENSE VALVE KEYSWITCH SPARE KEYS (x2) VALVE & GROMMET SERVICE KIT (INCLUDES 2 KEYS) FOR QKM EPBK DPBK QPCBT QEAPCBT WATER DISPENSE PUSH ECO PUSH BUTTON MAIN PRINTED CIRCUIT AUXILIARY PCB BUTTON Inc. -
Page 17: Spare Parts
Spare parts are usually available ex-stock. Please quote Model & Serial Number. QUFK QELFK SPRSK UPPER FASCIA KIT LOWER FASCIA KIT SERVICE VALVE KIT SINGLE POLE ON/OFF SWITCH FIH (1m) IH2M (2m) WATER INLET HOSE NB: Not to scale. Page 17... -
Page 18: Wiring Diagram
Page 18... -
Page 19: Trouble Shooting
BASIC TROUBLE SHOOTING Symptoms Possible Cause Remedy Selected operating level De-scale sensor holding a signal Thermal cut-out Reset and check for faults No boiling water tripped (no light) available Element failed Replace element Excessive internal scale. (See De-scale the boiler ‘De-Scale’... -
Page 20: Maintenance And Service History
MAINTENANCE AND SERVICE HISTORY Page 20... - Page 21 MAINTENANCE AND SERVICE HISTORY Page 21...
- Page 22 MAINTENANCE AND SERVICE HISTORY Page 22...
-
Page 23: Warranty
WARRANTY GUARANTEE (UK Mainland customers only) Calomax have manufactured water boilers in the UK for over 50 years. We are proud of our products and the back-up service we provide Properly maintained and serviced, a Calomax boiler should last many years and we have no hesitation in providing a full 12 months (mainland U.K.) parts and labour warranty for all models. -
Page 24: Product Specification
220 - 240 V ac 50-60 Hz Power rating 3kW (MAX) Note: All measurements are approximate. PLEASE CONTACT OUR SERVICE DEPARTMENT FOR ASSISTANCE Calomax Limited, Lupton Avenue, Leeds LS9 7DD Tel: 0113 249 6681 Fax: 0113 235 0358 e-mail: service@calomax.co.uk Page 24...
