Connecting Power to LAN Master™ TX8
To power ON the LAN Master™ TX8:
1. Locate the power receptacle on the back of the LAN Master™
TX8.
2. Connect the LAN Master™ TX8 power connector end of the
power cord to the LAN Master™ TX8.
3. Connect the external power connector end of the power cord
to external AC power.
NOTE: After power is supplied to the LAN Master™ TX8, the green
Power LED is illuminated.
9 LAN Master™ TX8
Installing LAN Master™ TX8 in 19-inch Rack
NOTE: Optionally, the LAN Master™ TX8 can be installed on a table or
other flat, stable surface.
NOTE: The LAN Master™ TX8 is shipped with attached brackets for
standard 19-inch rack installation. Rackmount screws and clip nuts are
NOT provided.

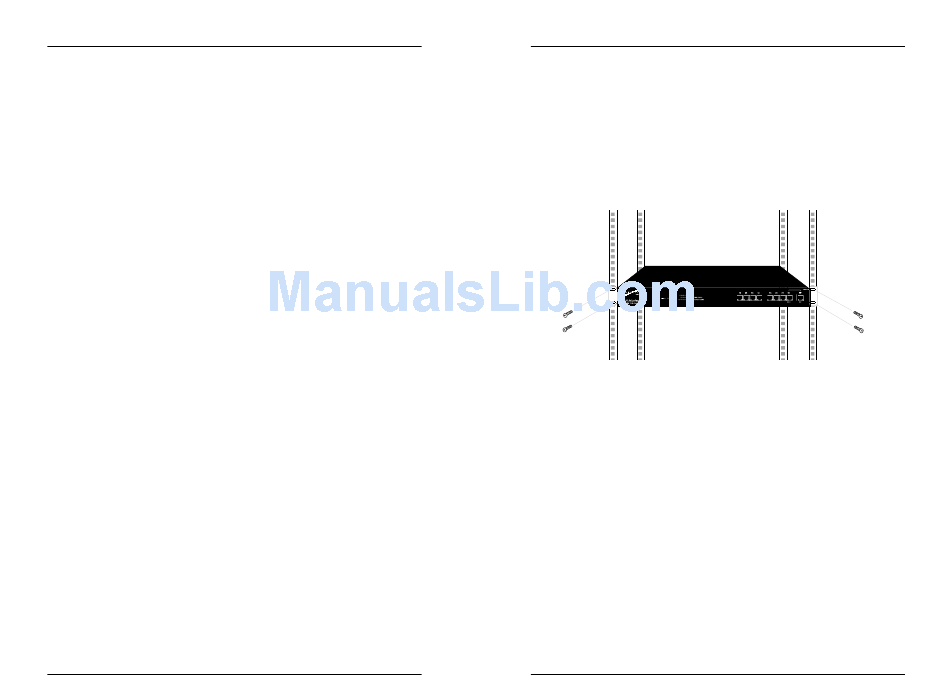

To install the LAN Master™ TX8 in 19-inch rack:
1. Locate four (4) screws (and clip nuts, if necessary) for each LAN
Master™ TX8 to be installed.
2. Carefully align the LAN Master™ TX8 between the 19-inch
rack mounting rails at the installation position.
3. Install two screws through right front bracket and two screws
through left front bracket, using clip nuts if necessary.
100BASE-TX 8-Port Hub 6
