Transition Networks

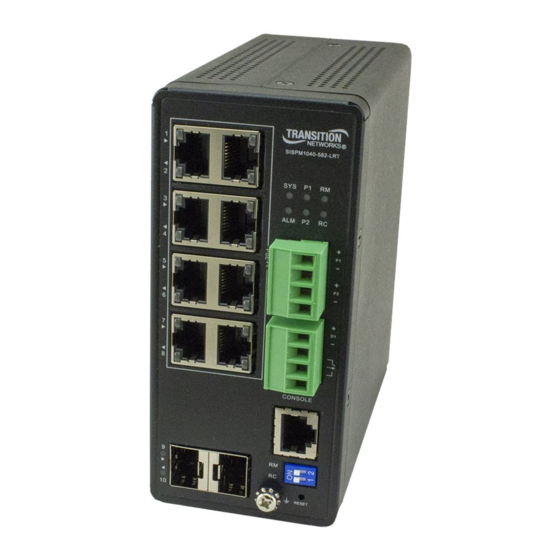

SISPM1040‐582‐LRT CLI Reference

SISPM1040‐582‐LRT

Managed Hardened PoE++ Switch (8) 10/100/1000Base‐T PoE++

Ports + (2) 100/1000Base‐X SFP Slot

CLI Reference

33757 Rev. A

https://www.transition.com

Page 1 of 172

Table of Contents

Need help?

Do you have a question about the SISPM1040-582-LRT and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks SISPM1040-582-LRT

Page 1 Transition Networks SISPM1040‐582‐LRT CLI Reference SISPM1040‐582‐LRT Managed Hardened PoE++ Switch (8) 10/100/1000Base‐T PoE++ Ports + (2) 100/1000Base‐X SFP Slot CLI Reference 33757 Rev. A 33757 Rev. A https://www.transition.com Page 1 of 172 ...
Page 2 Transition Networks SISPM1040‐582‐LRT CLI Reference Trademarks All trademarks and registered trademarks are the property of their respective owners. Copyright Notice/Restrictions Copyright © 2018 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks. Printed in the U.S.A. Contact Information Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343 USA tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com SISPM1040‐582‐LRT Managed Hardened PoE++ Switch CLI Reference, 33757 Rev. A Revision History Rev Date Description A 9/20/18 Initial release for FW v7.10.1492. Cautions and Warnings Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and ...
Page 3: Table Of Contents
Transition Networks SISPM1040‐582‐LRT CLI Reference Table of Contents 1. Introduction .............................. 5 1.1 Key Features ............................... 5 1.2 Manual Overview ............................... 5 1.3 Related Manuals .............................. 5 2. CLI Management ............................ 6 2.1 Login ................................... 6 2.2 Navigating the Command Line ........................... 6 2.3 CLI Command Modes ............................ 7 2.4 Changing Between Command Modes ........................ 7 2.5 Global Commands .............................. ...
Page 4 Transition Networks SISPM1040‐582‐LRT CLI Reference 28. CLI Command Summary .......................... 1 35 28.1 Privilege Levels ............................ 135 28.2 Command Summary ............................ 135 29. Service, Warranty, and Tech Support ...................... 1 61 29.1 Recording Device and System Information .................... 161 29.2 Limited Lifetime Warranty .......................... 162 29.3 Contact Us .............................. 162 Appendix A. DHCP Per Port .......................... 1 63 Appendix B. How to Get the Google Map API Key ................... 1 66 Appendix C. Service, Warranty & Tech Support .................... 1 71 Appendix D. Compliance Information ...................... ...
Page 5: Introduction
Transition Networks SISPM1040‐582‐LRT CLI Reference 1. Introduction The SISPM1040‐582‐LRT industrial L2+ managed GbE PoE++ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features for better functionality and usability. Along with its extensive management features, the SISPM1040‐582‐LRT also provides Carrier Ethernet features such as OAM, ERPS, EPS, and PTPv2, making it suitable for industrial and Carrier Ethernet applications. The SISPM1040‐582‐LRT delivers 8 (10M/100M/1G) RJ45 with PoE++ (802.3 at/af/bt for up to 480W total) ports, 2 GbE SFP ports and an RJ45 Console port. The SISPM1040‐582‐LRT provides high hardware performance and operating environment flexibility for Industrial and Carrier Ethernet applications. The embedded Device Managed System (DMS) feature makes it easy to use, configure, install, and troubleshoot in video surveillance, wireless access, and other industrial applications. 1.1 Key Features Rapid Ring / Ring To Ring / Rapid Chain  DMS (Device Management System) built in  ITU‐T G.8031 Ethernet Linear Protection Switching (EPS)  ITU‐T G.8032 Ethernet Ring Protection Switching (ERPS)  IEEE 1588v2 PTP ...
Page 6: Cli Management
Transition Networks SISPM1040‐582‐LRT CLI Reference 2. CLI Management Follow the steps below to make a network connection for CLI command management. 1. Locate the correct DB‐9 (RS‐232) cable with a female DB‐9 connector. RS‐232 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RJ45 port to access the command‐line interface. 2. Attach the RJ45 serial port on the switch’s front panel which used to connect to the switch for console configuration 3. Attach the other end of the DB‐9 cable to an ASCII terminal emulator or PC Com‐1, 2 port. For example, PC runs Microsoft Windows HyperTerminal utility. 4. At “Com Port Properties” menu, configure the parameters as below (see the next section). Baud rate 115200 Stop bits 1 Data bits 8 Parity N ...
Page 7: Cli Command Modes
Transition Networks SISPM1040‐582‐LRT CLI Reference 2.3 CLI Command Modes The CLI is divided into several modes. If a user has enough privilege to run a particular command, the user has to run the command in the correct mode. To see the commands of the mode, enter a “?” after the system prompt, then all commands will be listed in the screen. The command modes are listed as below: Command Modes Mode Prompt Command Function in this Mode exec <sys_name># Display current configuration, diagnostics, maintenance config <sys_name>(config)# Configure features other than those below Config-if <sys_name>(config-interface)# Configure ports...
Page 8: Global Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 2.5 Global Commands Enter a question mark (?) at the command line prompt to display the global Exec mode commands. SISPM1040‐582‐LRT# ? CableDiag Cable Diagnostic keyword clear Reset functions configure Enter configuration mode copy Copy from source to destination debug Debugging functions delete Delete one file in flash: file system dir Directory of all files in flash: file system disable Turn off privileged commands do To run exec commands in config mode dot1x IEEE Standard for port‐based Network Access Control enable Turn on privileged commands erps Ethernet Ring Protection Switching exit Exit from EXEC mode firmware Firmware upgrade/swap help Description of the interactive help system ip IPv4 commands ipv6 IPv6 configuration commands link‐oam Link OAM configuration logout Exit from EXEC mode more Display file no Negate a command or set its defaults ping Send ICMP echo messages ...
Page 9 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: Help Description: Description of the interactive help system. Syntax : help Parameters: None Example: SISPM1040‐582‐LRT# help Help may be requested at any point in a command by entering a question mark '?'. If nothing matches, the help list will be empty and you must backup until entering a '?' shows the available options. Two styles of help are provided: 1. Full help is available when you are ready to enter a command argument (e.g. 'show ?') and describes each possible argument. 2. Partial help is provided when an abbreviated argument is entered and you want to know what arguments match the input (e.g. 'show pr?'.) ...
Page 10 Transition Networks SISPM1040‐582‐LRT CLI Reference Example 2: Enter two question marks (??) in the command line to display the syntax available. SISPM1040‐582‐LRT# show? show Show running system information SISPM1040‐582‐LRT# show? show aaa show access management [ statistics | <access_id_list> ] show access‐list [ interface [ ( <port_type> [ <v_port_type_list> ] ) ] ] [ rate ‐limiter [ <rate_limiter_list> ] ] [ ace statistics [ <ace_list> ] ] show access‐list ace‐status [ static ] [ link‐oam ] [ loop‐protect ] [ dhcp ] [ ptp ] [ upnp ] [ arp‐inspection ] [ evc ] [ mep ] [ ipmc ] [ ip‐source‐guard ] [ ip‐mgmt ] [ tt‐loop ] [ y1564 ] [ dms‐client ] [ dms‐server ] [ dms‐ssdp ] [ dm s‐onvif ] [ agv‐car ] [ dms‐mdns ] [ ztp ] [ rapid‐ring ] [ lacp‐on‐air ] [ conf licts ] [ switch <switch_list> ] show aggregation [ mode ] show clock show clock detail show dot1x statistics { eapol | radius | all } [ interface ( <port_type> [ <v_po rt_type_list> ] ) ] show dot1x status [ interface ( <port_type> [ <v_port_type_list> ] ) ] [ brief ] show eps [ <inst> ] [ detail ] show erps { [ <groups> ] } [ detail | statistics ] show evc statistics { [ <evc_id> | all ] } [ ece [ <ece_id> ] ] [ interface ( <p ort_type> [ <port_list> ] ) ] [ pw <pw_num_list> ] [ cos <cos> ] [ green | yello w | red | discard ] [ frames | bytes ] show evc { [ <evc_id> | all ] } [ ece [ <ece_id> ] ] ‐‐ more ‐‐, next page: Space, continue: g, quit: ^C ...
Page 11 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: CableDiag Description: Run Cable Diagnostic test on copper ports. Syntax : CableDiag interface <port_type> <port_type_id> Parameters: interface Interface keyword GigabitEthernet 1 Gigabit Ethernet Port <port_type_id> Port ID in 1/1‐8 Example: SISPM1040‐582‐LRT# CableDiag interface GigabitEthernet 1/3 Starting Cable Diagnostic ‐ Please wait Interface Link Status Test Result Length ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ ...
Page 12: Clear Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 3. Clear Commands Command Function access Access management access‐list ...
Page 13 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: Dot1x Description: Clear IEEE Standard for port‐based Network Access Control. Syntax : clear dot1x statistics clear dot1x statistics [ interface ( <port_type> [ <v_port_type_list> ] ) ] Parameters: statistics Clears the statistics counters interface Interface ...
Page 14 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: erps Description: Clear Ethernet Ring Protection Switching. Syntax : clear erps [ <groups> ] statistics Parameters: 1~64 Zero or more ERPS group numbers statistics Clear ERPS statistics Example: SISPM1040‐582‐LRT# clear erps ? 1~64 Zero or more ERPS group numbers statistics Clear ERPS statistics SISPM1040‐582‐LRT# clear erps 1 ? statistics Clear ERPS statistics SISPM1040‐582‐LRT# clear erps 1 statistics ? ...
Page 15 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ip Description: Clear Interface Internet Protocol config commands. Syntax : clear ip arp clear ip dhcp detailed statistics { server | client | snooping | relay | helper | all } [ interface ( <port_type> [ <in_port_list> ] ) ] clear ip dhcp relay statistics clear ip dhcp server binding <ip> clear ip dhcp server binding { automatic | manual | expired } clear ip dhcp server statistics clear ip dhcp snooping statistics [ interface ( <port_type> [ <in_port_list> ] ) ] clear ip igmp snooping [ vlan <v_vlan_list> ] statistics clear ip statistics [ system ] [ interface vlan <v_vlan_list> ] [ icmp ] [ icmp‐msg <type> ] Parameters: arp Clear ARP cache ...
Page 16 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: IPv6 Description: Clear IPv6 configuration commands. Syntax : clear ipv6 mld snooping [ vlan <v_vlan_list> ] statistics clear ipv6 neighbors clear ipv6 statistics [ system ] [ interface vlan <v_vlan_list> ] [ icmp ] [ icmp‐msg <type> ] Parameters: mld Multicasat Listener Discovery neighbors Ipv6 neighbors statistics ...
Page 17 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: link‐oam Description: Clear Link OAM statistics. Syntax : clear link‐oam statistics clear link‐oam statistics interface ( * | GigabitEthernet ) <port_type_list> Parameters: statistics Clear Rx/Tx counters interface Clear Link OAM statistic on a specific interface or all interfaces. * All switches or All ports GigabitEthernet ...
Page 18 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: logging Description: Clear System logging messages. Syntax : clear logging [ info ] [ warning ] [ error ] [ switch <switch_list> ] Parameters: alert Severity 1: Action must be taken immediately crit Severity 2: Critical conditions ...
Page 19 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: mvr Description: Clear Multicast VLAN Registration configuration. Syntax : clear mvr [ vlan <v_vlan_list> | name <mvr_name> ] statistics Parameters: name MVR multicast name statistics Running MVR protocol counters vlan MVR multicast vlan ...
Page 20 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ptp Description: Clear PTP network‐clock configuration. Syntax : clear ptp 0 servo Parameters: <0‐3> servo <cr> Example: SISPM1040‐582‐LRT# clear ptp ? <0‐3> SISPM1040‐582‐LRT# clear ptp? clear ptp <clockinst> servo SISPM1040‐582‐LRT# clear ptp 0 ? servo SISPM1040‐582‐LRT# clear ptp 0 servo ? <cr> SISPM1040‐582‐LRT# clear ptp 0 servo Clock instance 0 : does not exist %% Failed to set network‐clock configuration. ...
Page 21 Transition Networks SISPM1040‐582‐LRT CLI Reference Command spanning‐tree Description: Clear STP Bridge. Syntax : clear spanning‐tree { { statistics [ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { detected‐protocols [ interface ( <port_type> [ <v_port_type_list_1> ] ) ] } } Parameters: detected‐protocols S et the STP migration check statistics STP statistics interface ...
Page 22: Configure Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 4. Configure Commands Command Function aaa Authentication, Authorization and Accounting access Access management ...
Page 23 Transition Networks SISPM1040‐582‐LRT CLI Reference rmon Remote Monitoring sflow Statistics flow. ...
Page 24 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: aaa Description: Configure Authentication, Authorization and Accounting. Syntax : aaa accounting http tacacs [ exec ] aaa accounting { console | telnet | ssh } tacacs { [ commands <priv_lvl> ] [ exec ] }*1 aaa authentication login { console | telnet | ssh | https } { { local | radius | tacacs } [ { local | radius | tacacs } [ { local | radius | tacacs } ] ] } [ fallback ] aaa authentication login { http } { { redirect | local | radius | tacacs } [ { redirect | local | radius | tacacs } [ { redirect | local | radius | tacacs } [ { redirect | local | radius | tacacs } ] ] ] } [ fallback ] aaa authorization http tacacs [ fallback ] aaa authorization { console | telnet | ssh } tacacs commands <priv_lvl> [ config‐commands ] [ fallback ] Parameters: authentication Authentication login ...
Page 25 Transition Networks SISPM1040‐582‐LRT CLI Reference Table : configure – access‐list Commands Command Function ace Access list entry rate‐limiter Rate limiter Command: ace Description: Access list entry Syntax : access‐list ace{ update<1‐256> | <1‐256> } [action< deny | filter | permit >] access‐list ace{ update<1‐256> | <1‐256> } [dmac‐type < any | broadcast | multicast | unicast >] access‐list ace{ update<1‐256> | <1‐256> } [frametype < any | arp | etype | ipv4 | ipv4‐icmp | ipv4‐tcp | ipv4‐udp | ipv6 | ipv6‐icmp | ipv6‐tcp | ipv6‐udp >] access‐list ace{ update<1‐256> | <1‐256> } [ ingress] [ ingress interface { <port_type> <port_type_id> | <port_type> <port_type_list> } | any } ] access‐list ace{ update<1‐256> | <1‐256> } [ logging [ disable ] ] access‐list ace{ update<1‐256> | <1‐256> } [ lookup [ disable ] ] access‐list ace{ update<1‐256> | <1‐256> } [ mirror [ disable ] ] access‐list ace{ update<1‐256> | <1‐256> } [ next { <1‐256> | last } ] ...
Page 26 Transition Networks SISPM1040‐582‐LRT CLI Reference broadcast Broadcast destination MAC address multicast Multicast destination MAC address unicast Unicast destination MAC address any Don't‐care the frame type ...
Page 27 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: aggregation Description: Configure Aggregation mode. Syntax : aggregation mode { [ smac ] [ dmac ] [ ip ] [ port ] }*1 Parameters: dmac Destination MAC affects the distribution ip IP address affects the distribution port IP port affects the distribution smac ...
Page 28 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: default Description: Set a command to its defaults. Syntax : default access‐list rate‐limiter [ <rate_limiter_list> ] Parameters: rate‐limiter Rate limiter <cr> Example: SISPM1040‐582‐LRT(config)# default access‐list rate‐limiter ? <1~16> Rate limiter ID <cr> ...
Page 29 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: dot1x Description: Configure IEEE Standard for port‐based Network Access Control. Syntax : authentication Authentication feature Globally enables/disables a dot1x feature functionality guest‐vlan ...
Page 30 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: end Description: Go back to EXEC mode. Syntax : end <cr> Parameters: end Go back to EXEC mode <cr> Example: SISPM1040‐582‐LRT(config)# end SISPM1040‐582‐LRT# Command: eps Description: Configure Ethernet Protection Switching. ...
Page 31 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: erps Description: Configure Ethernet Ring Protection Switching. Syntax : 1‐64 ERPS group number guard Guard holdoff Hold‐off time major Major ring mep MEP revertive Revertive ...
Page 32 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: evc Description: Configure Ethernet Virtual Connections. Syntax : evc [ update ] <evc_id> { [ vid <evc_vid> ] } [ ivid <ivid> ] [ interface ( <port_type> [ <port_list> ] ) ] { [ leaf { [ vid <leaf_vid> ] [ ivid <leaf_ivid> ] [ interface { ( <port_type> [ <leaf_port_list> ] ) | none } ] }*1 ] } [ learning [ disable ] ] [ policer { <policer_id> | none | discard } ] [ inner‐tag add { [type { none | c‐tag | s‐tag | s‐custom‐tag } ] [ vid‐mode { normal | tunnel } ][ vid <it_add_vid> ] [ preserve [ disable ] ] [ pcp <it_add_pcp> ] [ dei <it_add _dei> ] }*1 ] [ outer‐tag add vid <ot_add_vid> ] [ pw [ <pw_num_list> ] [ split‐horizon <pw_num_list_split_horizon> ] ] evc ece [ update ] <ece_id> [ next { <ece_id_next> | last } ] [ lookup { basic | advanced } ] [ interface ( <port_type> [ <port_list> ] ) ] [ smac { <smac> | any } ] [ dmac { <dmac> | unicast | multicast | broadcast | any } ] [ outer‐tag {[ match { [ type { untagged | tagged | c‐tagged | s‐tagged | any } ] [ vid { <ot_match_vid> | any } ] [ pcp { <ot_match_pcp> | any } ] [ dei { <ot_match_dei> |any } ] }*1 ] [ add { [ mode { enable | disable } ] [ vid <ot_add_vid> ] [ preserve [ disable ] ] [ pcp‐mode { classified | fixed | mapped } ] [ pcp <ot_add_pcp > ] [ dei‐mode { classified | fixed | dp } ] [ dei <ot_add_dei> ] }*1 ] }*1 ] [inner‐tag { [ match { [ type { untagged | tagged | c‐tagged | s‐tagged | any } ] [ vid { <it_match_vid> | any } ] [ pcp { <it_match_pcp> | any } ] [ dei { <it_m atch_dei> | any } ] }*1 ] [ add { [ type { none | c‐tag | s‐tag | s‐custom‐tag } ] [ vid <it_add_vid> ] [ preserve [ disable ] ] [ pcp‐mode { classified | fixed | mapped } ] [ pcp <it_add_pcp> ] [ dei‐mode { classified | fixed | dp } ] [ dei <it_add_dei> ] }*1 ] }*1 ] [ frame‐type { any | { ipv4 [ proto { <pr4> | udp | tcp | any } ] [ dscp { <dscp4> | any } ] [ sip { <sip4> | any } ] [ dip { <dip4> | any } ] [ fragment { yes | no | any } ] [ sport { <sp4> | any } ] [ dport { <dp4> | any } ] } | { ipv6 [ proto { <pr6> | udp | tcp | any } ] [ dscp { <dscp6> | any } ] [ sip { <sip6> | any } ] [ dip { <dip6> | any } ] [ sport { <sp6> |any } ] [ dport { <dp6> | any } ] } | { etype [ etype‐value { <etype_value> | an ...
Page 33 Transition Networks SISPM1040‐582‐LRT CLI Reference vid Setup added tag VLAN ID vid‐mode Setup inner tag VLAN ID mode <0‐1> Added tag DEI disable Disable learning ...
Page 34 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: event Description: Set Trap event severity level. Syntax : event group { AC‐Power | ACL | ACL‐Log | Access‐Mgmt | Auth‐Failed | AUTO‐SAVING | Cold‐Start | Config‐Info | Digital‐Out | Firmware‐Upgrade | Import‐Export | LACP | Link‐Status | Login | Logout | Mgmt‐IP‐Change | Module‐Change | NAS | Password‐Change | Port‐Security | Spanning‐Tree | Warm‐Start | Battery‐Power | BCS‐P rotection | DMS | Dying‐Gasp | PoE‐Auto‐Check | Poe‐Auto‐Power‐Reset | FAN | ZTU‐FAIL | Surveillance } { level <lvl> | syslog { enable | disable } | trap { enable | disable } | smtp { enable | disable } | ipush { enable | disable } } event group { PWR‐1‐Off‐On | PWR‐1‐On‐Off | PWR‐2‐Off‐On | PWR‐2‐On‐Off | DI‐1‐Abnormal | DI‐1‐Normal | Loop‐Protect | Temperature | Voltage | Rapid‐Ring‐Break| Rapid‐Ring‐Error | PoE‐PD‐On | PoE‐PD‐Off | Over‐Max‐PoE‐Power‐Limitation | PoE‐PD‐Over‐Current } { level <lvl> | syslog { enable | disable } | trap { enable | disable } | smtp { enable | disable } | ipush { enable | disable } | digital‐out { enable | disable } } Parameters: ACL Group ID ACL ACL‐Log Group ID ACL Log Access‐Mgmt ...
Page 35 Transition Networks SISPM1040‐582‐LRT CLI Reference Warm‐Start Group ID Warm Start Example: SISPM1040‐582‐LRT(config)# event group Mgmt‐IP‐Change ? level Severity level smtp smtp mode syslog syslog mode trap trap mode SISPM1040‐582‐LRT(config)# event group Mgmt‐IP‐Change trap ? disable trap mode disable enable trap mode enable SISPM1040‐582‐LRT(config)# event group Mgmt‐IP‐Change trap enable SISPM1040‐582‐LRT(config)# event group Auth‐Failed level ? <0‐7> <0> Emergency ,<1> Alert ,<2> Critical ,<3> Error ,<4> Warning ,<5> Notice ,<6> Informationl ,<7> Debug SISPM1040‐582‐LRT(config)# event group Auth‐Failed level 2 SISPM1040‐582‐LRT(config)# Command: green‐ethernet Description: Set EEE to be optimized for least power consumption (the default is optimized for least traffic latency). Syntax : ...
Page 36 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: interface Description: Select an interface to configure. See chapter 26. Configure Interface Commands on page 123. Syntax : interface ( <port_type> [ <plist> ] ) interface vlan <vlist> Parameters: * All switches or All ports ...
Page 37 Transition Networks SISPM1040‐582‐LRT CLI Reference ip ssh keyregen ip ssh port <port> ip telnet port <port> ip verify source ip verify source translate Parameters: arp Address Resolution Protocol dhcp Dynamic Host Configuration Protocol ...
Page 38 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ipmc Description: Configure IPv4/IPv6 multicast parameters. Syntax : ipmc profile ipmc profile <profile_name> ipmc range <entry_name> { <v_ipv4_mcast> [ <v_ipv4_mcast_1> ] | <v_ipv6_mcast> [ <v_ipv6_mcast_1> ] } Parameters: profile IPMC profile configuration range A range of IPv4/IPv6 multicast addresses for the profile Example: SISPM1040‐582‐LRT(config)# ipmc? ipmc IPv4/IPv6 multicast configuration ...
Page 39 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: lacp Description: Configure LACP settings. Syntax : lacp on‐air index <v_1_to_8> { { port <port_type> <in_port_type_id> } | { couple‐ip <ip1> <ip2> } } lacp system‐priority <v_1_to_65535> Parameters: on‐air This command lets you set up LACP on Air ports and the Couple IP address for access management. Apple’s AirPort Express provides simultaneous dual‐band wireless 802.11n Wi‐Fi networking. system‐priority System priority Example: lacp system‐priority <v_1_to_65535> SISPM1040‐582‐LRT(config)# lacp system‐priority 333 ...
Page 40 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: lldp Description: LLDP configuration commands. Syntax : lldp holdtime <val> lldp med datum { wgs84 | nad83‐navd88 | nad83‐mllw } lldp med fast <v_1_to_10> lldp med location‐tlv altitude { meters | floors } <v_word11> lldp med location‐tlv civic‐addr { { country <country> } | { state | county | city | district | block | street | leading‐street‐direction | trailing‐street‐suffix | street‐suffix | house‐no | house‐no‐suffix | landmark | additional‐info | name | zip‐code | building | apartment | floor | room‐number | place‐type | postal‐community‐name | p‐o‐box | additional‐code } <v_line> } lldp med location‐tlv elin‐addr <v_word25> lldp med location‐tlv latitude { north | south } <v_word8> lldp med location‐tlv longitude { west | east } <v_word9> lldp med media‐vlan‐policy <policy_index> { voice | voice‐signaling | guest‐voice‐signaling | guest‐voice | softphone‐voice | video‐conferencing | streaming‐video | video‐signaling } { untagged | tagged <v_vlan_id> [ l2‐priority <v_0_to_7>] } [ dscp <v_0_to_63> ] lldp reinit <val> lldp timer <val> lldp transmission‐delay <val> Parameters: ...
Page 41 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: logging Description: Configure System logging messages. Syntax : logging host { <ipv4_addr> | <domain_name> } logging on logging port <port_no> Parameters: <domain_name> The domain name is to provide a mechanism for naming resources on the Internet. A complete domain name consists of one or more subdomain names separated by dots (.). <ipv4_ucast> The IPv4 address of the log server. <1‐65535> ...
Page 42 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: map‐api‐key Description: Set Google Map key string. This command lets you set up the Google Map API Key from https://console.developers.google.com/, so you can use the DMS Map View for enterprise applications. See Appendix B – How to Get the Google Map API Key for more information. Syntax : map‐api‐key <key_str> Parameters: map‐api‐key <word127> Example: SISPM1040‐582‐LRT(config)# map‐api‐key? map‐api‐key Set google map key string SISPM1040‐582‐LRT(config)# map‐api‐key ? <word127> SISPM1040‐582‐LRT(config)# map‐api‐key semiphore ? <cr> SISPM1040‐582‐LRT(config)# map‐api‐key semiphore SISPM1040‐582‐LRT(config)# Command: ...
Page 43 Transition Networks SISPM1040‐582‐LRT CLI Reference mep <inst> lm‐hli flr‐threshold <flr_th> interval <interval> mep <inst> lm‐notif los‐int‐cnt‐holddown <los_int_cnt_holddown> los‐th‐cnt‐holddown <los_th_cnt_holddown> hli‐cnt‐holddown <hli_cnt_holddown> mep <inst> lm‐sdeg tx‐min <tx_min> flr‐threshold <flr_th> bad‐threshold <bad_th> good‐threshold <good_th> mep <inst> lt <prio> { { mep‐id <mepid> } | { mac <mac> } } ttl <ttl> mep <inst> meg‐id <megid> { itu | itu‐cc | { ieee [ name <name> ] } } mep <inst> mep‐id <mepid> mep <inst> peer‐mep‐id <mepid> [ mac <mac> ] mep <inst> performance‐monitoring mep <inst> syslog mep <inst> tst <prio> [ dei ] mep‐id <mepid> [ sequence ] [ all‐zero | all‐one | one‐zero ] rate <rate> size <size> mep <inst> tst rx mep <inst> tst tx mep <inst> vid <vid> mep <inst> voe mep os‐tlv oui <oui> sub‐type <subtype> value <value> Parameters: <1‐100> The MEP instance number. os‐tlv ...
Page 44 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: mvr Description: Multicast VLAN Registration configuration. Syntax : name MVR multicast name vlan MVR multicast vlan <cr> channel MVR channel configuration frame MVR control frame in TX igmp‐address ...
Page 45 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: no Negate a command or set its defaults. Table : no Commands (Config mode). Command Function aaa Authentication, Authorization and Accounting ...
Page 46 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: no Negate a command or set its defaults. Table : no Commands (Exec mode). Command Function debug Debugging functions port‐security Port security (MAC limit) ...
Page 47 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ntp Description: Configure NTP server. Syntax : ntp server <index_var> ip‐address { <ipv4_var> | <ipv6_var> | <name_var> } Parameters: server Configure NTP server <cr> <1‐5> index number ip‐address ...
Page 48 Transition Networks SISPM1040‐582‐LRT CLI Reference class‐consumption Max. port power determined by class, and power is managed according to power consumption. class‐reserved‐power ...
Page 49 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ptp Description: Configure Precision Time Protocol (1588). Syntax : ptp <clockinst> clk sync <threshold> ap <ap> ptp <clockinst> domain <domain> ptp <clockinst> filter [ delay <delay> ] [ filter‐type { basic | ms‐pdv } ] [ period <period> ] [ dist <dist> ] ptp <clockinst> ho [ filter <ho_filter> ] [ adj‐threshold <adj_threshold> ] ptp <clockinst> log <debug_mode> ptp <clockinst> mode { boundary | e2etransparent | p2ptransparent | master | slave | bcfrontend } [ onestep | twostep ] [ ethernet | ethernet‐mixed | ip4multi | ip4mixed | ip4unicast | oam | onepps ] [ oneway | twoway ] [ id <v_clock_id> ][ vid <vid> [ <prio> ] [ tag ] ] [ mep <mep_id> ] [ profile { ieee1588 | g8265.1 | g8275.1 } ] [ clock‐domain 0 ] [ dscp <dscp_id> ] ptp <clockinst> priority1 <priority1> ptp <clockinst> priority2 <priority2> ptp <clockinst> servo ad <ad> ptp <clockinst> servo ai <ai> ptp <clockinst> servo ap <ap> ptp <clockinst> servo displaystates ptp <clockinst> servo phase‐mode ptp <clockinst> slave‐cfg [ stable‐offset <stable_offset> ] [ offset‐ok <offset_ok> ] [ offset‐fail <offset_fail> ] ptp <clockinst> time‐property [ utc‐offset <utc_offset> ] [ valid ] [ leap‐59 |leap‐61 ] [ time‐traceable ] [ freq‐traceable ] [ ptptimescale ] [ time‐source <time_source> ] ...
Page 50 Transition Networks SISPM1040‐582‐LRT CLI Reference QoS Table : configure – qos Commands Command Function map Global QoS Map/Table qce QoS Control Entry storm Storm policer Command: ...
Page 51 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: qce Description: Configure QoS Control Entry. Syntax : qos qce refresh qos qce { [ update ] } <qce_id> [ { next <qce_id_next> } | last ] [ interface (<port_type> [ <port_list> ] ) ] [ smac { <smac> | <smac_24> | any } ] [ dmac { <dmac> | unicast | multicast | broadcast | any } ] [ tag { [ type { untagged | tagged | c‐tagged | s‐tagged | any } ] [ vid { <ot_vid> | any } ] [ pcp { <ot_pcp> | any } ] [ dei { <ot_dei> | any } ] }*1 ] [ inner‐tag { [ type { untagged | tagged | c‐tagged | s‐tagged | any } ] [ vid { <it_vid> | any } ] [ pcp { <it_pcp> | any } ] [ dei { <it_dei> | any } ] }*1 ] [ frame‐type { any | { etype [ { <etype_type> | any } ] } | { llc [ dsap { <llc_dsap> | any } ] [ ssap { <llc_ssap>| any } ] [ control { <llc_control> | any } ] } | { snap [ { <snap_data> | any } ] } | { ipv4 [ proto { <pr4> | tcp | udp | any } ] [ sip { <sip4> | any } ] [ dip { <dip4> | any } ] [ dscp { <dscp4> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } | any } ] [ fragment { yes | no | any } ] [ sport { <sp4> | any } ] [ dport { <dp4> | any } ] } | { ipv6 [ proto { <pr6> | tcp | udp | any } ] [ sip { <sip6> | any } ] [ dip { <dip6> | any } ] [ dscp { <dscp6> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 |af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } | any } ] [ sport { <sp6> | any } ] [ dport { <dp6> | any } ] } } ] [ action { [ cos { <action_cos> | default } ] [ dpl { <action_dpl> | default } ] [ pcp‐dei { <action_pcp> <action_dei> | default } ] [ dscp { <action_dscp_dscp> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | ...
Page 52 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: storm Description: Configure QoS Storm policer. Syntax : qos storm { unicast | multicast | broadcast } <rate> [ fps | kfps | kbps | mbps] Parameters: broadcast Police broadcast frames multicast Police multicast frames unicast Police unicast frames Example: ...
Page 53 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: rapid‐ring / rapid‐chain Description: Configure Rapid Ring parameters. Note that STP must be disabled. Note that Rapid Ring and Rapid Chain can be configured via the front panel DIP switch (i.e., without using the Web UI or CLI). See the Install Guide for details. Syntax : rapid‐ring entry <entryindex> role disabled port1 <port_type> <rport1> port2 <port_type> <rport2> rapid‐ring entry <entryindex> role master port1 <port_type> <rport1> port2 <port_type> <rport2> rapid‐ring entry <entryindex> role member port1 <port_type> <rport1> port2 <port_type> <rport2> rapid‐ring entry <entryindex> role rapid‐chain port1 <port_type> <rport1> port2<port_type> <rport2> Parameters: <uint8> index disabled role value disabled master role value master ...
Page 54 Transition Networks SISPM1040‐582‐LRT CLI Reference SISPM1040‐582‐LRT(config)# $rapid‐chain port1 GigabitEthernet 1/5 port2 1/6 ? SISPM1040‐582‐LRT(config)# $1 GigabitEthernet 1/5 port2 GigabitEthernet ? <port_type_id> Port ID in 1/1‐10 SISPM1040‐582‐LRT(config)# $1 GigabitEthernet 1/5 port2 GigabitEthernet 1/6 ? <cr> SISPM1040‐582‐LRT(config)# $1 GigabitEthernet 1/5 port2 GigabitEthernet 1/6 SISPM1040‐582‐LRT(config)# do show rapid‐ring Entry Index : 1 Rapid Ring Role : Rapid‐Chain Rapid Ring Port 1 : 5 Rapid Ring Port 2 : 6 Rapid Ring Port 1 State : Discarding Rapid Ring Port 2 State : Discarding Entry Index : 2 Rapid Ring Role : Member Rapid Ring Port 1 : 3 Rapid Ring Port 2 : 4 Rapid Ring Port 1 State : Discarding Rapid Ring Port 2 State : Forwarding Ring‐to‐Ring Role : Active Ring‐to‐Ring Port : 5 Ring‐to‐Ring Port State : Discarding SISPM1040‐582‐LRT(config)# Command: ...
Page 55 Transition Networks SISPM1040‐582‐LRT CLI Reference Entry Index : 1 Rapid Ring Role : Rapid‐Chain Rapid Ring Port 1 : 5 Rapid Ring Port 2 : 6 Rapid Ring Port 1 State : Discarding Rapid Ring Port 2 State : Discarding Entry Index : 2 Rapid Ring Role : Member Rapid Ring Port 1 : 3 Rapid Ring Port 2 : 4 Rapid Ring Port 1 State : Discarding Rapid Ring Port 2 State : Forwarding Ring‐to‐Ring Role : Backup Ring‐to‐Ring Port : 8 Ring‐to‐Ring Port State : Discarding SISPM1040‐582‐LRT# Message: R_TO_R_ICLI_system_set error in port 4, same with rapid ring port Meaning: You configured a port as both a ring‐to‐ring port and as a rapid‐ring port. Recovery: Change either the ring‐to‐ring port or the rapid‐ring port. 33757 Rev. A https://www.transition.com Page 55 of 172 ...
Page 56 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: rmon Description: Configure Remote Monitoring. Note: rising threshold must be larger than falling threshold. Syntax : rmon alarm <id> { ifInOctets | ifInUcastPkts | ifInNUcastPkts | ifInDiscards | ifInErrors | ifInUnknownProtos | ifOutOctets | ifOutUcastPkts | ifOutNUcastPkts | ifOutDiscards | ifOutErrors } <ifIndex> <interval> { absolute | delta } rising‐threshold <rising_threshold> [ <rising_event_id> ] falling‐threshold <falling_threshold> [ <falling_event_id> ] { [ rising | falling | both ] } rmon event <id> [ log ] [ trap <community> ] { [ description <description> ] } Parameters: alarm Configure an RMON alarm event Configure an RMON event Example: SISPM1040‐582‐LRT(config)# $ng‐threshold 1 falling‐threshold 0 both ...
Page 57 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: smtp Description: Set email information. Syntax : smtp delete { server | username | sender | returnpath | mailaddress <index> } smtp mailaddress <index> <mail_addr_name> smtp returnpath <return_path> smtp sender <sender_name> smtp server <hostname> smtp username <username> <password> Parameters: delete Delete command mailaddress Configure email address returnpath Configure email returnpath sender Configure email sender server Configure email server ...
Page 58 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: community Description: Set the SNMP community. Syntax : snmp‐server community v2c <comm> [ ro | rw ] snmp‐server community v3 <v3_comm> [ <v_ipv4_addr> <v_ipv4_netmask> ] Parameters: v2c SNMPv2c v3 SNMPv3 Example: SISPM1040‐582‐LRT(config)# $r community v3 SCOMv3 192.168.1.80 255.255.255.0 SISPM1040‐582‐LRT(config)# SISPM1040‐582‐LRT(config)# snmp‐server community v2c text ...
Page 59 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: security‐to‐group Description: Set SNMP security‐to‐group configuration. Syntax : snmp‐server security‐to‐group model { v1 | v2c | v3 } name <security_name> group <group_name> Parameters: model security model v1 v1 security model v2c v2c security model v3 ...
Page 60 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: version Description: Set the SNMP server's version. Syntax : snmp‐server version { v1 | v2c | v3 } Parameters: v1 SNMPv1 v2c SNMPv2c v3 SNMPv3 Example: ...
Page 61 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: edge Description: Configure spanning‐tree edge ports Syntax : Parameters: spanning‐tree edge bpdu‐filter spanning‐tree edge bpdu‐guard Example: SISPM1040‐582‐LRT(config)# spanning‐tree edge bpdu‐filter SISPM1040‐582‐LRT(config)# spanning‐tree edge bpdu‐guard SISPM1040‐582‐LRT(config)# Command: mode Description: Configure Spanning tree mode Syntax : spanning‐tree mode { stp | rstp | mstp } Parameters: ...
Page 62 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: recovery Description: Configure Spanning tree recovery interval Syntax : spanning‐tree recovery interval <interval> Parameters: interval The interval <30‐86400> Range in seconds Example: SISPM1040‐582‐LRT(config)# spanning‐tree recovery interval 6000 SISPM1040‐582‐LRT(config) Command: transmit Description: Configure Spanning tree transmit hold‐count Syntax : hold‐count ...
Page 63 Transition Networks SISPM1040‐582‐LRT CLI Reference * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040‐582‐LRT(config)# $agement port‐name interface GigabitEthernet ? <port_type_list> Port list in 1/1‐10 SISPM1040‐582‐LRT(config)# $rt‐name interface GigabitEthernet 1/4‐6 ? <line47> Up to 47 characters describing this interface * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040‐582‐LRT(config)# $terface GigabitEthernet 1/4‐6 myintrfce ? <line47> Up to 47 characters describing this interface <cr> SISPM1040‐582‐LRT(config)# $terface GigabitEthernet 1/4‐6 myintrfce SISPM1040‐582‐LRT(config)# switch2go‐management port‐role ? interface Select an interface to configure SISPM1040‐582‐LRT(config)# switch2go‐management port‐role interface ? * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040‐582‐LRT(config)# $rt‐role interface GigabitEthernet 1/3‐4 ? * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port client Client Port Role server Server Port Role <cr> SISPM1040‐582‐LRT(config)# $rt‐role interface GigabitEthernet 1/3‐4 server SISPM1040‐582‐LRT(config)# switch2go‐management server ? <word47> Switch2go Management IP address or host name SISPM1040‐582‐LRT(config)# switch2go‐management server 192.168.1.50 ...
Page 64 Transition Networks SISPM1040‐582‐LRT CLI Reference <word47> Switch2go Management IP address or host name SISPM1040‐582‐LRT(config)# switch2go‐management server 192.168.1.30 ? <cr> SISPM1040‐582‐LRT(config)# switch2go‐management server 192.168.1.30 SISPM1040‐582‐LRT(config)# switch2go‐management port? port‐name Interface specific description port‐role Configure Port Role SISPM1040‐582‐LRT(config)# switch2go‐management port‐name ? interface Select an interface to configure SISPM1040‐582‐LRT(config)# switch2go‐management port‐name interface ? * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040‐582‐LRT(config)# $agement port‐name interface GigabitEthernet ? <port_type_list> Port list in 1/1‐10 SISPM1040‐582‐LRT(config)# $agement port‐name interface GigabitEthernet 1/2 % Incomplete command. SISPM1040‐582‐LRT(config)# $port‐name interface GigabitEthernet 1/2 ? <line47> Up to 47 characters describing this interface * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040‐582‐LRT(config)# $port‐name interface GigabitEthernet 1/2 sams ? <line47> Up to 47 characters describing this interface <cr> SISPM1040‐582‐LRT(config)# $port‐name interface GigabitEthernet 1/2 sams SISPM1040‐582‐LRT(config)# switch2go‐management ? delete Delete Mobile in List ...
Page 65 Transition Networks SISPM1040‐582‐LRT CLI Reference Show switch2go management Example 1: SISPM1040‐582‐LRT# show switch2go‐management ? mobile‐link Show Registered Mobile Device List options Show Port Name Service configuration setting Show Switch2go Management configuration SISPM1040‐582‐LRT# show switch2go‐management mobile‐link Server Time Out ! SISPM1040‐582‐LRT# show switch2go‐management options Port Port Name Role 1 Client 2 two Server 3 three Client 4 four Client 5 Client 6 Client 7 Client 8 Client 9 Client 10 Client SISPM1040‐582‐LRT# show switch2go‐management setting Switch2go Mode : enabled Server Address : ipush.cloudapp.net Server State : Successful connection to the server. SISPM1040‐582‐LRT# ...
Page 66 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: switchport Description: Set switching mode characteristics. Syntax : switchport vlan mapping <gid> <vlan_list> <tvid> Parameters: vlan VLAN mapping Add VLAN translation entry into a group. <1‐10> Group id <vlan_list> <vlan_id> <cr> Example: SISPM1040‐582‐LRT(config)# switchport vlan mapping 1 100‐300 10 ...
Page 67 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: tacacs‐server Description: Configure TACACS+ server. Syntax : tacacs‐server deadtime <minutes> tacacs‐server host <host_name> [ port <port> ] [ timeout <seconds> ] [ key <key> ] tacacs‐server key <key> tacacs‐server timeout <seconds> Parameters: deadtime Time to stop using a TACACS+ server that doesn't respond host Specify a TACACS+ server key ...
Page 68 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: upnp Description: Set UPnP configuration. Syntax : upnp upnp advertising‐duration <v_66_to_86400> upnp ttl <v_1_to_255> Parameters: upnp Set UPnP configuration <cr> Example: SISPM1040‐582‐LRT(config)# upnp advertising‐duration 500 SISPM1040‐582‐LRT(config)# upnp ttl 45 SISPM1040‐582‐LRT(config)# Command: username ...
Page 69 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: voice vlan Description: VLAN for voice traffic / Voice appliance attributes. Syntax : voice vlan voice vlan aging‐time <aging_time> voice vlan class { <traffic_class> | low | normal | medium | high } voice vlan oui <oui> [ description <description> ] voice vlan vid <vid> Parameters: aging‐time Set secure learning aging time class Set traffic class oui OUI configuration vid Set VLAN ID ...
Page 70: Copy Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 5. Copy Commands Command: copy Description: Copy from source to destination. Syntax : copy { startup‐config | running‐config | <source_path> } { startup‐config | running‐config | <destination_path> } [ syntax‐check ] [ { merge | replace } ] Parameters: <url_file> File in FLASH or on TFTP server. Syntax: <flash:filename |tftp://server/path‐and‐filename>. A valid file name is a text string drawn from alphabet (A‐Za‐z), digits (0‐9), dot (.), hyphen (‐), under score(_). The maximum length is 63 and hyphen must not be first character. The file name content that only contains '.' is not allowed. running‐config Currently running configuration startup‐config Startup configuration. | Output modifiers. ...
Page 71: Delete Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 6. Delete Commands Command: delete Description: Delete one file in flash: file system. Syntax : delete <path> Parameters: <url_file> File in FLASH. Syntax: <flash:filename>. A valid file name is a text string drawn from alphabet (A‐Za‐z), digits (0‐9), dot (.), hyphen (‐), under score(_). The maximum length is 63 and hyphen must not be first character. The file name content that only contains '.' is not allowed. Example: SISPM1040‐582‐LRT# delete text SISPM1040‐582‐LRT# Message: % Invalid word detected at '^' marker. 7. Dir Commands Command: ...
Page 72: Disable Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 8. Disable Commands Command: disable Description: Turn off privileged commands. Syntax : disable [ <new_priv> ] Parameters: <0‐15> <cr> Example: SISPM1040‐582‐LRT# disable 1 SISPM1040‐582‐LRT> 9. Do Commands Command: ...
Page 73: Dot1X Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 10. Dot1x Commands Command: dot1x Description: IEEE Standard for port‐based Network Access Control. Syntax : authentication A uthentication feature G lobally enables/disables a dot1x feature functionality. guest‐vlan Guest VLAN. max‐reauth‐req ...
Page 74: Enable Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 11. Enable Commands Command: enable Description: Turn on privileged commands. Syntax : enable password [ level <priv> ] <password> enable secret { 0 | 5 } [ level <priv> ] <password> Parameters: password Assign the privileged level clear password secret Assign the privileged level secret Example: SISPM1040‐582‐LRT(config)# enable password ? ...
Page 75: Erps Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 12. ERPS Commands 12.1 ERPS Config Mode Commands Command: erps Description: Configure Ethernet Ring Protection Switching. Syntax : erps <group> guard <guard_time_ms> erps <group> holdoff <holdoff_time_ms> erps <group> major port0 interface <port_type> <port0> port1 interface <port_type> <port1> [ interconnect ] erps <group> mep port0 sf <p0_sf> aps <p0_aps> port1 sf <p1_sf> aps <p1_aps> erps <group> revertive <wtr_time_minutes> erps <group> rpl { owner | neighbor } { port0 | port1 } erps <group> sub port0 interface <port_type> <port0> { { port1 interface <port_type> <port1> } | { interconnect <major_ring_id> } } [ virtual‐channel ] erps <group> topology‐change propagate erps <group> version { 1 | 2 } erps <group> vlan { none | [ add | remove ] <vlans> } Parameters: 1‐64 ERPS group number ...
Page 76: Erps Exec Mode Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference interface Ethernet interface SISPM1040‐582‐LRT(config)# erps 7 major port0 interface ? GigabitEthernet 1 Gigabit Ethernet Port SISPM1040‐582‐LRT(config)# $rps 7 major port0 interface GigabitEthernet ? <port_type_id> Port ID in 1/1‐10 SISPM1040‐582‐LRT(config)# $rps 7 major port0 interface GigabitEthernet 1/6 ? port1 ERPS Port 1 interface SISPM1040‐582‐LRT(config)# $r port0 interface GigabitEthernet 1/6 port1 ? interface Ethernet interface SISPM1040‐582‐LRT(config)# $thernet 1/6 port1 interface GigabitEthernet 1/7 ? interconnect Major ring is interconnected <cr> SISPM1040‐582‐LRT(config)# $ interface GigabitEthernet 1/7 interconnect ? <cr> SISPM1040‐582‐LRT(config)# $ interface GigabitEthernet 1/7 interconnect SISPM1040‐582‐LRT(config)# manual Manual command 12.2 ERPS Exec Mode Commands Command: erps ...
Page 77: Firmware Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 13. Firmware Commands Command: firmware Description: Firmware upgrade/swap Syntax : firmware swap firmware upgrade <url_file> Parameters: swap Swap between Active and Alternate firmware image. upgrade Firmware upgrade. <url_file> Uniform Resource Locator. It is a specific character string that constitutes a reference to a resource. ...
Page 78: Ipv6 Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 15. IPv6 Commands IPv6 configuration commands Command: ipv6 Description: IPv6 configuration commands Syntax : ipv6 dhcp‐client restart [ interface vlan <v_vlan_list> ] Parameters: Example: SISPM1040‐582‐LRT# ipv6? ipv6 dhcp‐client restart [ interface vlan <v_vlan_list> ] SISPM1040‐582‐LRT# ipv6 dhcp‐client ? restart Restart DHCPv6 client service SISPM1040‐582‐LRT# ipv6 dhcp‐client restart ? interface Select an interface to configure <cr> SISPM1040‐582‐LRT# ipv6 dhcp‐client restart interface ? vlan VLAN of IPv6 interface SISPM1040‐582‐LRT# ipv6 dhcp‐client restart interface ? ipv6 dhcp‐client restart [ interface vlan <v_vlan_list> ] SISPM1040‐582‐LRT# ipv6 dhcp‐client restart interface ? ...
Page 79: Link Oam Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 16. Link OAM Commands Command: link‐oam Description: Link OAM configuration commands. Syntax : link‐oam remote‐loopback { start | stop } interface ( <port_type> [ <v_port_type_list> ] ) Parameters: remote‐loopback start Start remote loopback test on interface. stop Stop remote loopback test on interface. ...
Page 80: No Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 17. No Commands Exec Mode no Commands debug Debugging functions port‐security Port security (MAC limit) ptp Misc non persistent 1588 settings. ...
Page 81 Transition Networks SISPM1040‐582‐LRT CLI Reference Config Mode no Commands aaa Authentication, Authorization and Accounting access Access management ...
Page 82: Ping Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 18. Ping Commands Command: ping Description: Send ICMP echo messages. Syntax : ping ip { <v_ip_addr> | <v_ip_name> } [ repeat <count> ] [ size <size> ] [ interval <seconds> ] ping ipv6 { <v_ipv6_addr> | <v_ipv6_name> } [ repeat <count> ] [ size <size> ] [ interval <seconds> ] [ interface vlan <v_vlan_id> ] Parameters: ip IP (ICMP) echo ipv6 IPv6 (ICMPv6) echo ...
Page 83: Platform Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 19. Platform Commands Command: platform Description: Platform configuration commands. Allow or deny debug commands. WARNING: The use of 'debug' commands may negatively impact system behavior. Do not enable unless instructed to. (Use 'platform debug deny' to disable debug commands.) Syntax : platform debug allow platform debug deny Parameters: deny Deny debug commands allow Allow debug commands <cr> Example: ...
Page 84: Debug Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 20. Debug Commands WARNING: The use of 'debug' commands may negatively impact system behavior. Do not enable unless instructed to. Note: 'debug' command syntax, semantics and behavior are subject to change without notice. See the 'platform debug deny' and 'platform debug allow commands in the previous chapter. Command Function aaa Authentication, Authorization and Accounting acl Access list ...
Page 85 Transition Networks SISPM1040‐582‐LRT CLI Reference ptp Precision time Protocol (1588) pvlan Private VLAN ...
Page 86 Transition Networks SISPM1040‐582‐LRT CLI Reference Config Mode Debug Commands WARNING: The use of 'debug' commands may negatively impact system behavior. Do not enable unless instructed to. See 'platform debug deny' and 'platform debug allow commands in the previous chapter. enable Enable mac MAC table entries/configuration ...
Page 87: Ptp Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 21. PTP Commands Command: ptp Description: Miscellaneous non‐persistent 1588 settings. Note that there are also config mode ptp commands available. Syntax : ptp <clockinst> local‐clock { update | ratio <ratio> } ptp <clockinst> wireless delay <base_delay> [ <incr_delay> ] interface ( <port_type> [ <v_port_type_list> ] ) ptp <clockinst> wireless mode interface ( <port_type> [ <v_port_type_list> ] ) ptp <clockinst> wireless pre‐notification interface ( <port_type> [ <v_port_type_list> ] ) Parameters: <0‐3> PTP Clock instance [0‐3]. local‐clock Update local clock current time, or set clock ratio. ...
Page 88: Reload Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 22. Reload Commands Command: reload Description: Reload system. Syntax : reload { { { cold | warm } [ sid <usid> ] } | { defaults [ keep‐ip ] } } Parameters: cold Reload cold. defaults Reload defaults without rebooting. warm ...
Page 89: Show Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 24. Show Commands Command Function aaa Authentication, Authorization and Accounting methods ...
Page 90 Transition Networks SISPM1040‐582‐LRT CLI Reference switchport Display switching mode characteristics system system ...
Page 91 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: access Description: Show Access Management statistics Syntax : show access Parameters: <1~16> ID of access management entry | Output modifiers statistics ...
Page 92 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: aggregation Description: Show Aggregation port configuration. Syntax : show aggregation mode Parameters: Example: SISPM1040‐582‐LRT# show aggregation mode Aggregation Mode: SMAC : Enabled DMAC : Disabled IP : Enabled Port : Enabled SISPM1040‐582‐LRT# Command: clock Description: Show Clock parameters. ...
Page 93 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: dot1x Description: Show IEEE Standard for port‐based Network Access Control. Syntax : Parameters: statistics Shows statistics for either eapol or radius. status Shows dot1x status, such as admin state, port state and last source. all Show all dot1x statistics ...
Page 94 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: eps Description: Show Ethernet Protection Switching. Syntax : show eps [ <inst> ] [ detail ] Parameters: | Output modifiers <range_list> The range of EPS instances. detail Show detailed state including configuration information. <cr> ...
Page 95 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: evc Description: Show Ethernet Virtual Connections . Syntax : show evc statistics { [ <evc_id> | all ] } [ ece [ <ece_id> ] ] [ interface ( <port_type> [ <port_list> ] ) ] [ pw <pw_num_list> ] [ cos <cos> ] [ green | yellow | red | discard ] [ frames | bytes ] show evc { [ <evc_id> | all ] } [ ece [ <ece_id> ] ] Parameters: | Output modifiers <1‐256> EVC identifier all ...
Page 96 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: event Description: Show trap event configurations. Syntax : show event <cr> show event port <cr> Parameters: show event show event port Example: SISPM1040‐582‐LRT# show event Group Name Severity Level Syslog Mode Trap Mode SMTP Mode Digital Out ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐ ACL Info enable disable disable N/A ACL‐Log ...
Page 97 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: show green‐ethernet Description: Show Green Ethernet (Power reduction). Syntax : show green‐ethernet [ interface ( <port_type> [ <port_list> ] ) ] show green‐ethernet eee [ interface ( <port_type> [ <port_list> ] ) ] show green‐ethernet energy‐detect [ interface ( <port_type> [ <port_list> ] ) ] Parameters: | Output modifiers eee ...
Page 98 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: interface Description: Show Interface status and configuration. Syntax : show interface ( <port_type> [ <in_port_list> ] ) switchport [ access | trunk |hybrid ] show interface ( <port_type> [ <v_port_type_list> ] ) CableDiag show interface ( <port_type> [ <v_port_type_list> ] ) capabilities [ detail ] show interface ( <port_type> [ <v_port_type_list> ] ) description show interface ( <port_type> [ <v_port_type_list> ] ) statistics [ { packets | bytes | errors | discards | filtered | { priority [ <priority_v_0_to_7> ] } } ] [ { up | down } ] show interface ( <port_type> [ <v_port_type_list> ] ) status show interface vlan [ <vlist> ] Parameters: interface Interface status and configuration * All switches or All ports GigabitEthernet ...
Page 99 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ip Description: Show Internet Protocol config. Syntax : show ip arp show ip arp inspection [ interface ( <port_type> [ <in_port_type_list> ] ) | vlan <in_vlan_list> ] show ip arp inspection entry [ dhcp‐snooping | static ] [ interface ( <port_type> [ <in_port_type_list> ] ) ] show ip dhcp detailed statistics { server | client | snooping | relay | normal‐forward | combined } [ interface ( <port_type> [ <in_port_list> ] ) ] show ip dhcp excluded‐address show ip dhcp pool [ <pool_name> ] show ip dhcp relay [ statistics ] show ip dhcp server show ip dhcp server binding <ip> show ip dhcp server binding [ state { allocated | committed | expired } ] [ type show ip dhcp server binding [ state { allocated | committed | expired } ] [ type show ip dhcp server declined‐ip show ip dhcp server declined‐ip <declined_ip> show ip dhcp server statistics show ip dhcp snooping [ interface ( <port_type> [ <in_port_list> ] ) ] show ip dhcp snooping table show ip domain show ip http ...
Page 100 Transition Networks SISPM1040‐582‐LRT CLI Reference Example: SISPM1040‐582‐LRT# show ip interface brief Vlan Address Method Status ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐ 1 192.168.1.77/24 Manual UP SISPM1040‐582‐LRT# show ip verify source IP Source Guard Mode : disabled Port Port Mode Dynamic Entry Limit ‐‐‐‐ ‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ GigabitEthernet 1/1 disabled unlimited GigabitEthernet 1/2 disabled unlimited GigabitEthernet 1/3 disabled unlimited GigabitEthernet 1/4 disabled unlimited GigabitEthernet 1/5 disabled unlimited GigabitEthernet 1/6 disabled unlimited GigabitEthernet 1/7 disabled unlimited GigabitEthernet 1/8 disabled unlimited GigabitEthernet 1/9 disabled unlimited GigabitEthernet 1/10 disabled unlimited SISPM1040‐582‐LRT# Command: ipmc Description: ...
Page 101 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ipv6 Description: Show IPv6 configuration commands. Syntax : show ipv6 dhcp‐client [ interface vlan <v_vlan_list> ] show ipv6 interface [ vlan <v_vlan_list> { brief | statistics } ] show ipv6 mld snooping [ vlan <v_vlan_list> ] [ group‐database [ interface ( <port_type> [ <v_port_type_list> ] ) ] [ sfm‐information ] ] [ detail ] show ipv6 mld snooping mrouter [ detail ] show ipv6 neighbor [ interface vlan <v_vlan_list> ] show ipv6 route [ interface vlan <v_vlan_list> ] show ipv6 statistics [ system ] [ interface vlan <v_vlan_list> ] [ icmp ] [ icmp‐msg <type> ] Parameters: dhcp‐client Manage DHCPv6 client service interface Select an interface to configure mld ...
Page 102 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: line Description: Show TTY line information. Syntax : show line [ alive ] Parameters: | Output modifiers alive Display information about alive lines <cr> Example: SISPM1040‐582‐LRT# show line alive ...
Page 103 Transition Networks SISPM1040‐582‐LRT CLI Reference MIB retrieval support: disabled ‐‐‐‐‐‐‐ MTU Size: 1500 ‐‐‐‐‐‐‐ Multiplexer state: Forwarding ‐‐‐‐‐‐‐ Parser state: Forwarding ‐‐‐‐‐‐‐ OUI: 00‐c0‐f2 ‐‐‐‐‐‐‐ PDU revision: 0 ‐‐‐‐‐‐‐ ‐‐ more ‐‐, next page: Space, continue: g, quit: ^C Command: lldp Description: Display LLDP neighbors information. Syntax : show lldp [ interface ( <port_type> [ <v_port_type_list> ] ) ] show lldp eee [ interface ( <port_type> [ <v_port_type_list> ] ) ] show lldp med media‐vlan‐policy [ <v_0_to_31> ] show lldp med remote‐device [ interface ( <port_type> [ <port_list> ] ) ] show lldp neighbors [ interface ( <port_type> [ <v_port_type_list> ] ) ] show lldp statistics [ interface ( <port_type> [ <v_port_type_list> ] ) ] Parameters: | Output modifiers ...
Page 104 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: logging Description: Show System logging messages. Syntax : show logging <log_id> [ switch <switch_list> ] show logging [ info ] [ warning ] [ error ] [ emerg ] [ alert ] [ crit ] [ notice ] [ debug ] [ switch <switch_list> ] Parameters: <1‐4294967295> Logging ID | Output modifiers alert Severity 1: Action must be taken immediately ...
Page 105 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: loop‐protect Description: Show Loop protection configuration. Syntax : show loop‐protect [ interface ( <port_type> [ <plist> ] ) ] Parameters: * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list in 1/1‐10 Example: ...
Page 106 Transition Networks SISPM1040‐582‐LRT CLI Reference Static 1 00:c0:f2:49:38:ff CPU Static 1 33:33:00:00:00:01 GigabitEthernet 1/1‐10 CPU Static 1 33:33:00:00:00:02 GigabitEthernet 1/1‐10 CPU Static 1 33:33:ff:49:38:ff GigabitEthernet 1/1‐10 CPU Static 1 ff:ff:ff:ff:ff:ff GigabitEthernet 1/1‐10 CPU SISPM1040‐582‐LRT# show mac address‐table aging‐time MAC Age Time: 50000 SISPM1040‐582‐LRT# Command: map‐api‐key Description: Show Google Map key configuration. Syntax : show map‐api‐key Parameters: <cr> Example: ...
Page 107 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: mep Description: Show Maintenance Entity Point configuration. Syntax : show mep [ <inst> ] [ peer | cc | lm | dm | lt | lb | tst | aps | client | ais | lck | pm | syslog | tlv | bfd | rt | lst | lm‐avail ] [ lm‐hli ] [ detail ] Parameters: <range_list> The range of MEP instances ...
Page 108 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: monitor Description: Show Monitoring of different system events. Syntax : show monitor [ session { <session_number> | all | remote } ] Parameters: Example: SISPM1040‐582‐LRT# show monitor Session 1 ‐‐‐‐‐‐‐‐‐ Mode : Disabled Type : Mirror Source VLAN(s) : CPU Port : SISPM1040‐582‐LRT# Command: mvr Description: ...
Page 109 Transition Networks SISPM1040‐582‐LRT CLI Reference RX MLD Query:0 V1Report:0 V2Report:0 V1Done:0 TX MLD Query:0 / (Source) Specific Query:0 Interface Channel Profile: <No Associated Profile> MLD MVR VLAN 20 (Name is not set) interface is enabled. Querier status is IDLE RX MLD Query:0 V1Report:0 V2Report:0 V1Done:0 TX MLD Query:0 / (Source) Specific Query:0 Interface Channel Profile: <No Associated Profile> SISPM1040‐582‐LRT# Command: ntp Description: Show NTP status. Syntax : show ntp status Parameters: Example: SISPM1040‐582‐LRT# show ntp status NTP Mode : enabled Idx Server IP host address (a.b.c.d) or a host name string ...
Page 110 Transition Networks SISPM1040‐582‐LRT CLI Reference 9 Default 1G PD ‐ ‐ ,No 10 Default 1G PD ‐ ‐ ,No SISPM1040‐582‐LRT# SISPM1040‐582‐LRT# show platform debug Platform debug command function is allowed. SISPM1040‐582‐LRT# Command: poe Description: Show Power Over Ethernet config. Syntax : show poe config [ interface ( <port_type> [ <v_port_type_list> ] ) ] show poe power‐delay [ interface ( <port_type> [ <v_port_type_list> ] ) ] show poe profile [ id <has_id> ] show poe reboot show poe status [ interface ( <port_type> [ <v_port_type_list> ] ) ] show poe { auto‐check | auto‐power‐reset } [ interface ( <port_type> [ <v_port_type_list> ] ) ] Parameters: auto‐power‐reset Show PoE Auto Power Reset configuration. ...
Page 111 Transition Networks SISPM1040‐582‐LRT CLI Reference 60 1.6 35 Low GigabitEthernet 1/5 ‐ No PD detected 0 0 0.0 0 Low GigabitEthernet 1/6 ‐ No PD detected 0 0 0.0 0 Low GigabitEthernet 1/7 1 PoE turned ON 60 60 1.6 36 Low GigabitEthernet 1/8 ‐ No PD detected 0 0 0.0 0 Low Total Power Request : 120.0 [W] Total Power Alloctaed : 120.0 [W] Total Power Used : 3.2 [W] Total Current Used : 71 [mA] Capacitor Detection : No Command: port‐security Description: Show Port Security status. Port Security is a module with no direct configuration. Syntax : show port‐security port [ interface ( <port_type> [ <v_port_type_list> ] ) ] show port‐security switch [ interface ( <port_type> [ <v_port_type_list> ] ) ] Parameters: port Show MAC Addresses learned by Port Security switch ...
Page 112 Transition Networks SISPM1040‐582‐LRT CLI Reference GigabitEthernet 1/6 ‐‐‐ No users 0 GigabitEthernet 1/7 ‐‐‐ No users 0 GigabitEthernet 1/8 ‐‐‐ No users 0 GigabitEthernet 1/9 ‐‐‐ No users 0 GigabitEthernet 1/10 ‐‐‐ No users 0 SISPM1040‐582‐LRT# Command: privilege Description: Display command privilege levels. Syntax : show privilege <cr> Parameters: Example: SISPM1040‐582‐LRT# show privilege? privilege Display command privilege <cr> SISPM1040‐582‐LRT# show privilege SISPM1040‐582‐LRT# ...
Page 113 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: ptp Description: Show Precision time Protocol (1588). Syntax : show ptp <clockinst> local‐clock show ptp <clockinst> slave‐cfg show ptp <clockinst> slave‐table‐unicast show ptp <clockinst> { default | current | parent | time‐property | filter | servo | servo‐extended | clk | ho | uni | master‐table‐unicast | slave | { { port‐state | port‐ds | wireless | foreign‐master‐record } [ interface ( <port_type> [<v_port_type_list> ] ) ] } } show ptp ext show ptp system‐time Parameters: <0‐3> Show various PTP data for an instance. ext ...
Page 114 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: pvlan Description: Show PVLAN configuration. Syntax : show pvlan [ <pvlan_list> ] show pvlan isolation [ interface ( <port_type> [ <plist> ] ) ] Parameters: <range_list> PVLAN ID to show configuration for the specified range. isolation Show isolation configuration. <cr> ...
Page 115 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: qos Description: Show Quality of Service config. Syntax : show qos [ { interface [ ( <port_type> [ <port> ] ) ] } | wred | { maps [ dscp‐cos ] [ dscp‐ingress‐translation ] [ dscp‐classify ] [ cos‐dscp ] [ dscp‐egress‐translation ] } | storm | { qce [ <qce> ] } ] Parameters: | Output modifiers interface Interface maps ...
Page 116 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: rapid‐ring Description: Show Rapid Ring configuration. Syntax : show rapid‐ring <cr> Parameters: Example: SISPM1040‐582‐LRT# show rapid‐ring Entry Index : 1 Rapid Ring Role : Master Rapid Ring Port 1 : 1 Rapid Ring Port 2 : 2 Rapid Ring Port 1 State : Forwarding Rapid Ring Port 2 State : Discarding Entry Index : 2 Rapid Ring Role : Member Rapid Ring Port 1 : 3 Rapid Ring Port 2 : 4 Rapid Ring Port 1 State : Discarding Rapid Ring Port 2 State : Forwarding ...
Page 117 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: running‐config Description: Show running system information. Syntax : show running‐config [ all‐defaults ] show running‐config feature <feature_name> [ all‐defaults ] show running‐config interface ( <port_type> [ <list> ] ) [ all‐defaults ] show running‐config interface vlan <list> [ all‐defaults ] show running‐config line { console | vty } <list> [ all‐defaults ] show running‐config vlan { [ <vlan_list> ] } [ all‐defaults ] Parameters: | Output modifiers all‐defaults Include most/all default values feature Show configuration for specific feature interface ...
Page 118 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: sflow Description: Display Statistics flow. Syntax : show sflow show sflow statistics { receiver [ <rcvr_idx_list> ] | samplers [ interface [ <samplers_list> ] ( <port_type> [ <v_port_type_list> ] ) ] } Parameters: | Output modifiers statistics sFlow statistics. <cr> Example: SISPM1040‐582‐LRT# show sflow Agent Configuration: ...
Page 119 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: snmp Description: Display SNMP configuration. Syntax : show snmp show snmp access [ <group_name> { v1 | v2c | v3 | any } { auth | noauth | priv } ] show snmp community v3 [ <community> ] show snmp host [ <conf_name> ] [ system ] [ switch ] [ interface ] [ aaa ] show snmp mib context show snmp mib ifmib ifIndex show snmp security‐to‐group [ { v1 | v2c | v3 } <security_name> ] show snmp user [ <username> <engineID> ] show snmp view [ <view_name> <oid_subtree> ] Parameters: | Output modifiers access ...
Page 120 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: spanning‐tree Description: Show STP Bridge information. Syntax : show spanning‐tree [ summary | active | { interface ( <port_type> [ <v_port_type_list> ] ) } | { detailed [ interface ( <port_type> [ <v_port_type_list_1> ] ) ] } | { mst [ configuration | { <instance> [ interface ( <port_type> [ <v_port_type_list_2> ] ) ] } ] } ] Parameters: | Output modifiers active STP active interfaces detailed ...
Page 121 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: system Description: Show system Syntax : show system show system cpu status show system di‐do show system reboot Parameters: cpu CPU load. CPU load is a measure of the amount of computational work that a computer system performs. The load average represents the average system load over a period of time. It conventionally appears in the form of three numbers which represent the system load during the last one‐, five‐, and ...
Page 122 Transition Networks SISPM1040‐582‐LRT CLI Reference Tuesday ‐ ‐ Wednesday ‐ ‐ Thursday ‐ ‐ Friday ‐ ‐ Saturday ‐ ‐ Sunday ‐ ‐ SISPM1040‐582‐LRT# Command: tacacs‐server Description: Show TACACS+ configuration. Syntax : show tacacs‐server <cr> Parameters: Example: SISPM1040‐582‐LRT# show tacacs‐server Global TACACS+ Server Timeout : 5 seconds Global TACACS+ Server Deadtime : 0 minutes Global TACACS+ Server Key : ...
Page 123 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: udld Description: Show Unidirectional Link Detection(UDLD) configurations, statistics and status. Syntax : show udld [ interface ( <port_type> [ <plist> ] ) ] Parameters: | Output modifiers interface Choose port <cr> Example: SISPM1040‐582‐LRT# show udld GigabitEthernet 1/1 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ UDLD Mode : Disable Admin State : Disable Message Time Interval(Sec): 7 Device ID(local) : 00‐C0‐F2‐49‐38‐FF ...
Page 124 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: user‐privilege Description: Display Users privilege configuration. Syntax : show user‐privilege <cr> Parameters: Example: SISPM1040‐582‐LRT# show user‐privilege username admin privilege 15 password encrypted YWRtaW4= SISPM1040‐582‐LRT# Command: users Description: Display information about terminal lines. Syntax : show users [ myself ] Parameters: Example: ...
Page 125 Transition Networks SISPM1040‐582‐LRT CLI Reference System Time : 2018‐07‐25T19:46:09+00:00 System Uptime : 8d 19:46:47 Active Image ‐‐‐‐‐‐‐‐‐‐‐‐ Image : (managed) Version : SISPM1040‐582‐LRT (standalone) v7.10.1445 Date : 2018‐06‐21T14:21:49+08:00 Alternate Image ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Image : (managed.bk) Version : SISPM1040‐582‐LRT (standalone) v7.10.1376 Date : 2018‐03‐09T17:00:04+08:00 SISPM1040‐582‐LRT# Command: vlan Description: Show VLAN status. Syntax : show vlan [ id <vlan_list> | name <name> | brief ] [ all ] ...
Page 126 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: voice Description: Show Voice appliance attributes. Syntax : show voice vlan [ oui <oui> | interface ( <port_type> [ <port_list> ] ) ] Parameters: | Output modifiers interface Select an interface to configure oui ...
Page 127 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: web Description: Show Web privilege levels. Syntax : show web privilege group [ <group_name> ] level Parameters: <cword> ...
Page 128: Terminal Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 25. Terminal Commands Command: terminal Description: Set terminal line parameters. Syntax : terminal editing terminal exec‐timeout <min> [ <sec> ] terminal help terminal history size <history_size> terminal length <lines> terminal width <width> Parameters: editing Enable command line editing exec‐timeout ...
Page 129: Configure Interface Commands
Transition Networks SISPM1040‐582‐LRT CLI Reference 27. Configure Interface Commands These commands let you configure a specific interface and are not documented elsewhere in this manual. Command Function description Configures port description. duplex Interface duplex. excessive‐restart Restart backoff algorithm after 16 collisions . flowcontrol ...
Page 130 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: flowcontrol Description: Enable or disable Traffic flow control for an interface. Syntax : flowcontrol { on | off } Parameters: off Disable flow control. on Enable flow control. Example: SISPM1040‐582‐LRT(config‐if)# flowcontrol on SISPM1040‐582‐LRT(config‐if)# ...
Page 131 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: mtu Description: Configure Maximum Transmission Unit (frame size) for an interface. Syntax : mtu <max_length> Parameters: 1518‐9600 Maximum frame size in bytes. Example: SISPM1040‐582‐LRT(config‐if)# mtu? mtu Maximum transmission unit SISPM1040‐582‐LRT(config‐if)# mtu ? 1518‐9600 Maximum frame size in bytes. SISPM1040‐582‐LRT(config‐if)# mtu? mtu Maximum transmission unit SISPM1040‐582‐LRT(config‐if)# mtu? mtu <max_length> SISPM1040‐582‐LRT(config‐if)# mtu 9600 ...
Page 132: Configure And Show Port Events For An Interface
Trap Example: SISPM1040‐582‐LRT(config‐if)# event ? SISPM1040‐582‐LRT(config‐if)# event? event Configure port event settings SISPM1040‐582‐LRT(config‐if)# event? SISPM1040‐582‐LRT(config‐if)# Show Port Events Example: SISPM1040-582-LRT# show event port Port Active LinkOn LinkOff Overload RxThreshold TrafficDuration Syslog Trap SMTP Switch2go DigitalOut Severity ---- ------- ------- ------- -------- -----------...
Page 133: Configure Qos Commands For An Interface
Transition Networks SISPM1040‐582‐LRT CLI Reference 27.2 Configure QoS Commands for an Interface Command: qos Description: Configure Quality of Service for a specific interface. Syntax : qos cos <cos> qos dei <dei> qos dpl <dpl> qos dscp‐classify { zero | selected | any } qos dscp‐remark { rewrite | remap | remap‐dp } qos dscp‐translate qos map cos‐tag cos <cos> dpl <dpl> pcp <pcp> dei <dei> qos map tag‐cos pcp <pcp> dei <dei> cos <cos> dpl <dpl> qos pcp <pcp> qos policer <rate> [ kbps | mbps | fps | kfps ] [ flowcontrol ] qos qce { [ addr { source | destination } ] [ key { double‐tag | normal | ip‐addr | mac‐ip‐addr } ] }*1 qos queue‐policer queue <queue> <rate> [ kbps | mbps ] ...
Page 134 Transition Networks SISPM1040‐582‐LRT CLI Reference SISPM1040‐582‐LRT(config‐if)# qos wrr 100 90 80 70 60 50 SISPM1040‐582‐LRT(config‐if)# 33757 Rev. A https://www.transition.com Page 134 of 172 ...
Page 135: Cli Command Summary
Transition Networks SISPM1040‐582‐LRT CLI Reference 28. CLI Command Summary This chapter describes CLI privilege levels and command modes. The privilege level determines whether a user can run each particular command. To run the particular command, you must be in the correct command. 28.1 Privilege Levels Every command has a privilege level (0‐15). Users can run a command if the session’s privilege level is greater than or equal to the command’s privilege level. The session’s privilege level initially comes from the login account’s privilege level, though it is possible to change the session’s privilege level after logging in. Privilege Level Types of Commands 0 Display basic system information. 13 ...
Page 136 Transition Networks SISPM1040‐582‐LRT CLI Reference mirror. The access-list interface configuration will affect the received frames if it doesn't match any ACE. access-list logging Use the access-list logging interface configuration command to enable INTERFACE_PORT_LIST access-list logging.
Page 137 Transition Networks SISPM1040‐582‐LRT CLI Reference {<ipv4_subnet>|any}] [sport {<0-65535> [to <0-65535>]|any}] [dport {<0-65535> [to <0-65535>]|any}] [ip-flag [ip-ttl {<0-1>|any}] [ip-options {<0-1>|any}] [ip-fragment {<0-1>|any}]]| ipv4-tcp [sip {<ipv4_subnet>|any}] [dip {<ipv4_subnet>|any}] [sport {<0-65535> [to <0-65535>]|any}] [dport {<0-65535> [to <0-65535>]|any}] [ip-flag [ip-ttl {<0-1>|any}] [ip-options {<0-1>|any}] [ip-fragment {<0-1>|any}]] [tcp-flag [tcp-fin...
Page 138 Transition Networks SISPM1040‐582‐LRT CLI Reference ip arp inspection vlan <vlan_list> Use the ip arp inspection global configuration command to globally GLOBAL_CONFIG enable ARP inspection. Use the no form of this command to globally disable ARP inspection.
Page 139 Transition Networks SISPM1040‐582‐LRT CLI Reference tacacs-server timeout <1-1000> Use the tacacs-server timeout command to configure the global GLOBAL_CONFIG TACACS+ timeout value. no tacacs-server timeout Use the no tacacs-server timeout command to reset the global GLOBAL_CONFIG TACACS+ timeout value to default.
Page 140 Transition Networks SISPM1040‐582‐LRT CLI Reference the statistics maintained by IP DHCP realy. show ip dhcp relay [ statistics ] Use the show ip dhcp relay user EXEC command without keywords to EXEC display the DHCP relay configuration, or use the statistics keyword to display statistics.
Page 141 Transition Networks SISPM1040‐582‐LRT CLI Reference domain-name <word128> DHCP_POOL no domain-name DHCP_POOL dns-server <ipv4_ucast> [<ipv4_ucast> DHCP_POOL [<ipv4_ucast> [<ipv4_ucast>]]] no dns-server DHCP_POOL ntp-server <ipv4_ucast> [<ipv4_ucast> DHCP_POOL [<ipv4_ucast> [<ipv4_ucast>]]] no ntp-server DHCP_POOL netbios-name-server <ipv4_ucast> DHCP_POOL [<ipv4_ucast>...
Page 142 Transition Networks SISPM1040‐582‐LRT CLI Reference ip name-server { <ipv4_ucast> | dhcp Set the DNS server for resolving domain names GLOBAL_CONFIG [ interface vlan <vlan_id> ] } no ip name-server Stop resolving domain names by accessing DNS server GLOBAL_CONFIG show ip name-server Display the active domain name server information...
Page 143 Transition Networks SISPM1040‐582‐LRT CLI Reference show running-config line { console | vty } EXEC <range_list> [ all-defaults ] copy { startup-config | running-config | EXEC <word> } { startup-config | running-config | <word>...
Page 144 Transition Networks SISPM1040‐582‐LRT CLI Reference ip igmp snooping query-interval INTERFACE_VLAN <1-31744> no ip igmp snooping query-interval INTERFACE_VLAN ip igmp snooping INTERFACE_VLAN query-max-response-time <0-31744> no ip igmp snooping INTERFACE_VLAN query-max-response-time ip igmp snooping INTERFACE_VLAN last-member-query-interval <0-31744>...
Page 145 Transition Networks SISPM1040‐582‐LRT CLI Reference ipv6 mld snooping INTERFACE_VLAN query-max-response-time <0-31744> no ipv6 mld snooping INTERFACE_VLAN query-max-response-time ipv6 mld snooping INTERFACE_VLAN last-member-query-interval <0-31744> no ipv6 mld snooping INTERFACE_VLAN last-member-query-interval ipv6 mld snooping INTERFACE_VLAN unsolicited-report-interval <0-31744>...
Page 146 Transition Networks SISPM1040‐582‐LRT CLI Reference no lldp transmission-delay GLOBAL_CONFIG lldp cdp-aware Configures if the interface shall be CDP aware (CDP discovery INTERFACE_PORT_LIST information is added to the LLDP neighbor table) show lldp med remote-device [ interface Show LLDP-MED neighbor device information.
Page 147 Transition Networks SISPM1040‐582‐LRT CLI Reference loop-protect transmit-time <1-10> Loop protection transmit time interval GLOBAL_CONFIG no loop-protect transmit-time GLOBAL_CONFIG loop-protect shutdown-time <0-604800> Loop protection shutdown time interval GLOBAL_CONFIG no loop-protect shutdown-time GLOBAL_CONFIG loop-protect Loop protection configuration INTERFACE_PORT_LIST...
Page 148 Transition Networks SISPM1040‐582‐LRT CLI Reference spanning-tree mst max-age <6-40> GLOBAL_CONFIG [ forward-time <4-30> ] no spanning-tree mst max-age GLOBAL_CONFIG spanning-tree mst forward-time <4-30> GLOBAL_CONFIG no spanning-tree mst forward-time GLOBAL_CONFIG spanning-tree edge bpdu-filter GLOBAL_CONFIG spanning-tree edge bpdu-guard GLOBAL_CONFIG...
Page 149 Transition Networks SISPM1040‐582‐LRT CLI Reference clear mvr [ vlan <vlan_list> | name EXEC <word16> ] statistics show mvr [ vlan <vlan_list> | name EXEC <word16> ] [ group-database [ interface <port_type_list> ] [ sfm-information ] ] [ detail ] GLOBAL_CONFIG mvr vlan <vlan_list>...
Page 150 Transition Networks SISPM1040‐582‐LRT CLI Reference dot1x re-authenticate Refresh (restart) 802.1X authentication process. INTERFACE_PORT_LIST dot1x initialize [ interface <port_type_list> ] Force re-authentication immediately EXEC dot1x system-auth-control Set the global NAS state GLOBAL_CONFIG dot1x port-control { force-authorized | Sets the port security state.
Page 151 Transition Networks SISPM1040‐582‐LRT CLI Reference poe delay-mode <range_list> Configure PoE Power Delay mode. GLOBAL_CONFIG no poe delay-mode <range_list> GLOBAL_CONFIG poe delay-time <range_list> <0-300> Configure PoE Power Delay time. GLOBAL_CONFIG poe hour <0-23> This command is used to set hour time per week to enable PoE.
Page 152 Transition Networks SISPM1040‐582‐LRT CLI Reference port-security Enable/disable port security globally. GLOBAL_CONFIG port-security aging Enable/disable port security aging. GLOBAL_CONFIG port-security aging time <10-10000000> Time in seconds between check for activity on learned MAC addresses. GLOBAL_CONFIG no port-security aging time GLOBAL_CONFIG...
Page 153 Transition Networks SISPM1040‐582‐LRT CLI Reference any } ] }*1 ] [ frame-type { any | { etype [ { <0x600-0x7ff,0x801-0x86dc,0x86de-0xf fff> | any } ] } | { llc [ dsap { <0-0xff> | any } ] [ ssap { <0-0xff>...
Page 154 Transition Networks SISPM1040‐582‐LRT CLI Reference no qos dscp-classify INTERFACE_PORT_LIST qos dscp-remark { rewrite | remap | INTERFACE_PORT_LIST remap-dp } no qos dscp-remark INTERFACE_PORT_LIST qos storm { unicast | broadcast | INTERFACE_PORT_LIST unknown } <100-13200000>...
Page 155 Transition Networks SISPM1040‐582‐LRT CLI Reference <1-65535> no sflow collector-port [receiver Collector UDP port. Valid range is 0-65536. GLOBAL_CONFIG <range_list>] sflow max-datagram-size [receiver Maximum datagram size. GLOBAL_CONFIG <range_list>] <200-1468> no sflow max-datagram-size [receiver Maximum datagram size.
Page 156 Transition Networks SISPM1040‐582‐LRT CLI Reference v2c | v3 } name <word32> group <word32> no snmp-server security-to-group model GLOBAL_CONFIG { v1 | v2c | v3 } name <word32> snmp-server access <word32> model { v1 GLOBAL_CONFIG | v2c | v3 | any } level { auth | noauth | priv } [ read <word255>...
Page 157 Transition Networks SISPM1040‐582‐LRT CLI Reference network-clock clk-source <range_list> Nominate a clk input to become a selectable clock source. GLOBAL_CONFIG nominate { clk-in | {interface <port_type_id>} } no network-clock clk-source <range_list> GLOBAL_CONFIG nominate network-clock input-source { 1544khz | Sets the station clock input frequency...
Page 158 Transition Networks SISPM1040‐582‐LRT CLI Reference show clock Show running system information EXEC show version System hardware and software status EXEC password unencrypted <line31> Use the password encrypted <password> global configuration command GLOBAL_CONFIG to configure administrator password with unencrypted password for the local switch access.
Page 159 Transition Networks SISPM1040‐582‐LRT CLI Reference switchport vlan ip-subnet id <1-128> INTERFACE_PORT_LIST <ipv4_subnet> vlan <vlan_id> no switchport vlan ip-subnet id <1~128> INTERFACE_PORT_LIST switchport mode {access | trunk | hybrid} Use the switchport mode command to define the type of the port. INTERFACE_PORT_LIST no switchport mode INTERFACE_PORT_LIST...
Page 160 Transition Networks SISPM1040‐582‐LRT CLI Reference voice vlan aging-time <10-10000000> Use the voice vlan aging-time global configuration command to configure GLOBAL_CONFIG default voice vlan aging-time. no voice vlan aging-time Use the no voice vlan aging-time global configuration command to GLOBAL_CONFIG restore the default voice vlan aging-time.
Page 161: Service, Warranty, And Tech Support
Transition Networks Tech Support Specialist. 1. Select the SISPM1040-582-LRT Configuration > System > Information menu path. From the CLI, use the show commands to gather the information below or as requested by the TN Support Specialist.
Page 162: Limited Lifetime Warranty
Transition Networks SISPM1040‐582‐LRT CLI Reference 29.2 Limited Lifetime Warranty To return a defective product for warranty coverage, contact Transition Networks’ technical support department for a return authorization number. 29.3 Contact Us Technical Support Technical support is available 24‐hours a day US and Canada: 1‐800‐260‐1312 International: 00‐1‐952‐941‐7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com Address ...
Page 163: Appendix A. Dhcp Per Port
Transition Networks SISPM1040‐582‐LRT CLI Reference Appendix A. DHCP Per Port You can configure DHCP Per Port via the CLI and Web UI. The DHCP Per Port factory default mode is Disabled. See the SISPM1040‐582‐LRT Web User Guide for web UI mode operation. The switch’s DHCP server assigns IP addresses. Clients get IP addresses in sequence and the switch assigns IP addresses to on a per‐port basis starting from the configured IP range. For example, if the IP address range is configured as 192.168.10.20 ‐ 192.168.10.37 with one DHCP device connected to port 1, the client will always get IP address 192.168.10.20, then port 3 is always distributed IP address 192.168.10.22, even if port 2 is an empty port (because port 2 is always distributed IP address 192.168.10.21). The switch does not allow a DHCP per Port pool to include the switch’s address. IP address assigned range and VLAN 1 should stay in the same subnet mask. The configurable IP address range is allowed to configure over 18 IP addresses, but the switch always assigns one IP address per port connecting device. The DHCP Per Port function is only supported on VLAN 1. When the DHCP Per Port function is enabled, the switch software will automatically create the related DHCP pool named “DHCP_Per _Port”. Once the DHCP Per Port function is enabled on one switch, IPv4 DHCP client at VLAN1 mode (DMS DHCP mode), DHCP server mode are all limited to be enabled at the same time (an error message displays if attempted). If the DHCP server pool has been configured, once you enable the DHCP Per port function that DHCP server pool configuration will be overwritten. Only for VLAN 1, clients issued DHCP packets will not be broadcast/forwarded to other ports. DHCP packets in others VLANs will be broadcast/forwarded to others ports. ...
Page 164 Transition Networks SISPM1040‐582‐LRT CLI Reference The CLI commands to configure and show DHCP Per Port are described below. Command: Show the current DHCP Server and DHCP Per Port configuration Syntax: show ip dhcp server <cr> Description: Show if DHCP server is globally enabled or disabled, if all VLANs are disabled or enabled, and if the DHCP server Per Port function is disabled or enabled. Example: Display the current DHCP Server and Per Port configuration, change the config, and display the results: SISPM1040‐582‐LRT(config)# do show ip dhcp server DHCP server is globally enabled. Enabled VLANs are 1. DHCP server per port is disabled. SISPM1040‐582‐LRT(config)# ip dhcp server per‐port SISPM1040‐582‐LRT(config)# do show ip dhcp server ...
Page 165 Transition Networks SISPM1040‐582‐LRT CLI Reference Command: Configure the DHCP Per Port function Syntax: ip dhcp server per‐port <cr> Description: Toggle the DHCP Per Port function from Disabled (default) to Enabled. Example: Toggle the DHCP Per Port function and show the resulting config: SISPM1040‐582‐LRT# show ip dhcp server DHCP server is globally disabled. All VLANs are disabled. SISPM1040‐582‐LRT# con ter SISPM1040‐582‐LRT(config)# ip dhcp ? excluded‐address Prevent DHCP from assigning certain addresses pool Configure DHCP address pools relay DHCP relay agent configuration server Enable DHCP server snooping DHCP snooping SISPM1040‐582‐LRT(config)# ip dhcp server ? <cr> SISPM1040‐582‐LRT(config)# ip dhcp server SISPM1040‐582‐LRT(config)# end SISPM1040‐582‐LRT# show ip dhcp server ...
Page 166: Appendix B. How To Get The Google Map Api Key
Transition Networks SISPM1040‐582‐LRT CLI Reference Appendix B. How to Get the Google Map API Key To use the Google Maps Embed API, you must register your app project on the Google API Console and get a Google API key which you can add to your app or website. If loading over 25,000 maps loaded per day over the network, an administrator can request a new key from https://console.developers.google.com/ then apply the new key at the page for displaying the map view completely. Google APIs is a set of application programming interfaces (APIs) developed by Google which allow communication with Google Services and their integration to other services. Examples of these include Search, Gmail, Translate or Google Maps. Third‐party apps can use these APIs to take advantage of or extend the functionality of the existing services. Usage of some of the APIs requires authentication and authorization using the OAuth 2.0 protocol. OAuth 2.0 is a simple protocol. To start, it is necessary to obtain credentials from the Developers Console. Then the client app can request an access token from the Google Authorization Server, and uses that token for authorization when accessing a Google API service. From Wikipedia. 1: Run your Web browser and access the web address https://console.developers.google.com/. 2: Sign in to your Google account, or click more option to create a new one. 3: Click “Create a project” before enable the API. 4: Click “set up” for a new project. 33757 Rev. A https://www.transition.com Page 166 of 172 ...
Page 167 Transition Networks SISPM1040‐582‐LRT CLI Reference 5: Specify your Project name then Click “set up”. 6: Click “database” to API library. 33757 Rev. A https://www.transition.com Page 167 of 172 ...
Page 168 Transition Networks SISPM1040‐582‐LRT CLI Reference 7: Click “Google Maps JavaScript API” 8: Click “ENABLED” for Google Maps JavaScript API. 9. On the Dashboard click the Disable” icon. 33757 Rev. A https://www.transition.com Page 168 of 172 ...
Page 169 Transition Networks SISPM1040‐582‐LRT CLI Reference 10: Click “Credentials”, this is necessary step to have a voucher before using API. 11: Select “Google Maps JavaScript API(certificate page), then click “What documents do I need?”. 12: Click “carry out” to add the voucher in the project. 33757 Rev. A https://www.transition.com Page 169 of 172 ...
Page 170 Transition Networks SISPM1040‐582‐LRT CLI Reference 13: This procedure is successfully completed when the Google Map API Key displays as shown below in the certificate tab. For More Information The Information home page has Use rate, pricing‐and‐plans and more support from APIs at https://console.developers.google.com/apis/api/maps‐backend.googleapis.com/quotas?project=balmy‐cab‐1860 07&duration=P30D Use rate: https://developers.google.com/maps/premium/usage‐limits Pricing‐and‐plans: https://developers.google.com/maps/pricing‐and‐plans/#details 33757 Rev. A https://www.transition.com Page 170 of 172 ...
Page 171: Appendix C. Service, Warranty & Tech Support
Transition Networks SISPM1040‐582‐LRT CLI Reference Appendix C. Service, Warranty & Tech Support See the SISPM1040‐582‐LRT Install Guide for related information. Appendix D. Compliance Information See the SISPM1040‐582‐LRT Install Guide for related information. 33757 Rev. A https://www.transition.com Page 171 of 172 ...
Page 172 Transition Networks SISPM1040‐582‐LRT CLI Reference Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com Copyright© 2018 Transition Networks. All rights reserved. Printed in the U.S.A. SISPM1040‐582‐LRT CLI Reference, 33757 Rev. A 33757 Rev. A https://www.transition.com Page 172 of 172 ...
