Chute System Installation
Front Panel
1. Open the door of the equipment;
2. Insert the chute base through the chute hole of the cabinet;
3. Insert the large waste chute into the chute base;
4. Install the front panel onto the chute by aligning the prongs to the left of the catch and clip onto the
left side of the brewer assembly.

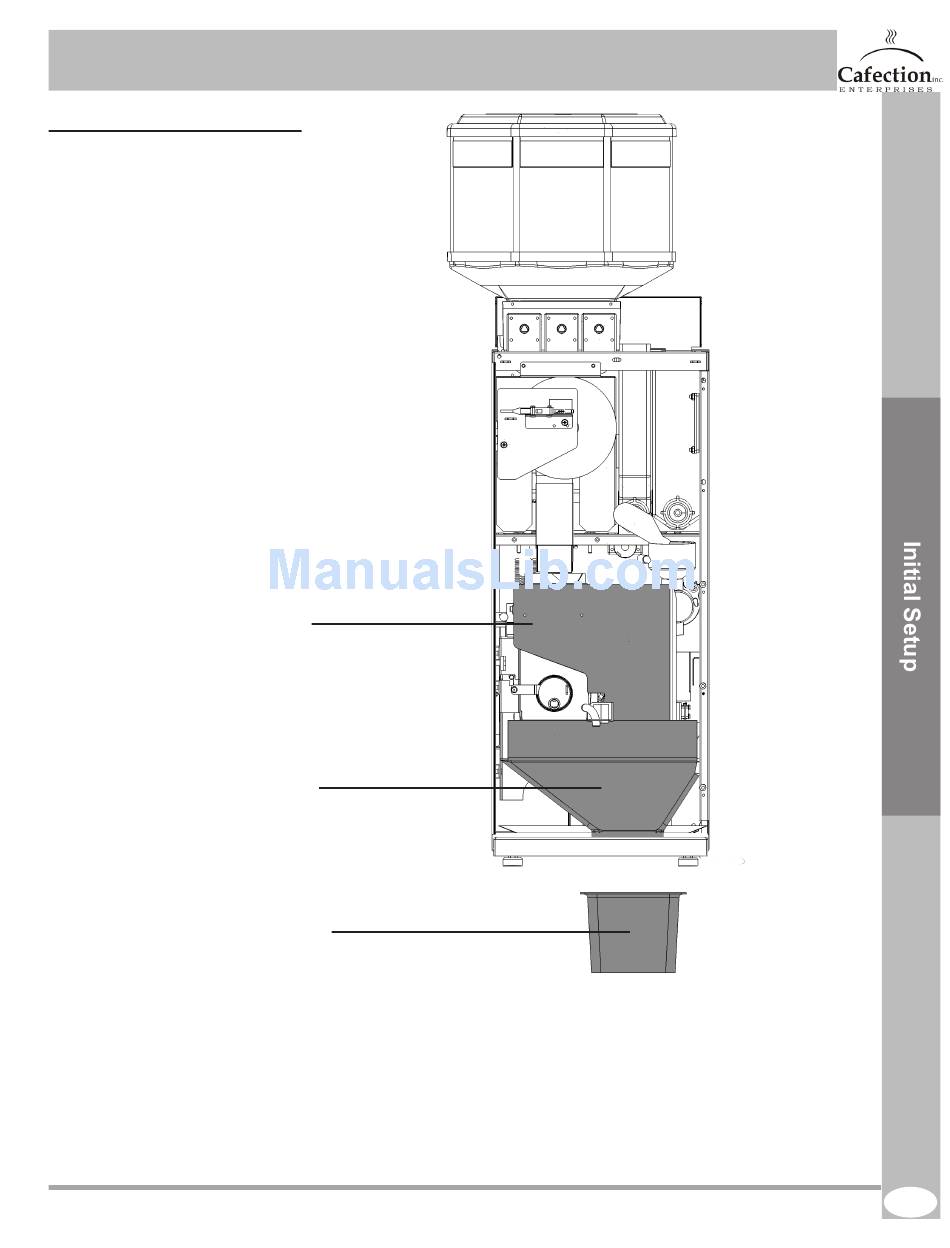

TOTAL LITE Revision 1
Waste
Chute
Chute Base
TOTAL LITE
Single-Cup Brewer
