7.1.1 Clearances

Unit
Height: 39 3/4"
Width: 131/2''
Depth: 23''

7.1.2 Specifications

Canisters Capacities
Whole bean hopper 1: 4 lbs
Whole bean hopper 2: 2 lbs
Whole bean hopper 3: 4 lbs
Water Tank
Capacity:
Water valves:
Heating element:
Chute

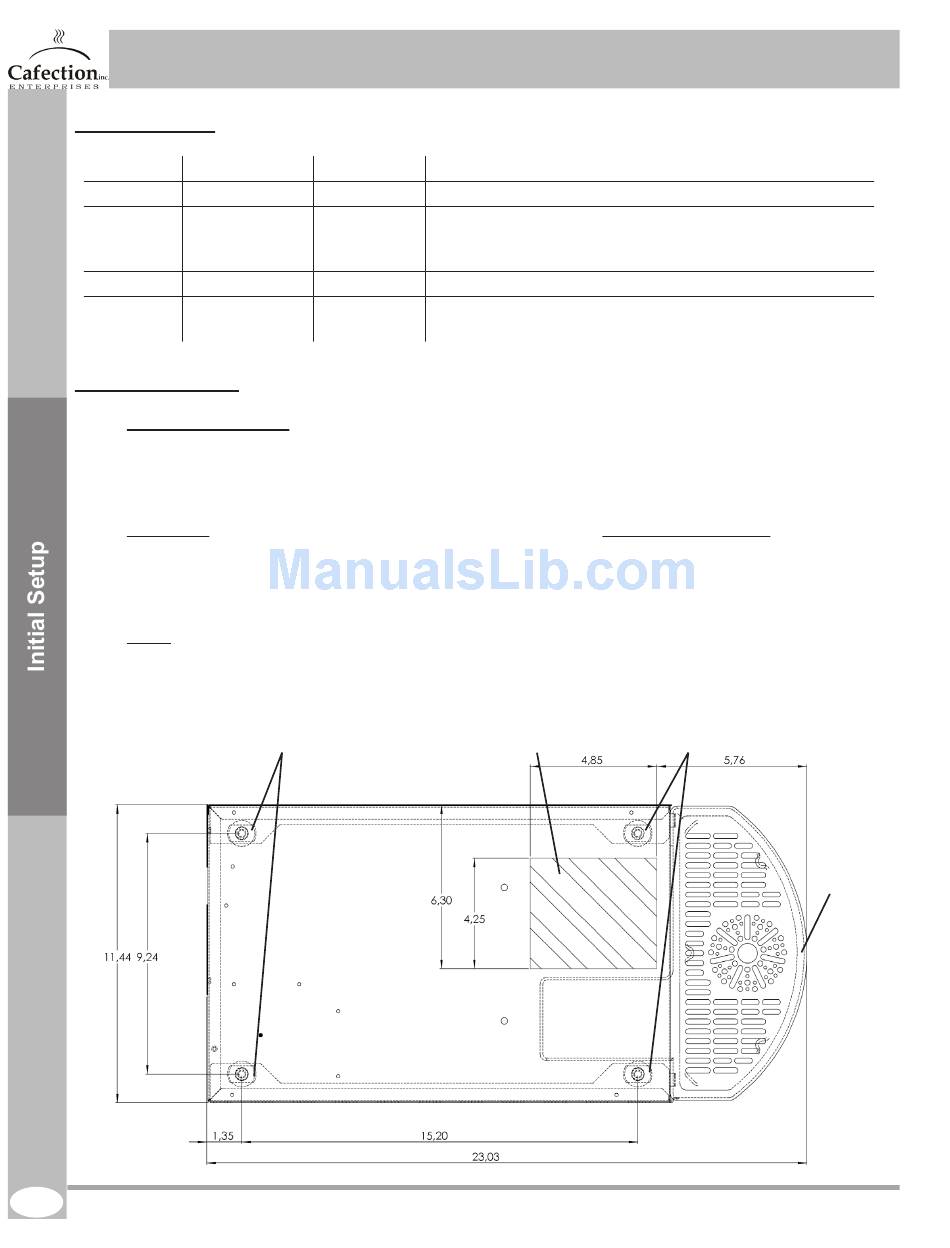

TOP VIEW
36
Clearances
13 1/4"
6"
11 1/2"
6"
Soluble hot chocolate: 2.50 lbs
Soluble powdered milk : 0.70 lbs
0.8 gallon us (3.0 l)
1 simple valve ; 1 double valve
1250 watts
Levellers position
TOTAL LITE
Allowance for:
Open the top of themachine.
Per side. Key access on one side and door swing on the
other.You need 12'' clearance to open the coin acceptor
(optional)
Front when the door is open.
Clearance of water hookup, hoses, water filtration system
and adequate air circulation.
Hole for the chute
Single-Cup Brewer
Electrical requirements
115 VAC
15 A circuit
60 Hz
Levellers position
TOTAL LITE Revision 1
Drip tray
