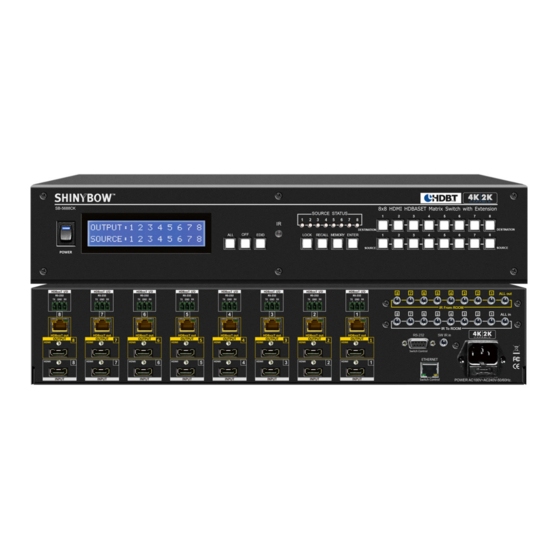

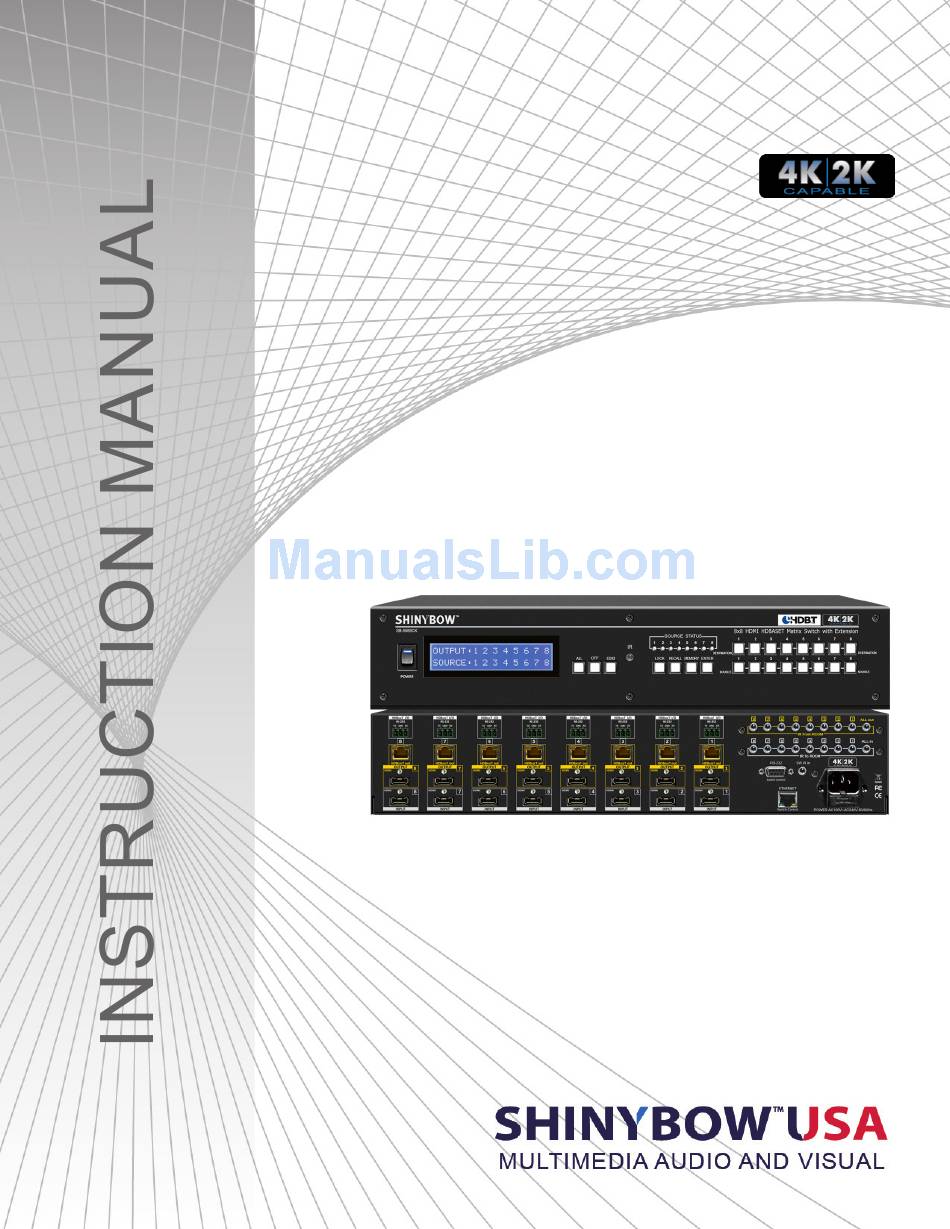

- Page 1 SB-5688CK 8x HDMI Inputs / 8x HDMI & 8x HDBaseT™ Outputs - UHD 4K2K Matrix Routing Switch w/ EDID Management/Learning...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI over HDBaseT™ Matrix Switcher Series Thank you for purchasing the SB-5688CK HDMI-HDBaseT™ Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 HDMI-HDBaseT™ Matrix switcher. -
Page 4: Introduction
The SB-5688CK is professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs. Output supported (8) HDMI and (8) HDBaseT™. The SB-5688CK is based on the HDBaseT™ standard and supports full HDMI Video resolution with embedded EDID and PoH function (optional), Audio, RS-232, Ethernet and bi-directional IR, all over a single CATx cable. With a signal bandwidth of 340Mhz, there is no signal degradation. -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (8) Inputs to (8) Outputs HDMI over HDBaseT™ Matrix Switch with Single CATx • HDMI Support: HDMI 4K2K, 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDBaseT™ Support: Bi-directional IR, RS-232, Multi Format Audio, Ethernet and optional PoH (via the SB-5688CAP), over one CATx cable. -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL-EDID FRONT PANEL-EDID 12. FUNCTION KEY - EDID (1): Used to display change current EDID mode. - Press EDID to select new EDID mode or select - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel operation.
- Page 8 FRONT PANEL-ALL-OFF-LOCK-ENTER FRONT PANEL-ALL-OFF-LOCK-ENTER 13. FUNCTION KEY - ALL: Disables (mute) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.
- Page 9 FRONT PANEL-RECALL-MEMORY FRONT PANEL-RECALL-MEMORY 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
- Page 10 BACK PANEL-SWITCH CONTROLS BACK PANEL-SWITCH CONTROLS 1. DC POWER INLET: Power Socket : The Switcher is fitted with a AC power plug Connector Type : IEC 60320 C13 input connector. Ensure that the used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
- Page 11 BACK PANEL-HDMI INPUT / OUTPUT BACK PANEL-HDMI INPUT / OUTPUT 5. INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: HDMI Connector: HDMI Type A SMD 19pin Female Connect an HDMI signal source socket connector. to this Input. This HDMI port supports HDMI with embedded Note: With the proper adapters, the switcher audio and DVI with AUX audio sources.
- Page 12 BACK PANEL-HDBASET™ CONTROLS BACK PANEL-HDBASET™ CONTROLS 9. HDBaseT™ RS-232 - 1,2,3,4,5,6,7 & 8 CONNECTION: Remote Port : Terminal Block-3pin Female socket (8) RS-232 control port to allow for interfacing to a PC. Controls I/O via Switcher HDBaseT™ Transmitter (8) Rooms each via this Terminal Block- 3pin Female socket for serial RS-232 control.
- Page 13 BACK PANEL-HDBASET™ I/O BACK PANEL-HDBASET™ I/O 15. OUTPUT - 1,2,3,4,5,6,7 & 8 HDBaseT™ (Transmitter): HDBaseT™ Transmitter Connector: 8x RJ-45 Jack 8P8C Female socket. send (8) HDMI and control signals via Switcher (8) HDBaseT™ Transmitters to link (8) external HDBaseT™ Receiver. Switcher Link LED : used (8) HDBaseT™...
-
Page 14: Remote Control
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 15: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 09F6 POWER ON : 09F6 A15E MEMORY : 09F6 B44B POWER OFF : 09F6 A25D LOCK : 09F6 B54A ALL : 09F6 B04F EDID : 09F6 B748... - Page 16 ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 09F6 IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE: SOURCE #1 : 09F6 11EE SOURCE #1 : 09F6 21DE SOURCE #1 : 09F6 31CE SOURCE #2 : 09F6 12ED...
-
Page 17: Edid Functions
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3. -
Page 18: Edid Function
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID function for HDMI Matrix Switcher Mode 1. FSS (Fast Speed Start) Fast Speed Start mode shortens the startup time of the switcher. Selecting this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start. - Page 19 EDID FUNCTION LEARNING EDID Learning EDID from Destination to Source EDID > DESTINATION Learning EDID Setup Press Button: The LCM will be show LEARNING. Switcher will LEARN destination HDMI EDID and pass the selected source. Key Press Sequence: EDID > DESTINATION > SOURCE > ENTER Learning EDID setup for HDMI: Key Press Sequence: EDID >...
- Page 20 EDID FUNCTION How to setup FSS Function Fast speed start Step 1. Press the Destinations #1 ~ 8 button row To setup and Install all devices. Then Press the Source #1~8 button row Step 2. Press EDID button Select a optimum status of Embedded EDID mode. Step 3.
- Page 21 EDID FUNCTION MULTIPLE LEARNING MODE-2 The MULTIPLE LEARNING MODE-2 feature is part of a firmware update released after JUNE 2014. If you do not see the MULTIPLE EARNING MODE-2 feature then you do not have the latest firmware. You should contact your place of purchase for availability of a firmware update.
-
Page 22: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Samples connection : Using IR External, RS-232 or Ethernet command to control Switcher SB-5688CK via PC or SB-100 IR receiver transmit the SB-5688CK’s IR signal. NOTE: 1. Switcher IR External port : Use SB-100 IR signal Receiver. -
Page 23: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using SB-5688CAP HDBaseT™ Transmitter and one HDBaseT™ Receiver (SB-6320R) to control a projector via RS- 232 or IR signals. NOTE: 1. IR Control Projector Over HDBaseT™ Extender: SB-5688CAP HDBaseT™ Transmitter / SB-6320R HDBaseT™ Receiver 2. - Page 24 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection Using SB-5688CK with IR Transmitters (SB-101) via HDBaseT™ Receiver (SB-6335R) to control a IR signal from Satellite Receiver. NOTE: 1. IR Control Satellite Receiver Over HDBaseT™ Extender via CATx (6/6a/7) cable: HDBaseT™ Transmitter : SB-5688CK Application HDBaseT™...
-
Page 25: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SW-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 26 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
-
Page 27: Ethernet Serial Interface
ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP... - Page 28 HDBaseT™ Matrix Switcher using HDBaseT™ Receiver (Sold separately). HDBaseT™ Receiver: SB-6333R Distance:Max.100M INPUTS: • 1x HDBaseT™ in • 1x IR in (Send IR signal to SB-5688CK TX) OUTPUTS: • 1x HDMI out • 1x HDMI • 1X IR out (IR signal from SB-5688CK Transmitter) CONTROLS: •...
-
Page 29: Hdbaset™ Application
HDBASET™ APPLICATION RACKMOUNT (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No.: #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000... - Page 30 HDBASET™ APPLICATION APPLICATION Optional 19 inch Rack Mount Bracket for SB-6335T and/or SB-6335R: Complete 19 inch 4U rack mount of SB-6069 Install Application: SB-6335T/R SB-6069 (optional) SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No.: #4U-10p-M130MM-COV SB-6335T/R 4U Ear mount pairs...
-
Page 31: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
