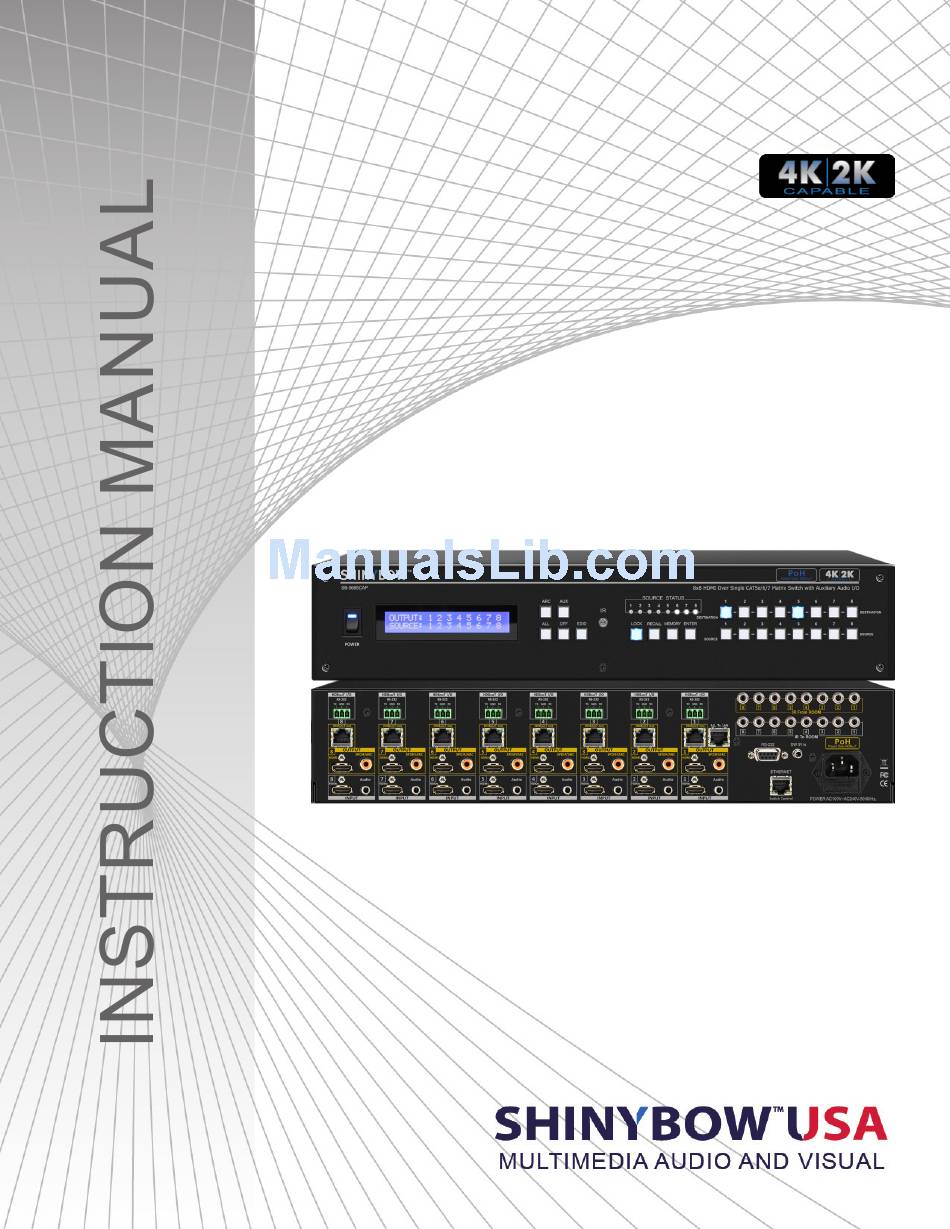

Shinybow USA SB-5688CK Instruction Manual

8x hdmi inputs / 8x hdmi and 8x hdbaset outputs - uhd 4k2k matrix routing switch
Hide thumbs Also See for SB-5688CK:

Advertisement

Quick Links

SB-5688CK
8x HDMI Inputs / 8x HDMI & 8x HDBaseT
Outputs - UHD 4K2K Matrix
Routing Switch w/ EDID Management/Learning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5688CK and is the answer not in the manual?

Questions and answers

Summary of Contents for Shinybow USA SB-5688CK

  • Page 1 SB-5688CK 8x HDMI Inputs / 8x HDMI & 8x HDBaseT Outputs - UHD 4K2K Matrix ™ Routing Switch w/ EDID Management/Learning...
  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
  • Page 3: Table Of Contents

    HDMI over HDBaseT Matrix Switcher Series ™ Thank you for purchasing the SB-5688CK HDMI-HDBaseT Matrix Switcher. You will find this unit easy to install and highly ™ reliable but it is essential that you read this manual thoroughly before attempting to use the 8x8 HDMI-HDBaseT Matrix switcher.
  • Page 4: Introduction

    INTRODUCTION & FEATURES INTRODUCTION The SB-5688CK is a professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs and (8) HDMI and (8) HDBaseT Outputs. The ™ SB-5688CK is based on HDBaseT standards and supports full HDMI video resolutions with embedded EDID, Audio, RS-232, Ethernet ™...
  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (8) Inputs to (8) Outputs HDMI over HDBaseT Matrix Switch with single CATx ™ • HDMI Support: HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDBaseT Support: Bi-directional IR, RS-232, Multi Format Audio, Ethernet over one CATx cable ™...
  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last configuration will be evoked.
  • Page 7 FRONT PANEL-EDID FRONT PANEL-EDID 12. FUNCTION KEY - EDID (1): Used to display change current EDID mode. - Press EDID to select new EDID mode or select. - Press SOURCE row #1 or #2 to select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel operation.
  • Page 8 FRONT PANEL-ALL-OFF-LOCK-ENTER FRONT PANEL-ALL-OFF-LOCK-ENTER 13. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.
  • Page 9 FRONT PANEL-RECALL-MEMORY FRONT PANEL-RECALL-MEMORY 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
  • Page 10: Rear Panel

    BACK PANEL-SWITCH CONTROLS BACK PANEL-SWITCH CONTROLS 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with a AC power plug Connector Type : IEC 60320 C13 input connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 11 BACK PANEL-HDMI INPUT / OUTPUT BACK PANEL-HDMI INPUT / OUTPUT 5. INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: HDMI CONNECTOR: Connects HDMI signal source HDMI Type A SMD 19pin female to the Input. This HDMI port supports HDMI with embedded audio socket connector. and DVI with AUX audio sources.
  • Page 12 BACK PANEL-HDBASET CONTROLS ™ BACK PANEL-HDBASET CONTROLS ™ 9. HDBaseT RS-232 - 1,2,3,4,5,6,7 & 8 CONNECTION: REMOTE PORT : ™ (8) RS-232 Terminal Block-3pin female socket control ports allow for interfacing to a PC. Controls I/O via the HDBaseT Transmitters up to (8) rooms each via the Terminal ™...
  • Page 13 BACK PANEL-HDBASET ™ BACK PANEL-HDBASET ™ 13. OUTPUT - 1,2,3,4,5,6,7 & 8 HDBaseT (Transmitter): HDBASET™ TRANSMITTER CONNECTOR: ™ Sends (8) HDMI and control signals via the switchers (8) HDBaseT 8x RJ-45 Jack 8P8C female socket. ™ Transmitters to link (8) external HDBaseT Receivers.
  • Page 14: Remote Control

    REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
  • Page 15 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 4CB3 POWER ON : 4CB3 A15E MEMORY : 4CB3 B44B POWER OFF : 4CB3 A25D LOCK : 4CB3 B54A ALL : 4CB3 B04F EDID : 4CB3 B748...
  • Page 16: Room Remote Controls

    ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 4CB3 IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE: SOURCE #1 : 4CB3 11EE SOURCE #1 : 4CB3 21DE SOURCE #1 : 4CB3 31CE SOURCE #2 : 4CB3 12ED...
  • Page 17: Edid Functions

    EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
  • Page 18 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Function For HDMI Matrix Switcher Mode 1. FSS (Fast Speed Start) Fast Speed Start mode shortens the startup time of the switcher. Selecting this ® ® mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for Fast Speed Start ®...
  • Page 19 EDID FUNCTION Learning EDID Single To Single Example : Learn Destination #8 EDID To Source #5. Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #8 button row Copy the Destination #8 Display EDID.
  • Page 20 EDID FUNCTION LEARNING EDID - #1 Learning EDID From Destination To Source EDID > DESTINATION Learning EDID Setup Press Button: The LCM will be show LEARNING. Switcher will LEARN the destination HDMI EDID and pass the selected source. Key Press Sequence: EDID >...
  • Page 21 EDID FUNCTION MULTIPLE LEARNING MODE-2 The MULTIPLE LEARNING MODE-2 feature is part of a firmware update released after JUNE 2014. If you do not see the MULTIPLE EARNING MODE-2 feature then you do not have the latest firmware. You should contact your place of purchase for availability of a firmware update.
  • Page 22: Applications

    APPLICATION - SWITCH I/O CONTROL INSTALLING DIAGRAM Samples connection : Using IR External, RS-232 or Ethernet commands to control the SB-5688CK via PC or SB-100 IR receiver to transmit the SB-5688CK’s IR signal. NOTE: 1. Switcher IR External port : Use SB-100 IR signal Receiver.
  • Page 23 APPLICATION - HDBASET I/O & RS-232/LAN CONTROLS ™ INSTALLING DIAGRAM Sample connection using SB-5688CK’s HDBaseT Transmitter and one HDBaseT Receiver (SB-6335R) to control a projector via RS-232, ™ ™ LAN or IR remote signals. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-5688CK HDBaseT ™...
  • Page 24 #2 “IR To Room”. From the SB-6335R, the IR Output is connected to the projector. This allows remote operation of the projector from the SB-5688CK. The IR control for source devices uses the same port number on “IR Source” as the Source device connection.
  • Page 25: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
  • Page 26 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out IR in CAT6/6a/7 DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
  • Page 27: Ethernet / Rs-232 Serial Protocols

    ETHERNET & RS-232 SERIAL INTERFACE Example of the commanded string to select Inputs: FUNCTION COMMAND VARIABLES Select source Source xxx; xxx = Input Channel (001=Source1, 002=Source2) COMMAND ExAMPLE RESPONSE DESCRIPTION Source 001; Source 001#ok; Select source number 1 ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual.
  • Page 28 Receiver: SB-6333R ™ Distance: Max.100M INPUTS: • 1x HDBaseT ™ • 1x IR in (Send IR signal to SB-5688CK TX) OUTPUTS: • 1x HDMI out • 1x HDMI • 1x IR out (IR signal from SB-5688CK Transmitter) CONTROLS: • 1x RS-232, 1x IR in, 1x IR out...
  • Page 29: Options

    TRANSMITTER & RECEIVER OPTIONS RACKMOUNT (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No.: #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000...
  • Page 30 TRANSMITTER & RECEIVER OPTIONS APPLICATION Optional 19 inch Rack Mount Bracket for SB-6335T and/or SB-6335R: Complete 19 inch 4U rack mount of SB-6069 Install Application: SB-6335T/R SB-6069 (optional) SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No.: #4U-10p-M130MM-COV SB-6335T/R 4U Ear mount pairs...
  • Page 31: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
