Southbend P36N-TTT Owner's Manual

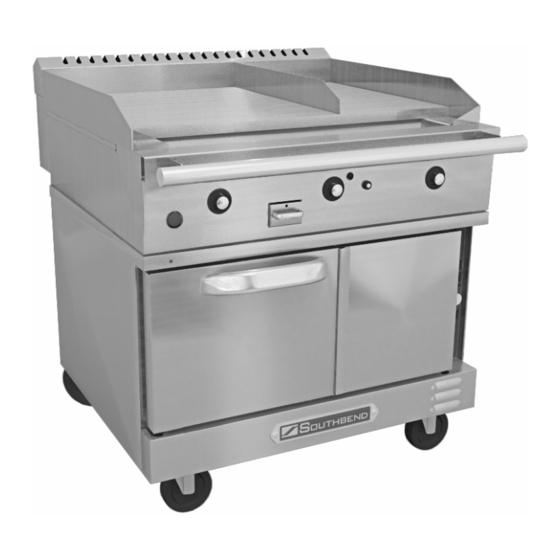

Range-top base-oven wendy’s gas range
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wendy's Gas Range
Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operating and maintenance instructions thoroughly before
M
1195747 (10/12)
ANUAL
$30.00
OWNER'S MANUAL
Range-Top Model P36N-TTT, Base-Oven Model TVGS/12WC
installing or servicing this equipment.
1100 Old Honeycutt Road, Fuquay Varina, NC 27526 USA
www.southbendnc.com
WARNING
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Range-Top Model #: __________________
Range-Top Serial #: __________________
Oven-Base Model #: __________________
Oven-Base Serial #: __________________
Date Purchased: ____________________
OVEN RANGE
MANUAL SECTION CO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P36N-TTT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southbend P36N-TTT

Summary of Contents for Southbend P36N-TTT

  • Page 1 Oven-Base Serial #: __________________ Date Purchased: ____________________ OWNER’S MANUAL Wendy’s Gas Range Range-Top Model P36N-TTT, Base-Oven Model TVGS/12WC WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

  • Page 2: Safety Precautions

    Be sure this Owner’s Manual and important papers are given to the proper authority to retain for future reference. NOTICE This product is intended for commercial use only. NOT FOR HOUSEHOLD USE. Copyright © 2012 by Southbend. All rights reserved. Published in the United States of America. ’ 1195747 WNER...

  • Page 3: Table Of Contents

    Congratulations! You have purchased one of the finest pieces of heavy-duty commercial cooking equipment on the market. You will find that your new equipment, like all Southbend equipment, has been designed and manufactured to meet the toughest standards in the industry. Each piece of Southbend equipment is carefully engineered and designs are verified through laboratory tests and field installations.

  • Page 4: Description

    ANGE ESCRIPTION The Wendy’s Gas Range consists of a split gas griddle top (model P36N-TTT) attached to a convection oven base (model TVGS/12WC). The Range can be ordered for either natural gas or propane use, and can be ordered with electrical connection options (including 120 or 208/240 volts, 1-phase only, 50 or 60 hertz).

  • Page 5: Specifications

    A serial plate located inside the lower front panel of the oven base indicates the type of gas the unit is equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate. These models are design-certified for operation on natural or propane gases. For natural gas, the regulator is set to deliver a 6"...
  • Page 6 TVGS-12WC Oven Base Propane 4 @ 12,500 BTU 50,000 Natural Gas 6 @ 16,000 BTU 96,000 P36N-TTT Range Top Propane 6 @ 14,000 BTU 84,000 MINIMUM CLEARANCES WARNING There must be adequate clearance between the unit and combustible construction. Minimum Clearance from...
  • Page 7 PECIFICATIONS ’ ENDY ANGE EXTERIOR DIMENSIONS 16.9 35.5 Dimensions are shown in inches and (millimeters) (429) (902) (175) 2.8 (71) Gas Connection 1.4 (36) Electrical Connection 11.8 39.4 (300) (1001) 10.8 (274) TOP VIEW REAR VIEW 36.0 43.4 (914) (1102) (213) 41.0 (1041)
  • Page 8 PECIFICATIONS ’ ENDY ANGE VENTILATION WARNING Improper ventilation can result in personal injury or death. Ventilation which fails to properly remove flue products can cause headaches, drowsiness, nausea, or could result in death. All units must be installed in such a manner that the flow of combustion and ventilation air are not obstructed.

  • Page 9: Installation

    NSTALLATION ’ ENDY ANGE NSTALLATION NOTICE These installation procedures must be followed by qualified personnel or warranty will be void. Local codes regarding installation vary greatly from one area to another. The National Fire Protection Association, Inc. states in its NFPA 96 latest edition that local codes are the “authority having jurisdiction”...
  • Page 10 NSTALLATION ’ ENDY ANGE Step 2: Installation of Legs or Casters on Oven Base 1. Raise oven sufficiently to allow clearance for the legs or casters to be attached. Use of a lift truck or other mechanical lifting means is recommended. For safety, “shore up” and support the oven with an adequate blocking arrangement strong enough to support the load.
  • Page 11 NSTALLATION ’ ENDY ANGE Step 3: Installation of Restraint (Only for Units with Casters) All units ordered with casters are supplied with a restraint kit. NOTICE For an appliance equipped with casters, (1) the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors for Moveable Gas Appliances, CAN/CGA-6.16, and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI Z21.41, or Quick Disconnect...
  • Page 12 NSTALLATION ’ ENDY ANGE 2. Install eye-bolt (item “F”) to a frame member on the rear of the equipment. After checking carefully behind the frame member for adequate clearance, drill a 1/4" (6mm) hole through the frame member. 3. Thread hex nut (item “G”) and slide the washer (item “H”) onto the eye-bolt. Insert the eye-bolt through the 1/4"...
  • Page 13 A serial plate is located inside the front lower panel. It indicates the type of gas the unit is equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate. This appliance should be connected ONLY to the type of gas for which it is equipped. The inlet pressure before the regulator should be 7-10"...
  • Page 14 NSTALLATION ’ ENDY ANGE Quick Disconnect External Piping Connection (1" NPT) Swivel Swivel Flex Hose Ensure that all hoses, pipe fittings, and connectors are fully tightened and leak tested. CAUTION ALL PIPE JOINTS AND CONNECTIONS MUST BE TESTED THOROUGHLY FOR GAS LEAKS. USE ONLY SOAPY WATER FOR TESTING ON ALL GASES.
  • Page 15 NSTALLATION ’ ENDY ANGE 7. Check that the appropriate minimum clearances are satisfied (see page 6). 8. Check that there is sufficient clearance to open oven doors, and to pull-out the grease drawer and oven racks. 9. Check that adequate ventilation (fresh air supply and hood exhaust) is available to the room in which the appliance will operate per previous instructions.

  • Page 16: Operation

    PERATION ’ ENDY ANGE PERATION DANGER EXPLOSION HAZARD In the event a gas odor is detected, shut down equipment at the main shut off valve. Immediately call the emergency phone number of your gas supplier. CAUTION To eliminate gas build up which could result in an explosion, in the event of main burner ignition failure a five minute purge period must be observed prior to re-establishing ignition source.
  • Page 17 PERATION ’ ENDY ANGE The range top has a single pilot that is lit using the TOP SURFACE IGNITION switch located on the base oven control panel. The pilot can viewed through a hole in the range top’s front valve panel to verify its status.

  • Page 18: Control Panel

    PERATION ’ ENDY ANGE Control Panel Fan Mode Power Switch In COOK mode, the fan runs Switch ON to use the oven, switch continuously except when the doors OFF when done using the oven. are open. The fan does NOT cycle POWER with the operation of the burners.
  • Page 19 OOKING INTS ’ ENDY ANGE OOKING INTS A convection oven is a different type of oven that offers many features and advantages to food service operation. The additional capabilities and features of the oven require some learning. However, the operation of the oven is not difficult to understand or control once you have some practice. Convection ovens operate much like a standard oven: you turn the oven ON and select a cooking temperature.
  • Page 20 OOKING INTS ’ ENDY ANGE COOKING PROBLEMS AND SOLUTIONS If… then… Cakes are dark on the sides and not done in the center… lower oven temperature. Cake edges are too brown… reduce number of pans or lower oven temperature. Cakes have a light outer color… raise temperature.

  • Page 21: Daily Cleaning

    ANGE LEANING Southbend equipment is sturdily constructed of the best materials and is designed to provide durable service when treated with ordinary care. To expect the best performance, your equipment must be maintained in good condition and cleaned daily. Naturally, the periods for this care and cleaning depend on the amount and degree of usage.
  • Page 22 ANGE SEMI-ANNUAL CLEANING At least twice a year have your Southbend Authorized Service Agency or another qualified service technician clean and adjust the unit for maximum performance. At least twice a year the oven’s venting system should be examined and cleaned.

  • Page 23: Adjustments

    NOTICE Warranty will be void and the manufacturer is relieved of all liability if service work is performed by other than a qualified technician, or if other than genuine Southbend replacement parts are installed. ACCESS TO SERVICEABLE COMPONENTS To remove the top valve panel, first remove the knobs. Then remove the two screws on the bottom of the valve panel.
  • Page 24 DJUSTMENTS ’ ENDY ANGE 11. Remove manometer fitting and replace plug in manifold. 12. Turn on main gas to unit, turn on POWER switch, and check that plug in manifold does not leak. 13. Replace upper valve panel. Plug Manifold Test Port CALIBRATION OF GAS GRIDDLE THERMOSTATS Each 12"...
  • Page 25 DJUSTMENTS ’ ENDY ANGE Points “A” 6 inches 12 inches 12 inches 6 inches (152 mm) (305 mm) (305 mm) (152 mm) 12 inches (305 mm) PILO T SAFET Y VALVE 4. Remove the knob and firmly grasp the stem of the thermostat. With a small screw driver, turn the set screw (Point “B”) to make the adjustments (see diagram below).
  • Page 26 DJUSTMENTS ’ ENDY ANGE Point “B” Calibration Screw (remove knob to access) Turn counterclockwise to INCREASE temperature Turn clockwise to DECREASE temperature 5. Allow the griddle temperature to stabilize, then check the griddle surface temperature again, as described above. When the temperature is correct, replace the control knobs. ADJUSTMENT OF GRIDDLE BURNERS AND PILOT The burners and pilot are adjustable, and can be accessed from behind the front valve panel.
  • Page 27 DJUSTMENTS ’ ENDY ANGE Adjustment of Griddle Burners and Pilot Pilot Runner Pilot Air Shutter Adjustment screw for pilot ’ 1195747 WNER ANUAL...
  • Page 28 DJUSTMENTS ’ ENDY ANGE ADJUSTING DOOR CHAIN MECHANISM The door chain mechanism causes the left and right doors to open and close together. To adjust the door chain mechanism, do the following: 1. Remove lower front panel that covers the door chain mechanism (shown in following drawing). 2.
  • Page 29 DJUSTMENTS ’ ENDY ANGE ADJUSTMENT OF OVEN TEMPERATURE WARNING THIS PROCEDURE SHOULD ONLY BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN FAMILIAR WITH ELECTRICITY AND ELECTRICAL COOKING EQUIPMENT REPAIR. If the oven temperature requires adjustment, do the following. 1. Unplug the oven (or disconnect the power) and remove the lower front panel, right side panel, and insulation.
  • Page 30 DJUSTMENTS ’ ENDY ANGE MEDIUM HIGH 4. Repeat Step 3 to adjust the LOW to 325° F (163° C) and MEDIUM to 335° F (168° C) potentiometers. Always allow the oven to cycle twice after adjustment to confirm accuracy. After completion of calibration, remove the oven thermometer, and reinstall the side panel and insulation along with any other steps necessary to return the unit to service.

  • Page 31: Troubleshooting Guide

    Warranty will be void and the manufacturer is relieved of all liability if service work is performed by other than a qualified technician, or if other than genuine Southbend replacement parts are installed. In case of problems in operation at initial installation, check type of gas and manifold pressure and compare with information listed on the serial plate.
  • Page 32 ROUBLESHOOTING ’ ENDY ANGE TROUBLESHOOTING GUIDE (continued) Symptom Possible Cause Check or Replace Oven will not hold Temperature probe not working. Resistance across temperature probe leads at room temperature (70°F, correct temperature. (21°C) should be approximately 1096 ohms. Temperature control not calling for heat. When heat is required, there should be continuity between terminals 6 and 7 on temperature control.
  • Page 33 ROUBLESHOOTING ’ ENDY ANGE CONTROL PANEL ACCESS AND SHUT-OFF SWITCH To access the lower control panel components, remove the thumb screws at the top and bottom of the control panel and pull the control panel out (see drawing below). A wiring diagram for the oven is located on the side of the control panel assembly.
  • Page 34 3. Loosen the two square heads on blower wheel hub. 4. Pull blower wheel from motor shaft. If blower wheel is difficult to pull off, use puller disk (available from Southbend Technical Service department as part number 1179100). ’ 1195747...
  • Page 35 ROUBLESHOOTING ’ ENDY ANGE Wiring Diagram for 120 Volt Models ’ 1195747 WNER ANUAL...
  • Page 36 ROUBLESHOOTING ’ ENDY ANGE Wiring Diagram for 208-240 Volt Models ’ 1195747 WNER ANUAL...
  • Page 37 ’ ENDY ANGE Notes: ’ 1195747 WNER ANUAL...
  • Page 38 ’ ENDY ANGE Notes: ’ 1195747 WNER ANUAL...
  • Page 39 ’ ENDY ANGE Notes: ’ 1195747 WNER ANUAL...
  • Page 40 When service is needed, contact a Southbend Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your unit.
