Southbend 4365A Owner's Manual

400 series ultimate restaurant range

Hide thumbs Also See for 4365A:

Owner's manual (34 pages)

Owner's manual (48 pages)

Table Of Contents

Quick Links

Owner's Manual

Restaurant Ranges

Model 4365A

Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.

Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 USA • www.southbendnc.com

1190820

WNER

ANUAL

REV

$30.00

Ultimate

Model 400 Series

3 (11/10)

Model 4601DD-2RR

WARNING

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain

this manual for the life of the equipment:

Model #: __________________________

Serial #: __________________________

Date Purchased: ___________________

LTIMATE

ESTAURANT

ANUAL

ANGES

ECTION

Table of Contents

Troubleshooting

Need help?

Do you have a question about the 4365A and is the answer not in the manual?

Questions and answers

Summary of Contents for Southbend 4365A

Page 1 Owner’s Manual Restaurant Ranges Model 4365A Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment. 1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 USA • www.southbendnc.com ’...
Page 2: Safety Precautions
Warranty will be void if service work is performed by other than a qualified technician, or if other than genuine Southbend replacement parts are installed. Give this Owner’s Manual and important papers to the proper authority to retain for future reference. Copyright © 2010 by Southbend. All rights reserved. Published in the United States of America. WARNING FIRE HAZARD...
Page 3: Table Of Contents

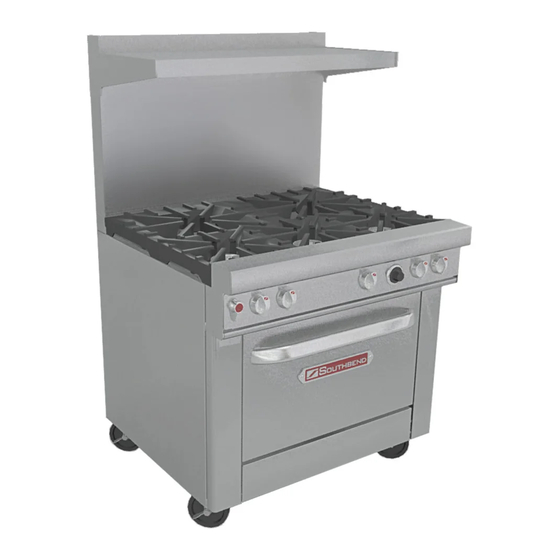

Congratulations! You have purchased one of the finest pieces of heavy-duty commercial cooking equipment on the market. You will find that your new equipment, like all Southbend equipment, has been designed and manufactured to meet the toughest standards in the industry. Each piece of Southbend equipment is carefully engineered and designs are verified through laboratory tests and field installations.
Page 4: Specifications
Therefore, installations should comply with all local codes. Southbend reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, additions, or replacements for previously purchased equipment.
Page 5: Gas Requirements
The serial plate is located inside the oven kick panel (see Figure 1). The serial plate indicates the type of gas the range is equipped to burn, and the total gas supply requirement (in BTUs). All Southbend equipment is adjusted at the factory.
Page 6 PECIFICATIONS IMENSIONS The dimensions of the restaurant range are shown in Figure 2 below and on the next page. Figure 2 Gas Connection Electrical Connection Side View of Ranges WITH Convection Oven Gas Connection Gas Connection Electrical Connection ’ WNER LTIMATE ESTAURANT 24"...
Page 7 LTIMATE ESTAURANT ANGES XTERIOR IMENSIONS Model Number 24.5" 36" 424… (622) (914) 36.5" 45.25" 10" 436… (927) (1149) (254) with convection oven 36.5" 36" 436… (927) (914) with standard oven 48.5" 45.25" 10" 448… (1232) (1149) (254) with convection oven 48.5"...
Page 8: Operation
PERATION PERATION EXPLOSION AND ASPHYXIATION HAZARD In the event a gas odor is detected, shut down equipment at the main gas shut-off valve and immediately call the emergency phone number of your gas supplier. Improper ventilation can result in headaches, drowsiness, nausea, and could result in death. Do not obstruct the flow of combustion and ventilation air to and from cooking appliances.
Page 9 LTIMATE ESTAURANT ANGES 4. Open the kick panel below the oven door, turn the knob on the safety valve to the PILOT position, and depress the button on oven safety valve. 5. Light the pilot while continuing to depress the button on the safety valve. Wait 30 seconds, then release the button.
Page 10: Raised -Griddle Broiler
PERATION 5. Set the griddle thermostat dials to maximum, one at a time, and observe the griddle burners through holes in control panel. When operating, the burners should have a 1/4" to 5/8" (13 to 16 mm) high steady blue flame. After operating the griddle for ten minutes with the thermostat dial set at maximum, turn the dial to “LOW”...
Page 11 LTIMATE ESTAURANT ANGES HUTDOWN OF NTIRE ANGE To completely shut down the range for an extended period (or prior to disconnecting the gas supply), do the following: 1. Turn all burner control knobs to OFF. 2. Turn the oven thermostat knob(s) to OFF. 3.
Page 12 PERATION OOKING IPS FOR ONVECTION As a guide, set oven temperatures 25 to 50 degrees lower than called for in recipes using conventional (non- convection) ovens. FROZEN ENTREE PRODUCTS: Punch holes in lid before heating. Tent lid if product has a tendency to stick, i.e., lasagna or macaroni and cheese.
Page 13: Cleaning And Maintenance
Shut off the range and allow time for it to cool before cleaning or performing maintenance. Southbend appliances are sturdily constructed of the best materials and are designed to provide durable service when treated with ordinary care. To expect the best performance, your equipment must be maintained in good condition and cleaned daily.
Page 14: Top Burners
& M LEANING AINTENANCE the surface with SCOTCH-BRITE scouring pads or STAINLESS scouring pads. DO NOT USE ORDINARY STEEL WOOL as any particles left on the surface will rust and further spoil the appearance of the finish. NEVER USE A WIRE BRUSH, STEEL SCOURING PADS (EXCEPT STAINLESS), SCRAPER, FILE OR OTHER STEEL TOOLS.
Page 15: Installation
LTIMATE ESTAURANT ANGES NSTALLATION These installation procedures must be followed by qualified personnel or warranty will be void. Local codes regarding installation vary greatly from one area to another. The National Fire Protection Association, Inc., states in its NFPA 96 latest edition that local codes are the “authority having jurisdiction” when it comes to installation requirements for equipment.
Page 16 NSTALLATION TTACH A set of four legs is packed with ranges ordered with legs. (For ranges ordered with casters, go to Step 2b.) A threaded leg pad is fastened to the base frame at each corner. Each leg has a corresponding mating thread. The legs can be adjusted to overcome a slightly uneven floor.
Page 17 LTIMATE ESTAURANT ANGES TTACH ASTERS AND For an appliance equipped with casters, (1) the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors for Moveable Gas Appliances, CAN/CGA-6.16, and a quick-disconnect device that complies with the Standard for Quick- Disconnect Devices for Use With Gas Fuel, ANSI Z21.41, or Quick Disconnect Devices for Use with Gas Fuel, CAN1-6.9, (2) adequate means must be provided to limit the movement of the appliance without depending on the connector and the quick-disconnect device or its associated piping to limit the appliance movement, and (3)
Page 18 NSTALLATION Figure 5 Installation of Restraint Be sure all controls are turned off prior to disconnecting. After reconnecting, be sure all controls are turned off and all pilots are lit. Adequate means must be provided to limit the movement of the appliance without depending on the connector and the quick-disconnect device or its associated piping to limit the appliance movement.
Page 19: Step 4: Electrical Connection
If this equipment is being installed at over 610 meters altitude and that information was not specified when ordered, contact the appropriate authorized Southbend Service Representative or the Southbend Service Department. Failure to install with proper orifice sizing will result in poor performance and may void the warranty.
Page 20: Step 6: Check The Installation
The serial plate is located on the interior side of the kick panel below the oven. It indicates the type of gas the range is equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate.
Page 21: Service
The serial plate are located on the right side of the range (see Figure 1 on page 3). Replacement parts (including parts not listed in this manual) may be ordered either through a Southbend Authorized Parts Distributor or a Southbend Authorized Service Agency.
Page 22: Troubleshootingo
ERVICE ROUBLESHOOTING Each open-top burner should have a steady blue flame on each port of the burner. Propane burners may have a small amount of yellow tipping, and may make a slight popping noise when turned off. If the flame is rising up off of the ports, adjust the burner shutter so it is more closed. If the flame is long and yellow adjust the burner shutter so it is more open.
Page 23: Troubleshooting
ROUBLESHOOTING Proper and efficient operation of oven is dependent on correct installation and function of components. Always verify that components are in place and functioning as intended. Consult the following table and the flowchart that begins on the following page. Problem Oven will not come on.
Page 24 ERVICE ROUBLESHOOTING ONVECTION Before attempting to service or replace any electrical component, make sure power source has been disconnected. When changing motor or servicing range, always verify that blower wheel rotation is clockwise when looking into the oven cavity. If the blower does not run at all, consult the flowchart that begins on the next page. If the blower runs intermittently, consult the flowchart on this page.
Page 25 Figure 10 Convection-Oven Blower Does Not Run Remove the control knobs from the front of the range. Remove the screws that secure the top of the control panel and carefully tilt the panel forward to expose the back of the blower switch that is mounted in the front panel.
Page 26: Adjustment Of Gas Pressure Regulator
ERVICE Figure 11 Convection-Oven Blower Does Not Run, Continued Remove the wire nuts from the black and the white wires. Check Check that the common wire is connected to the motor black wire. Reconnect the power supply and turn on blower-control switch. Use a voltmeter to measure the voltage between the black wire and DISCONNECT POWER AT CIRCUIT BREAKER.
Page 27 DJUSTMENT OF The open-top pilots are the non-aerated (yellow-tipped flame) type. One is located beside each open-top burner. Pilot outage is often caused by an unstable flame due to over-adjustment to the point where the flame is leaving its port, or “blowing off.” Often, in an effort to improve ignition, the pilots are increased too much and result in this unstable condition.
Page 28: Adjustment Of Thermostatic Griddle Bypass Flame Level
ERVICE ALIBRATION OF The oven thermostat control is carefully calibrated at the factory so that its dial settings closely match actual oven temperatures. Field recalibration is seldom necessary, and should not be resorted to unless considerable experience with unexpected cooking results definitely proves that the control is not maintaining the temperatures to which the dial is set.
Page 29: Conversion From One Type Of Gas To Another
4. Check for leaks and proper manifold pressure (the procedure is on page 26). 5. Re-light all pilots and check for proper operation. Note: A kit for conversion to a different type of gas may be purchased from Southbend. ’...
Page 30 ERVICE LTIMATE ESTAURANT ANGES Figure 13 Wiring Diagram for Gas Oven ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 31 Figure 14 Wiring Diagram for Infrared Broiler in Gas Oven Cavity ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 32 ERVICE LTIMATE ESTAURANT ANGES Figure 15 Wiring Diagram for Electric Standard Oven ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 33 Figure 16 Wiring Diagram for Electric Convection Oven ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 34: Leg And Caster Parts
INSTALLATION OF OTHER THAN GENUINE SOUTHBEND PARTS WILL VOID THE WARRANTY ON THIS EQUIPMENT. The following parts diagrams list and show serviceable parts. For parts not listed, contact a Southbend Authorized Parts Distributor or a Southbend Authorized Service Agency. Parts Diagram...
Page 35 Figure 18 Control, Pilot, and Oven Door Parts Main Gas Shutdown Parts: Cap Screw P/N 1188454 Knob P/N 1189161 Spacer P/N 1188450 Standoff P/N 1188451 Stop P/N 1188452 Oven Thermostat Control Burner Knob P/N 1189600 Oven Thermostat Knob Parts: Knob P/N 1190573 Bezel P/N 1190574 Screw, Thermostat P/N 6600334 Screw, Bezel P/N 1146303...
Page 36 ERVICE Figure 19 Top Burners and Grates Parts Wavy Grate, Front P/N 1187488 Wavy Grate, Rear P/N 1187489 Standard Grate, Front P/N 1190551 Standard Grate, Rear P/N 1190552 PyroMax Grate, Front P/N 1190553 PyroMax Grate, Rear P/N 1190554 LTIMATE Non-Clog Burner (front & rear) P/N 1177111 Star Burner (front &...
Page 37 Figure 20 Gas Oven Parts Blower Wheel P/N 1177520 Rack Guide, Convection Oven P/N 1180528 Rack, Convection Oven P/N 1179920 Gas Safety Valve P/N 1190648 ’ 1190820 REV 3 (11/10) WNER ANUAL Rack, Standard Oven P/N 1173545 Rack Guide, Standard Oven P/N 1187571 Gas Regulator 24", 36", and 48"...
Page 38 ERVICE Figure 21 Electric Oven Parts Electric Element (Convection Oven) 208V P/N 3027A0063 240V P/N 3027A8711 480V P/N 3027A8709 Element is behind oven baffle (not shown). Other electric oven parts are the same as for gas ovens. LTIMATE Element Contactor P/N 1179680 Same for standard and convection ovens.
Page 39 Figure 22 Oven Broiler Parts Not Shown: Switch On/Off P/N 1179949 ’ 1190820 REV 3 (11/10) WNER ANUAL Infrared Burner P/N 1190733 Ceramic Tile P/N 1163578 Fibre-Fax P/N 1057515 Hot Surface Ignitor/ Flame Sensor Assembly P/N 1190650 Ignition Control Module P/N 1190642 Solenoid Gas Valve P/N 1185533...
Page 40 ERVICE Figure 23 Griddle Parts Burner Knob P/N 1189600 Not Shown: Pilot Adjustment Valve (for 12" griddle) P/N 1099002 Pilot Adjustment Valve (for 24", 36", and 48" griddles) P/N 1163844 Grease Drawer Assembly P/N 1186275 Thermostat (for thermostatic griddles) P/N 1174709 Thermostat Knob (for thermostatic griddles) P/N 1179997 Burner, Bar Assembly P/N 1042980...
Page 41 Figure 24 Raised Griddle Broiler Parts Burner Knob P/N 1189600 Broiler Rack Support P/N 1173556 ’ 1190820 REV 3 (11/10) WNER ANUAL Griddle Burner P/N 1042980 Gas Valve, Hi-Off P/N 1178204 Broiler Dirt Tray P/N 1161636 Not Shown: Pilot Adjustment Valve P/N 1163844 Grease Chute P/N 1043699 Ceramic (side) P/N P3111...
Page 42 ERVICE Figure 25 Hot Top Parts Hot Top Burner P/N 1022994 Gas Valve, Hi-Off P/N 1178202 Burner Knob P/N 1189600 Not Shown: Pilot Adjustment Valve P/N 1099002 ’ WNER ANUAL LTIMATE ESTAURANT ANGES Top Plate Assembly P/N 1180877 1190820 REV 3 (11/10)
Page 43 Figure 26 Charbroiler Parts Charbroiler Grid P/N 1178976 Not Shown: Plated Fish Grid P/N 1182838 Grate P/N 1182657 Radiant W/A P/N 1192319 Burner Assembly, Charbroiler P/N 1182762 Fitting, Double Pilot, 3/16" Tube P/N 1166004 ’ 1190820 REV 3 (11/10) WNER ANUAL Valve, Burner, Nat P/N 1178202...
Page 44 LTIMATE ESTAURANT ANGES Notes: ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 45 LTIMATE ESTAURANT ANGES Notes: ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 46 LTIMATE ESTAURANT ANGES Notes: ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 47 LTIMATE ESTAURANT ANGES Notes: ’ 1190820 REV 3 (11/10) WNER ANUAL...
Page 48 ULTIMATE RESTAURANT RANGES A product with the Southbend name incorporates the best in durability and low maintenance. We all recognize, however, that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance. When service is needed, contact a Southbend Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your appliance.
