Owner's Manual
Platinum Series Range
Flush Open Burner Models
Step-Up Open Burner Models
Combination Open-Burner Hot-Top Models
Combination Open-Burner Griddle Models
Model P32N-PPP
Model P32N-HH
Model P32N-GRAD
Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.
Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA • www.southbendnc.com
M
R
ANUAL 1185836
EV 8 (9/14)
$21.00
Graduated Hot-Top Models
Uniform Hot-Top Models
Plancha Models
French Top Models
Model P32A-XX
Model P48W-CCCC
Model P18N-F
WARNING
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain
this manual for the life of the equipment:
Model #: __________________________
Serial #:___________________________
Date Purchased: ____________________
Charbroliler Models

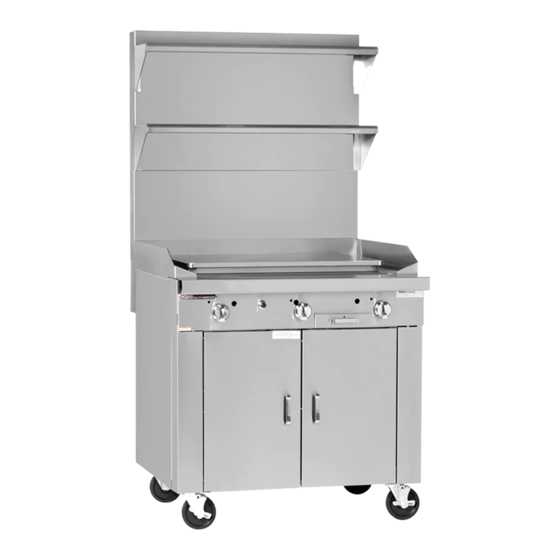

Standard Griddle Models
Thermostatic Griddle Models
Wood Smoker
Model P32N-BBB
Model P32N-CC
Model P32N-TT
P
S
LATINUM
ERIES
M
S
ANUAL
ECTION
R
ANGE
SR
