Summary of Contents for AND UM-211
- Page 1 Instruction Manual Original Manuel d’instructions Traduction Manual de instrucciones Traducción Manuale di Istruzioni Traduzione 使用手冊 翻譯 1WMPD4002949A...
-
Page 2: Table Of Contents
Contents Dear Customers..............2 Preliminary Remarks ............. 2 Precautions................2 Parts Identification..............6 Symbols................7 Mode list ................10 Using the Monitor ............... 11 Installing / Changing the Batteries ......... 11 Connecting the Air Hose ..........11 Connecting the AC Adapter..........12 Recharging the Battery ........... -
Page 3: Dear Customers
Products. This is made evident by the mark of conformity. (0123: The reference number to the involved notified body) The device is designed for use on adults and children of age 3 years and older. Environment for use: The device is for indoor use. - Page 4 This device should be used at a doctor or medical worker only. The device is not designed to be operated by a patient to avoid accidents and ensure accurate results. Also, do not use the device for home health care.
- Page 5 Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use benzene, thinner or other harsh chemical to clean the device.
- Page 6 If the liquid leaked from the specified battery pack gets into an eye, avoid rubbing it and fully rinse it off using water, then immediately seek medical attention.
-
Page 7: Parts Identification

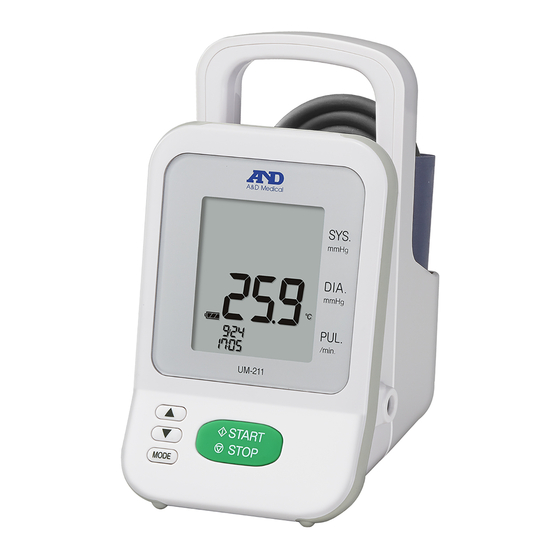

Parts Identification Display Cuff Holder Air Socket DC Jack Air Connector Plug Button Button Air Hose MODE Button Arm Cuff START / STOP Button Battery Compartment AC adapter Battery Cover Specified battery AC cable Display Pressure Settings MEMORY I.H.B. Symbol (Irregular heartbeat symbol) Systolic Pressure... -
Page 8: Symbols
Symbols Symbols that are printed on the device case and the AC adapter Symbols Function / Meaning Recommended Action The blood pressure measurement is started when the START/STOP button is pressed at the standby mode. The blood pressure measurement is stopped when the START/STOP button is pressed during measuring the blood pressure. - Page 9 Take another measurement. Unstable blood pressure due to Remain still during movement during measurement. measurement. The systolic and diastolic values are within 10 mmHg of each other. The pressure value did not increase Apply the cuff correctly, during the inflation.
- Page 10 Remove the batteries and press the START/STOP button, and then install the Blood pressure monitor internal error batteries again. If the error still appears, contact the dealer. Means morning when the clock function is set to 12H display. Means afternoon when the clock function is set to 12H display.
-
Page 11: Mode List
“Hi” or “Lo”. Clock setting A current date and time can be set. Clock display A clock display can be switched between setting 12H or 24H. Auto power OFF... -
Page 12: Using The Monitor
The device may then recognize the new battery. (LOW BATTERY mark) does not appear when the battery is drained. The battery life varies with the ambient room temperature and may be shorter at low room temperatures. Use the specified battery only. -
Page 13: Connecting The Ac Adapter
Connecting the AC Adapter AC adapter plug Insert the AC adapter plug into the DC jack. Next, connect the AC adapter to an electrical outlet. Use the specified AC adapter. DC jack (Refer to page 30.) Note: The device is operated using the battery when the power is not supplied to the main body from the AC adapter. -
Page 14: Operation
Operation Standby mode - The device goes into standby mode when the power is turned on, and a current room temperature is displayed at the display for diastolic pressure. - The device proceeds to standby mode when the START/STOP button is pressed and held, or no operation is made for a regular time at all status other than blood pressure mode and auscultation mode. -
Page 15: Measurement With The Set Pressure
Model UM-211 is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically. If re-inflation occurs repeatedly, use the following methods. Measurement with the SET Pressure During the blood pressure measurement, re-inflation may occur. -
Page 16: Auscultation Setting
MODE button pressurization setting mode to go into auscultation setting mode. The “F02” is displayed at the display for systolic pressure, and the current status is displayed at the display for diastolic pressure Press to button to switch between ON or OFF. The device illuminates the auscultation mark when the auscultation mode is set to ON. -
Page 17: Adjusting The Built-In Clock
Adjusting the Built-in Clock and hold Adjust the clock prior to use. 1. Press and hold the MODE button at the standby mode to go into clock setting mode. The“F10”is displayed at the display for systolic pressure, and the far right two digits of A.D. -
Page 18: Clock Display Setting
1. Press the MODE button at the clock display setting mode to go into auto power OFF time setting mode. The “F12” is displayed at the display for systolic pressure, and the “5” or “10” is displayed at the display for diastolic pressure. 2. Press to button to switch between five or ten minutes. -
Page 19: Room Temperature Unit Changing
The current pressure value is displayed at the display for systolic pressure and diastolic pressure. 2. When the pressure reaches 320mmHg or higher, the value indicated on the display flashes 320mmHg. -
Page 20: Recalling The Memory Data
1. Press the button to display a most recent memory data. Systolic If no data, the memory number, time, SYS, DIA and PUL is displayed in bar Diastolic display. Press the START/STOP button to carried out the measurement. Pulse 2. Each time the... -
Page 21: Deleting All Data Stored In Memory
Deleting all Data Stored in Memory Press and hold the MODE button for at least three seconds to illuminate the and battery mark only. Again press and hold the MODE button for at least three seconds to delete the saved data all. -
Page 22: Measurements
Arm size: The circumference of the biceps. Applying the Arm Cuff 1. Face the palm of the left arm upward, Do not roll up shirtsleeve tightly. and wrap the cuff around the upper arm, about 1-2 cm above the inside of the Artery position mark elbow. -
Page 23: Normal Measurement
When the measurement is complete, the Systolic pressure systolic and diastolic pressure readings and pulse rate are displayed. Diastolic pressure The cuff exhausts the remaining air and Pulse rate deflates completely. Press the START/STOP button to carry out the measurement again. -
Page 24: Auscultation Measurement
2. The device exhausts at constant speed. Press the MODE button to confirm the systolic pressure value. Press the MODE button again to confirm the diastolic Pressurizing pressure value, and the device exhausts at quick speed. Measurement 3. Press the button during exhausting at... -
Page 25: After Measurement
Let a patient place the arm on a table with the palm facing upward and the cuff at the same level as patient’s heart. -
Page 26: Removing The Battery
Step 4 5. Close the battery cover. 6. Secure the battery cover by using the screws. Battery Note: Should both the AC adapter and battery be disconnected from the device, the clock is initialized. English 25... -
Page 27: What Is An Irregular Heartbeat
What is an Irregular Heartbeat The UM-211 blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. -
Page 28: Maintenance
(4) Pressure generating device 500ml 1. Press and hold the MODE button at standby mode. The device goes into the built-in clock adjusting mode, and F10 is displayed at the display. 2. Press the MODE button several times to proceed to pressure confirmation mode. - Page 29 When the main body or cuff is dirty, wipe them fully by using a gauze or cloth dampened with warm water and a neutral detergent avoiding excess water. Do not use the moisten cloth etc. to wipe the DC jack and air socket. The DC jack and air socket must remain dry.
- Page 30 Disposal This equipment and battery are not treated as ordinary household waste and must be disposed of according to the applicable local regulations. Item Parts Material Package Cardboard Cushion Cardboard Main unit and Enclosure ABS, SR accessories Internal parts General electronic components...
-
Page 31: Technical Data
Temperature unit °C or °F Temperature accuracy ±2.5°C (+5°C to +40°C) Power supply Built-in 3.6V battery (UM-211-20) or AC adapter (TB-268) Number of measurements Approx. 300 measurements, when built-in battery is used, with pressure value of 180 mmHg at room temperature of 23°C... - Page 32 Rechargeable Nickel-Metal Hydride Battery Battery (UM-211-20) 3.6V Typ.2000mAh Min.1750mAh AC adapter The AC adapter is required to be inspected or (TB-268) replaced periodically. Input: 100-240V Output: 6V 2000mA Accessories sold separately Cuff Arm Size Cuff Size Catalog Number 41cm to 50cm...
- Page 33 Guidance and manufacturer’s declaration – electromagnetic emissions The UM-211 is intended for use in the electromagnetic environment specified below. The customer or the user of the UM-211 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
- Page 34 Guidance and manufacturer’s declaration – electromagnetic immunity The UM-211 is intended for use in the electromagnetic environment specified below. The customer or the user of the UM-211 should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment –...
- Page 35 Guidance and manufacturer’s declaration – electromagnetic immunity The UM-211 is intended for use in the electromagnetic environment specified below. The customer or the user of the UM-211 should assure that it is used in such an environment. Immunity IEC 60601...
- Page 36 1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A.
