Summary of Contents for AND UM-201

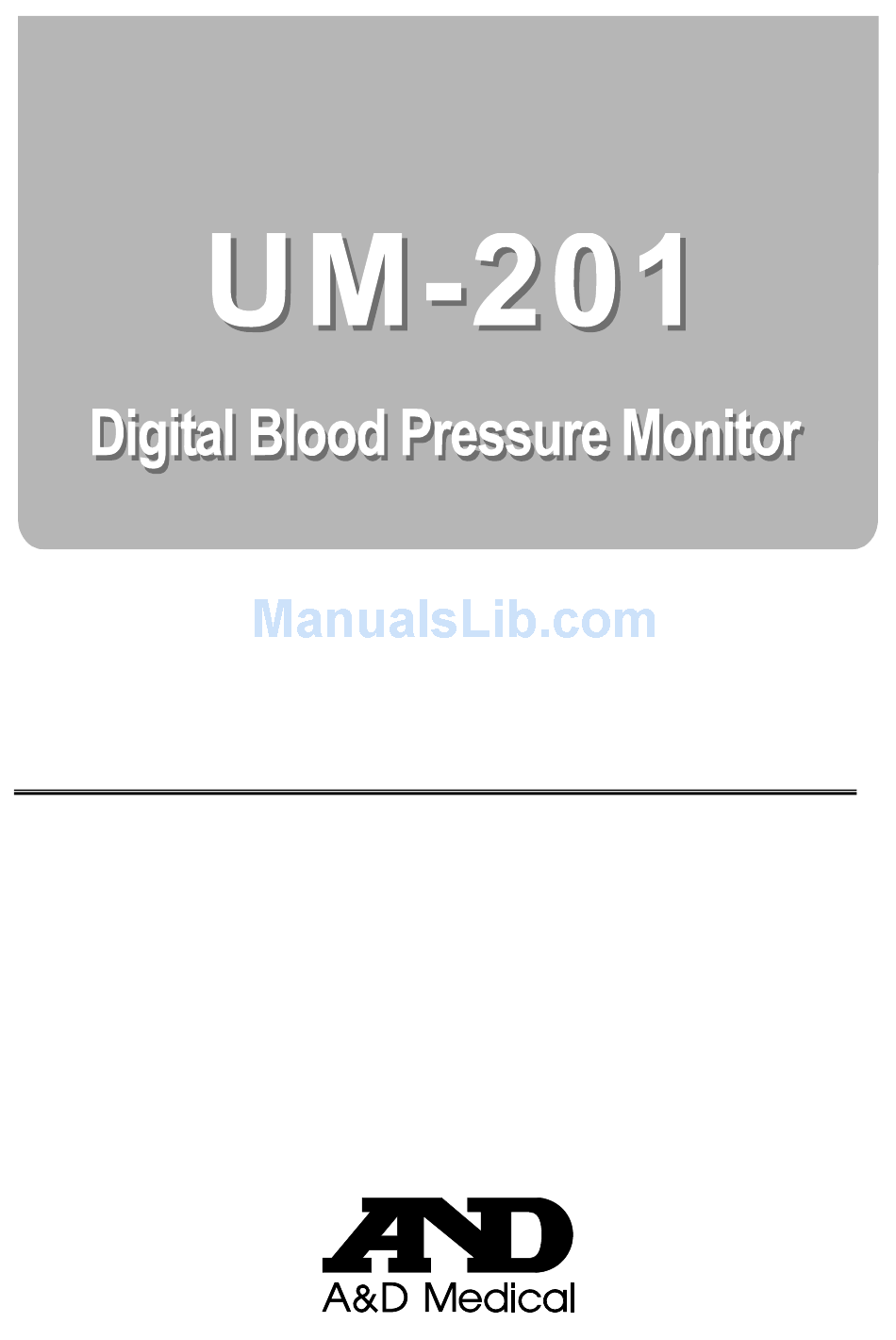

- Page 1 Instruction Manual Original Manuel d’instructions Traduction Manual de instrucciones Traducción Manuale di Istruzioni Traduzione 使用手冊 翻譯 1WMPD4003060...
-
Page 2: Table Of Contents
Contents Dear Customers..............2 Preliminary Remarks ............. 2 Precautions................2 Parts Identification..............5 Symbols................6 Using The Monitor ..............7 Installing / Changing The Batteries ........7 Connecting The Air Hose ..........7 Connecting The AC Adapter ..........8 Selecting the Correct Cuff Size ......... 8 Applying The Arm Cuff ............ -
Page 3: Dear Customers
(0123: The reference number to the involved notified body) The device is designed for use on adults only, not newborns or infants. Environment for use: The device is for indoor use. This device is designed to measure blood pressure and pulse rate of people for diagnosis. Precautions... - Page 4 When reusing the device, confirm that the device is clean. This device should be used at a doctor or medical worker only. The device is not designed to be operated by a patient to avoid accidents and ensure accurate results.
- Page 5 Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use benzene, thinner or other harsh chemical to clean the device.
-
Page 6: Parts Identification

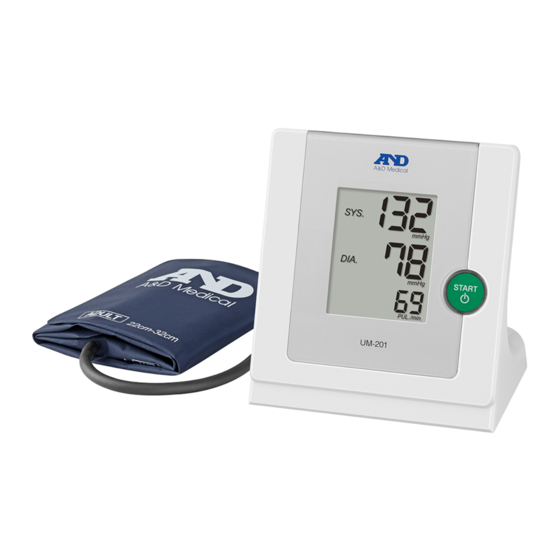

Parts Identification Display Air Connector Plug Arm Cuff Index Mark Air Hose Air Socket Button START Battery Compartment Battery Cover 1.5V Batteries (R6P, LR6 or AA) DC Jack Part of Display Systolic Pressure Pressure Bar Indicator Diastolic Pressure Heart Mark Pulse Rate Battery Indicator I.H.B. -
Page 7: Symbols
Standby and turn the device on. Battery installation guide Direct current Serial number Date of manufacture Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. The indicator that appears while Measurement is in measurement is in progress. It blinks progress. -
Page 8: Using The Monitor
When (LOW BATTERY mark) blinks on the display, replace all batteries with new ones. Do not mix old and new batteries. It may shorten the battery life, or cause the device to malfunction. (LOW BATTERY mark) does not appear when the batteries are drained. -
Page 9: Connecting The Ac Adapter
Using The Monitor Connecting The AC Adapter Insert the AC adapter plug into the DC jack. Next, connect the AC adapter to an electrical outlet. The AC adapter, the model TB-233, is DC jack sold separately. AC adapter plug Selecting the Correct Cuff Size Using the correct cuff size is important for an accurate reading. -
Page 10: Applying The Arm Cuff
Let a patient sit down in a comfortable position. Confirm that a patient does not cross the legs, patient’s legs touch on the floor and patient’s back and arms are supported. Let a patient place the arm on a table with the palm facing upward and the cuff at the same level as patient’s heart. -
Page 11: Measurements
Measurements Model UM-201 is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically. If the patient's systolic pressure is expected to exceed 230 mmHg, read "Measurement With The Desired Systolic Pressure" on the next page. -
Page 12: Measurement With The Desired Systolic Pressure
25% from the average of all heartbeats during the blood pressure measurement. It is important that the patient be relaxed, remain still and do not talk during measurements. English 11... -
Page 13: Troubleshooting
Remove the batteries. Place Other them back properly and try the measurement again. Note: If the actions described above do not solve the problem, contact the dealer. Do not attempt to open or repair this product, as any attempt to do so will make your warranty invalid. -
Page 14: Maintenance
Maintenance Do not attempt to open the device as the delicate electrical components and intricate air unit inside could be damaged. If you cannot solve the problem using our troubleshooting guide, request assistance from your authorized dealer or from any A&D servicegroup. - Page 15 Do not use the moisten cloth etc. to wipe the DC jack and air socket. The DC jack and air socket must remain dry. To prevent a risk due to infection, disinfect the main body and cuff regularly.
-
Page 16: Technical Data
Technical Data Type UM-201 Measurement method Oscillometric measurement Measurement range Pressure: 0 - 299 mmHg Pulse: 40 - 180 beats / minute Measurement accuracy Pressure: ±3 mmHg Pulse: ±5 % Power supply 4 x 1.5V batteries (R6P, LR6 or AA) or... - Page 17 Accessories sold separately Cuff Arm Size Cuff Size Catalog Number 31 cm to 45 cm LA Cuff CUF-KS-LA 22 cm to 32 cm A Cuff CUF-KS-A 16 cm to 24 cm SA Cuff CUF-KS-SA AC adapter Plug Catalog Number Type C TB-233C Type BF TB-233BF...
- Page 18 Guidance and manufacturer’s declaration – electromagnetic emissions The UM-201 is intended for use in the electromagnetic environment specified below. The customer or the user of the UM-201 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
- Page 19 Guidance and manufacturer’s declaration – electromagnetic immunity The UM-201 is intended for use in the electromagnetic environment specified below. The customer or the user of the UM-201 should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment –...
- Page 20 Guidance and manufacturer’s declaration – electromagnetic immunity The UM-201 is intended for use in the electromagnetic environment specified below. The customer or the user of the UM-201 should assure that it is used in such an environment. Immunity IEC 60601...
- Page 21 1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A.
