- Page 1 Digital Blood Pressure Monitor Model UA-704 Instruction Manual Manuel d’instructions Manual de Instrucciones Manuale di Istruzioni WM+PD4000735...
-
Page 3: Table Of Contents
ENGLISH Contents Dear Customer ..............2 Preliminary Remarks .............2 Precautions................2 Parts Identification..............3 Symbols................4 Using The Monitor ..............5 Installing / Changing The Battery........5 Attaching The Arm Cuff ...........6 How To Take Proper Measurements........6 Measurement ..............6 After Measurement ............6 Measurement................7 Notes For Proper Measurement ........8 What Is An Irregular Heartbeat?..........9 About Blood Pressure............9 What Is Blood Pressure?............9... -
Page 4: Dear Customer
Dear Customer Congratulations on purchasing a state-of-the-art A&D blood pressure monitor, one of the most advanced monitors available today. Designed for ease of use and accuracy, this monitor will facilitate your daily blood pressure regimen. We recommend that you read through this manual carefully before using the device for the first time. -
Page 5: Parts Identification

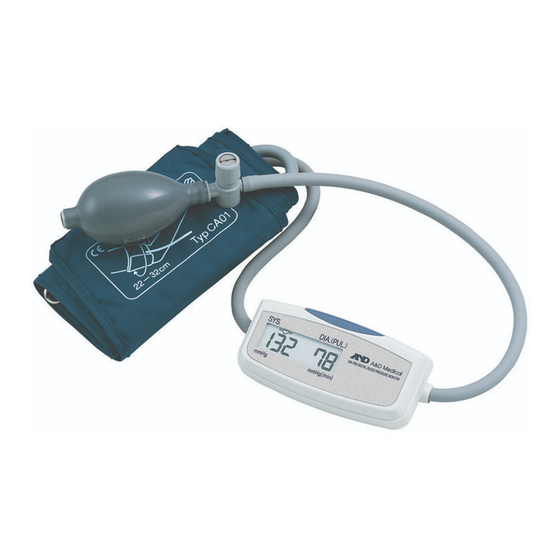

Parts Identification Air hose Cuff Proper fit range Battery Index mark R6P, LR6 or AA Start button Battery cover Battery compartment Exhaust valve Display Rubber bulb Display Parts I.H.B. indicator (Irregular heartbeat indicator) Diastolic pressure Systolic pressure Pulse rate Exhaust mark. Exhaust air from the cuff Battery indicator Pressure mark. -
Page 6: Symbols
Symbols Function / Meaning Recommended Action Symbols Turns the device on and off. Guide to install battery Serial number Date of manufacture Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. Displays when measurement is in Measurement is in progress and flashes when the progress -- remain still. -
Page 7: Using The Monitor
22 cm to 32 cm Medium cuff UA-CUFCAULB, UA-CUFDAULB Small cuff Arm size: The circumference of upper arm at the midpoint between the shoulder and elbow. Note: This UA-704 monitor is NOT designed for using a small cuff. ENGLISH 5... -
Page 8: Attaching The Arm Cuff
Using The Monitor Attaching The Arm Cuff Rolled up shirtsleeve 1. Wrap the cuff around the upper arm, about 2 - 3 cm above the elbow, as Cuff shown. Place the cuff directly against Air Hose the skin, as clothing may cause a faint pulse and result in a measurement error. -
Page 9: Measurement
Measurement 1. Place the cuff on the arm (preferably the left arm). 2. Press the button. START button START When the button is pressed, all of the START display symbols will display for about one second. When the " 0 " is flashing, the device is ready for measurement. -
Page 10: Notes For Proper Measurement
Measurement From previous page Press exhaust valve 6. Press the exhaust valve button to completely release air from the cuff. When a measurement is made with insufficient pressure, the mark will be displayed. Re- Bulb pressurize the cuff to a pressure. Stop squeezing Releasing air the rubber bulb when the mark disappears. -
Page 11: What Is An Irregular Heartbeat
What Is An Irregular Heartbeat? Model UA-704 blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. -
Page 12: Why Measure Blood Pressure At Home
About Blood Pressure Why Measure Blood Pressure At Home? Blood pressure measured at a clinic or doctor's office may cause apprehension and can produce an elevated reading, 25 to 30 mmHg higher than that measured at home. Home measurement reduces the effects of outside influences on blood pressure readings, supplements the doctor's readings and provides a more accurate, complete blood pressure history. -
Page 13: Troubleshooting
Troubleshooting Problem Possible Reason Recommended Action Nothing Battery is drained. Replace with a new battery. appears in the Reinstall the battery with their display, even Battery polarities are not negative and positive end when the power in the correct position. matching those indicated in the is turned on. -
Page 14: Maintenance
However it is generally recommended to have the monitor inspected every 2 years, to ensure proper functioning and accuracy. Please contact either your authorized dealer or A&D for maintenance. Technical Data Type UA-704 Measurement method Oscillometric measurement Measurement range Pressure: 20 - 280 mmHg...
