Summary of Contents for AND UA-767 Plus BT
- Page 1 Digital Blood Pressure Monitor Model UA-767 Instruction Manual Original ’ Manuel d instructions Traduction Manual de Instrucciones Traducción Manuale di Istruzioni Traduzione Bedienungsanleitung Übersetzung Gebruiksaanwijzing Vertaling 使用手冊 翻譯 1WMPD4001357D...
-
Page 2: Table Of Contents
Congratulations on purchasing a state-of-the-art A&D blood pressure monitor, one of the most advanced monitors available today. Designed for ease of use and accuracy, this device will facilitate your daily blood pressure regimen. We recommend that you read through this manual carefully before using the device for the first time. -
Page 3: Preliminary Remarks
Precision components are used in this device. Extreme temperature, humidity, direct sunlight, shock or dust should be avoided. Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the device or cuff. - Page 4 Do not self-diagnose the measurement results and start treatment by yourself. Always consult your doctor for evaluation of the results and treatment. Do not apply the cuff on an arm with an unhealed wound.
-
Page 5: Parts Identification

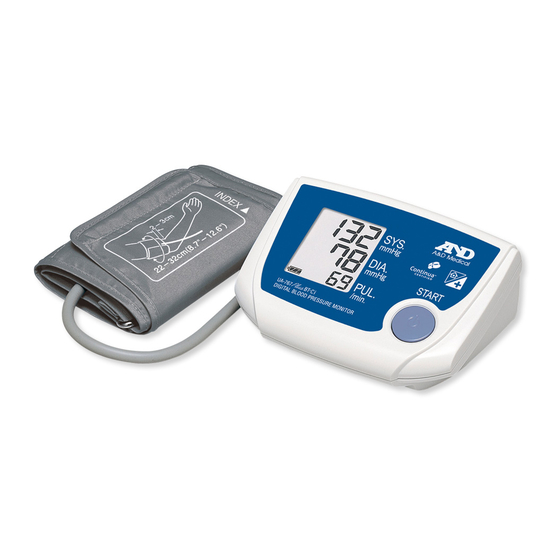

Parts Identification DC Jack START Button Display Air Connector Plug Air Socket Proper Fit Range Air Hose Index Mark Artery Position Mark Battery Cover Arm Cuff 1.5V Batteries (R6P or AA) Battery Compartment Systolic Pressure MEMORY Part of Display Diastolic Pressure Pressure Bar Indicator Pulse Rate Battery Indicator... -
Page 6: Symbols
Standby and power on. Battery installation guide Direct current Serial number Date of manufacture Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. The indicator that appears while Measurement is in measurement is in progress. It blinks progress. -
Page 7: Using The Monitor
When (LOW BATTERY mark) blinks in the display, replace all batteries with new ones. Do not mix old and new batteries. It may shorten the battery life, or cause the device to malfunction. (LOW BATTERY mark) does not appear when the batteries are drained. -
Page 8: Selecting The Correct Cuff Size
The arm size is printed on each cuff. The index and proper fit range, on the cuff, tell you if you are applying the correct cuff. (Refer to "Applying The Arm Cuff" on the next page. ) If the index points outside of the range, contact your local dealer to purchase a replacement cuff. -
Page 9: Applying The Arm Cuff
For the most accurate blood pressure measurement: Sit comfortably on a chair. Rest your arm on the table. Do not cross your legs. Keep your feet on the floor and straighten your back. Relax before measurement. Place the center of the cuff at the same height as your heart. -
Page 10: Measurements
Measurements Model UA-767 BT is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically. If your systolic pressure is expected to exceed 230 mmHg or you use the optional small cuff, read "Measurement with the desired systolic pressure"... -
Page 11: Measurement With The Desired Systolic Pressure
An individual's blood pressure varies constantly, depending on what you are doing and what you have eaten. What you drink can have a very strong and rapid effect on your blood pressure. -
Page 12: What Is An Irregular Heartbeat
An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. It is important that you be relaxed, remain still and do not talk during measurements. Note: We recommend contacting your physician if you see this indicator frequently. -
Page 13: About Blood Pressure
30 to 50 mmHg due to various conditions during the day. In hypertensive individuals’ variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep. So, do not be overly concerned by the results of one measurement. -
Page 14: Troubleshooting
(Measured every five minutes) normal blood pressure. Regular readings give Systolic a more comprehensive blood pressure history. Be sure to note date and time when recording your blood pressure. Consult your doctor to interpret your blood pressure data. Sleep Diastolic... -
Page 15: Maintenance
Maintenance Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, request service from your dealer or from the A&D service group. The A&D service group will provide technical information, spare parts and units to authorized dealers. - Page 16 Applied part Cuff Type BF Useful life Device: 5 years (when used six times a day) Cuff: 2 years (when used six times a day) Wireless communication WML-40AH (MITSUMI Electronics Co. Ltd.) Accessory AC adapter The adapter is to connect the device to a power source at home.
- Page 17 1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A.
