4.1.7 Installing the Softener

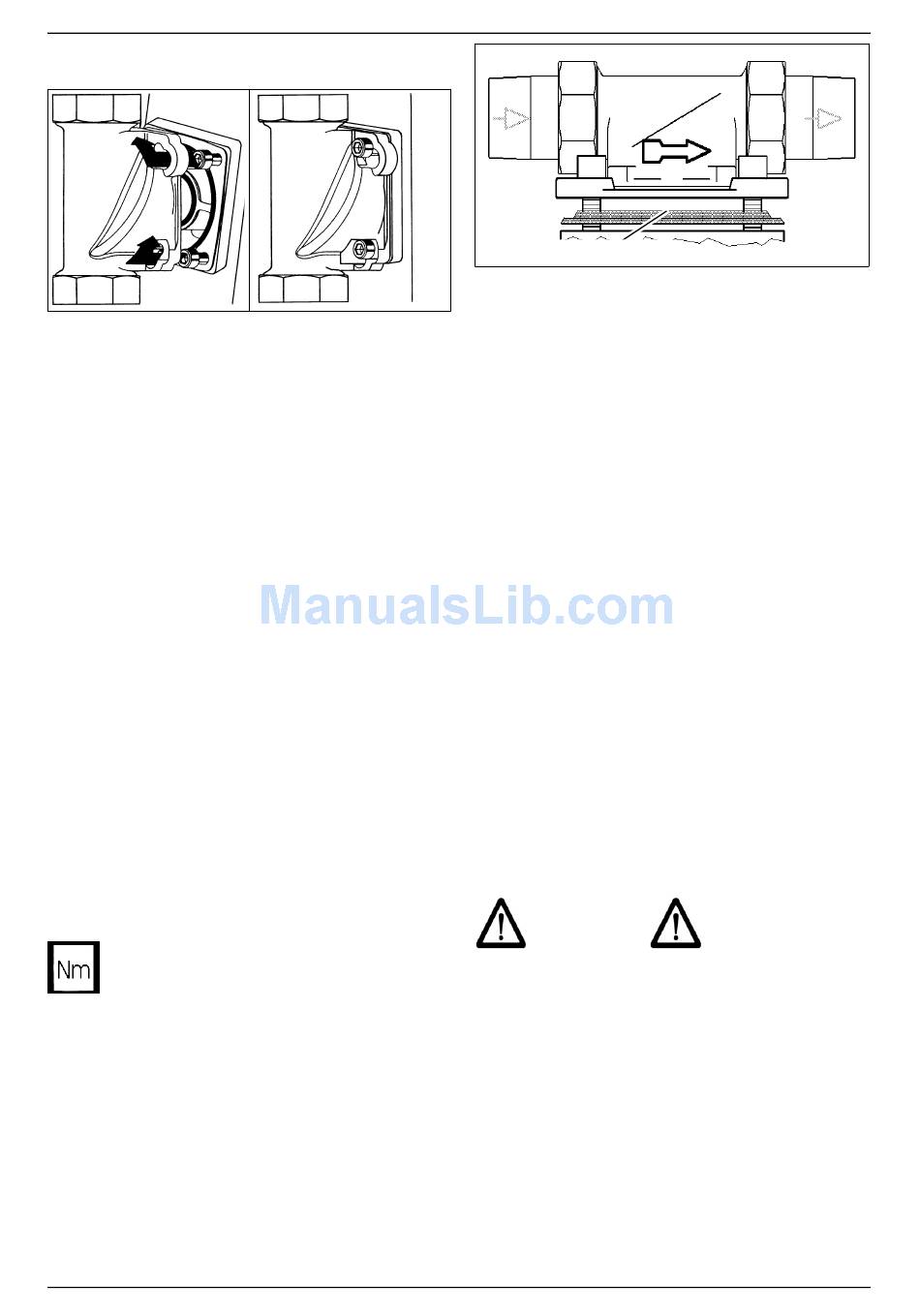

Fig. 8: Built-in rotary flange with bayonet fixture
After flushing the water pipe, remove the as-
sembly cover of the built-in rotary flange.
Remove the white protective disc on the
connecting flange of the Softener by undo-
ing the four M6 Allen screws.
Do not completely unscrew the screws
because of the bayonet connection!
Lift up the Softener and swivel it through ap-
prox. 30° in an anti-clockwise direction. Po-
sition it on the built-in rotary flange so that
the screw heads pass through the bayonet
fixing drill holes (see Fig. 8 I). Swivel the
Softener through approx. 30° back in a
clockwise direction and tighten the four Allen
screws (see Fig. 8 II).
The section of the profiled flange gasket
must point towards the built-in rotary flange.
Failure to observe this can lead to leaks and
water escaping. This can in turn cause water
damage to the house and its installations
(see Fig. 9).
Select the torque (approx. 4 Nm) so
that the gasket closes and the Sof-
tener is not damaged or strained!
12
I
JUDO QUICKSOFT-UNO
Installation
II
Profiled flange gasket
Fig. 9: Built-in rotary flange
4.1.8 Wastewater connection and
back-up overflow hose
The hoses for the regeneration wastewater
and the back-up overflow must both be laid
up to the wastewater sewer without any
kinks. Ensure free discharge above the
wastewater channel or floor drain.
The wastewater hose with a 10 mm outer di-
ameter may be laid up to 1 m above the unit.
Securely fix the loose end of the hose to the
pipe or similar with the adhesive tape sup-
plied.
The back-up overflow hose with a 19 mm
outer diameter must be laid with a constant
fall to the wastewater sewer and free of
kinks.
If the connection for the wastewater sewer is
higher than this, the salt container can be in-
stalled correspondingly higher with the aid of
a wall bracket (see chapter on "Accesso-
ries").
ATTENTION
(see chapter on "Safety information and
dangers due to non-compliance")
The wastewater connection must not be lo-
cated above the Softener.
An adequately dimensioned wastewater
connection (e.g. floor drain) to DIN 1986
must be available for the wastewater and
the back-up overflow hose (6).
