4.1.5 Assembly of the bypass valve
(accessories)
The flange (c) of the bypass valve marked
with the cast in letter "R" (pipe) is screwed
onto the built-in rotary flange (b). The Sof-
tener is fitted onto the flange (d) marked with
the cast in letter "G" (unit). The hand lever
(a) of the bypass valve can be positioned
anywhere above the unit or to the side if
there is a large space between the pipe and
wall. The installation should be carried out,
depending on the local circumstances, so
that the hand lever (a) is easily accessible
(see Fig. 5), Fig. 6) and Fig. 7)).
d

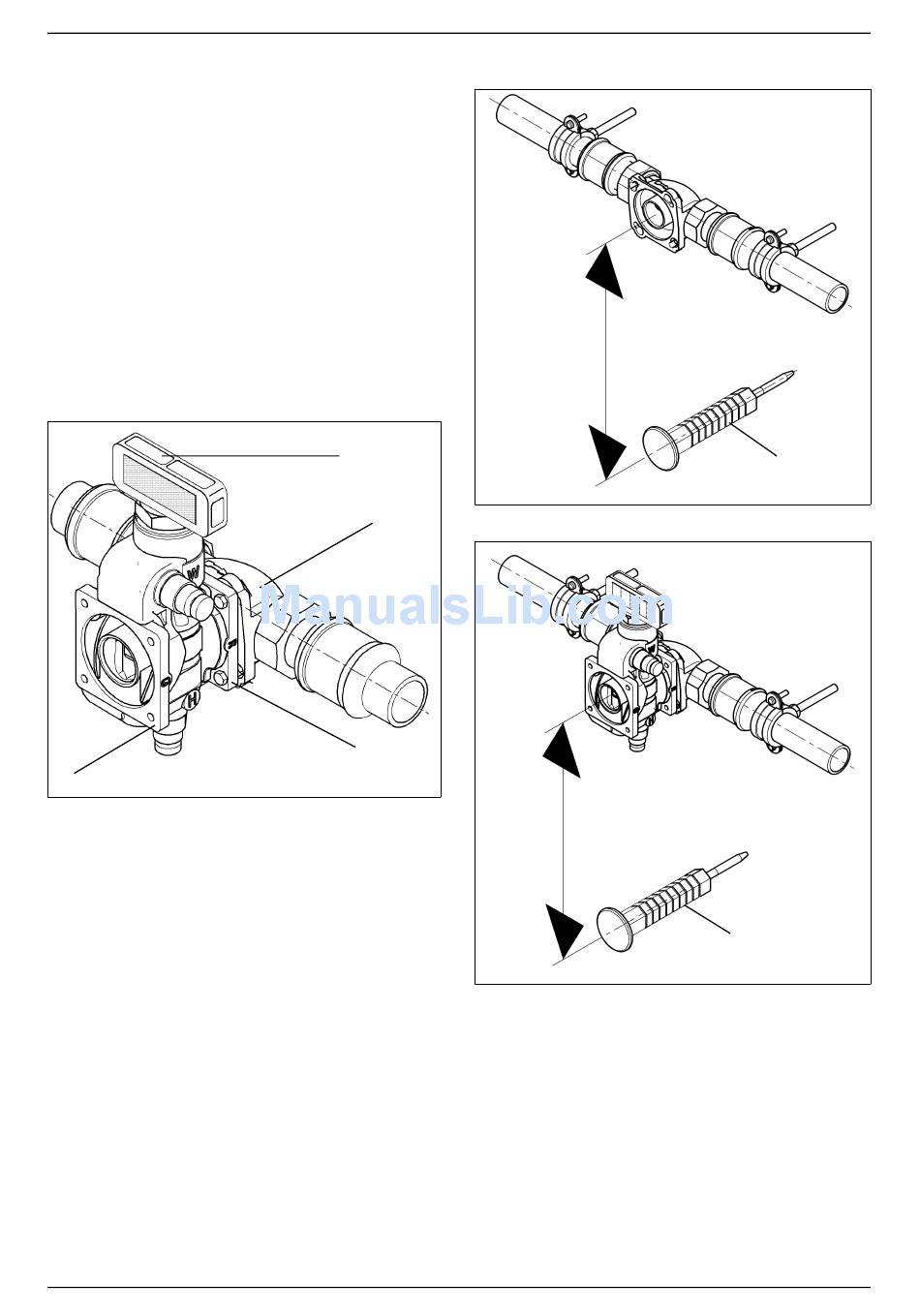

Fig. 5: bypass valve
a Hand lever
b Built-in rotary flange
c „R" pipe flange
d „G" unit flange
e Wall support
Installation
4.1.6 Fitting the wall support
a
b
Fig. 6:
c
300
Fig. 7:
For further information, please refer to the
installation instructions for the wall support.
JUDO QUICKSOFT-UNO
300
Wall support without bypass valve
Wall support with bypass valve
e
e
