Monitor Information
In This Chapter
•
Version:
Provides version information for the Access Point's system components.
•
ICMP:
Displays statistics for Internet Control Message Protocol packets sent and received by the AP.
•
IP/ARP Table:
Displays the AP's IP Address Resolution table.
•
Learn Table:
Displays the list of nodes that the AP has learned are on the network.
•
IAPP:
Provides statistics for the Inter-Access Point Protocol messages sent and received by the AP.
•
RADIUS:
Provides statistics for the configured primary and backup RADIUS server(s).
•
Interfaces:
Displays the Access Point's interface statistics (Wireless and Ethernet).
•
Link Test:
Evaluates the link with a wireless client.
•
Station Statistics:
Displays statistics for stations and Wireless Distribution System links.
Accessing Monitor Features
1. Click the Monitor button located on the left-hand side of the screen.

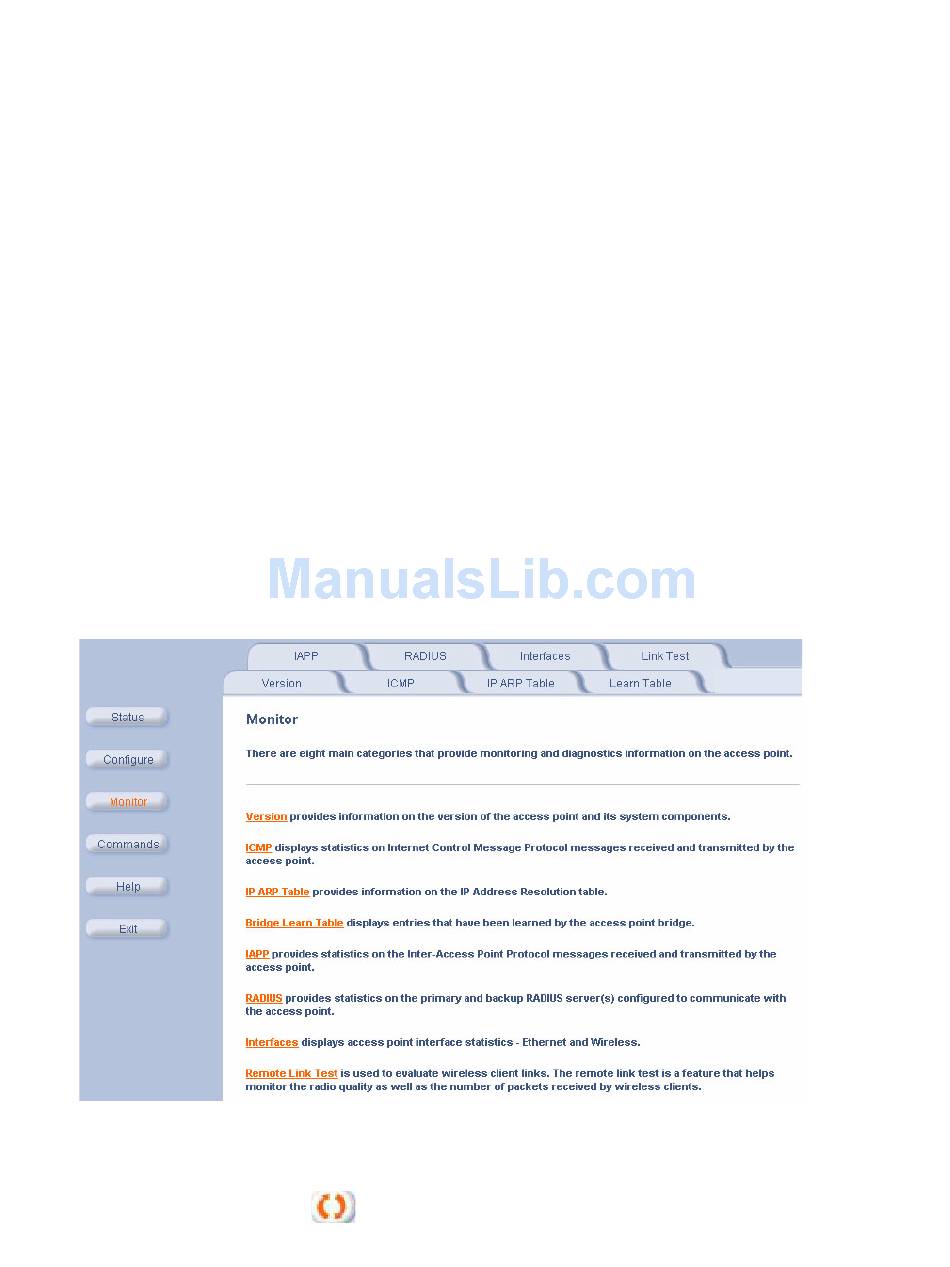

Figure 5-1
Monitor Main Screen
2. Click the tab that corresponds to the statistics you want to review. For example, click Learn Table to see the list of
nodes that the AP has discovered on the network.
3. If applicable, click the Refresh
button to update the statistics.
5
5-1
