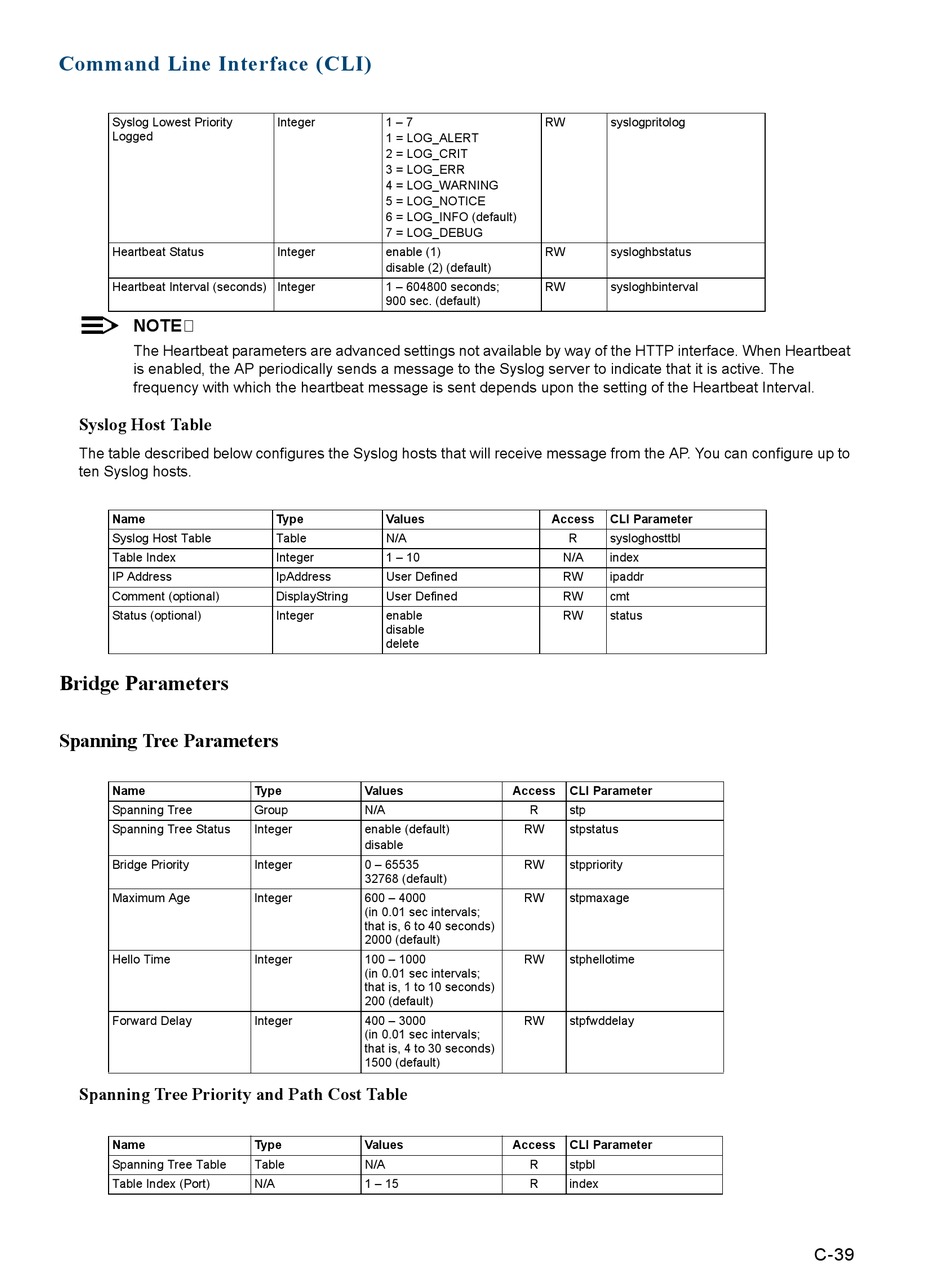

HP ProCurve 520wl User Manual page 175

Command Line Interface (CLI)
Syslog Lowest Priority
Logged
Heartbeat Status
Heartbeat Interval (seconds) Integer
NOTE �
The Heartbeat parameters are advanced settings not available by way of the HTTP interface. When Heartbeat
is enabled, the AP periodically sends a message to the Syslog server to indicate that it is active. The
frequency with which the heartbeat message is sent depends upon the setting of the Heartbeat Interval.
Syslog Host Table
The table described below configures the Syslog hosts that will receive message from the AP. You can configure up to
ten Syslog hosts.
Name
Syslog Host Table
Table Index
IP Address
Comment (optional)
Status (optional)
Bridge Parameters
Spanning Tree Parameters
Name
Spanning Tree
Spanning Tree Status
Bridge Priority
Maximum Age
Hello Time
Forward Delay
Spanning Tree Priority and Path Cost Table
Name
Spanning Tree Table
Table Index (Port)
Integer 1 – 7
1 = LOG_ALERT
2 = LOG_CRIT
3 = LOG_ERR
4 = LOG_WARNING
5 = LOG_NOTICE
6 = LOG_INFO (default)
7 = LOG_DEBUG
Integer enable (1)
disable (2) (default)
1 – 604800 seconds;
900 sec. (default)
Type Values
Table N/A
Integer 1 – 10
IpAddress User Defined
DisplayString User Defined
Integer enable
disable
delete
Type Values
Group N/A
Integer enable (default)
disable
Integer 0 – 65535
32768 (default)
Integer 600 – 4000
(in 0.01 sec intervals;
that is, 6 to 40 seconds)
2000 (default)
Integer 100 – 1000
(in 0.01 sec intervals;
that is, 1 to 10 seconds)
200 (default)
Integer 400 – 3000
(in 0.01 sec intervals;
that is, 4 to 30 seconds)
1500 (default)
Type Values
Table N/A
N/A 1 – 15
RW syslogpritolog
RW sysloghbstatus
RW sysloghbinterval
Access CLI Parameter
R sysloghosttbl
N/A index
RW ipaddr
RW cmt
RW status
Access CLI Parameter
R stp
RW stpstatus
RW stppriority
RW stpmaxage
RW stphellotime
RW stpfwddelay
Access CLI Parameter
R stpbl
R index
C-39
