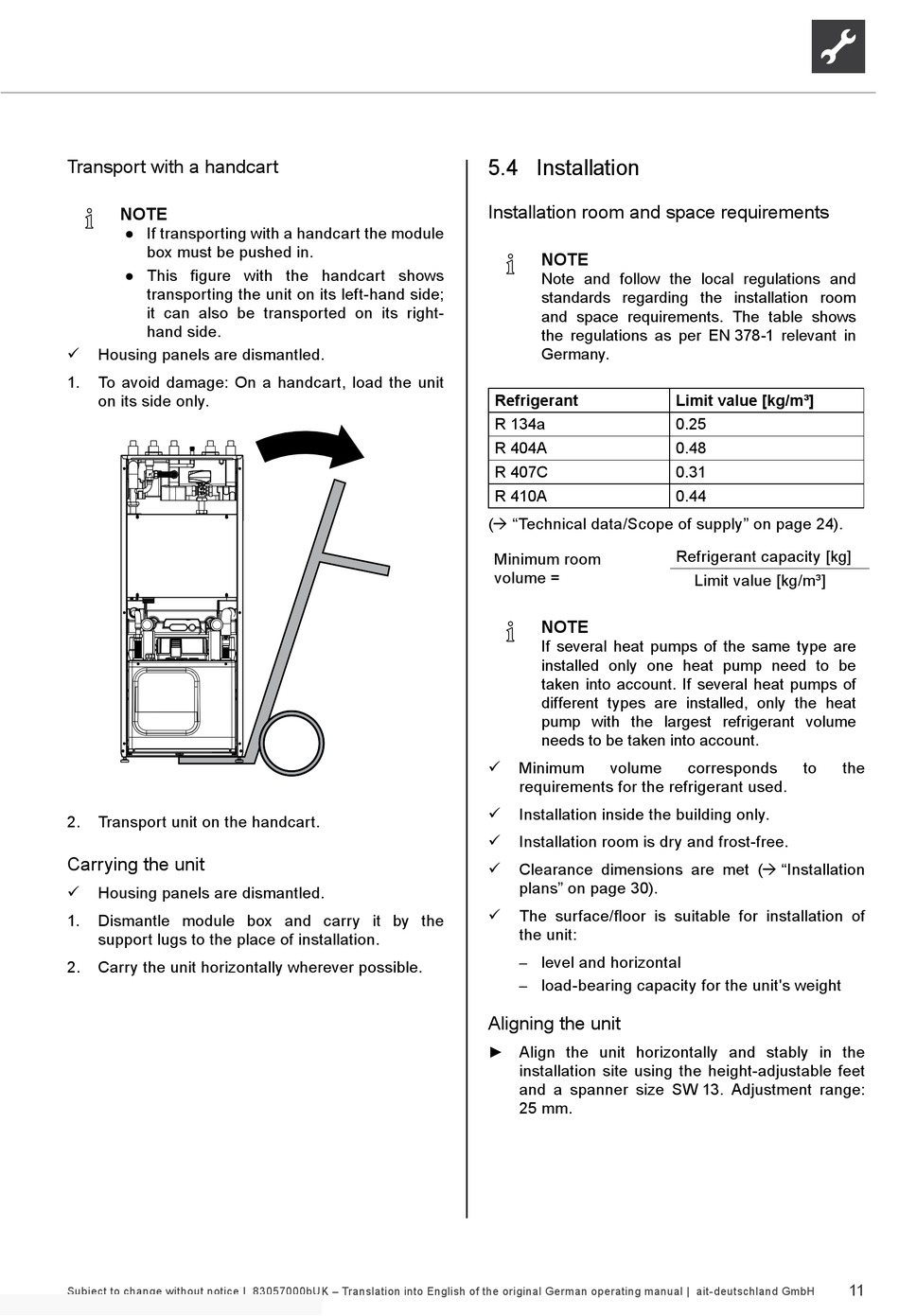

Transport with a handcart
NOTE
● If transporting with a handcart the module
box must be pushed in.
● This figure with the handcart shows
transporting the unit on its left-hand side;
it can also be transported on its right-
hand side.
Housing panels are dismantled.

1. To avoid damage: On a handcart, load the unit
on its side only.
2. Transport unit on the handcart.
Carrying the unit
Housing panels are dismantled.

1. Dismantle module box and carry it by the
support lugs to the place of installation.
2. Carry the unit horizontally wherever possible.
Subject to change without notice | 83057000bUK – Translation into English of the original German operating manual | ait-deutschland GmbH

5.4 Installation

Installation room and space requirements
NOTE
Note and follow the local regulations and
standards regarding the installation room
and space requirements. The table shows
the regulations as per EN 378-1 relevant in
Germany.
Refrigerant
R 134a
R 404A
R 407C
R 410A
( "Technical data/Scope of supply" on page 24).
Minimum room
volume =
NOTE
If several heat pumps of the same type are
installed only one heat pump need to be
taken into account. If several heat pumps of
different types are installed, only the heat
pump with the largest refrigerant volume
needs to be taken into account.
Minimum volume

requirements for the refrigerant used.
Installation inside the building only.

Installation room is dry and frost-free.

Clearance dimensions are met ( "Installation

plans" on page 30).
The surface/floor is suitable for installation of

the unit:
– level and horizontal
– load-bearing capacity for the unit's weight
Aligning the unit
► Align the unit horizontally and stably in the
installation site using the height-adjustable feet
and a spanner size SW 13. Adjustment range:
25 mm.
Limit value [kg/m³]
0.25
0.48
0.31
0.44
Refrigerant capacity [kg]
Limit value [kg/m³]
corresponds to the
11
