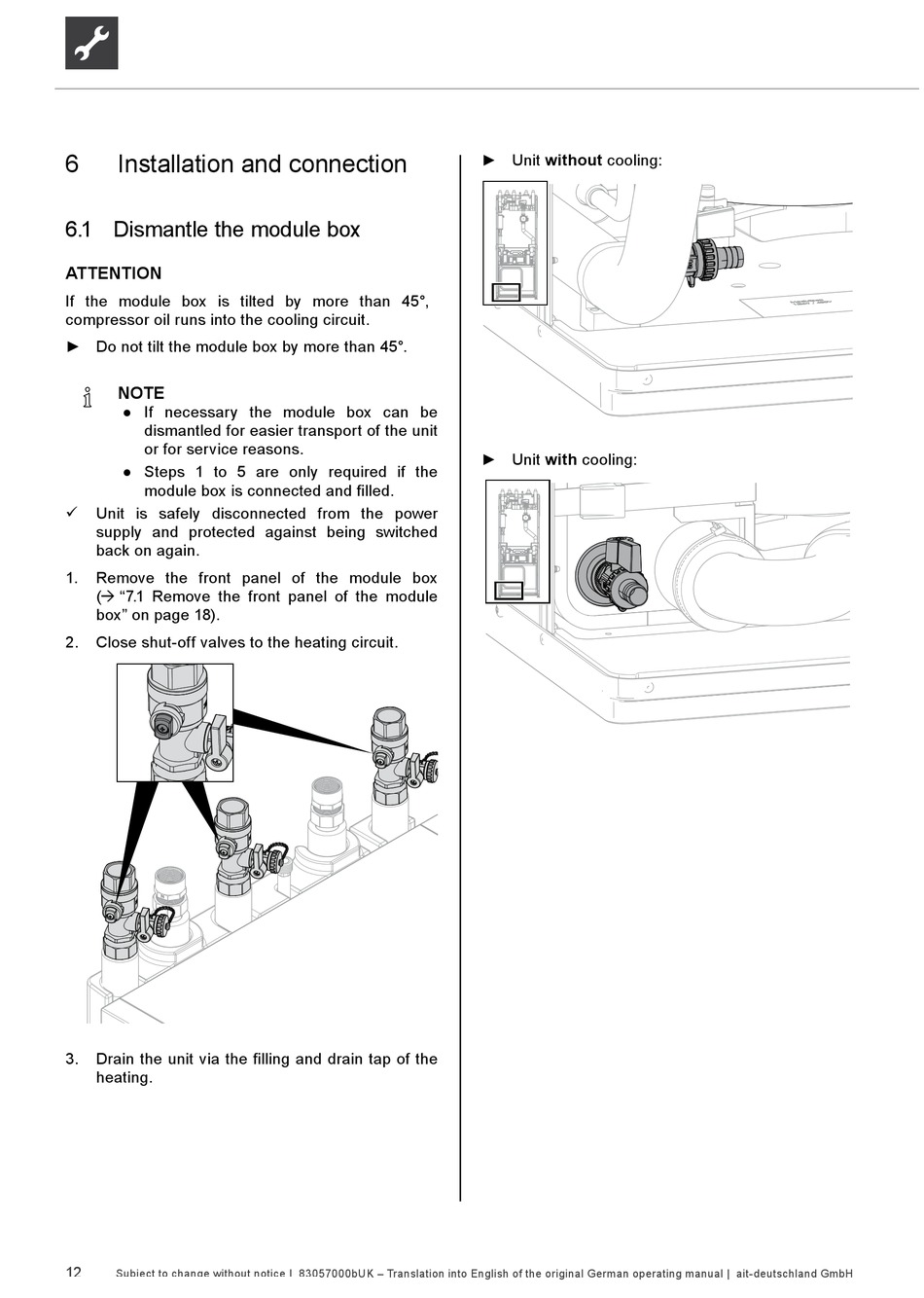

6

Installation and connection

6.1 Dismantle the module box

ATTENTION
If the module box is tilted by more than 45°,
compressor oil runs into the cooling circuit.
► Do not tilt the module box by more than 45°.
NOTE
● If necessary the module box can be
dismantled for easier transport of the unit
or for service reasons.
● Steps 1 to 5 are only required if the
module box is connected and filled.
Unit is safely disconnected from the power
supply and protected against being switched
back on again.
1.
Remove the front panel of the module box
( "7.1 Remove the front panel of the module
box" on page 18).
2.
Close shut-off valves to the heating circuit.
3.
Drain the unit via the filling and drain tap of the
heating.
12
Subject to change without notice | 83057000bUK – Translation into English of the original German operating manual | ait-deutschland GmbH
► Unit without cooling:
► Unit with cooling:
