EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION

The evaluation board software is available to download from
the EVAL-AD7625FMCZ/EVAL-AD7626FMCZ
board pages on the Analog Devices website. Double-click the
setup.exe file to run the install. The default location for the
software is C:\Program Files (x86)\Analog Devices\
AD7626_25 Evaluation Software.
Install the evaluation software before connecting the evaluation
board and the EVAL-SDP-CH1Z
PC to ensure that the evaluation system is correctly recognized
when connected to the PC.
There are two parts of the software installation process:

AD7625/AD7626 evaluation software installation

EVAL-SDP-CH1Z board drivers installation
Figure 3 to Figure 9 show the steps to install the
evaluation software, and Figure 10 to Figure 14 show the steps to
install the EVAL-SDP-CH1Z
Proceed through all of the installation steps to install the
software and drivers in the appropriate locations.
Connect the EVAL-SDP-CH1Z
software and drivers have been installed.

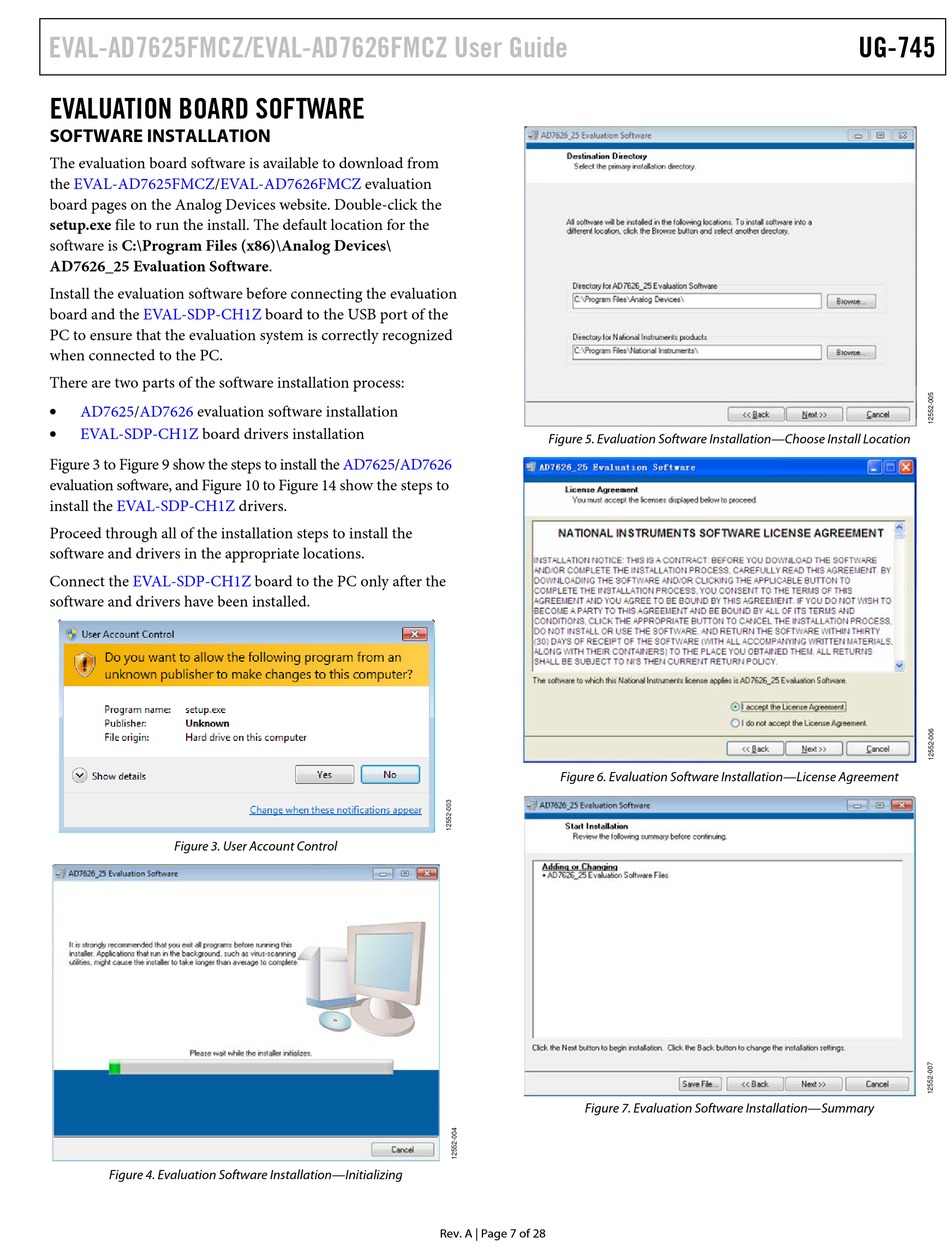

Figure 3. User Account Control
Figure 4. Evaluation Software Installation—Initializing
evaluation
board to the USB port of the
AD7625/AD7626
drivers.
board to the PC only after the
Figure 5. Evaluation Software Installation—Choose Install Location
Figure 6. Evaluation Software Installation—License Agreement
Figure 7. Evaluation Software Installation—Summary
