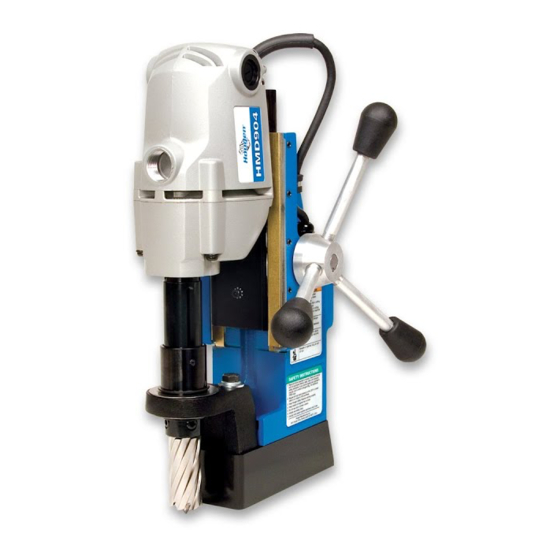

Hougen HMD904 SERIES Operator's Manual

Portable magnetic drill
Hide thumbs Also See for HMD904 SERIES:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
HMD904 SERIES
PORTABLE MAGNETIC DRILL
OPERATOR'S MANUAL
COVERS DRILL PART NUMBER 0904101, 0904102 & 0904103
FOR USE WITH "12,000-SERIES" HOUGEN
FOR USE WITH "12,000-SERIES" HOUGEN
CUTTERS
CUTTERS
®
®
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the HMD904 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hougen HMD904 SERIES

Summary of Contents for Hougen HMD904 SERIES

  • Page 1 HMD904 SERIES PORTABLE MAGNETIC DRILL OPERATOR’S MANUAL COVERS DRILL PART NUMBER 0904101, 0904102 & 0904103 FOR USE WITH “12,000-SERIES” HOUGEN FOR USE WITH “12,000-SERIES” HOUGEN CUTTERS CUTTERS ® ® ®...

  • Page 2: Welcome To Hougen

    No other expressed warranty is given or authorized. Hougen Manufacturing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.

  • Page 3: Safety First

    Complete and mail the Product Registration Card now. 8. Your Magnetic Drill was factory adjusted prior to It is important that Hougen Manufacturing, Inc. have a shipping. Check to make sure that all gib record of product ownership.
  • Page 4 12. Non-Conforming Cutting Tools Keep Work Area Clean Your Mag Drill is designed to use Hougen Cutters. Cluttered areas and benches invite injuries. The use of drilling tools having different shank styles Keep dirt and chips from under the Cutter area.
  • Page 5 Keep tools sharp and clean for better and safer Changing of the circuit breaker to a higher amp rated breaker, or performance. Do not use dull or broken Hougen Cutters. bypassing the circuit breaker is not recommended and will void Follow instructions for lubricating and changing product warranty.

  • Page 6: Operating Instructions

    6. Make certain that cutter is clear of workpiece and turn motor ON by pressing the motor START switch. 7. Feed Hougen Cutter slowly into workpiece. Only after cutting path is established to a depth of about 1/16” can full force be applied to feed handles.
  • Page 7 3. Turn Feed Handles until cutter mounting set screws are exposed and completely remove the set screws. 4. Insert proper pilot in shank end of Hougen Cutter. 5. Insert Hougen Cutter until fl at on cutter shank is aligned with set screw holes and is exactly perpendicular to axis of set screw holes.

  • Page 9: Motor Parts List

    MOTOR ASSEMBLY 04527 04528 (OPPOSITE SIDE) 10538 11053 75289 04502 02413 11053 BOLT TORQUE SPECIFICATIONS - TIGHTEN TO 18 IN-LBS 75289 BOLT TORQUE SPECIFICATIONS - TIGHTEN TO 25 IN-LBS MOTOR PARTS LIST - 05477 Part # Description Part # Description 02413 Motor Cord 17611...
  • Page 10 CONTROL PANE PANE L HOOKUP (P2) Circuit �� ��� Board Power Cord (P1) Circuit White Board Power Cord Black Motor Black Wire Motor White Wire From L.E.D Bulb To (J3) Power Cord Green Ground Attach To Housing Green Ground To Housing (J1) (J4) (J2)
  • Page 11 CONTROL PANEL PARTS LIST Panel Assembly P/N 05188 04644 05871 01226 04643 ����� 05872 04614 (3) 02547 07012 ������ 05826 07011 ���� �� ������ ������ ������ ����� 90571 WHITE WIRE 04879 04877 04878 RED ANODE 04881 ����� ���� ��������� ������ �������� ���� �������...
  • Page 13 HMD904 PARTS LIST Part # Description Part # Description 02411 Strain Relief-Motor Cord 40234 Thrust Washer 02413 Motor Cord 40254 Hub Assy 02420 Motor Cord Clamp 40398 Retaining Ring 02421 Glide Post Spring 40432 Screw SHC 1/4-28 02422 Motor Cord Bracket 41044 Screw BHC #10-32 02423...
  • Page 15 HMD904C PARTS LIST Part # Description Part # Description 02411 Strain Relief-Motor Cord 90028 Lock Washer 1/4 Heli 02413 Motor Cord 90052 Lock Washer #6 Ext 02420 Motor Cord Clamp 90077 Screw BHC #10-32 x 1/2 02422 Motor Cord Bracket Assemblies 02423 Motor Cord Flex Prot.
  • Page 17 HMD904S PARTS LIST Part # Description Part # Description 40398 Retaining Ring 02411 Strain Relief-Motor Cord 02413 Motor Cord 40432 Screw SHC 1/4-28 02420 Motor Cord Clamp 41044 Screw BHC #10-32 02422 Motor Cord Bracket 50035 Lock Washer 1/4 Ext 02423 Motor Cord Flex Prot.
  • Page 18 5. Remove arbor and pack the bearing in the front support bracket with grease. Use Shell Cyprina-RA or equivalent. HINTS FOR SMOOTHER OPERATION 1. Keep insides of Hougen Cutter clear of chips. Chips will interfere with cutting to maximum depth, may impede the free oil fl ow and can cause cutter breakage.
  • Page 19 SWIVEL BASE ADJUSTMENTS ATTENTION The threads on the Clamp Handle Assembly are a Left Handed thread meaning, Turning Clockwise would loosen the assembly Turning Counter Clockwise would tighten the assembly. Also, the Clamp Handle Assembly is spring loaded so you will need to lift & turn the entire Clamp Handle Assembly when repositioning as if to be a ratchet device.
