EXPLODED VIEW AND PARTS LIST

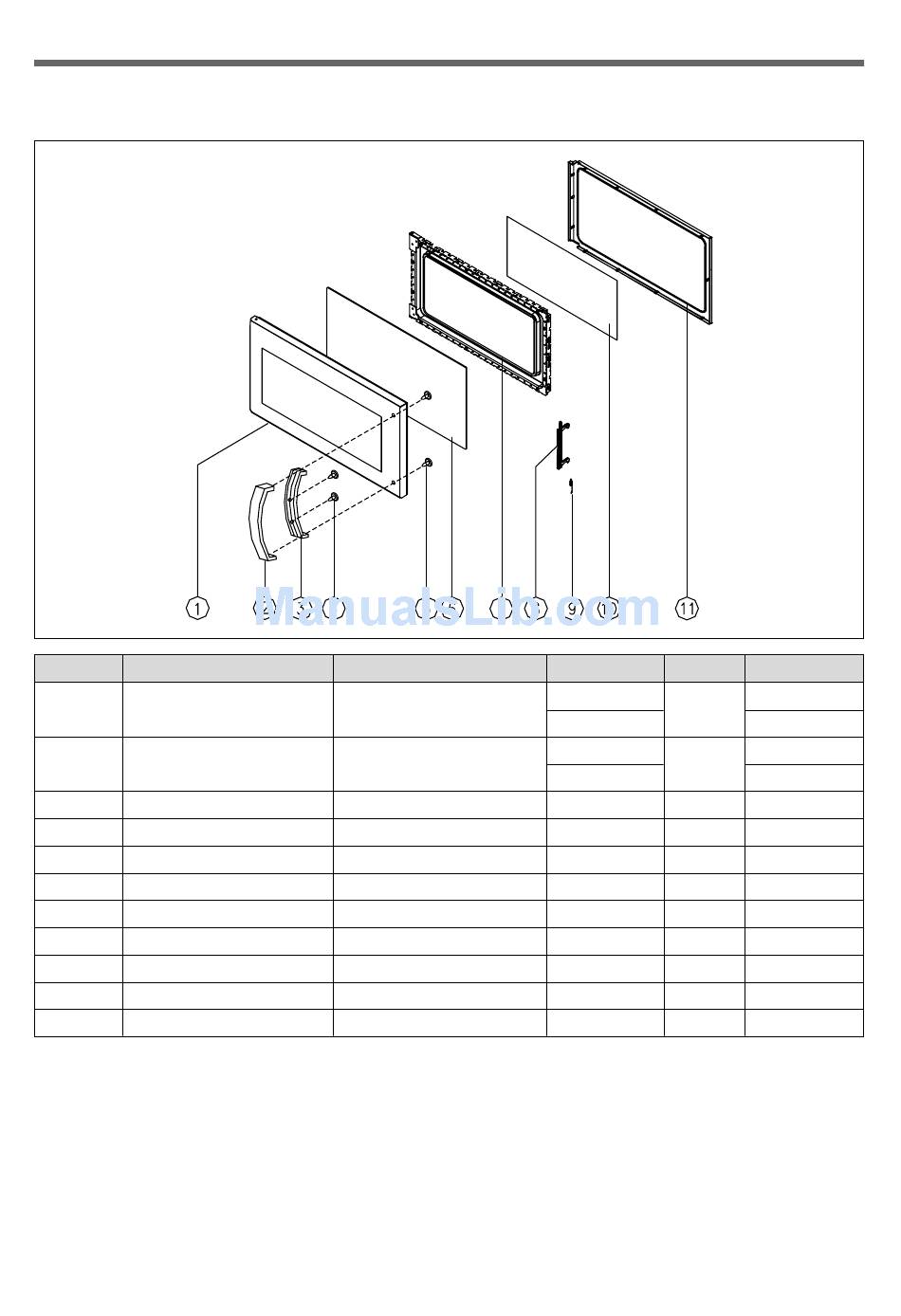

1. DOOR ASSEMBLY (KOT-1G0B / KOT-1G0S)
REF NO.
PART NAME
1
FRAME DOOR
2
HANDLE DOOR *O
3
HANDLE DOOR *I
4
SCREW TAPPING
5
SCREW TAPPING
6
BARRIER SCREEN *O
7
DOOR PAINTING AS
8
HOOK
9
SPRING HOOK
10
BARRIER SCREEN *I
11
GASKET DOOR
DESCRIPTION
ABS
ABS
ABS
T2S PAN 4X10 MFZN
T2S TRS 4X12 MFZN
TEMP GLASS T3.2
KOT-150S0A
POM
PW1
PE T0.1
PP 5113MF6 A353B BK
50
PART CODE
Q'TY
3512209600
1
3511716210
3512606400
1
3512604500
3512606500
1
7121401011
2
7122401211
2
3517009410
1
3511712300
1
3513101200
1
3515101800
1
3517006300
1
3512302100
1
REMARK
KOT-1G0A
KOT-1G4U
KOT-1G0A
KOT-1G4U
