16. REPLACING THE HIGH VOLTAGE RECTIFER
WARNING :
Personal Injury Hazard
Disconnect from the power supply before servicing the unit. Failure to do so could result in electric shock or
other personal injury.
CAUTION :
Personal Injury Hazard
Because of the weight and size of the microwave oven, two people are required to safely move and install it.
Failure to do so could result in personal injury.
1. Remove the vent grille and the cabinet from the microwave oven (See FIG.1).
2. You can access the high-voltage section in the microwave oven.
WARNING :
Personal Injury Hazard
Disconnect from the power supply, before servicing the unit. Discharge the capacitor using a 20,000 W discharge
resistor, or an insulated plastic-handle screwdriver to short across the capacitor terminals.
3. Discharge the high-voltage capacitor.
4. Unplug one end of the high-voltage rectifier from the high-voltage capacitor terminal.
5. Remove a screw from the end of the high-voltage rectifier, and remove the high voltage rectifier.
6. Mount the eyelet on the end of the high-voltage rectifier lead to the bracket with its mounting screw.

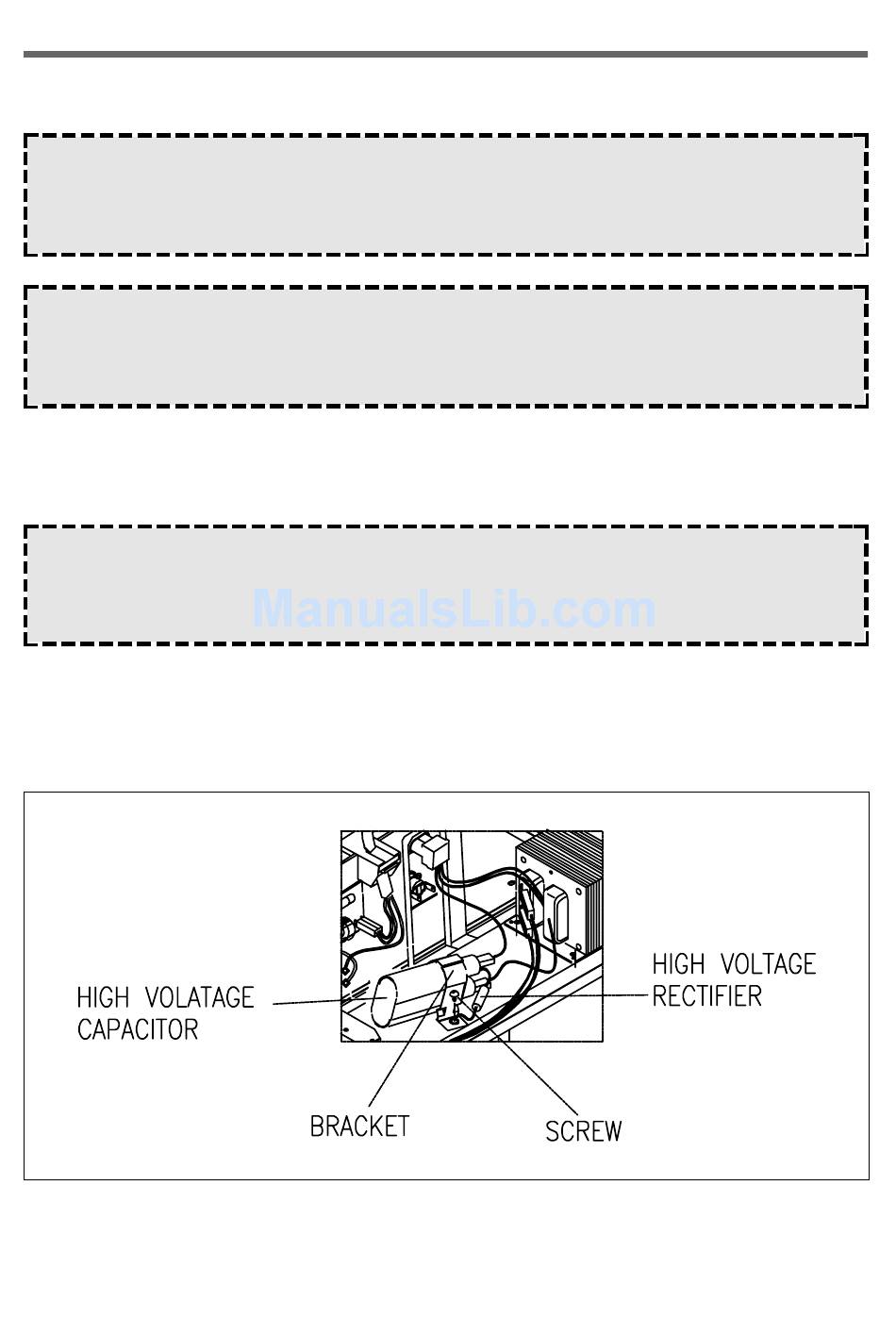

FIG. 16
