6. REPLACING/ADJUSTING - INTERLOCK SWITCHES
WARNING :
Personal Injury Hazard
Disconnect from the power supply before servicing the unit. Failure to do so could result in electric shock or
other personal injury.
-REPLACING A SWITCH
1. Disconnect the electrical supply to the microwave oven.
2. Remove the vent grille and the cabinet from the microwave oven (See cabinet removal on FIG. 1).
3. Remove the screw from the top center tab of the control panel (See FIG. 2).
4. From the top and back of the control panel, lift the top locking tab and Pull the top of the panel out slightly, then lift the
bottomly, then lift the bottom tabs of the panel out of the slots and pull it forward. Set the panel inside the oven cavity
while you work.
Refer to FIG. 6 for the following steps:
5. Remove the mounting screw from the interlock switch assembly, and position the assembly so you can easily access
the switches and wiring.
6. Refer to REMOVE SWITCH in FIG. 6-1 for the interlock switch housing assembly, and remove the switch from
the housing as shown.
7. Once at a time, pull the wire connectors off the defective switch, and reconnect them to the same terminals on the
replacement switch (See FIG. 6-1).
8. Snap the new switch into place on the switch housing.
9. Mount the interlock switch assembly to the chassis flange with screw (See FIG. 6).

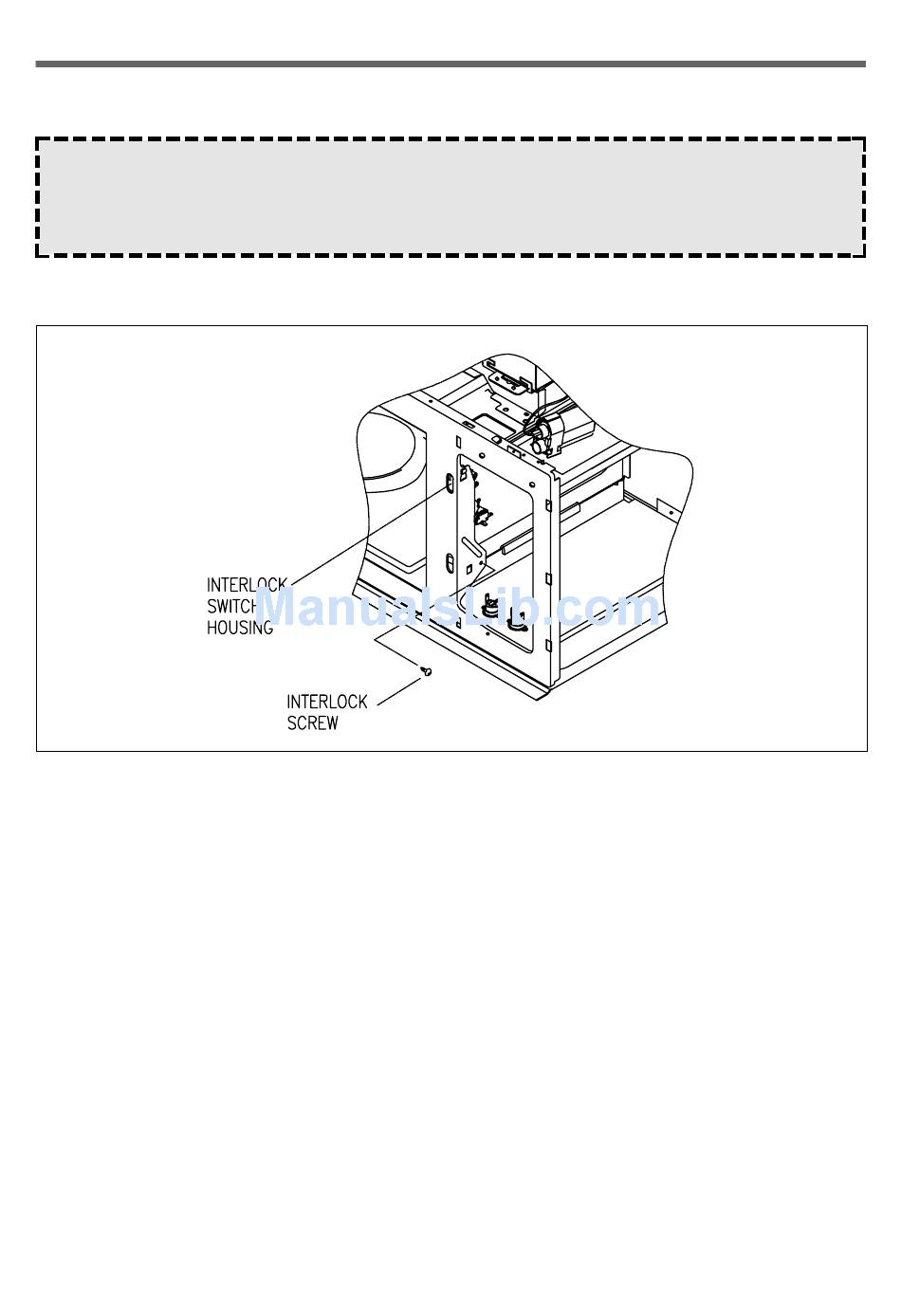

FIG. 6
