7. REPLACING THE THERMOSTAT (BOTTOM / VENT)
WARNING :
Personal Injury Hazard
Disconnect from the power supply before servicing the unit. Failure to do so could result in electric shock or
other personal injury.
1. Disconnect the electric supply to the microwave oven.
2. Remove the vent grille and the cabinet from the microwave oven (See cabinet removal on FIG. 1).
3. Remove the screw from the top center tab of the control panel. (See FIG. 2).
4. From the top and back of the control panel, lift the top locking tab and pull the top of the panel out slightly, then lift bot-
tom tabs of the panel out of the slots and pull it forward. Set the panel inside the oven cavity while you work.
Refer to FIG. 7 and the inset for the following steps:
5. Remove the mounting screw from the bottom thermostat and lift the bottom flange out at slot in the chassis (See FIG. 7)
6. Unplug the two wire connectors from the bottom thermostat.
7. Connect the two wires to the new bottom thermostat.
8. Insert the bottom tab of the bottom thermostat into the chassis slot, and secure the thermostat with its mounting screw.
9. Mount the Control panel to the oven and screw it with its mounting screw.
10. Mount the vent grille to the microwave oven and check out the operation.
* Vent thermostat is the same as bottom thermostat method.
203 32
95 0

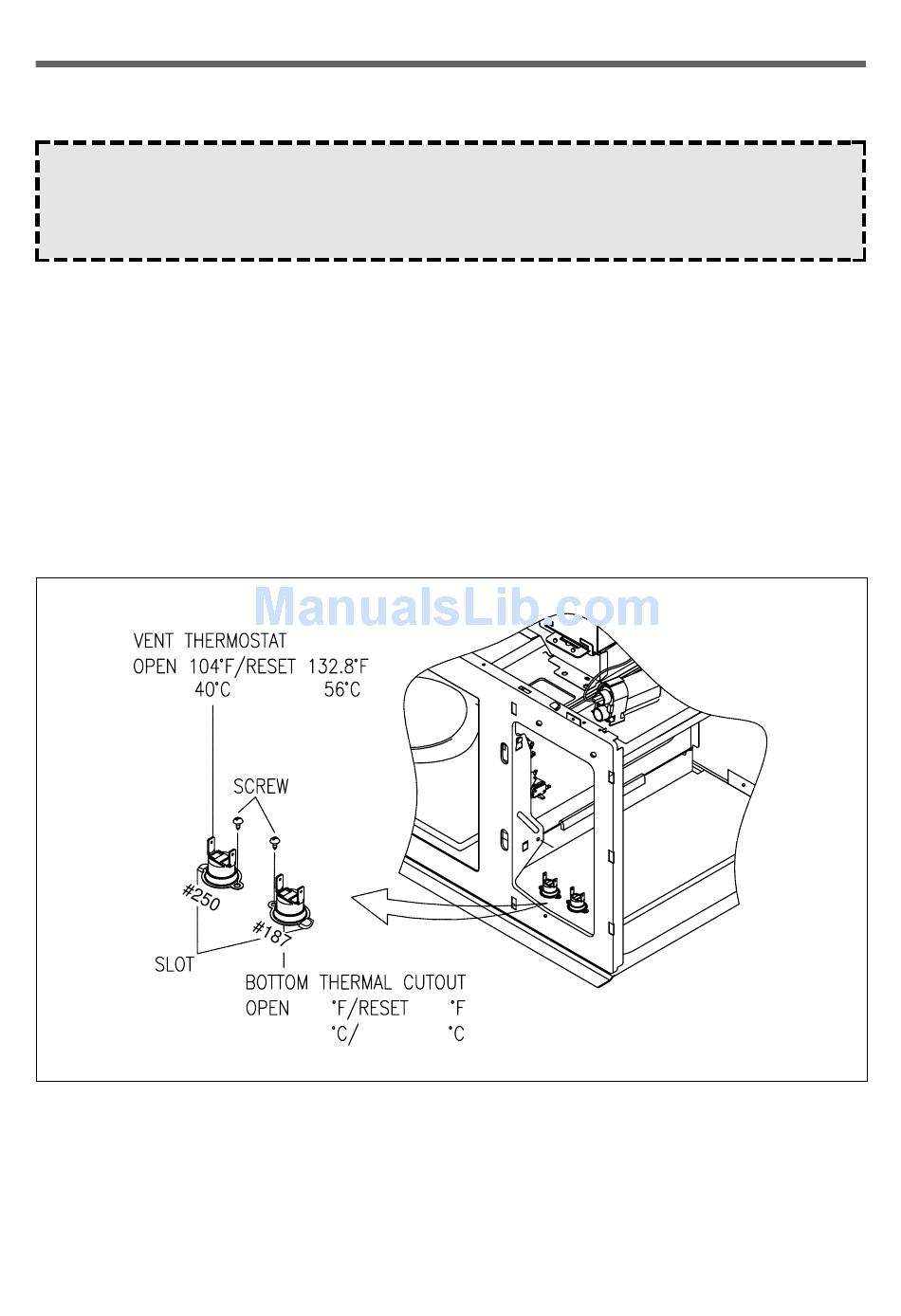

FIG. 7
