17. REPLACING THE HIGH VOLTAGE CAPACITOR
WARNING :
Personal Injury Hazard
Disconnect from the power supply before servicing the unit. Failure to do so could result in electric shock or
other personal injury.
CAUTION :
Personal Injury Hazard
Because of the weight and size of the microwave oven, two people are required to safely move and install it.
Failure to do so could result in personal injury.
1. Remove the vent grille and the cabinet (See FIG.1).
WARNING :
Personal lnjury Hazard
Disconnect from the power supply, before servicing the unit. Discharge the capacitor using a 20,000 W discharge
resistor, or an insulated plastic-handle screwdriver to short across the capacitor terminals.
2. Discharge the high-voltage capacitor.
3. Unplug the wire connector going to high voltage transformer and one end of high voltage rectifier.
4. Remove the capacitor mounting strap screw, then remove the old capacitor.
5. Position the new high-voltage capacitor with the round blister (between the leads). Make sure that the flange on the
strap is against the front end of the capacitor, and tighten the screw just enough to hold the capacitor in place.
6. Connect the end of the high-voltage rectifier and red wire coming from the high voltage transformer to the indicated
capacitor terminal.
7. Connect the remaining red lead coming from the magnetron to the indicated capacitor terminal.

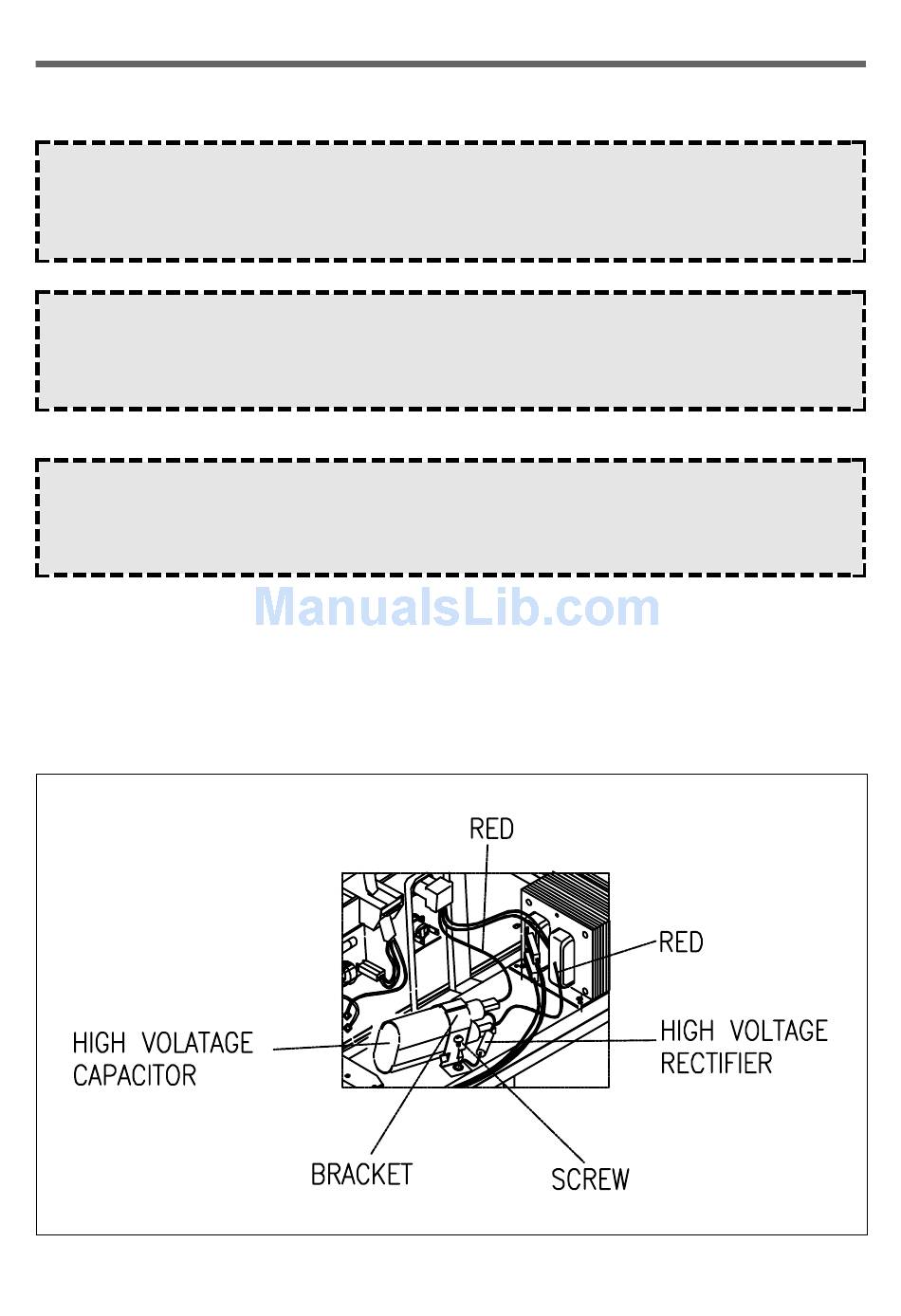

FIG. 17
