2.3.7 Configure the Sensor Configuration Parameters

The sensor (pins 1 and 2) on the header can be used to monitor something's open or closed state.
There is an option on the Sensor Configuration page to trigger on an open or short condition on
these pins.
For the sensor there are three actions that the Loudspeaker Amplifier can do:
•
•
•
Note
1. Click Sensor Config to open the Sensor Configuration page
Operations Guide
Activate the relay until the sensor is deactivated
Loop an audio file until the sensor is deactivated
Call a preset extension and play a pre-recorded audio file (loops until user hangs up)
Calling a preset extension can be set up as a point-to-point call, but currently can't send
delayed DTMF tones.

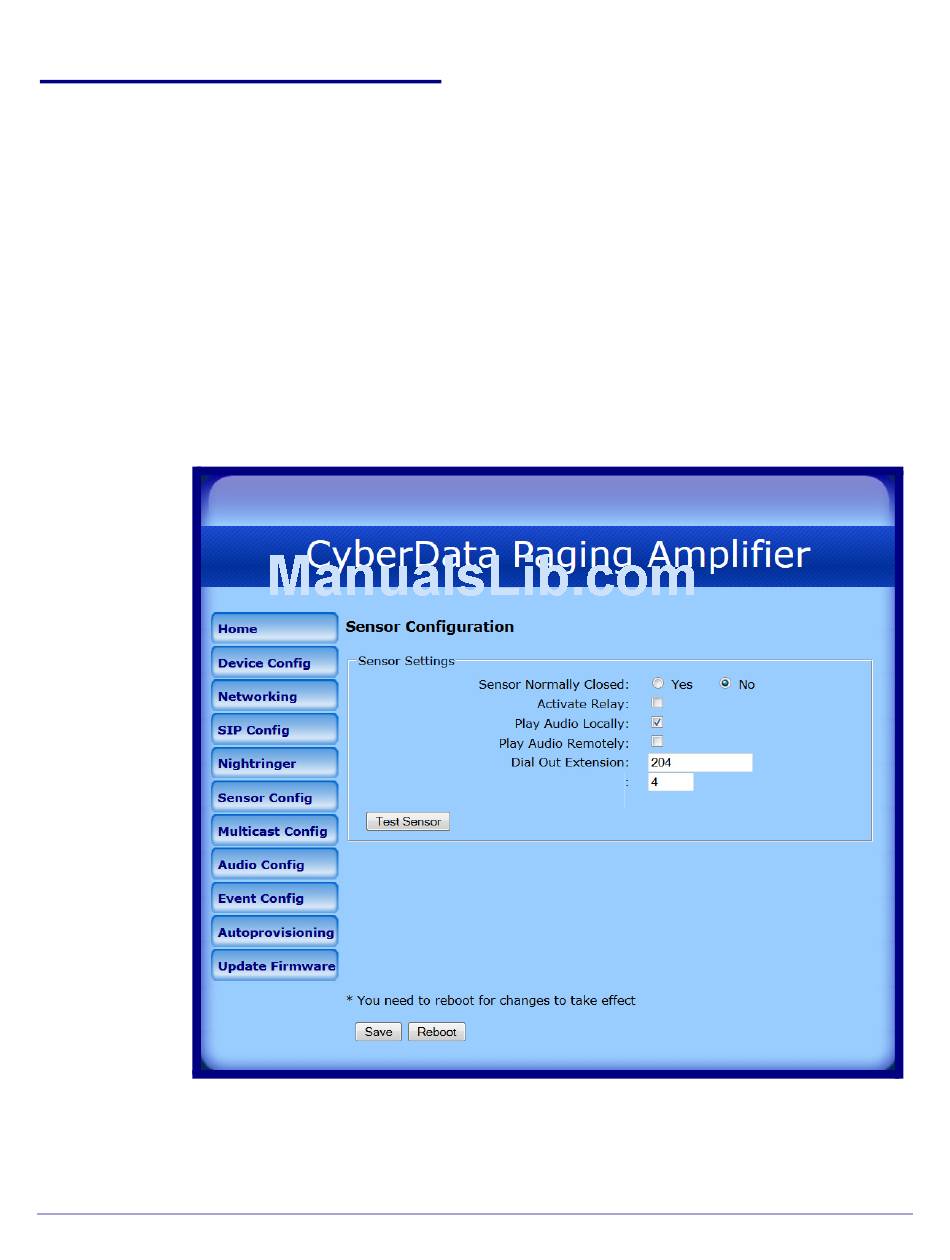

Figure 2-26. Sensor Configuration Page
Repeat Local Audio (0 to repeat forever
Configure the Loudspeaker Amplifier Parameters
while sensor tripped)
930362N
Installing the VoIP V2 Loudspeaker Amplifier
(Figure 2-26).
