2. On the SIP Configuration page, you may enter values for the parameters 
Web Page Item
Primary SIP Server
Backup Server 1
Backup Server 2
Enable SIP Operation
SIP Settings
SIP Server
Backup SIP Server 1
Backup SIP Server 2
Use Cisco SRST
Remote SIP Port
Local SIP Port
Outbound Proxy
Outbound Proxy Port
SIP User ID
Authenticate ID
Authenticate Password
Register with a SIP Server
Re-registration Interval 
(in seconds)
Unregister on Reboot
Operations Guide
indicated in Table 2-14.

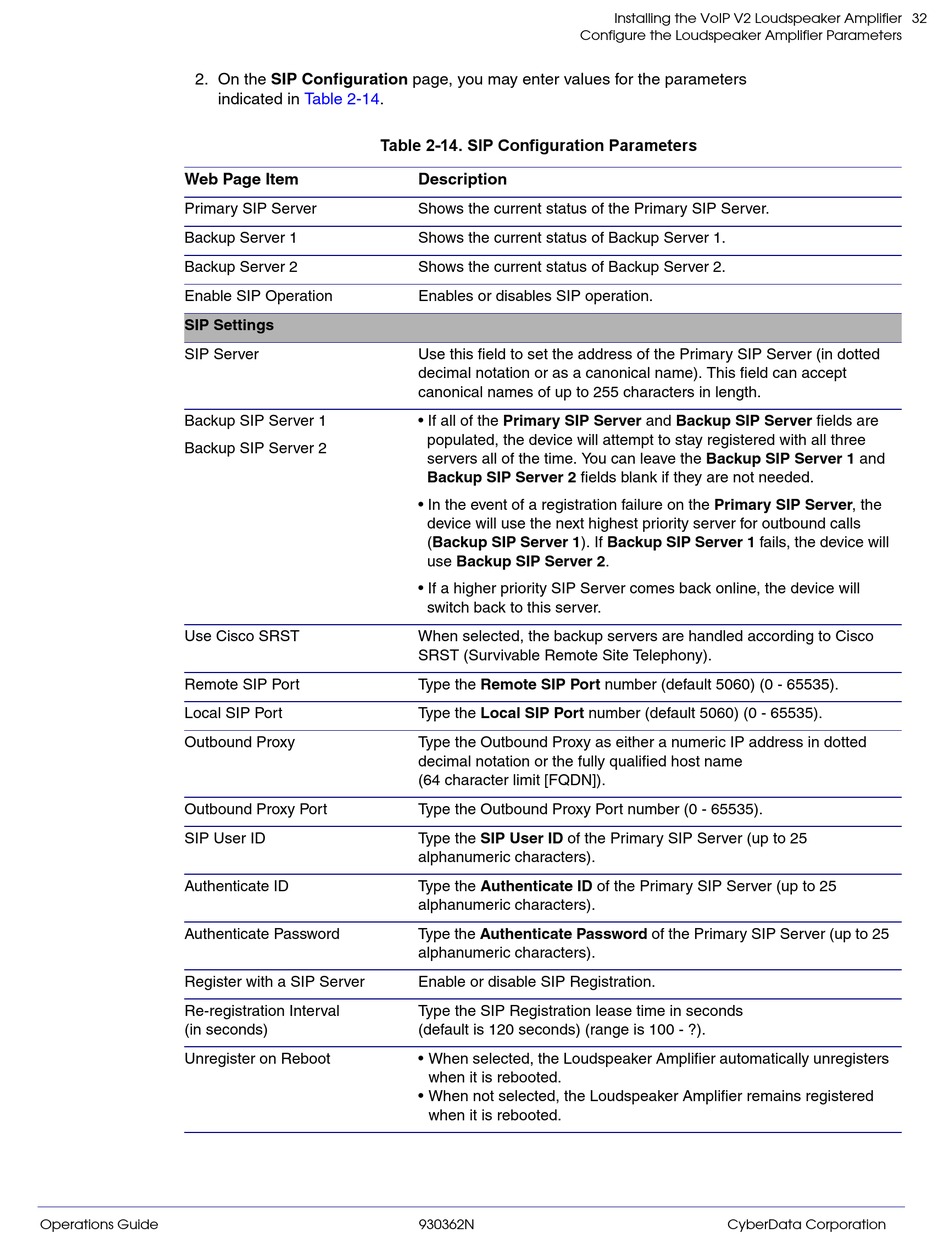

Table 2-14. SIP Configuration Parameters
Configure the Loudspeaker Amplifier Parameters
Description
Shows the current status of the Primary SIP Server.
Shows the current status of Backup Server 1.
Shows the current status of Backup Server 2.
Enables or disables SIP operation.
Use this field to set the address of the Primary SIP Server (in dotted
decimal notation or as a canonical name). This field can accept
canonical names of up to 255 characters in length.
• If all of the Primary SIP Server and Backup SIP Server fields are
populated, the device will attempt to stay registered with all three
servers all of the time. You can leave the Backup SIP Server 1 and
Backup SIP Server 2 fields blank if they are not needed.
• In the event of a registration failure on the Primary SIP Server, the
device will use the next highest priority server for outbound calls
(Backup SIP Server 1). If Backup SIP Server 1 fails, the device will
use Backup SIP Server 2.
• If a higher priority SIP Server comes back online, the device will
switch back to this server.
When selected, the backup servers are handled according to Cisco
SRST (Survivable Remote Site Telephony).
Type the Remote SIP Port number (default 5060) (0 - 65535).
Type the Local SIP Port number (default 5060) (0 - 65535).
Type the Outbound Proxy as either a numeric IP address in dotted
decimal notation or the fully qualified host name 
(64 character limit [FQDN]).
Type the Outbound Proxy Port number (0 - 65535).
Type the SIP User ID of the Primary SIP Server (up to 25
alphanumeric characters).
Type the Authenticate ID of the Primary SIP Server (up to 25
alphanumeric characters).
Type the Authenticate Password of the Primary SIP Server (up to 25
alphanumeric characters).
Enable or disable SIP Registration.
Type the SIP Registration lease time in seconds 
(default is 120 seconds) (range is 100 - ?).
• When selected, the Loudspeaker Amplifier automatically unregisters
when it is rebooted.
• When not selected, the Loudspeaker Amplifier remains registered
when it is rebooted.
