A.2.1 Mounting the Enclosure

To mount the enclosure:

1. Prepare holes for the screws.

2. Plug in the power adapter and use the green Power light to verify that the power is on.

3. Plug the Ethernet cable into the Loudspeaker Amplifier. The yellow Link light verifies the

4. For wall mounting, use the three #6 x 1-1/4-inch Pan Head Phillip screws to secure the speaker.

Operations Guide

network connection.

See

Figure

A-1..

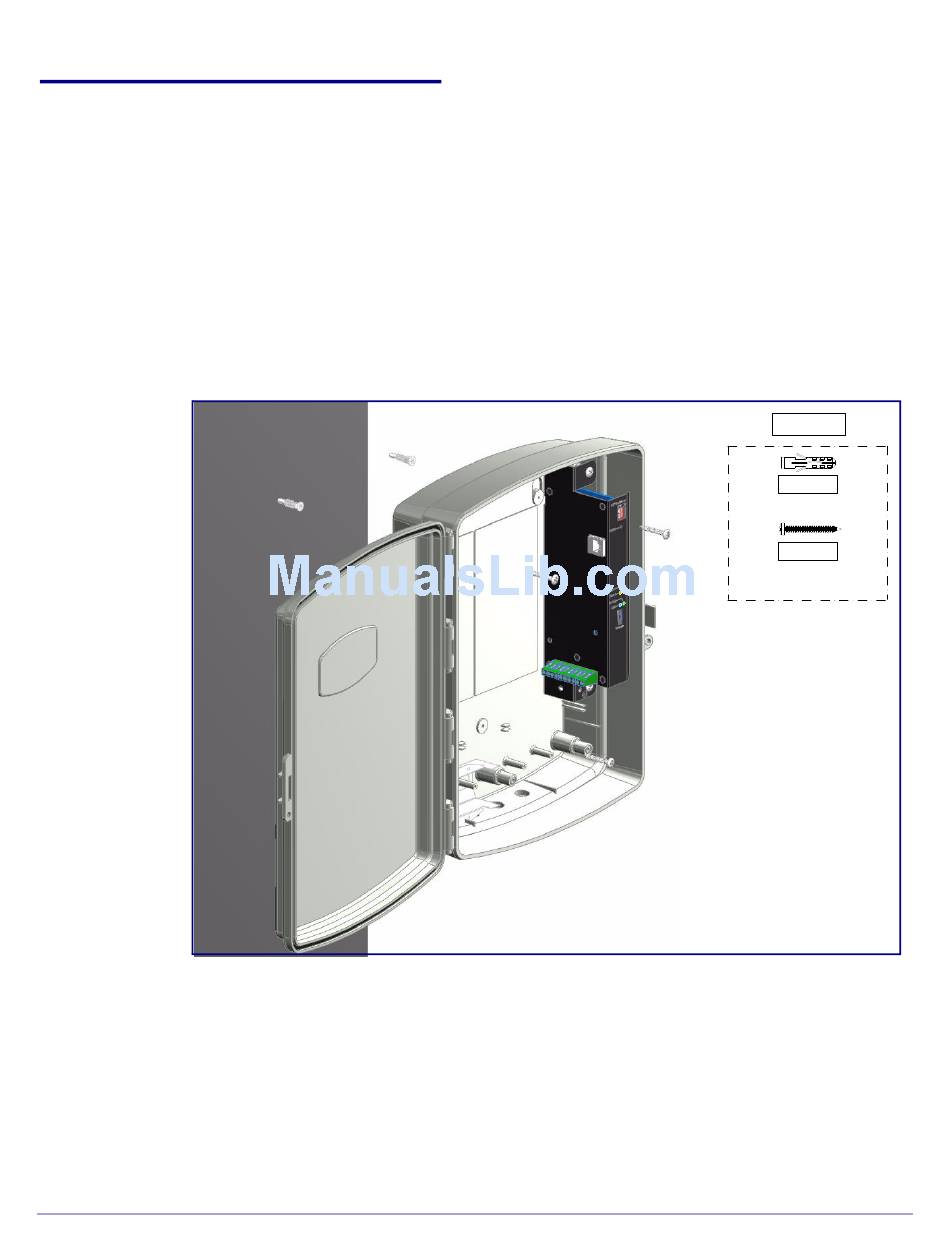

Figure A-1. Mounting the Enclosure

930362N

Mount the Loudspeaker Amplifier

071057A

531032

#6 PLASTIC ANCHOR (3x)

151014

#6x1 1/4" PAN HEAD

PHILLIP SCREW (3x)
