Rear View - EWM TRITON 260 DC Operating Instructions Manual

2 Description of the machine
2.2.2

Rear view

A4
B4
D4
E4
F4
Item Symbol Description
A4
B4
D4
E4
F4
I4
J4
K4
L4

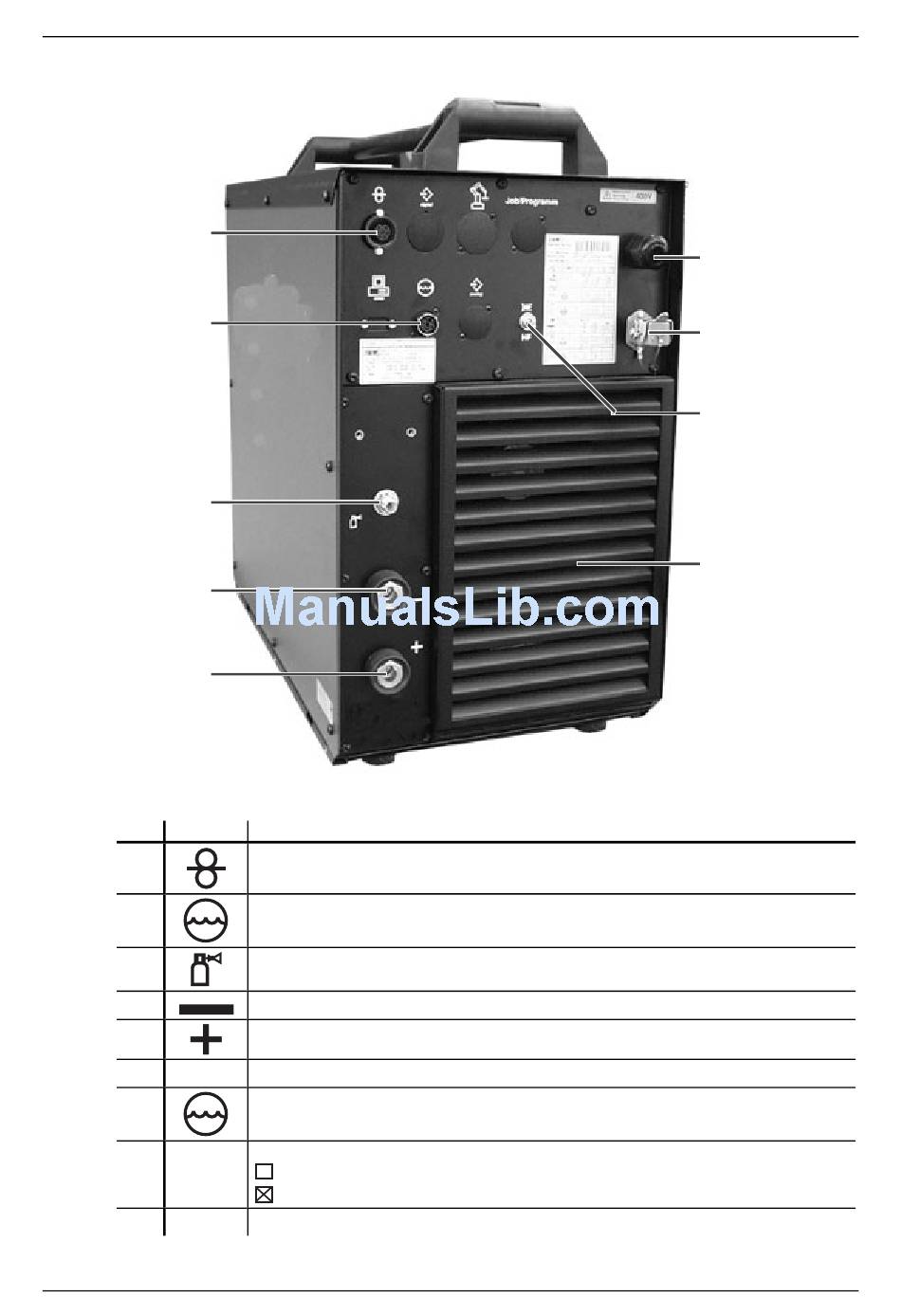

Fig. 4/2, Rear view
7-pole connection socket wire feed unit control lead
8-pole connection socket cooling unit control lead
Connecting nipple G¼ shielding gas connection to the pressure reducer
Welding current socket - ; WF connection
Welding current socket +
Mains connection cable
4-pole connection socket cooling unit voltage supply
Types of ignition changeover switch
HF : Welding with HF ignition.
HF : Welding with Liftarc.
Air outlet
2/4
