2 Description of the machine
2.1

TRITON 260

2.1.1 Front view
A1
B1
C1
D1
E1
F1
K1
Item Symbol Description
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1

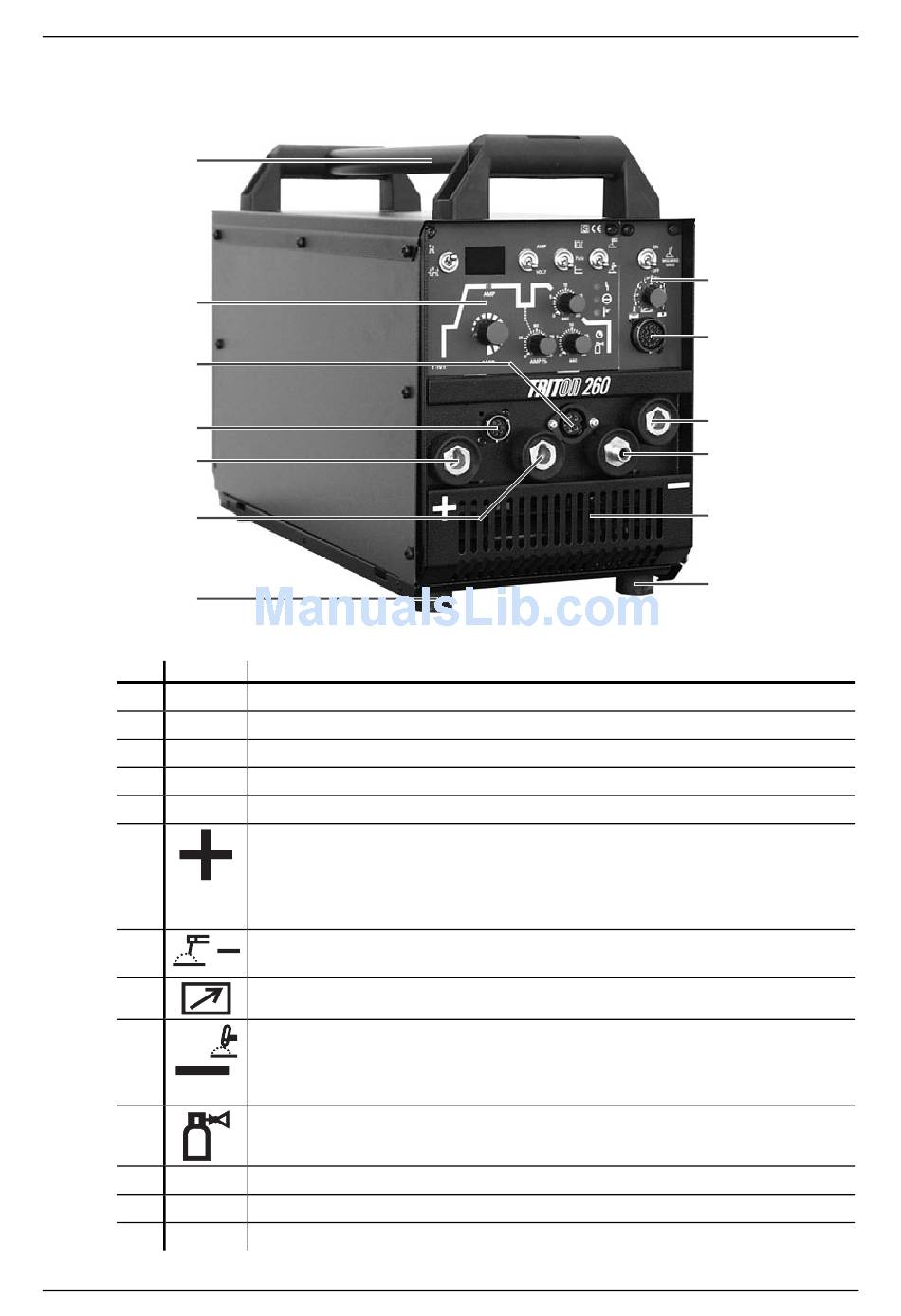

Fig. 2/1, Front view
Carrying handle
Carrying strap (no illustr.)
Operating elements (see control T101, chap. 3.1)
5-pole connection socket: Standard TIG torch control lead
8-pole connection socket: TIG Up/Down or potentiometer torch control lead
Welding current socket (welding current potential "+"):
MMA welding:
TIG welding:
MIG/MAG welding:
Welding current socket (welding current potential "-"):
MMA welding:
19-pole connection socket: Remote control connection
Welding current socket (welding current potential "-"):
TIG welding:
MIG/MAG welding:
Connecting nipple G¼ (welding current potential"-")
Shielding gas connection to the welding torch
Air inlet
Rubber feet
MIG/MAG operating elements (option), see chap. 3.1.1
Workpiece or electrode holder connection,
Workpiece connection,
Welding current connection to the WF unit or
workpiece connection
Workpiece or electrode holder connection
Welding current connection for welding torch
Welding current connection to the WF unit or
workpiece connection
2/1
L1
G1
H1
I1
J1
K1
