PACKAGE CONTENTS
• 5VDC Power Supply
• 4 Rubber Feet
• Drywall screws for mounting
• Owner's Manual

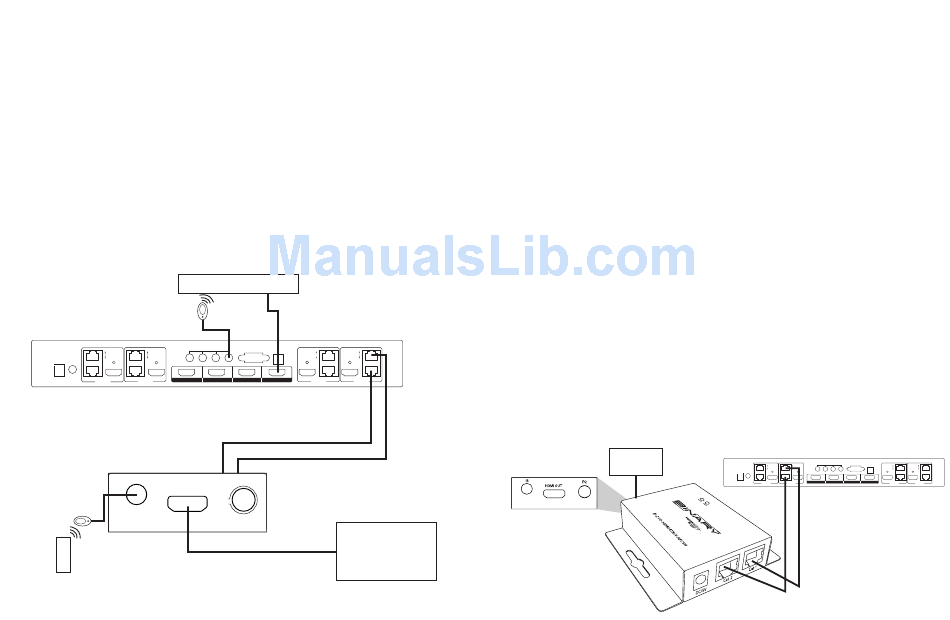

REMOTE LOCATION IR RECEIVER
The B-210-HDMATRIX-RECVR can transmit IR control signal back to
the matrix when using an Episode® IR Receiver. The matrix will send
the IR signal to the appropriate emitter cable to control the selected
HDMI source device.
DVD Player
IR Emitter
IR EMITTER
Cat 1
Cat 1
Cat 2
Cat 2
DC/12V
IR EXT.
SOURCE 1
SOURCE 2
HDMI
HDMI
CAT5/6
CAT5/6
INPUT 1
OUTPUT 1
OUTPUT 2
HDMI OUT
IR Receiver
IR INPUT
Remote
HDMI Cable
RS232
EDID
Cat 1
Cat 1
Cat 2
Cat 2
SOURCE 3
SOURCE 4
HDMI
HDMI
CAT5/6
CAT5/6
INPUT 2
INPUT 3
INPUT 4
OUTPUT 3
OUTPUT 4
CAT 5/6 Cables
EQ
MIN
MAX
DISTANCE
Display
HDMI Cable
INSTALLATION INSTRUCTIONS
1. Test all associated equipment and cables in the system for proper
operation. Turn off all power before proceeding.
2. Make sure the HDMI™ cables being used do not exceed 1.0M
(3.28 ft) and are at least 26 AWG. Any length longer than this
may cause intermittence issues. To ensure maximum performance,
please use high quality HDMI™ cables capable of transmitting
1080p signals.
3. Determine the best placement of the unit based on how it will be
incorporated into the system design. Leave enough room to reach
the EQ adjustment after installation.
4. Make sure all CAT 5 or CAT 6 cables are properly terminated
(EIA/TIA-568B is recommended).
5. Connect the HDMI™ cables.
6. Turn on all associated equipment, plug in the 5V DC power, and
verify that the signal LEDs are illuminated.
7. If a flickering, blinking, or snowy image is seen, adjust the EQ dial
to improve the cable signal. An EQ set to "9" stands for the
strongest signal for longer cable lengths while "0" is for short cable
lengths. Try adjusting the EQ from 0 to 9 until picture is clear.
8. Once you have a picture, adjust down to the lowest number
setting that still has a picture. This will ensure you have reached
the optimal setting.
9. (OPTIONAL) Plug in Episode IR receiver into the 3.5mm IR jack.
TV
IR EMITTER
RS232
EDID
Cat 1
Cat 1
Cat 1
Cat 1
Cat 2
Cat 2
Cat 2
Cat 2
DC/12V
IR EXT.
SOURCE 1
SOURCE 2
SOURCE 3
SOURCE 4
HDMI
HDMI
HDMI
HDMI
CAT5/6
CAT5/6
INPUT 1
INPUT 2
INPUT 3
INPUT 4
CAT5/6
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
Cat 5e/6 cables
CAT5/6
