CDM-740 Advanced Satellite Modem
Ethernet Management
6.5.4.2.4
Management | Firmware Page
The 'Management | FAST' page (Figure 6-5) permits the user to view information about the
CDM-740 internal firmware.
Slot Information
This read-only section identifies the two available firmware configurations. Firmware name,
version, release date, file size, and the assigned slot and operational status (i.e., Running = Yes or
No) are all identified here.
Firmware Configuration
The modem can store two complete firmware images, and the user can select which image will be
loaded the next time the unit reboots.
Use the Boot From dropdown menu to select the firmware image as Latest, Slot 1, or Slot 2.
Once the desired firmware boot source has been selected, click [Submit] as needed to save this
change.

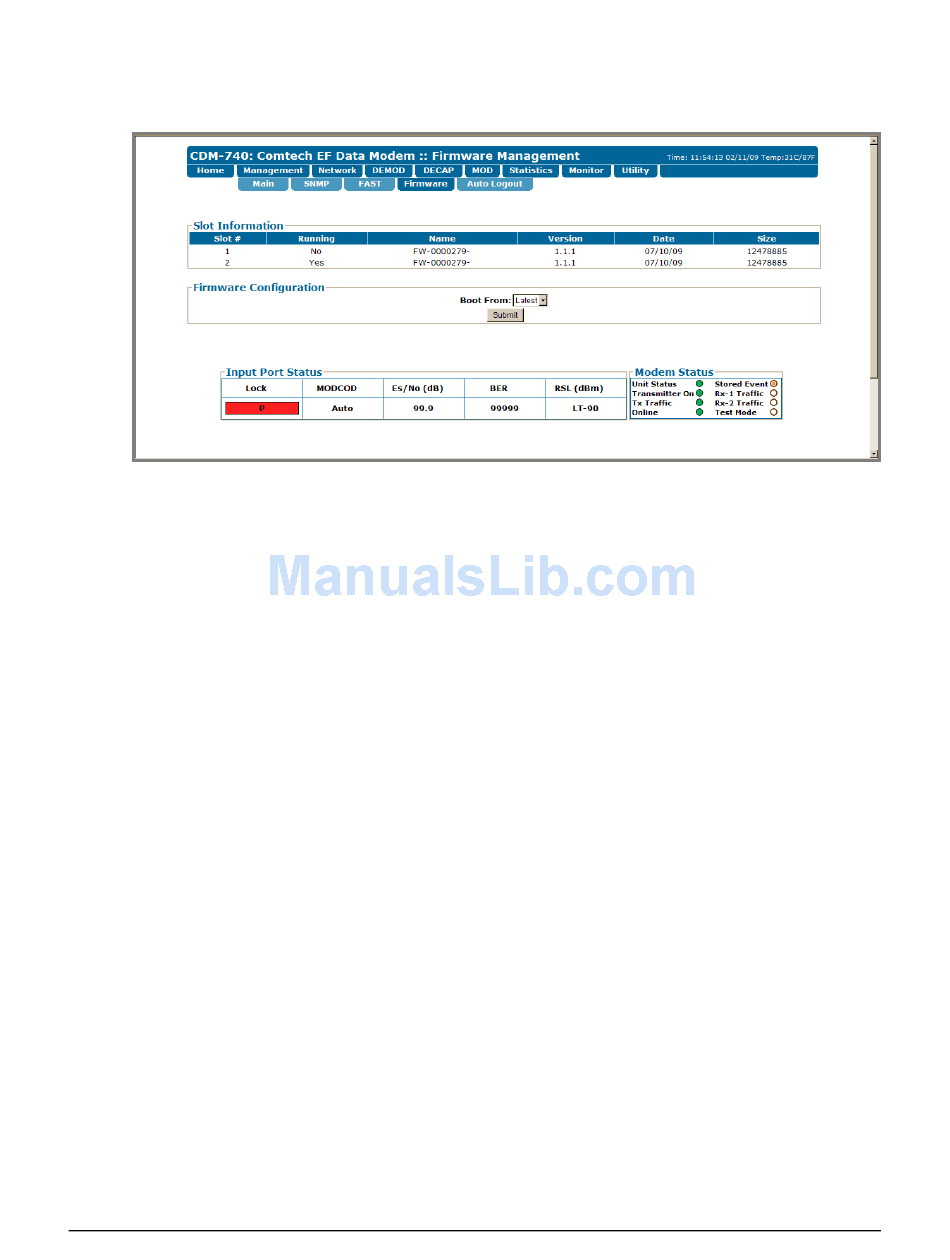

Figure 6-5. Management | Firmware page
6–11
Revision 0
MN-CDM740
