CDM-740 Advanced Satellite Modem
Ethernet Management
6.5.4.5
DECAP (Decapsulator) | Tuner-1 Page

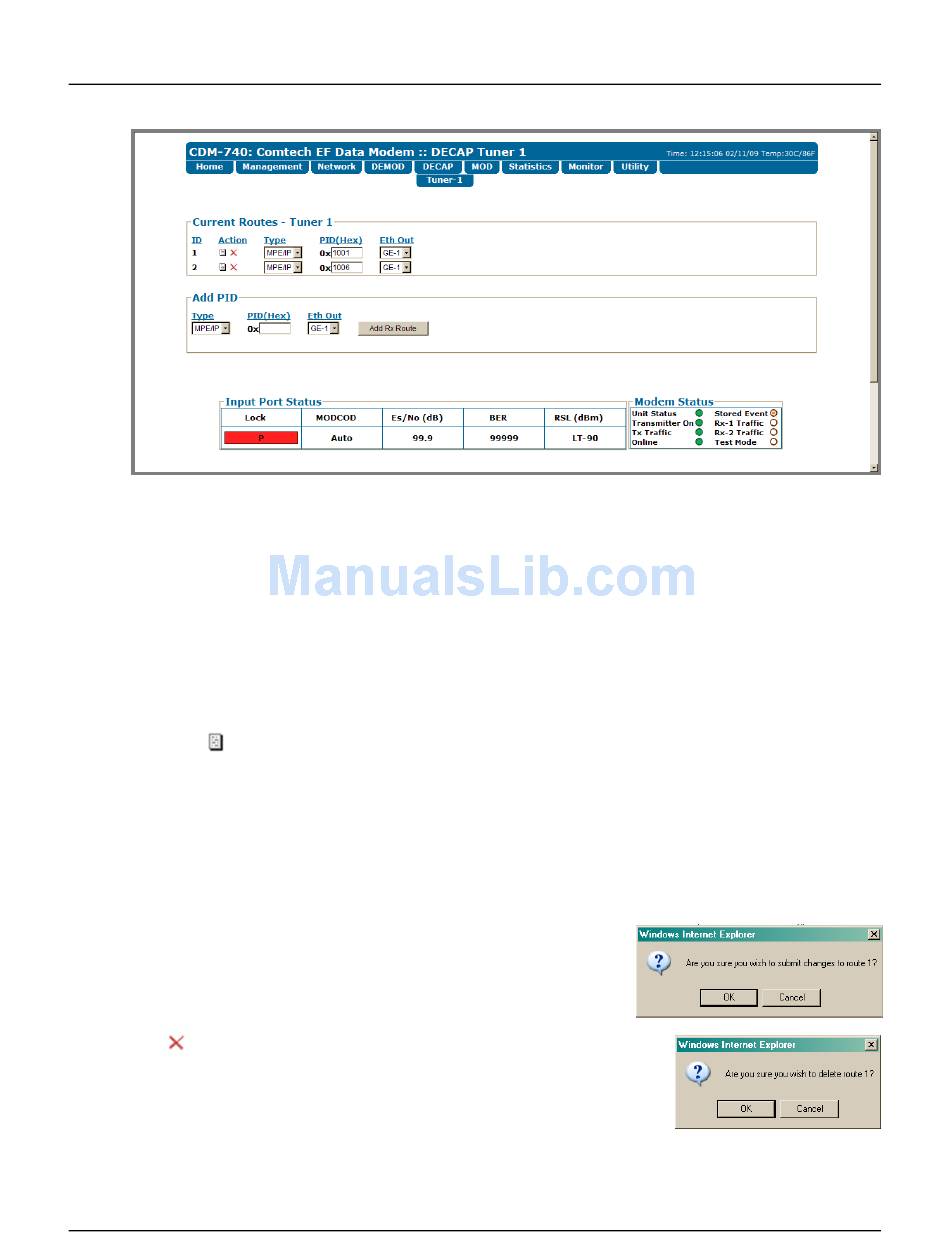

The 'DECAP | Tuner-1' page (Figure 6-10) permits the user to configure CDM-740
decapsulator operations.
Current Routes – Tuner 1
This section permits the user to view, modify, or delete previously-created Rx Routes.
Information is tabulated as follows:
ID: The route is numbered in the order it was created (e.g., 1, 2, 3...). Up to 64 simultaneous PIDs
may be created using this page.
Action –
To modify an existing entry, the user may edit the PID (Hex) or select Eth Out as GE-
1 or GE-2. (MPE/IP is the sole interface Type available, and therefore is not changeable.)
•
Type: Presently, MPE/IP is the sole available interface mode.
•
PID (Hex): The name of the PID, in hexadecimal format ranging from 0x10 to 0x1FFE,
may be viewed or edited here.
•
Eth Out: The port to be used when routing the Transport Stream over Ethernet IP is
selectable, using the dropdown menu as GE1 or GE2.
Once changes are made to the selected route ID entry, click
on the Page icon to update this entry. At the prompt, click
[OK] to submit or [Cancel] to reject the edits made to this
specific route ID entry:
To delete an existing entry, click on the Delete icon. At the
prompt, click [OK] to delete or [Cancel] to retain this specific
route ID entry.
Figure 6-10. Decapsulator | Tuner-1 page
6–18
Revision 0
MN-CDM740
