4. Lamp & Lamp House
5
4

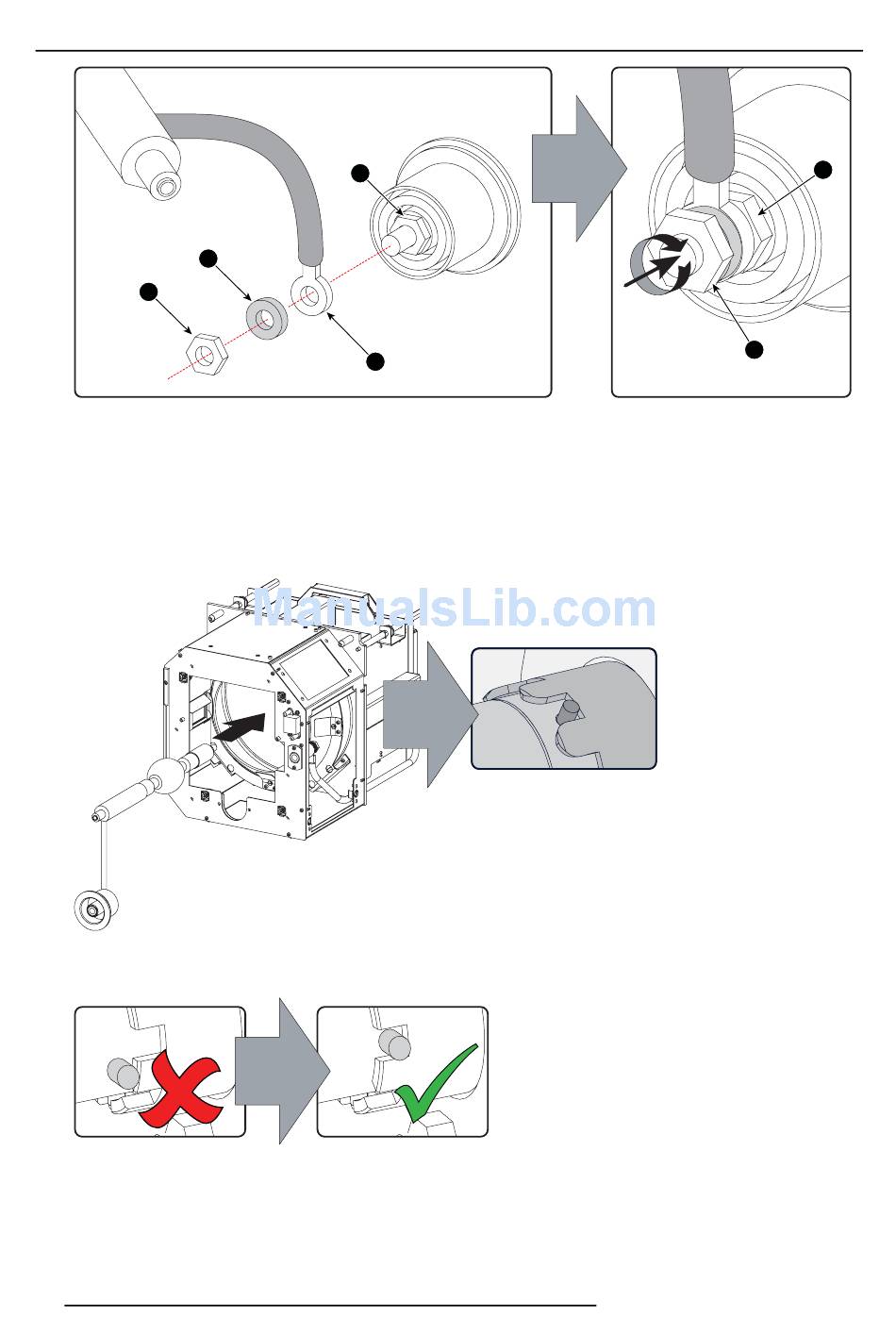

Image 4-15
Anode lug installation
4. Remove the protective container or unwrap the protective cloth from the xenon lamp.
Warning:
Ensure that you wear protective clothing, a full face shield and protective gloves.
Tip:
Write down the serial number of the lamp. You will need this while updating the lamp parameters after installation of the
lamp. The serial number of the lamp is engraved in the neck of the xenon lamp.
5. Gently guide the xenon lamp into position inside the Lamp House as illustrated. Anode socket hanging vertical down. While
inserting the lamp, rotate it slightly, engaging the pins of the cathode adapter in the foreseen slots. This is to ensure the lamp
cathode is completely inserted.
Image 4-16
Lamp bulb installation
Warning:
Make sure that the both pins of the cathode adapter are engaged in the foreseen slots.
Image 4-17
6. Insert the anode socket into position as illustrated.
Caution:
Avoid any tension on the anode wire, so there is no mechanical stress on the lamp.
30
7
6
9 Nm
4
R5905050 DP2K C-SERIES 10/07/2012
7
