1. Turn OFF the Power Switch and unplug the power cord from the AC Receptacle.
2. Raise the Cover. Unlock and raise the Printhead Assembly.
3. Remove media and ribbon.

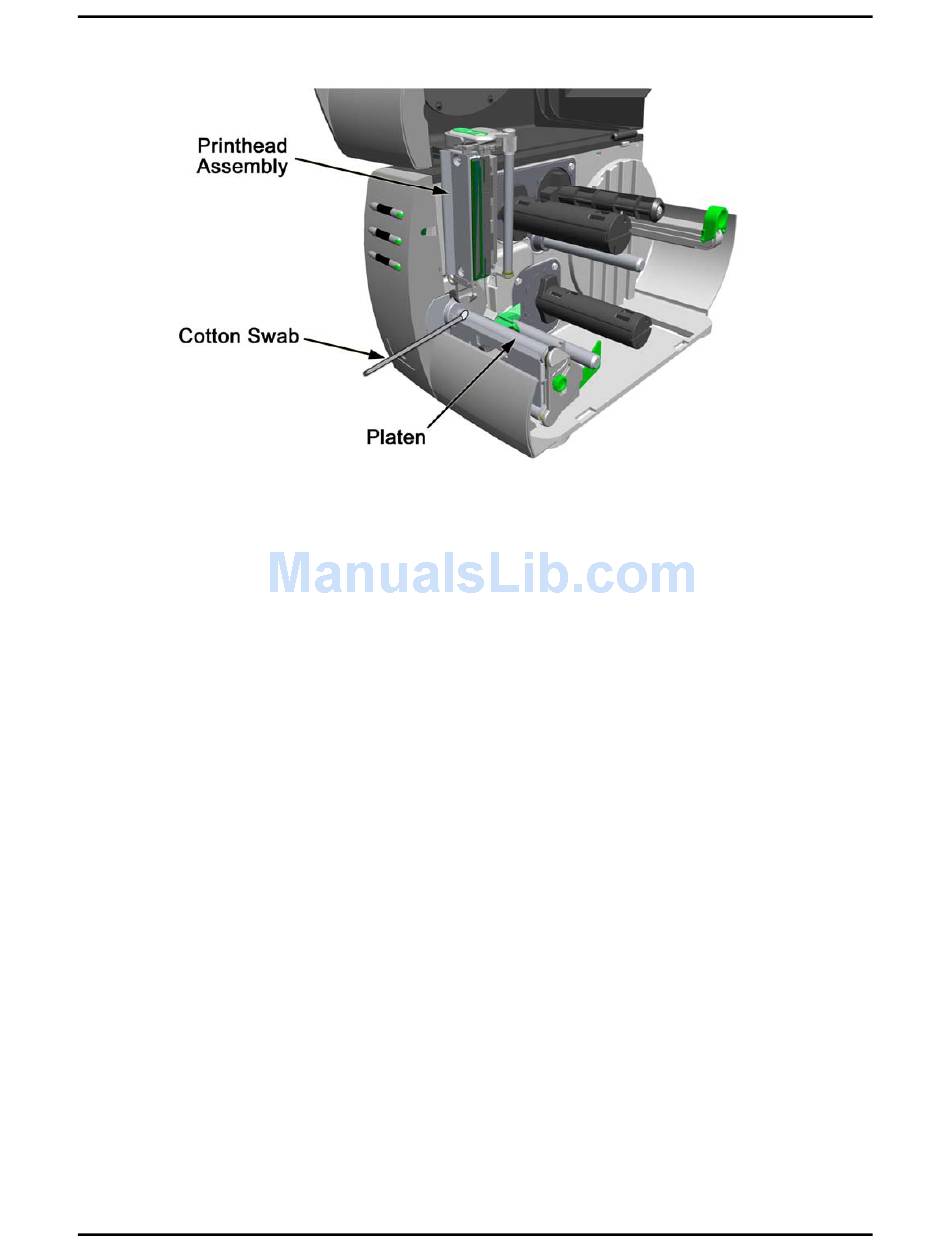

4. Using a Cotton Swab (or lint-free cloth) dampened with isopropyl alcohol, wipe the
Platen clean. Manually rotate the rollers as necessary, wiping, rotating, and repeating
until the surfaces of each are clean. Allow to dry.

2.1.4 Cleaning the Ribbon Path

Ribbon path components contaminated with ink buildup and grit can inhibit smooth flow and
result in wrinkling related problems. Clean the ribbon path components as follows:
1. Turn OFF the Power Switch and unplug the power cord from the AC Receptacle.
2. Raise the Cover. Remove media and ribbon.
