Take-up Hub
Installation:

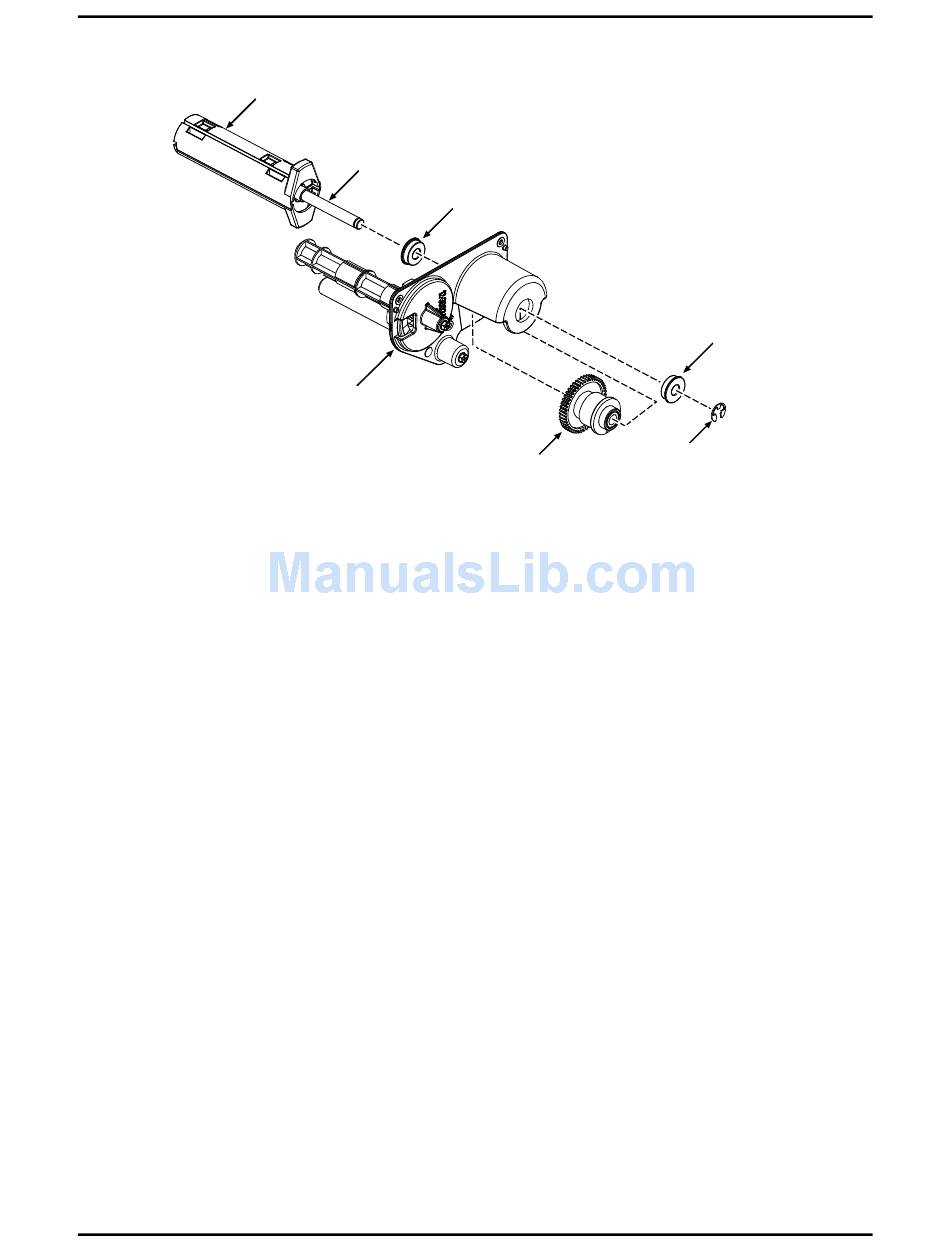

1. Position the Clutch Assembly and the Inner and Outer Bearings, as shown, in the
Assembly Casting.
2. Slide the Take-up Hub Shaft through the Inner Bearing, Clutch Assembly, and Outer
Bearing then insert the C-Clip onto the Take-up Hub Shaft to secure the components
within the Assembly Casting.
3. Install the Thermal Transfer Assembly; see Section 4.9.

4.9.2 Supply Hub

Removal:
1. Remove the Thermal Transfer Assembly; see Section 4.9.
2. Remove the Screw and Washer that secures Supply Hub in the Assembly Casting.
Removal and Replacement
Take-up
Hub Shaft
Bearing
Assembly
Casting
4-24
Inner
C-Clip
Clutch
Assembly
Outer
Bearing
