4.2.1 Front Panel PCB

Removal:
1. Remove the Front Panel; see Section 4.2.
2. Proceed according to equipped type:
If servicing a non-display
model, remove the two
Screws that secure the Front
Panel PCB. Disconnect the
Front Panel Cable. Remove
the PCB.
If servicing a display-
equipped model, lift the tabs
and remove the Bezel.
Remove the two Screws that
secure the Front Panel PCB.
Disconnect the Front Panel
Cable. Remove the PCB.
Installation:
1. Insert the Front Panel Cable through the opening in the chassis and connect it to the
Front Panel PCB.

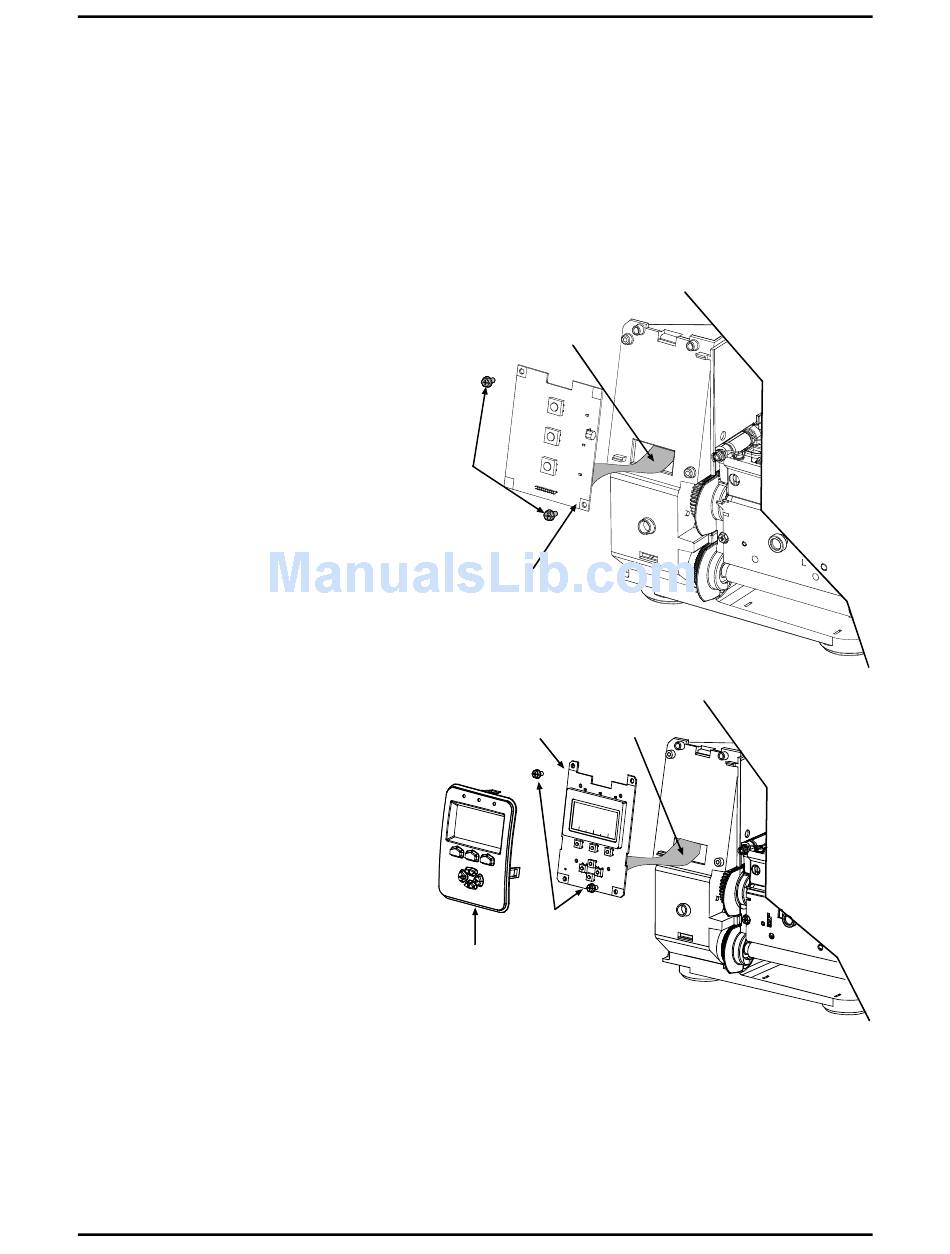

Removal and Replacement
Front Panel
Cable
Screws
Front Panel
PCB
Front Panel
PCB
Screws
Front Bezel
4-4
Front Panel
Cable
