4.9 Thermal Transfer Assembly

Removal:
1. Turn OFF and unplug the printer.

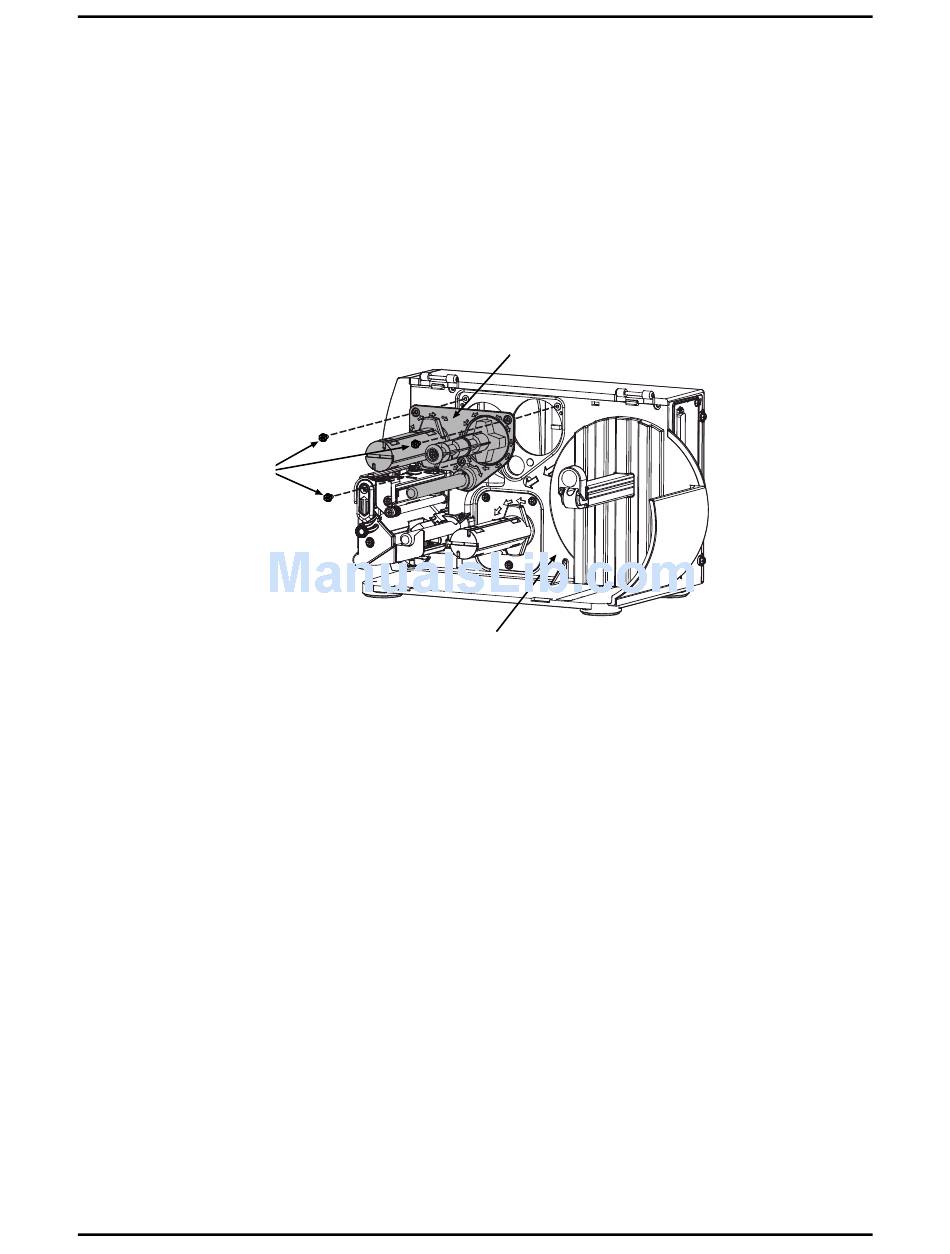

2. Remove the three Screws that secure the Thermal Transfer Assembly and then remove
the Thermal Transfer Assembly from the Centerplate.
Screws
Installation:
Position the Thermal Transfer Assembly over the opening in the Centerplate and secure it
using the three Screws.
4.9.1 Take-up Hub & Clutch Assembly
Removal:
1. Remove the Thermal Transfer Assembly; see Section 4.9.
2. Remove the C-Clip and Outer Bearing from the Take-Up Hub Shaft.
3. Slide the Take-up Hub and Inner Bearing out of the Assembly Casting then remove the
Clutch Assembly.
Removal and Replacement
Thermal Transfer Assembly
Centerplate
4-23
