Page 1 PDT 8000 Series Product Reference Guide...
Page 3: Product Reference Guide
PDT 8000 Series Product Reference Guide 72-58169-05 Revision A September 2003...
Page 4 The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Symbol grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program).
Page 5: Table Of Contents
Symbol Support Center ........
Page 6 PDT 8000 Series Product Reference Guide Inserting a Compact Flash Storage Card ......... . . 1-24 Inserting an MMC/SD Storage Card .
Page 7 Contents Recording a Message............2-21 Entering Data via the Bar Code Scanner (Scan Wedge) .
Page 8 PDT 8000 Series Product Reference Guide Installing ActiveSync ............4-3 Setting up a Partnership .
Page 9 Contents Using the Message List ........... . 5-16 Creating E-mail Messages .
Page 10 PDT 8000 Series Product Reference Guide Chapter 8. AirBEAM Chapter Contents ............. . 8-1 Introduction .
Page 11 Symbol Windows CE SDK ........
Page 12 PDT 8000 Series Product Reference Guide Creating and Loading a Splash Screen ......... . . 12-23 Loading the Splash Screen via TCM .
Page 13 Contents Dial # Screen ............. C-3 Send SMS Screen .
Page 14 PDT 8000 Series Product Reference Guide...
Page 15: About This Guide
About This Guide Introduction The PDT 8000 Series Product Reference Guide provides information about the PDT 8000 Series terminal using the Pocket PC 2002 Operating System, and its accessories. The PDT 8000 Series includes the following variations of the terminal: •...
Page 16 PDT 8000 Series Product Reference Guide • Chapter 2, Operating the Terminal explains how to use your terminal, including instructions for powering on and resetting the terminal, using the stylus and a headset, entering information and scanning. • Chapter 3, Customizing the Terminal explains how to adjust settings on the terminal, and add and delete programs.
Page 17: Notational Conventions
About This Guide • Appendix E, Keyboard Maps includes tables listing key functionality for the keyboard. Notational Conventions This document uses these conventions: • “terminal” or “PDT 8000” refers to any model of the terminal. • “User” refers to anyone using an application on the terminal. •...
Page 18: Service Information
Call the Support Center from a phone near the scanning equipment so that the service person can try to talk you through your problem. If the equipment is found to be working properly and the problem is symbol readability, the Support Center will request samples of your bar codes for analysis at our plant.
Page 19 About This Guide United Kingdom Asia/Pacific Symbol Technologies Symbol Technologies Asia, Inc (Singapore Branch) Symbol Place 230 Victoria Street #05-07/09 Winnersh Triangle, Berkshire RG41 5TP Bugis Junction Office Tower United Kingdom Singapore 188024 0800 328 2424 (Inside UK) Tel: +65-6796-9600...
Page 20 PDT 8000 Series Product Reference Guide Germany/Deutchland Italy/Italia Symbol Technologies GmbH Symbol Technologies Italia S.R.L. Waldstrasse 66 Via Cristoforo Columbo, 49 D-63128 Dietzenbach, Germany 20090 Trezzano S/N Navigilo 6074-49020 (Inside Germany) Milano, Italy +49-6074-49020 (Outside Germany) 2-484441 (Inside Italy) +39-02-484441 (Outside Italy) Latin America Sales Support Mexico/México...
Page 21 Support E-Mail: Sweden.Support@se.symbol.com Customer support is available 24 hours a day, 7 days a week. If you purchased your Symbol product from a Symbol Business Partner, contact that Business Partner for service. For the latest version of this guide go to:http://www.symbol.com/manuals.
Page 22 PDT 8000 Series Product Reference Guide...
Page 23: Chapter Contents
Chapter 1 Getting Started Chapter Contents Introduction ..............1-3 Unpacking the Terminal .
Page 24 PDT 8000 Series Product Reference Guide Setting Time and Date ............1-33 Configuring Wake-ups .
Page 25: Introduction
• a Quick Reference Guide for the terminal. Inspect the equipment for damage. If you are missing any equipment or if you find any damaged equipment, contact the Symbol Technologies Support Center immediately. See page xvi for contact information.
Page 26: Parts Of The Terminal

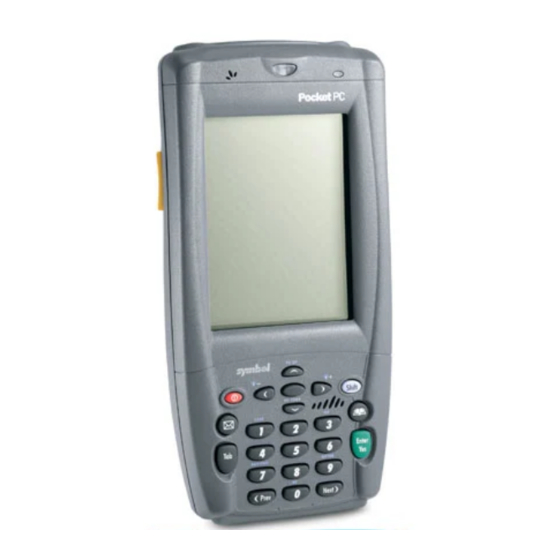

PDT 8000 Series Product Reference Guide Parts of the Terminal Front View Ruggedized End Cap (PDT 8056 only) Scan LED Charge Microphone TFT LCD (color) Power Button Speaker Figure 1-1. Front View...
Page 27 Getting Started Back View Side View IrDA Port (on back for PDT 8000 & 8046) Scan Scan Button Button Stylus Handstrap Battery Door Bottom View Serial, USB & Charge Port Figure 1-2. Back, Side & Bottom Views...
Page 28: Accessories
PDT 8000 Series Product Reference Guide Top View 1-D Exit Window Audio Jack PDT 8000/PDT 8037/PDT 8046 PDT8056 Figure 1-3. Top View Accessories • Additional lithium-ion Battery (p/n 21-54882-01) • Stylus (p/n 11-55475-05): for performing pen functions • Cables: •...
Page 29 • UBC Adapter and Base (p/n 21-32665-33 and UBC2000-xxxxx): charges up to four spare batteries. • Holster (p/n 11-57530-02): stores the terminal when not in use. • Symbol Software Developer’s Kit (SDK) for the PDT 8000 Pocket PC 2002.
Page 30: Installing Batteries
PDT 8000 Series Product Reference Guide Installing Batteries Before using your terminal, install the lithium-ion battery. The battery fits behind the battery door on the back of the terminal. To install the battery: 1. Rotate the latches on the battery door up and lift the battery door away from the terminal.
Page 31: Charging The Terminal Battery
Getting Started 4. Replace the battery door, hooking it onto the bottom of the compartment and then pressing down firmly along the top edge while rotating the latches on the battery door down into the locked position. Note: Ensure that the latches on the battery door are in the up position while securing the battery door on the terminal.
Page 32: Using The Serial Charging Cable
PDT 8000 Series Product Reference Guide Caution It is not recommended to use RF communication when the battery is charging. For communication setup, see Chapter 9, Spectrum24 Network Configuration. Using the Serial Charging Cable To charge the terminal’s battery using the Serial Charging Cable, setup as shown below:...
Page 33: Using The Snap-On Modem Module
Getting Started Using the Snap-On Modem Module To charge the terminal’s battery using the Snap-On Modem Module, setup as shown below: Terminal Charge LED Snap-On Modem Module Figure 1-5. Attaching the Snap-On Modem Module to the Terminal The terminal charge LED blinks amber to indicate that the terminal battery is charging and turns solid amber when charging is complete.
Page 34: Using The Snap-On Autocharger
PDT 8000 Series Product Reference Guide Using the Snap-On Autocharger To charge the terminal’s battery using the Snap-On Autocharger, setup as shown below: Terminal Charge LED Snap-On Autocharger Power Indicator Green Figure 1-6. Attaching the Snap-On Autocharger to the Terminal The terminal charge LED blinks amber to indicate that the terminal battery is charging and turns solid amber when charging is complete.
Page 35: Using The Magnetic Stripe Reader
Getting Started Using the Magnetic Stripe Reader To charge the terminal’s battery using the Magnetic Stripe Reader, setup as shown below: Terminal Charge LED Magnetic Stripe Reader Figure 1-7. Attaching the Magnetic Stripe Reader to the Terminal The terminal charge LED blinks amber to indicate that the terminal battery is charging and turns solid amber when charging is complete.
Page 36: Using The Single-Slot Cradle
PDT 8000 Series Product Reference Guide Using the Single-Slot Cradle To charge the terminal’s battery using the CRD8000-1000S or the CRD8000-1000M: 1. Connect the cradle to a power source. Figure 1-8. Single-Slot Power Connection 2. Insert the terminal into the cradle. The terminal starts to charge automatically.
Page 37: Using The Four-Slot Cradle
Getting Started The terminal charge LED blinks amber to indicate that the terminal battery is charging and turns solid amber when charging is complete. The battery fully charges in less than four hours, if the terminal is not in use. See Charge LED Indicator on page 1-22 for other indications.
Page 38 PDT 8000 Series Product Reference Guide 2. Insert the terminal into the cradle. The terminal starts to charge automatically. Terminal Charge LED Figure 1-11. Inserting the Terminal into the Four-Slot Cradle The terminal charge LED blinks amber to indicate that the terminal battery is charging and turns solid amber when charging is complete.
Page 39: Using The Vehicle Cradle
Getting Started Using the Vehicle Cradle To charge the terminal’s battery using the Vehicle Cradle: 1. Connect the cradle to a power source. Note: For detailed instructions on power connection, refer to the VCD8000-R000 Quick Reference Guide. 2. Insert the terminal into the cradle. The terminal starts to charge automatically. Terminal Charge LED Figure 1-12.
Page 40: Charging Spare Batteries
PDT 8000 Series Product Reference Guide Charging Spare Batteries A spare battery can be charged using either of the single-slot cradles (CRD8000-1000S or CRD8000-1000M), the four-slot cradles (CHS8000-4000B or CRD8000-4000E), the vehicle cradle (VCD8000-R000) or the UBC Adaptor (p/n 21-32665-33).
Page 41: Using The Four-Slot Cradles
Getting Started The spare battery charging LED on the cradle blinks amber to indicate that the battery is charging and turns solid amber when battery is completely charged. The battery fully charges in less than four hours, if the terminal is not in use. See Charge LED Indicator page 1-22 for other indications.
Page 42: Using The Vehicle Cradle
PDT 8000 Series Product Reference Guide Using the Vehicle Cradle 1. Connect the cradle to a power source. 2. Slide the latch on top of the battery to the right, to ensure it is in the unlock position. 3. Insert the battery into the Spare Battery Charging slot on the cradle, as shown below, aligning the charging contacts on the battery with the over charging pins in the slot.
Page 43: Using The Ubc Battery Adapter
Getting Started 4. Gently press against the battery to ensure proper contact and lock the battery into place, as shown below: The spare battery charging LED on the cradle blinks amber to indicate that the spare battery is charging and turns solid amber when the battery is completely charged. The battery fully charges in less than four hours, if the terminal is not in use.
Page 44: Charge Led Indicator
PDT 8000 Series Product Reference Guide 2. Insert the battery into its appropriate adapter. Ensure the polarity markings on the battery (+, -) match with those of the adapter. Battery Adapter Battery status display Charger base Figure 1-13. Inserting the Spare Battery When the battery is inserted, the charging system begins the rapid charge cycle.
Page 45 Getting Started Table 1-1. Charge LED Indicator Indication Slow blinking amber Spare battery is charging. Fast blinking amber Error in charging; check placement of spare battery. Solid amber Charging is complete. 1-23...
Page 46: Installing A Sim Card
PDT 8000 Series Product Reference Guide Installing a SIM Card Note: A SIM card can only be installed in the WAN-enabled terminals, i.e. PDT 8037 and PDT 8056. Slide the latches on the battery door up and lift the battery door away from the terminal. If the battery...
Page 47 Getting Started To insert a compact flash storage card: 1. Unscrew and remove the card compartment door on the top of the terminal. PDT8000, PDT8046 PDT8037 2. Insert a compact flash storage card into the compartment. Ensure the card is pushed in all the way for proper use.
Page 48: Inserting An Mmc/Sd Storage Card
PDT 8000 Series Product Reference Guide Inserting an MMC/SD Storage Card Note: A Multi Media Card/Secure Digital (MMC/SD) storage card can only be installed in the WAN-enabled terminals, i.e. PDT 8037 and PDT 8056. The terminal has a slot for an MMC/SD storage card which includes a compartment door that prevents the card from coming out if the terminal is dropped.
Page 49: Replacing The S24 Wireless Networker Card
Getting Started To remove an MMC/SD storage card: 1. Unscrew and remove the card compartment door on the top of the terminal. 2. Using the stylus, push against the MMC/SD storage card to activate it’s spring release mechanism. The card pops out. Replacing the S24 Wireless Networker Card Note: A Spectrum 24 (S24) Wireless Networker card can be installed in the PDT 8046 only.
Page 50 PDT 8000 Series Product Reference Guide 2. Gently pull out the S24 card. 3. Insert the new card. 4. Screw the cover back on. 5. Soft reset the terminal, for the card to be functional. See Performing a Soft Reset on page 2-34.
Page 51: Replacing The Handstrap
Getting Started Replacing the Handstrap The terminal has a factory-installed handstrap which increases comfort when holding the terminal for extended periods of time. The handstrap may be removed or replaced, if damaged. To remove the handstrap: 1. Unscrew the end cap/handstrap bar off the terminal. PDT8056 PDT8000, PDT8037, PDT8046 2.
Page 52 PDT 8000 Series Product Reference Guide To attach the handstrap: 1. Insert the pin of the handstrap into the end cap/handstrap bar. PDT8056 PDT8000, PDT8037, PDT8046 2. Screw the end cap/handstrap bar onto the terminal. PDT8056 PDT8000, PDT8037, PDT8046 3. Hook the bottom of the handstrap onto the battery cover.
Page 53: Starting The Terminal
Button Figure 1-14. Power Button As the terminal initializes its unique Flash File System, the Symbol splash screen displays for about 60 seconds. When the Welcome screen appears, tap anywhere on the screen to continue to the Align screen. Note that these screens also appear every time you perform a hard reset.
Page 54 PDT 8000 Series Product Reference Guide 3. Tap the center of each target that appears on the screen with the tip of the stylus. Figure 1-15. Tapping the Target Note: To align the screen at anytime, press Shift + 2 to launch the calibration screen.
Page 55: Setting Time And Date
Getting Started 5. Use the drop-down menu to set your time zone, and tap Next. Figure 1-17. Setting Time Zone on the Terminal Note: These initial setup screens appear each time you perform a hard reset. Setting Time and Date The Time and Date screen does not appear after setting the time zone.
Page 56: Configuring Wake-Ups
(if available) or by plugging in the headset. To set up this configuration: 1. Tap Start - Settings - System tab - Symbol Settings. Figure 1-19. Setting Wake-ups 2. Use the Wakeups tab to configure the wake-up source for the terminal.
Page 57: Checking Battery Power
Getting Started Checking Battery Power To check whether the main battery or backup battery in the terminal is charged, tap Start - Settings - System - Power to display the following Battery Status screen. Figure 1-20. Battery Status Screen To save battery power, set your terminal to turn off after a specified number of minutes on battery power.
Page 58: Critical Low Battery During Suspend
PDT 8000 Series Product Reference Guide The control of the function to display a message box on low battery capacity shutdown and the text for the message are kept in a registry keys. ; Display message when radio shut off due to low battery capacity...
Page 59: Setting Up Your Terminal
Getting Started Setting Up Your Terminal Refer to the following chapters for setting up your terminal: • For customizing the settings on your terminal, see Chapter 3, Customizing the Terminal. • To set up ActiveSync to synchronize your terminal with your host computer, see Chapter 4, Communications.
Page 60 PDT 8000 Series Product Reference Guide 1-38...
Page 61: Chapter Contents
Chapter 2 Operating the Terminal Chapter Contents Introduction ..............2-3 Using the Power Button .
Page 62 PDT 8000 Series Product Reference Guide Recording a Message ............2-21 Entering Data via the Bar Code Scanner (Scan Wedge).
Page 63: Introduction
Operating the Terminal Introduction This chapter provides basic instructions for using and navigating the terminal. Using the Power Button Press the power button on the top left-hand side of the terminal to turn the terminal on and off. See Starting the Terminal on page 1-31.
Page 64: Using A Headset
For the 64MB RAM configuration, use only a stereo headset. For the 128MB RAM configuration, use only an earphone and microphone headset. Note: For WAN-enabled terminals, GSM voice communication is only available through the headset. For these terminals, Symbol recommends a 2.5mm jack headset, p/n 50-11300-050.
Page 65: Using The Keyboard
Operating the Terminal Using the Keyboard Refer to Table 2-1 on page 2-6, for key functionality. Note that key functions can be changed by an application. Your keyboard may not function exactly as described in these tables. Note: For detailed keyboard configurations including ASCII values and VK codes, see Appendix E, Keyboard Maps.
Page 66 PDT 8000 Series Product Reference Guide Table 2-1. Keyboard Actions Action Backspace Press Shift + 7 to erase information entered on the display, one character at a time. Bottom Press Shift + 9. Action is application dependent. Clear Press Shift + 1. Action is application dependent.
Page 67: Today Screen
Operating the Terminal Today Screen When you turn on your terminal for the first time each day (or after 4 hours of inactivity), the Today screen appears. You can also display it by tapping Start - Today. On the Today screen, you can see important information for the day.
Page 68: Using The Navigation Bar And Command Bar
PDT 8000 Series Product Reference Guide Using the Navigation Bar and Command Bar The navigation bar at the top of the screen displays the active program and current time, and allows you to select programs and close screens. Use the command bar at the bottom of the screen to perform tasks in programs. The command bar includes menu names, buttons and the input panel button.
Page 69: Status Icons
Operating the Terminal Status Icons You may see the following status icons on the navigation or command bar: Table 2-2. Status Icons Icon Meaning Turns all sounds on and off. Backup battery is low. Main batteries are charging (appears on the Time &...
Page 70: Selecting Programs
PDT 8000 Series Product Reference Guide Selecting Programs To select a program, tap Start - Programs, then the program name. (To select which programs appear on the Program menu, see Chapter 3, Customizing the Terminal.) Figure 2-5. Start Menu Note: Some programs have abbreviated labels for check boxes and drop- down menus.
Page 71: Using Pop-Up Menus
Operating the Terminal Using Pop-up Menus With pop-up menus, you can quickly choose an action for an item. For example, use the pop-up menu in the contact list to delete a contact, make a copy of a contact, or send an e- mail message to a contact.
Page 72: Notifications
PDT 8000 Series Product Reference Guide Notifications The terminal notifies you when you have something to do. For example, if you’ve set up an appointment in Calendar, a task with a due date in Tasks, or an alarm in Clock, you’ll be notified in any of the following ways: •...
Page 73 Operating the Terminal To show or hide the input panel, tap the Input Panel button. Tap the arrow next to this button to view input methods. Select an input method. Tap to see your choices. Input Panel Button Figure 2-7. Input Panel Button When you use the input panel, your terminal anticipates the word you are typing or writing and displays it above the input panel.
Page 74: Using The Soft Keyboard
PDT 8000 Series Product Reference Guide Using the Soft Keyboard To type with the soft keyboard: 1. Tap the arrow next to the Input Panel button, then Keyboard. 2. On the soft keyboard, tap the keys with your stylus. Tap here if this is the right word.
Page 75: Using The Letter Recognizer
Operating the Terminal Using the Letter Recognizer To use Letter Recognizer: 1. Tap the arrow next to the Input Panel button, then Letter Recognizer. 2. Write letters or numbers in the writing area, just as you would on paper. Write capital letters in the left side of the box, numbers in the right side and lower case letters in the center.
Page 76: Writing On The Screen
PDT 8000 Series Product Reference Guide Writing on the Screen In any program that accepts writing, such as the Notes program and the Notes tab in Calendar, Contacts and Tasks, you can use your stylus to write directly on the screen.
Page 77: Converting Writing To Text
Operating the Terminal Converting Writing to Text To convert your writing to text, tap Tools - Recognize. To convert certain words, select them before tapping Recognize on the Tools menu (or tap and hold the selected words, then tap Recognize on the pop-up menu). If a word is not recognized, it is left as writing.
Page 78: Writing Tips
PDT 8000 Series Product Reference Guide A list of alternate words appears. Tap the word you want to use, or tap the writing at the top of the menu to return to the original writing. Tap to return to your original writing.
Page 79: Selecting Text
Operating the Terminal Selecting Text To edit or format typed text, select it by dragging the stylus across the text. Cut, copy and/ or paste text by holding the selected words then tapping an editing command on the pop- up menu, or by tapping the command on the Edit menu. Selecting Writing To select writing to edit or format: 1.
Page 80: Drawing On The Screen
PDT 8000 Series Product Reference Guide Drawing on the Screen Drawing on the screen is similar to writing on the screen. To create a drawing, cross three ruled lines on your first stroke. A drawing box appears. Subsequent strokes in or touching the drawing box become part of the drawing.
Page 81: Recording A Message
Operating the Terminal Recording a Message You may record a message to capture thoughts, reminders and phone numbers. In Calendar, Tasks and Contacts, you can include a recording in the Notes tab. In the Notes program, you can either create a stand-alone recording or include a recording in a written note.
Page 82: Using My Text
PDT 8000 Series Product Reference Guide Using My Text When using Inbox or MSN Messenger, use My Text to quickly insert preset or frequently used messages into the text entry area. To insert a message, tap My Text and tap a message.
Page 83 Operating the Terminal You can also use the File Explorer to find files and organize them into folders. Tap Start - Programs - File Explorer to launch Explorer. Tap to change folders. Select the sort order for the list. Tap the folder name to open it.
Page 84: Making A Phone Call (Pdt 8037/8056 Only)
Making a Phone Call (PDT 8037/8056 only) The PDT 8037 and PDT 8056 terminals have the technology to make and receive phone calls using the GSM Demo application (available at http://devzone.symbol.com). To make a phone call you must install and configure the application.
Page 85 Operating the Terminal 3. If GSMDemo is listed, select GSM Demo. As GSM Demo launches, it opens the internal serial port to the GSM modem and attempts to register with a network. The terminal displays the main GSM Demo screen: The Network Status field displays the following messages as the modem attempts to connect: Opening GSM com port, Initializing modem, Checking SIM Card and Configuring modem.
Page 86 PDT 8000 Series Product Reference Guide c. Make the appropriate selection, depending on your location. If necessary, contact your service provider to confirm the band information. d. Tap Change. e. On the pop-up Confirm dialog box, tap Yes. The terminal displays the main GSM Demo screen, and the Network Status field displays Cycling Power.
Page 87: Phone Call
Operating the Terminal Phone Call To make a phone call: 1. Connect the appropriate headset to the terminal. See Using a Headset on page 2-4 2. Tap the Dial # button on the main GSM Demo screen. 3. Enter the number you want to call in the Phone Number field. Note: Emergency phone calls can be made without a SIM card.
Page 88 PDT 8000 Series Product Reference Guide To receive a phone call: When you receive a phone call an Incoming call... dialog box pops up on the terminal screen. The notification dialog box shows the number of the caller. • If you want to answer the incoming call, tap Answer.
Page 89: Sending And Receiving Sms Messages
The PDT 8037 and PDT 8056 terminals have the technology to send and receive SMS messages using the GSM Demo application (available at http://devzone.symbol.com). To send or receive an SMS message you must install and configure the application. Note: Before using the terminal to send a message, ensure that a SIM card has been installed.
Page 90: Gsm Demo Configuration
PDT 8000 Series Product Reference Guide GSM Demo Configuration 1. Ensure that a SIM card is installed in the terminal. See Installing a SIM Card page 1-24. 2. Ensure that the GSMDemo Application is installed on your terminal. Tap Start - Programs - File Explorer on your terminal and navigate to the Applications folder.
Page 91 Operating the Terminal b. Select Change Band. 1900Mhz is used for North America 900/1800Mhz is used for Europe, Asia, Australia and Africa. c. Make the appropriate selection, depending on your location. If necessary, contact your service provider to confirm the band information. d.
Page 92: Sms Messaging
PDT 8000 Series Product Reference Guide SMS Messaging To send an SMS: 1. Tap the Send SMS button on the main GSM Demo screen. 2. Enter the number you want to send an SMS to in the Phone Number field.
Page 93: Scanning
Operating the Terminal • If you want to close the dialog box and read the message at another time, tap Close. To read an SMS message: 1. Tap the Read SMS button on the main GSM Demo screen. 2. Select the envelope icon next to the message you want to read. 3.
Page 94: Scan Led Indicator
PDT 8000 Series Product Reference Guide 3. Press either the right or left scan trigger. Make sure the red scan beam covers the entire bar code. The green scan LED lights and a beep sounds to indicate a successful decode.
Page 95: Performing A Hard Reset
1. Remove the battery door. 2. Press Power key + Scan button, and release. 3. Replace the battery door. 4. As the terminal reboots, the Symbol splash screen displays for about 60 seconds. 5. Realign the screen. as described in Aligning the Screen on page 1-31.
Page 96 PDT 8000 Series Product Reference Guide 2-36...
Page 97: Chapter Contents
Chapter 3 Customizing the Terminal Chapter Contents Introduction ..............3-3 Adjusting Settings .
Page 98 PDT 8000 Series Product Reference Guide...
Page 99: Introduction
Power: set the terminal to turn off after a period of time to conserve battery • Regional Settings: view and customize region, number, currency, time and date settings. • Remove Programs: remove programs installed in the storage memory • Screen: align the screen • Symbol Settings: configure terminal wake-up (see Configuring Wake-ups page 1-34).
Page 100: Flash Storage
The three FFS partitions appear as three separate folders in the Windows CE file system and are as follows: • Platform: The Platform FFS partition contains Symbol-supplied programs and Dynamic Link Libraries (DLLs). This FFS is configured to include DLLs that control system operation. Since these drivers are required for basic terminal operation, only experienced users should modify the content of this partition.
Page 101: Working With Ffs Partitions
Customizing the Terminal Working with FFS Partitions Because the FFS partitions appear as folders under the Windows CE file system, they can be written to and read like any other folder. For example, an application program can write data to a file located in the Application folder just as it would to the Windows folder. However, the file in the Application folder is in non-volatile storage and is not lost on a hard reset (e.g., when power is removed for a long period of time).
Page 102: Copyfile
If necessary, the entire OS image may be downloaded to the terminal using files provided by Symbol. The current OS partition on the terminal is included as part of the TCM installation package. Any upgrades must be obtained from Symbol.
Page 103: Assigning Applications To Application Buttons
Customizing the Terminal Assigning Applications to Application Buttons The key combinations that represent application buttons access, by default, Calendar, Contacts, Tasks and Notes. To re-assign a different application to a button: 1. Tap Start - Settings. 2. On the Personal tab, tap Buttons. Figure 3-1.
Page 104: Adding Programs
PDT 8000 Series Product Reference Guide Adding Programs Install the appropriate software on your host computer before installing it on your terminal. 1. On the terminal, tap Start - Settings - System tab - About. In the Version tab, note the information in Processor.
Page 105: Adding A Program To The Start Menu
Customizing the Terminal Adding a Program to the Start Menu Tap Start - Settings - Menus - Start Menu tab, then the check box for the program. Figure 3-2. Menus Screen If you do not see the program listed, either use File Explorer to move the program to the Start Menu folder or use ActiveSync on the host computer to create a shortcut to the program and place the shortcut in the Start Menu folder.
Page 106: Using Activesync To Add To The Start Menu
PDT 8000 Series Product Reference Guide Using ActiveSync to Add to the Start Menu 1. Use the Explorer in ActiveSync on your host computer to explore your terminal’s files and locate the program. 2. Right-click the program, then click Create Shortcut.
Page 107: Chapter Contents
Chapter 4 Communications Chapter Contents Introduction ..............4-3 Communication Software Installation.
Page 108 PDT 8000 Series Product Reference Guide...
Page 109: Introduction
Communications Introduction The PDT 8000 Series terminal is capable of communicating with a number of hosts, including development PCs, serial devices, printers, etc. The available accessories serve as essential data communication devices, enabling you to synchronize the information on your terminal with the information on your host device using ActiveSync. With the appropriate accessory and software, the terminal can establish a number of connection types, such as a serial connection and a modem connection.
Page 110: Setting Up A Partnership
PDT 8000 Series Product Reference Guide • Control when synchronization occurs by selecting a synchronization mode, e.g., you may synchronize continually while the terminal is connected to the host computer, or only when you select the synchronize command. • Select the types of information to synchronize, and control how much data is synchronized.
Page 111 Communications 4. The host computer and the terminal will attempt to synchronize. The New Partnership window appears. Figure 4-2. New Partnership Window 5. Click the Yes radio button and then select Next. The New Partnership/Specify how to synchronize data window appears.
Page 112 PDT 8000 Series Product Reference Guide 6. Click the Synchronize with this desktop computer radio button and then select Next. The New Partnership/Select Number of Partnerships window appears. Figure 4-3. Select Number of Partnerships 7. Select Next. The New Partnership/Select Synchronization Settings window appears.
Page 113 Communications 8. To synchronize files, click on Files check box. The File Synchronization window appears. Figure 4-5. File Synchronization Folder Confirmation 9. Select OK to display the Setup Complete window. 10. Select Next. Figure 4-6. Setup Complete Window...
Page 114 PDT 8000 Series Product Reference Guide 11. Select Finish. Figure 4-7. ActiveSync Connected Window During the first synchronization, information stored in Microsoft Outlook (Calendar, Contacts, and Tasks) on your host computer is copied to your terminal. You can now disconnect your terminal from your host computer.
Page 115: Installing Econnect
Single-Slot Modem Cradle, the Snap-On Modem and the Four-Slot USB-to-Ethernet cradle. To install eConnect: 1. Download eConnect (for PDT 8000) from http://devzone.symbol.com. 2. Establish a serial connection between your terminal and host computer, using a serial device (for example, see Using the Serial Charging Cable on page 4-11).
Page 116: Communication Setup
• Update the firmware of MobileDox Net. To install the Cradle Management Software on your host computer, download the latest version of the software from http://devzone.symbol.com. Refer to the instructions included with the software you download. Communication Setup The terminal can communicate with the host computer using the following accessories: •...
Page 117: Using The Serial Charging Cable
Communications Using the Serial Charging Cable 1. Install ActiveSync on your host computer. See Installing ActiveSync on page 4-3. 2. Start ActiveSync on your host computer (Start - Programs - Microsoft ActiveSync). Click File - Connection Settings and ensure the following selections are made (select the appropriate COM port for your host PC): 3.
Page 118 PDT 8000 Series Product Reference Guide 4. Connect the serial charging cable to your terminal and host PC as shown below: Serial charging cable To serial port of host computer Figure 4-9. Serial Charging Cable Connection to Host PC Note: The serial charging cable requires a dedicated port. It cannot share a port with an internal modem or other device.
Page 119: Using The Usb Cable
6. If you already created a partnership between your host computer and terminal, synchronization will occur automatically, immediately following step 4. Using the USB Cable Note: A Symbol USB ActiveSync Driver Update must be download in order to use the USB Cable for communication. This update is available at http://devzone.symbol.com.
Page 120 PDT 8000 Series Product Reference Guide 4. Connect the USB cable to your terminal and host PC as shown below: USB cable To USB port of host computer Figure 4-10. USB Cable Connection to Host PC 5. If this is your first synchronization, follow the instructions on the host computer screen to setup the partnership.
Page 121: Using The Single-Slot Serial Cradle
Communications Using the Single-Slot Serial Cradle 1. Install ActiveSync on your host computer. See Installing ActiveSync on page 4-3. 2. Start ActiveSync on your host computer (Start - Programs - Microsoft ActiveSync). Click File - Connection Settings and ensure the following selections are made (select the appropriate COM port for your host PC): 3.
Page 122 PDT 8000 Series Product Reference Guide 4. Connect the single-slot serial cradle to your host computer as shown below: Serial device cable p/n 170047-000 Figure 4-11. Single-Slot Serial Cradle Connection to Host PC Note: The cradle requires a dedicated port. It cannot share a port with an internal modem or other device.
Page 123 Communications 5. Turn on the terminal and slide it into the cradle. Figure 4-12. Inserting the Terminal in the Single-Slot Serial Cradle 6. If this is your first synchronization, follow the instructions on the host computer screen to setup the partnership. Items to be synchronized may be customized, and you may select to synchronize continuously as information changes, upon connection, or manually by clicking the Sync button on the toolbar of your host computer.
Page 124: Using The Single-Slot Modem Cradle Or The Snap-On Modem
PDT 8000 Series Product Reference Guide Using the Single-Slot Modem Cradle or the Snap-On Modem 1. Install ActiveSync on your host computer. See Installing ActiveSync on page 4-3. Note: Before communicating through a modem connection, you must create a partnership between your terminal and your host computer.
Page 125 Communications o. Tap the OK button. The Make New Connection screen appears. p. Tap the Next button. q. Enter the appropriate country code, if necessary, in the Extra dial-string modem commands: textbox. r. Tap the Next button. s. Select other options. t.
Page 126 PDT 8000 Series Product Reference Guide 5. Setup the single-slot modem cradle as shown below: Modem cable Figure 4-13. Setting up the Single-Slot Modem Cradle Setup the snap-on modem as shown below: Terminal Charge LED Snap-On Modem Module Figure 4-14. Setting up the Snap-On Modem Module...
Page 127: Using Activesync
Communications With a modem connection, you can use ActiveSync to synchronize data between your terminal and host computer (see Using ActiveSync on page 4-21) or you can connect to the Internet (see Launching the Internet on page 4-22). Using ActiveSync 1.
Page 128: Launching The Internet
PDT 8000 Series Product Reference Guide 3. Tap Start - ModemSync. The modem dial-out commences and, if successful, a series of dialog boxes pop-up in succession, as shown below: 4. After connecting, ActiveSync starts and synchronizes with the host computer.
Page 129: Country Setup
Communications 2. Tap the OK button. 3. Tap Start - ModemSync. The modem dial-out commences and, if successful, a series of dialog boxes pop-up in succession, as shown below: 4. When connected, Internet Explorer starts. You can now surf the Internet, if permitted by your server.
Page 130 PDT 8000 Series Product Reference Guide Country Code Country Code Country Code Canada Italy FD or 59 Sweden FD or A5 Denmark FD or 31 Liechtenstein Switzerland FD or A6 Finland FD or 3C Luxembourg TBR-21 (Europe) France FD or 3D...
Page 131: Using A Four-Slot Usb-To-Ethernet Cradle
Communications Using a Four-Slot USB-to-Ethernet Cradle Note: The four-slot USB-to-Ethernet cradle can only be used with the 128MB RAM configuration. In order to establish a connection between the terminal and the host computer to communicate over an Ethernet network, the following must be done: •...
Page 132 PDT 8000 Series Product Reference Guide Note: Before communicating through an ethernet connection, you must create a partnership between your terminal and your host computer. Setting up a Partnership on page 4-4 for detailed instructions. Configuration of the DHCP Server...
Page 133 Communications Connecting the Cradle Setup the four-slot USB-to-Ethernet cradle as shown below: To Ethernet Figure 4-15. Setting up the Four-Slot USB-to-Ethernet Cradle Setting the Device IP Address By default, the cradle will use DHCP to obtain its IP address. However, if DHCP fails, the Cradle Manager can assign an IP address.
Page 134 PDT 8000 Series Product Reference Guide 2. Click File - Set IP Address of Unlisted Device. The following screen appears: 3. Enter the appropriate MAC Address and IP address. 4. Click the OK button. Modifying Cradle Settings 1. Launch the MobileDox Cradle Manager on your host computer.
Page 135: The Cradle
Communications 5. Use the TPC/IP Settings tab to modify the DNS and WINS identification settings of the cradle. Field Description Use DHCP If checkbox is selected, necessary information will be retrieved from the DHCP server. If checkbox is not selected, static configuration will be used (information needs to be entered).
Page 136: Using Activesync
PDT 8000 Series Product Reference Guide 6. Use the Port Settings tab to modify the USB port settings of the cradle. Field Description Port Name A text string used to describe the device attached to the port. Any 15- character string can be entered.
Page 137 Communications 2. On your terminal, tap Start - Settings - System - eConnect and ensure the following settings are made: 3. Tap the OK button. 4. Insert the terminal into the cradle. The cradle’s communication LED turns red, then flashes green, indicating that the host computer and terminal are communicating. Communication LED Indicator on page 4-33 for other indications.
Page 138: Launching The Internet
6. Once connected, tap Start - Internet Explorer to launch the browser. Updating Cradle Firmware 1. Ensure that your .bin update file is located in Program Files\Symbol\MobileDox\FW on your host computer. 2. In the MobileDox Cradle Manager screen, select the cradle whose firmware you want to update.
Page 139: Communication Led Indicator
Communications Communication LED Indicator Table 4-1. Communication LED Indicator Indication Terminal not in cradle; terminal not placed correctly; cradle is not powered. Solid Red Terminal is present, but communication has not started. Flashing Green Terminal is in the cradle, and communicating with the host computer.
Page 140: Using The Vehicle Cradle
PDT 8000 Series Product Reference Guide Using the Vehicle Cradle Using ActiveSync 1. Install ActiveSync on your host computer. Installing ActiveSync on page 4-3. 2. Start ActiveSync on your host computer (Start - Programs - Microsoft ActiveSync). Click File - Connection Settings and ensure the following selections are made (select the appropriate COM port for your host PC): 3.
Page 141 Communications 4. Connect your cradle to a serial device, such as a printer as shown below: Serial device cable Plug this end into serial device Figure 4-16. Vehicle Cradle Connection to Serial Device 5. Turn on the terminal and slide it into the cradle. Figure 4-17.
Page 142: Using The Magnetic Stripe Reader
ActiveSync. 4. Tap Start - Settings - System tab - Symbol Settings - Settings tab. Select Always On from the External 5 Volt Power drop down menu to apply power to the COM port.
Page 143 Communications 5. Connect your cradle to a serial device, as shown below: Serial device cable Plug this end into serial device Figure 4-18. Magnetic Stripe Reader Connection to Serial Device 6. Turn on the terminal and slide it into the cradle. Figure 4-19.
Page 144: Using Printers
PDT 8000 Series Product Reference Guide connection, or manually by clicking the Sync button on the toolbar of your host computer. Note: Every PDT 8000 terminal should have a unique name. Never try to synchronize more than one PDT 8000 terminal to the same user name.
Page 145: Connecting To The Internet On A Wireless Network
Communications Connecting to the Internet on a Wireless Network With a PDT 8046 terminal, you can connect to the Internet across a wireless network. To set up a wireless connection: 1. Tap the NICTT icon on the bottom right of the Today Screen. 2.
Page 146 PDT 8000 Series Product Reference Guide 4. Select the encryption algorithm used on the wireless network (Open System, 40- bit Shared Key, 128-bit Shared Key or Kerberos). If you select 40-bit Shared Key, 128-bit Shared Key or Kerberos, enter the required data in the fields that appear in the window.
Page 147: Chapter Contents
Chapter 5 Applications Chapter Contents Introduction ..............5-3 Calendar .
Page 148 PDT 8000 Series Product Reference Guide...
Page 149: Introduction
Applications Introduction The PDT 8000 Series terminal includes Calendar, Contacts, Tasks, Inbox, and Notes applications. You can use these programs individually or together. For example, e-mail addresses stored in Contacts can be used to address e-mail messages in Inbox. Using ActiveSync, you can synchronize information in these applications between your host computer and your terminal.
Page 150: Creating Appointments
PDT 8000 Series Product Reference Guide Note: You can customize the Calendar display, such as changing the first day of the week, by tapping Options on the Tools menu. Creating Appointments To create an appointment: 1. To open Calendar, Tap Start - Calendar.
Page 151: Using The Summary Screen
Applications Note: If you select Remind me in an appointment, your terminal notifies you according to the options set in Start - Settings - Personal tab - Sounds & Reminders. Using the Summary Screen When you tap an appointment in Calendar, a summary screen displays. Tap Edit to change the appointment.
Page 152: Contacts
PDT 8000 Series Product Reference Guide 3. From the list of e-mail addresses you’ve entered in Contacts, select the meeting attendees. The meeting notice is created and placed in the Outbox folder. For more information on sending and receiving meeting requests, see Calendar Help and Inbox Help on your terminal.
Page 153: Creating Contacts
Applications Creating Contacts To create a contact: 1. Tap New. Tap to return to the contact list (the contact is saved automatically). Scroll to see more fields. Notes is a good place for maps and directions. Figure 5-5. Creating a Contact 2.
Page 154: Using The Summary Screen
PDT 8000 Series Product Reference Guide You may find a contact in one of four ways: • In the contact list, enter a contact name in the box under the navigation bar. To show all contacts again, clear text from the box or tap the button to the right of the box.
Page 155: Tasks
Applications Tasks Use Tasks to keep a “to do” list. Select the category of tasks you want displayed in the list. Select the sort order of the list. Indicates high priority. Tap to display or edit the task details. Tap and hold to display a pop-up menu of actions.
Page 156: Creating Tasks
PDT 8000 Series Product Reference Guide Creating Tasks To create a task: 1. Tap New. Tap to return to the task list (the task is saved automatically). Tap to choose from predefined subjects. Notes is a good place for maps and directions.
Page 157: Using The Summary Screen
Applications Using the Summary Screen When you tap a task in the task list, a summary screen displays. To change the task, tap Edit. View task details. Tap to show and hide additional summary information. View notes. Tap to change task. Figure 5-9.
Page 158: Notes
PDT 8000 Series Product Reference Guide Notes Capture thoughts, reminders, ideas, drawings and phone numbers with Notes. You can create a written note or a recording. You can also include a recording in a note. If a note is open when you create the recording, it is included in the note as an icon. If the note list is displayed, it is created as a stand-alone recording.
Page 159: Creating Notes
Applications Creating Notes To create a note: 1. Tap New. 2. Create your note by writing, drawing, typing and recording. For more information about using the input panel, writing and drawing on the screen, and creating recordings, see Chapter 2, Operating the Terminal.
Page 160: Inbox
PDT 8000 Series Product Reference Guide Inbox Use Inbox to send and receive e-mail messages in the following ways: • Synchronize e-mail messages with Microsoft Exchange or Outlook on your host computer. • Send and receive e-mail messages by connecting directly to an e-mail server through an Internet service provider (ISP) or a network.
Page 161: Setting Up An E-Mail Service
Applications When you connect to the e-mail server, new messages are downloaded to the terminal Inbox folder, messages in the terminal Outbox folder are sent, and messages that were deleted on the e-mail server are removed from the terminal Inbox. Messages that you receive directly from an e-mail server are linked to your e-mail server rather than your host computer.
Page 162: Using The Message List
PDT 8000 Series Product Reference Guide Using the Message List Messages you receive display in the message list. By default, the most recently received messages are listed first. Select the service and folder you want to display. Select the sort order for messages.
Page 163 Applications When you receive a message, tap it in the list to open it. Unread messages display in bold. Tap to return to the message list. Tap to delete this message. Tap to view the previous or next message. Tap to reply to or forward this message.
Page 164: Creating E-Mail Messages
PDT 8000 Series Product Reference Guide • Change options for direct e-mail server connections in Inbox on your terminal. Tap Tools - Options. On the Service tab, tap the service you want to change. Tap and hold the service and select Delete to remove it.
Page 165: Managing E-Mail Messages And Folders
Applications If you are sending an SMS message and want to know if it was received, tap Edit - Options, and select Request SMS text message delivery notification before sending the message. Managing E-mail Messages and Folders By default, messages are displayed in one of five folders for each service you’ve created: Inbox, Deleted Items, Drafts, Outbox, and Sent Items.
Page 166 PDT 8000 Series Product Reference Guide 5-20...
Page 167: Chapter Contents
Chapter 6 Companion Programs Chapter Contents Introduction ..............6-3 Pocket Word .
Page 168 PDT 8000 Series Product Reference Guide...
Page 169: Introduction
Companion Programs Introduction The PDT 8000 Series terminal contains the companion programs Microsoft Pocket Word, ® Microsoft Pocket Excel, MSN Messenger, Windows Media Player, Microsoft Reader and Infrared Receive. To select a companion program, tap Start - Programs, then the program name.
Page 170: Typing Mode
PDT 8000 Series Product Reference Guide Pocket Word contains a list of the files stored on your device. Tap a file in the list to open it. To delete, make copies of, or send a file, tap and hold a file in the list. Then, select the appropriate action on the pop-up menu.
Page 171 Companion Programs To format or edit text, select the text using your stylus instead of the mouse to drag across the text. To search a document for the text you want, tap Edit - Find/Replace. Tap to return to the Tap and hold to see a document list (changes are pop-up menu of actions.
Page 172: Writing Mode
PDT 8000 Series Product Reference Guide Writing Mode In writing mode, use your stylus to write directly on the screen. Ruled lines are displayed as a guide, and the zoom magnification increases to allow you to write more easily. For...
Page 173: Recording Mode
Companion Programs drawing. Every subsequent stroke within or touching the drawing box becomes part of the drawing. For more information, see Drawing on the Screen on page 2-20. Select Shape on the pop- up menu to convert objects to proper shapes. Resize an object by dragging the selection handles.
Page 174: Pocket Excel
PDT 8000 Series Product Reference Guide Pocket Excel Pocket Excel works with Microsoft Excel on your host computer to provide easy access to copies of your workbooks. You can create new workbooks on the terminal, or copy workbooks from your host computer to the terminal. Synchronize workbooks between your host computer and the terminal so you have up-to-date content in both locations.
Page 175: Tips For Working In Pocket Excel
Companion Programs If your workbook contains sensitive information, you can protect it with a password. Open the workbook, tap Edit - Password. Every time you open the workbook, you must enter the password, so choose one easy for you to remember but hard for others to guess. Tips for Working in Pocket Excel When working in large worksheets in Pocket Excel: •...
Page 176: Setting Up Your Account
PDT 8000 Series Product Reference Guide Setting Up Your Account Before you can connect, set up the Passport or Exchange account and sign in: 1. Tap Tools - Options. 2. In the Accounts tab, enter your Passport or Exchange account information.
Page 177: Chatting With Contacts
Companion Programs Chatting with Contacts Tap a contact name to open a chat window. Enter your message in the text entry area at the bottom of the screen, or tap My Text to enter a preset message, and tap Send. To invite another contact to a multi-user chat, tap Tools - Invite and tap the contact you want to invite.
Page 178 PDT 8000 Series Product Reference Guide To know if the contact you are chatting with is responding, look for the message under the text entry area. View full chat. View the status of the chat. Figure 6-8. Receiving a Message For more information on using MSN Messenger, tap Start - Help.
Page 179: Windows Media Player
Companion Programs Windows Media Player With Windows Media Player on the terminal you can play digital audio and video files that are stored on your terminal. To switch to Windows Media Player, tap Start - Programs - Windows Media. Indicates the progress of the current track.
Page 180: Getting Books On Your Device
PDT 8000 Series Product Reference Guide Each book consists of a cover page, an optional table of contents, and the pages of the book. You can: • Page through the book by using the Up/Down control on your device or by tapping the page number on each page.
Page 181: Reading A Book
Companion Programs Reading a Book Each book consists of a cover page, an optional table of contents and the pages of the book. Navigation options are listed in the bottom portion of the cover page. The first time you open a book, you’ll probably want to go to the first page or to the table of contents, if there is one.
Page 182: Removing A Book
PDT 8000 Series Product Reference Guide program that accepts text. On a book page, select the text you want to copy and tap Copy Text on the pop-up menu. The text can be pasted into the program of your choice.
Page 183 Companion Programs Note: You can also send items, but not folders, from File Explorer. Tap and hold the item, then tap Beam File on the pop-up menu. To receive information, align the IR ports so that they are unobstructed and within close range.
Page 184 PDT 8000 Series Product Reference Guide 6-18...
Page 185: Chapter Contents
Chapter 7 Pocket Internet Explorer Chapter Contents Introduction ..............7-3 Connect to an ISP .
Page 186 PDT 8000 Series Product Reference Guide...
Page 187: Introduction
Pocket Internet Explorer Introduction With Microsoft Pocket Internet Explorer, you can view Web or WAP pages in the following ways: • Connect to an Internet service provider (ISP) or network and browse the Web. • During synchronization with your host computer, download your favorite links and mobile favorites stored in the Mobile Favorites subfolder in Internet Explorer on the host computer.
Page 188: Mobile Favorites
PDT 8000 Series Product Reference Guide To add a favorite link while using the terminal, go to the Web page you want to add, tap and hold on the page, and tap Add to Favorites. Mobile Favorites Items stored in the Mobile Favorites subfolder in the Favorites folder in Internet Explorer on the host computer are synchronized with the terminal.
Page 189: Saving Memory On Your Terminal
Pocket Internet Explorer Before synchronizing, in Internet Explorer on your host computer, click Tools - Synchronize. Note the last time content was downloaded to the host computer; if necessary, manually download content. You can add a button to the Internet Explorer toolbar for creating mobile favorites. In Internet Explorer on your host computer, click View - Toolbars - Customize.
Page 190: Using Pocket Internet Explorer
PDT 8000 Series Product Reference Guide Using Pocket Internet Explorer With Pocket Internet Explorer, you can browse mobile favorites and channels downloaded to your terminal without connecting to the Internet. You can also connect to the Internet through an ISP or a network connection and browse the Web.
Page 191 Pocket Internet Explorer To view mobile favorites and channels, tap the Favorites button to display your list of favorites, then tap the page you want to view. Tap the favorite you want to view. Tap to add or delete a folder or favorite link.
Page 192 PDT 8000 Series Product Reference Guide...
Page 193 Chapter 8 AirBEAM Chapter Contents Introduction ..............8-3 AirBEAM Package Builder .
Page 194 PDT 8000 Series Product Reference Guide...
Page 195: Chapter 8. Airbeam
Introduction The AirBEAM product allows specially designed software packages to be transferred between a host server and Symbol wireless handheld devices. Before transfer, AirBEAM checks and compares package version, so that only updated packages are loaded. AirBEAM resides on radio-equipped client devices, and allows them to request, download and install software, as well as to upload files and status data.
Page 196: Airbeam Client
PDT 8000 Series Product Reference Guide AirBEAM Client The AirBEAM Client is installed on the terminal. It is configured with the server access information, the names of the packages to be downloaded and other controlling parameters. When the Client is launched, the device connects to the specified FTP server and checks the packages it is configured to look for.
Page 197: Packages(1) Tab
AirBEAM The Configuration Dialog box is used to view and edit AirBEAM client configurations. This dialog box has six tabs that you can modify - Packages(1), Packages(2), Server, Misc(1), Misc(2) and Misc(3). Packages(1) Tab This tab is used to specify the package name of the first four of eight packages that are to be loaded during the AirBEAM synchronization process.
Page 198: Server Tab
PDT 8000 Series Product Reference Guide Server Tab This tab is used to specify the configurations of the server to which the client will connect during the package synchronization process. Field Description IP Address The IP Address of the server. It may be a host name or a dot notation format.
Page 199: Misc(1) Tab
AirBEAM Misc(1) Tab This screen is used to configure various miscellaneous features. Field Description Auto-load This drop-down menu is used to specify how the AirBEAM client is to be invoked automatically when the client device is rebooted. The selections are: Disable: the AirBEAM client is not invoked automatically during the boot sequence.
Page 200 PDT 8000 Series Product Reference Guide Field Description Suppress This checkbox specifies whether the automatic insertion of a file path separator Separator character should be suppressed when the client generated server package definition file names. When enabled, the parameter also disables the appending of .apd to the package.
Page 201: Misc(2) Tab
AirBEAM Misc(2) Tab This screen is used to configure various miscellaneous features. Field Description Auto-retry This field is used to specify whether the AirBEAM client will automatically retry if there is a failure during the synchronization process. If this feature is enabled, the AirBEAM Client will display a popup dialog indicating that a retry will be attempted.
Page 202: Misc(3) Tab
PDT 8000 Series Product Reference Guide Misc(3) Tab This screen is used to configure various miscellaneous features. Field Description Use DHCP This check box control specifies whether the AirBEAM client will use the DHCP server response option 66 to specify the IP address of the FTP/TFTP server.
Page 203: Manual Synchronization
AirBEAM Manual Synchronization 1. Configure the AirBEAM Client. See Configuring the AirBEAM Client on page 8-4. 2. From the main AirBEAM screen, tap File - Synchronize. 3. Once connected, the AirBEAM Synchronize screen appears. a. The Status List displays status messages that indicate the progress of the synchronization process.
Page 204: Airbeam Staging
PDT 8000 Series Product Reference Guide AirBEAM Staging The AirBEAM Smart staging support is intended to speedup and simplify the process of staging custom or updated operating software onto mobile devices directly from manufacturing. The staging support is part of the AirBEAM Smart CE client that is integrated into the terminal.
Page 205 Chapter 9 Spectrum24 Network Configuration Chapter Contents Introduction ..............9-3 Configuring the Terminal (11 MB Radio) .
Page 206 PDT 8000 Series Product Reference Guide...
Page 207: Chapter 9. Spectrum24 Network Configuration
Spectrum24 Network Configuration Introduction Wireless LANs allow PDT 8000 terminals to communicate wirelessly, and to send captured data “real time” to a host device. Before a terminal can be used on a Spectrum24 LAN your facility must be set up with the equipment required to run the wireless LAN and the terminal must be properly configured.
Page 208: Configuring The Terminal (11 Mb Radio)
PDT 8000 Series Product Reference Guide Configuring the Terminal (11 MB Radio) Before the terminal can be used, it must be properly configured for the Spectrum24 Wireless LAN. 1. Tap Start - Settings. 2. Select Network Adapters from the Connections tab.
Page 209 Spectrum24 Network Configuration Use the property pages to view and adjust the IP address, subnet, gateway, DNS and WINS. Figure 9-2. IP Network Adapter Property Pages • IP Address: A 32-bit (max) number (expressed in dotted-decimal notation 157.235.90.24) that the Domain server uses to transmit and receive data. The IP address of the adapter is required to be in the same subnet as that of the access point for the devices to interoperate in Infrastructure mode.
Page 210: Using Spectrum24 Settings
PDT 8000 Series Product Reference Guide Using Spectrum24 Settings Tap the NICTT icon at the bottom right of the Today screen. NICTT icon Figure 9-3. NICTT Icon Note: On the PDT 8056, the NICTT icon displays only if the S24 radio card is inserted into the card slot.
Page 211: Mode Tab
Devices using Ad Hoc mode must use the same preamble setting to interoperate. The adapter uses a long preamble heading by default. Note that this is a Symbol Technologies operating mode and only works with other Symbol adapters enabled in the same mode. •...
Page 212: Info Tab
PDT 8000 Series Product Reference Guide Enter the channel number in the Channel field. The first adapter configured in the Ad Hoc network defines the channel number used in the Ad Hoc network. Each adapter is required to use the same channel to transmit and receive data to its peers.
Page 213: Ip Config Tab
Spectrum24 Network Configuration IP Config Tab Figure 9-6. NICTT Properties - IP Config Tab The IP Config tab allows you to adjust IP configuration settings. • Select DHCP (Dynamic Host Configuration Protocol) to obtain a leased IP address and network configuration information from a remote server. DHCP is the default setting, and when selected, IP address fields are read only.
Page 214: Power Tab
PDT 8000 Series Product Reference Guide • MAC Address: An IEEE 48-bit address the adapter is given at the factory which uniquely identifies the adapter at the physical layer level. • Host Name: User-assigned host name. Power Tab Figure 9-7. NICTT Properties - Power Tab Select the Power tab to set Radio Transmission Power and a Power Saving Mode.
Page 215: Options Tab
Spectrum24 Network Configuration • Choose 50%, 25% or 10% to set the transmit power level to that percentage of the maximum power level. • Choose Minimum power to set the adapter to the lowest transmission power level. Use this level when communicating with other devices in very close proximity, or when little or no radio interference from other devices is expected.
Page 216: Encryption Tab
United States. • Changes to settings you make using the Symbol Status are usually saved to the registry and used to initialize the adapter when it is inserted. Check These settings are only temporary to prevent your changes from being saved to the registry.
Page 217 Spectrum24 Network Configuration • The 40-bit Shared Key Algorithm uses a 40-bit encryption key known by both the terminal and the AP to encrypt the data over the network. Figure 9-10. NICTT Properties - Encryption Tab, 40-bit Shared Key Selected •...
Page 218: Ping Tab
PDT 8000 Series Product Reference Guide also permits the transmission and receipt of data once the credentials of the user are verified. Enter the name of the realm that hosts the Kerberos KDC in the Realm field. Figure 9-12. NICTT Properties - Encryption Tab, Kerberos Selected Note: Another security method, LEAP, is available for the PDT 8046.
Page 219: Signal Tab
Spectrum24 Network Configuration Use the Ping tab to send and receive ICMP ping packets across the network to the specified IP address. • Enter an IP address as a dotted string (e.g., 122.78.3.141). • Select the size of packets sent from the Size drop-down menu. •...
Page 220: Aps Tab
PDT 8000 Series Product Reference Guide APs Tab Figure 9-15. NICTT Properties - APs Tab The APs tab is only available in Infrastructure mode (selected on the Mode tab). Use the APs tab with the Infrastructure operating mode to view access points with the same ESSID as the adapter.
Page 221: Using Leap For Authentication And Encryption
3. On the terminal, tap Start - File Explorer. 4. Locate the CAB file you copied in step 2 and tap it to run it. An Installing Symbol LEAP Package dialog box appears and the installation process begins.
Page 222: Configuration
PDT 8000 Series Product Reference Guide 5. A schannel.dll dialog box may appear. Disregard the message and tap OK. Wait for installation to complete. 6. After installation is complete, a Spectrum24 Install dialog box appears. Tap OK. 7. Hard reset your terminal. See Performing a Hard Reset on page 2-35.
Page 223 Spectrum24 Network Configuration 2. In ActiveSync, click Explore. Windows Explorer will open the Mobile Device window for your terminal. 3. Navigate to the Platform folder and find the Spectrum24DS.reg file. 4. Right-click the file and click Copy. Place the cursor in the desired folder on your host computer, right-click, and click Paste.
Page 224 PDT 8000 Series Product Reference Guide ;* Password. ;******************************************************************************* "MUEncryptionAlgorithm"=dword:00000005 "ProtocolsToBindTo"=multi_sz:"NOT","NDISUIO" "ESS_ID"="myLEAPESSID" "UNAME"="myLEAPUserName" "UPwd"="myLEAPPassword" ;******************************************************************************* ;* End LEAP Settings ;******************************************************************************* 3. Edit the registry file with the following changes: a. Comment out the Open System section using semicolons, as shown below: "MUEncryptionAlgorithm"=dword:00000001...
Page 225 Spectrum24 Network Configuration To load the file back on the terminal 1. Establish an ActiveSync connection between the host computer and the terminal. Depending on the accessory used for the connection, see the appropriate section Chapter 4, Communications. 2. In ActiveSync, click Explore. Windows Explorer will open the Mobile Device window for your device.
Page 226 PDT 8000 Series Product Reference Guide 9-22...
Page 227 Chapter 10 Wireless Wide Area Network Configuration Chapter Contents Introduction ..............10-3 Establish a GPRS Connection .
Page 228 PDT 8000 Series Product Reference Guide 10-2...
Page 229: Chapter 10. Wireless Wide Area Network Configuration
Wireless Wide Area Network Configuration Introduction The PDT 8037 and PDT 8056 can be used on a GSM/GPRS wireless network. Global System for Mobile Communication (GSM) networks deliver mobile voice and data services (such as SMS/Text Messaging) with full roaming capabilities across the world. General Packet Radio Service (GPRS) enabled networks offer Internet-based content and packet-based data services.
Page 230 PDT 8000 Series Product Reference Guide Install the application: Check the terminal to see if the GSMDemo application is installed. Tap Start - Programs - File Explorer and navigate to the Applications folder. If GSMDemo is not listed, see Demo Installation on page C-1 for installation instructions.
Page 231 Wireless Wide Area Network Configuration Configuring modem. Once a successful connection is made, the field displays Registered Home or Registered Roam (if out of network). 4. If the Network Status field displays Searching... and a connection is not made: a. Tap Options - Settings. b.
Page 232 PDT 8000 Series Product Reference Guide 5. A successful registration, indicated by signal strength (as shown below), ensures the functionality of your SIM card. GPRS availability, through the network, is indicated by the GPRS icon. Edit the GPRS parameters: 1. Tap Options - Settings.
Page 233 Wireless Wide Area Network Configuration 3. Make the appropriate changes, as per Table 10-1, on the PDP Context tab. Figure 10-1. GPRS Parameters - PDP Context Tab Table 10-1. PDP Context Tab Fields Field Name Description Table Version System generated. Contains internal version number representing the structure of the registry file.
Page 234 PDT 8000 Series Product Reference Guide Table 10-1. PDP Context Tab Fields Field Name Description Data Compression Information obtained from service provider. • If provider supports data compression, select • If provider supports data compression, select Yes. Header Compression Information obtained from service provider.
Page 235 Wireless Wide Area Network Configuration Note: If the value of the fields is set to high, it is possible that no connection is made. Table 10-2. Min. Qos. Tab Fields Field Name Description Precedence Information obtained from service provider. A parameter describing the relative priority of maintaining the service.
Page 236 PDT 8000 Series Product Reference Guide 5. Tap the Req. Qos. tab and make the appropriate changes, as per Table 10-3. This tab configures the quality of service requested. Figure 10-3. GPRS Parameters - Req. Qos. Tab Table 10-3. Req. Qos. Tab Fields...
Page 237: Using The Registry File
Wireless Wide Area Network Configuration 6. Tap OK when all options are selected. 7. You will be asked to confirm the change. Tap Yes. 8. You will be asked if you want to overwrite the default GPRS settings permanently a. Tap No to apply the new settings to the active parameters settings only. In this case the new parameters are used for all subsequent PDP contexts until a cold boot occurs.
Page 238 PDT 8000 Series Product Reference Guide • manually update the existing registry file. Creating a new registry file 1. Open any text editing application, such as Microsoft Notepad. 2. Create the content of the registry file. You may use the sample registry file included...
Page 239 Wireless Wide Area Network Configuration 2. Change the values for the parameters, as necessary. Parameter names appear in quotes followed by an = sign (for example, “CurrentContext”=). Only change the text followed by the = sign. A sample registry file is included below. See Sample Network Parameter Registry File on page 10-13.
Page 240 PDT 8000 Series Product Reference Guide "ContextID"=dword:1 "ContextName"="VoiceStream" "PDPType"="IP" "APN"="internet3.voicestream.com" "PDPAddress"="" "DataCompression"=dword:0 "HDRCompression"=dword:0 "QosMinPrecedence"=dword:0 "QosMinDelay"=dword:0 "QosMinReliability"=dword:3 "QosMinPeak"=dword:0 "QosMinMean"=dword:0 "QosReqPrecedence"=dword:0 "QosReqDelay"=dword:0 "QosReqReliability"=dword:3 "QosReqPeak"=dword:0 "QosReqMean"=dword:0 [HKEY_LOCAL_MACHINE\Drivers\BuiltIn\Seriald3\Context2] ; 2nD of 3 selectable Contexts "ContextID"=dword:2 "ContextName"="Telstra" "PDPType"="IP" "APN"="telstra.internet" "PDPAddress"="" "DataCompression"=dword:0 "HDRCompression"=dword:0 "QosMinPrecedence"=dword:0 "QosMinReliability"=dword:0 "QosMinDelay"=dword:0 "QosMinPeak"=dword:0...
Page 241: Configuring A Gprs Wan Connection
Wireless Wide Area Network Configuration "QosMinMean"=dword:0 "QosReqPrecedence"=dword:0 "QosReqDelay"=dword:0 "QosReqReliability"=dword:0 "QosReqPeak"=dword:0 "QosReqMean"=dword:0 [HKEY_LOCAL_MACHINE\Drivers\BuiltIn\Seriald3\Context3] ; Last of 3 selectable Contexts "ContextID"=dword:3 "ContextName"="OmniTel" "PDPType"="IP" "APN"="web.omnitel.it" "PDPAddress"="" "DataCompression"=dword:0 "HDRCompression"=dword:0 "QosMinPrecedence"=dword:0 "QosMinDelay"=dword:0 "QosMinReliability"=dword:0 "QosMinPeak"=dword:0 "QosMinMean"=dword:0 "QosReqPrecedence"=dword:2 "QosReqDelay"=dword:4 "QosReqReliability"=dword:3 "QosReqPeak"=dword:6 "QosReqMean"=dword:1f Configuring a GPRS WAN Connection To set up a new connection configuration: 1.
Page 242 PDT 8000 Series Product Reference Guide 3. On the Connections screen, a. if you are using a PDT 8056, ensure Work is selected from the My network card connects to: drop-down menu. b. tap the Modify button under the When needed, automatically connect to The Internet using these settings: drop-down.
Page 243 Wireless Wide Area Network Configuration 6. Select Virtual GPRS modem on COM9 from the Select a modem: drop-down menu. 7. Select 57600 from the Baud rate: drop down menu. 8. Tap Next . Figure 10-6. Entering Phone Number 9. Enter your area code and set the phone number to *99#. The area code must match the area code in the dialing locations screen.
Page 244: Connecting Via Gprs
PDT 8000 Series Product Reference Guide Connecting via GPRS 1. Ensure a SIM card is installed in the terminal. See Installing a SIM Card on page 1-24. 2. Ensure GPRS parameters are configured appropriately. See GPRS Parameters Configuration on page 10-3.
Page 245 Wireless Wide Area Network Configuration 7. Set the area code to match the area code entered earlier, in the Entering Phone Number screen (see Figure 10-6). Tap Dialing Patterns. Figure 10-9. Dialing Patterns Screen 8. On the Dialing Patterns screen, edit the patterns as shown above, deleting the “9,” from each location.
Page 246 PDT 8000 Series Product Reference Guide The Connecting dialog box displays. Figure 10-10. Connection Dialog Box Note: If the Connection dialog box does not display “Dialing *99#” the connection will fail to establish. Please ensure that all the appropriate settings were made in the steps above.
Page 247: Establish A Gsm Csd Connection
Wireless Wide Area Network Configuration Establish a GSM CSD Connection To establish a GSM circuit switched data (CSD) connection, you must: • Install GSM Demo • Verify the functionality of your SIM Card • Configure a GSM WAN connection GSM Demo Installation Check the terminal to see if the GSMDemo application is installed.
Page 248 PDT 8000 Series Product Reference Guide The Network Status field displays the following messages as the modem attempts to connect: Opening GSM com port, Initializing modem, Checking SIM Card and Configuring modem. Once a successful connection is made, the field displays Registered Home or Registered Roam (if out of network).
Page 249: Configuring A Gsm Wan Connection
Wireless Wide Area Network Configuration 5. A successful registration, indicated by signal strength (as shown below), ensures the functionality of your SIM card. Figure 10-13. GSM Demo Main Screen Configuring a GSM WAN Connection To set up a new connection configuration: 1.
Page 250 PDT 8000 Series Product Reference Guide b. tap the Modify button under the When needed, automatically connect to The Internet using these settings: drop-down. Figure 10-14. Connections & Internet Settings Screens 4. On the Internet Settings screen, tap New... The Make New Connection screen displays.
Page 251 Wireless Wide Area Network Configuration 8. Your modem settings and TCP/IP address should be set automatically, but if you need to set them manually, tap the Advanced button and enter the information in the Port Settings, TCP/IP, and Name Servers tabs. Figure 10-16.
Page 252 PDT 8000 Series Product Reference Guide 10. Enter a phone number that connects to a Remote Access Server (RAS) to browse the Internet. The area code should be that of the RAS server modem. Tap Next . Figure 10-18. Connection Settings 11.
Page 253: Connecting Via Gsm
Wireless Wide Area Network Configuration Connecting via GSM 1. Ensure a SIM card is installed in the terminal. See Installing a SIM Card on page 1-24. 2. Ensure a GSM WAN connection is properly configured. See Configuring a GSM WAN Connection on page 10-23.
Page 254 PDT 8000 Series Product Reference Guide 6. Set the area code to match the area code entered earlier, in the Entering Phone Number screen (see Figure 10-6). Tap Dialing Patterns. Figure 10-20. Dialing Patterns Screen 7. On the Dialing Patterns screen, edit the patterns as shown above, deleting the “9,”...
Page 255 Wireless Wide Area Network Configuration The Connecting dialog box displays. Figure 10-21. Connection Dialog Box 11. Once a connection is establish, you can launch Internet Explorer by tapping Start - Internet Explorer. 12. To end a connection, tap the double arrows on the Navigation bar and tap End. 10-29...
Page 256 PDT 8000 Series Product Reference Guide 10-30...
Page 257 Symbol Windows CE SDK ........
Page 258 PDT 8000 Series Product Reference Guide 11-2...
Page 259: Introduction
Software Installation on Development PC Introduction To develop applications to run on the terminal, the Symbol Windows CE Software Developer’s Kit (SDK) is available. This SDK contains PDT 8000-specific software not available in the standard Microsoft Windows CE Platform SDK.
Page 260: Installing The Sdk On The Development Pc
PDT 8000 Series Product Reference Guide Installing the SDK on the Development PC The Symbol SDK installs through Windows in the directory C:\SYMBOL WINDOWS CE SDK, and also installs files in the Windows CE Tools directory (generated by the CE Tool Kit).
Page 261 Chapter 12 Configuring the Terminal Chapter Contents Introduction ..............12-3 Starting Terminal Configuration Manager .
Page 262 PDT 8000 Series Product Reference Guide 12-2...
Page 263: Chapter 12. Configuring The Terminal
The SDK includes a number of standard scripts and demos/samples for you to use as a base for creating your own scripts. These scripts can be found in the Symbol Windows CE SDK(PDT8000)\PDT80xx\TCMScripts directory.
Page 264: Starting Terminal Configuration Manager
PDT 8000 Series Product Reference Guide Starting Terminal Configuration Manager To start TCM, double click on the TCM icon in the SYMSDK group. The following screen appears, displaying two directory windows; Script1 and File Explorer. Each directory window is split; the left half (or pane) of the window displays the directory tree for the current drive, and the right half displays the directory contents for the current drive.
Page 265 Configuring the Terminal The following table lists the components of the TCM start-up screen. Table 12-1. TCM Screen Components Component Description Script Window Associated with a script file containing the information to create a Flash Disk image. This window is the target window, or the primary TCM window in which you can create a script or change a script file’s contents by copying, deleting, and renaming files and directories.
Page 266: Defining Script Properties
PDT 8000 Series Product Reference Guide Defining Script Properties Before a script is created, the script properties must be defined. This defines the type of terminal, flash type, number of disks being created, and the memory configuration of each disk volume.
Page 267 Configuring the Terminal 5. From the Disks drop-down menu, select the number of disk volumes to be created. Note: The options available under the disks drop-down menu changes depending on the flash type. Some flash types only have one option for the number of disk volumes, others have two options.
Page 268: Creating The Script For The Hex Image
To open an existing script (e.g., a standard script provided in the SDK): • From the File menu, choose Open. Navigate to the Symbol Windows CE SDK(PDT8000)\SymbolPlatforms\PDT80xx\TCMScripts directory and select the script file name, OR •...
Page 269: Save The Script
Note: If you open and make changes to an existing script, saving the changes writes over the existing script. If you wish to use an original or Symbol-supplied standard script as a base and save the changes in a new script, use Save As instead of Save after making the changes, and save to a different filename.
Page 270: Building The Image
PDT 8000 Series Product Reference Guide Building the Image As part of the build, TCM performs a check on the script which verifies that all files referenced in the script exist. If the image is bootable, TCM verifies that the boot files are available.
Page 271: If The Build Fails
Configuring the Terminal 3. Select the item to build. If you select to build an application, specify the application. 4. Select ASCII format for your hex image, or Compression, which reduces the size of most hex images in order to speed downloading. 5.
Page 272: Sending The Hex Image
PDT 8000 Series Product Reference Guide Sending the Hex Image Once the hex file is built, you are ready to download it to the terminal. A Hex image download requires both TCM and a program loader stored on the terminal. The terminal comes with a program loading utility, Initial Program Loader (IPL), stored in the terminal’s...
Page 273 Configuring the Terminal 3. IPL displays the Main Menu which lists the partitions/applications that can be downloaded. Platform Timer: OFF Application Config Data Windows CE Monitor Splash Screen Power Micro Partition Table Update from CF Auto Select 4. Use the up and down scroll buttons to select the partition to be received, then press the Enter button.
Page 274 PDT 8000 Series Product Reference Guide 5. IPL displays the Select Transport screen which lists the available methods of downloading the file. Select Transport Serial - No Flow Timer: OFF Serial - RTS/CTS Serial - Xon/Xoff Previous 6. Use the up and down scroll buttons to select the method of transport, then press the Enter button.
Page 275 Configuring the Terminal 9. The following screen allows you to confirm your download. Use the up and down scroll buttons to make the appropriate selection, then press the Enter button. Download File? Download Timer: OFF Cancel Show Parms Previous a. You can select Show Parms to view a summary of all the selections you have made in the previous steps.
Page 276: 128Mb Ram Configuration
PDT 8000 Series Product Reference Guide status screen will then appear. When complete, press the Enter button to return to the main menu. b. If you selected Auto Select in step 4, the terminal will automatically return to the main menu once download is complete.
Page 277 Configuring the Terminal Note: If the platform application or data partition sizes are changed, you must download a new partition table first. 5. IPL displays the Select Transport screen which lists the available methods of downloading the file. Select Transport PC Card Timer: OFF CF Card...
Page 278 If you select Auto Select in step 3, this screen displays available .IPL files. Note: A .IPL file is a Symbol provided file used for updating all the images in the terminal. If the file name you select does not match the partition/application you want to download, you will get an error.
Page 279 Configuring the Terminal b. If you selected Serial, the Select Baud Rate screen displays. Use the up and down scroll buttons to select the appropriate address configuration, then press the Enter button. Select Baud Rate 115200 Timer: OFF 57600 38400 19200 9600 Previous...
Page 280: Begin The Send In Tcm
PDT 8000 Series Product Reference Guide status screen will then appear. When complete, press the Enter button to return to the main menu. b. If you selected Auto Select in step 4, the terminal will automatically return to the main menu once download is complete.
Page 281: Error Messages
Configuring the Terminal 7. Click OK to load the file, or Multiple Hex File Download if more than one file is being loaded. Error Messages IPL Error Detection While receiving data, IPL performs many checks on the data to ensure that the data is received correctly.
Page 282 PDT 8000 Series Product Reference Guide Error Description Invalid Image This error occurs if another record is received before the Header Record. Ensure the Header Record is the first record downloaded. Partition Not Defined The destination code is part of the Header record and is used as an index into the partition table.
Page 283: Tcm Error Messages
Configuring the Terminal TCM Error Messages TCM validates the cells in your partition table when you select the Execute button. Cells highlighted in red contain an error. Partition loading is disabled until all errors are corrected. Following are errors that TCM may encounter, and possible solutions. Error Description Error - Partition Size...
Page 284: Loading The Splash Screen Via Tcm
PDT 8000 Series Product Reference Guide Loading the Splash Screen via TCM To load the bitmap: 1. Click TCM.exe in the TCM directory. 2. Connect the terminal to the development PC and invoke IPL to prepare the terminal to receive the splash screen download.
Page 285: Chapter 13. Maintenance And Troubleshooting
Chapter 13 Maintenance and Troubleshooting Chapter Contents Introduction ..............13-3 Maintaining the Terminal .
Page 286 PDT 8000 Series Product Reference Guide 13-2...
Page 287: Introduction
Maintenance and Troubleshooting Introduction This chapter includes instructions on cleaning and storing your terminal, and provides troubleshooting solutions for potential problems during terminal operation. Maintaining the Terminal For trouble-free service, observe the following tips when using the terminal: • Take care not to scratch the screen of the terminal. When working with the terminal, use the supplied stylus or plastic-tipped pens intended for use with a touch- sensitive screen.
Page 288: Troubleshooting
PDT 8000 Series Product Reference Guide Troubleshooting Table 13-1. Troubleshooting Your Terminal Problem Cause Solution Terminal does not turn on. Lithium-ion battery not Charge or replace the lithium-ion battery in charged. the terminal. Lithium-ion battery not Ensure battery is installed properly.
Page 289 Maintenance and Troubleshooting Table 13-1. Troubleshooting Your Terminal (continued) Problem Cause Solution Rechargeable lithium-ion Battery failed. Replace battery. If your terminal still does battery did not charge. not operate, try a soft reset, then a hard reset; see Resetting Your Terminal on page 2-34.
Page 290 PDT 8000 Series Product Reference Guide Table 13-1. Troubleshooting Your Terminal (continued) Problem Cause Solution GPRS/GSM connection SIM card is not installed. See Installing a SIM Card on page 1-24 for cannot be established. detailed instructions. Network is busy. Try again after 5 minutes.
Page 291 Maintenance and Troubleshooting Table 13-1. Troubleshooting Your Terminal (continued) Problem Cause Solution Terminal doesn’t recognize Character strokes If you’re using the Block Recognizer input my handwriting. written incorrectly with method, characters must be written a the stylus. certain way. See Appendix A, Block Recognizer Characters for information...
Page 292 PDT 8000 Series Product Reference Guide Table 13-1. Troubleshooting Your Terminal (continued) Problem Cause Solution When receiving beamed Not enough free memory Your terminal requires at least twice the data an out of memory available for receiving amount of memory available as the data you message appears.
Page 293: Appendix A Block Recognizer Characters
Appendix A Block Recognizer Characters Using the Block Recognizer, you can write characters directly on your terminal screen with your stylus. These characters are translated into typed text. Use Block Recognizer to enter text, for example, to write a note or to fill in fields in a dialog box. Figure A-2 provides examples of how to write characters in lowercase.
Page 294 PDT 8000 Series Product Reference Guide The following chart illustrates some of the characters you can write (the dot on each character is the starting point for writing). Figure A-2. Character Chart For specific instructions on using Block Recognizer, with Block Recognizer open, tap the...
Page 295: Appendix B Additional Programs
Appendix B Additional Programs Introduction The PDT 8000 Series terminal can be loaded with additional programs that help with the functionality of the terminal and illustrate how some of the terminal’s applications run. CF Shutdown The CF Shutdown utility can be used to shut off the S24 radio card in the compact flash card slot in order to preserve battery capacity and to minimize operational conflicts between the two radios that might be encountered by the applications developer.
Page 296: Running Cf Shutdown
PDT 8000 Series Product Reference Guide Running CF Shutdown 1. Tap Start - Programs - File Explorer. 2. Navigate to the Application folder and select CF Shutdown. 3. To disable to compact flash card slot, tap CF Shutdown. The CF Status field displays “Shut Down.”...
Page 297: Pdt 8000 Demo
The PDT 8000 Demo program illustrates how to use some of the terminal’s many applications. If the demo program is not already on the terminal (check the Start menu), you may download the program from the Symbol Windows CE Software Developer’s Kit (SDK). Chapter 3, Customizing the Terminal for instructions on adding programs to your terminal.
Page 298: Vc Scan Demo
PDT 8000 Series Product Reference Guide VC Scan Demo The Visual C/C++ sample scanning application enables the terminal’s scanner, allows the user to change scan parameters, and displays scanned data. To access the VC Scan demo, tap VC Scan on the main demo screen.
Page 299: Vb Scan Demo
(tone) • LED-on time (length of time LED remains on upon decode) • Code ID (AIM, Symbol) • Wav File (sound of decode beep). • Codes selects the code types the terminal is able to decode, and sets the options for each code type.
Page 300: Scanning Options
PDT 8000 Series Product Reference Guide • Type indicates the bar code type scanned (e.g., Code 128). Scanning Options The following options are available in the Scan screen: • Soft Trigger provides an alternative to the trigger buttons on the terminal.
Page 301: Html Scan
Additional Programs Html Scan Html Scan uses Pocket Internet Explorer to render the HTML code and the Scan Wedge to scan data into scan enabled fields. Figure B-5. Scan Browse Screen In this sample HTML application, the scan wedge is configured (via ScanWedge.reg) to bracket all scanned data with “{{“...
Page 302: Sounds (Audio Sample
PDT 8000 Series Product Reference Guide Sounds (Audio Sample) Tap Sounds on the main demo screen for an audio sample, which demonstrates how to record, play back and save sounds. Figure B-6. Audio Sample Screen Audio Files are opened from and saved to \Application\wav\ by default, and are configured...
Page 303: Images (Imageviewer Sample
Additional Programs Images (ImageViewer Sample) Tap Images on the main demo screen for an ImageViewer sample, which demonstrates how to manipulate displayed image files. Figure B-7. ImageViewer Screen ImageViewer uses the SymDJpeg.dll (supplied with source code in the SDK) to convert the images between file formats.
Page 304 PDT 8000 Series Product Reference Guide user to browse, cut, copy, paste and delete files as well as execute the program. It also provides file transfer capability via the IrDA port. Figure B-8. File Explorer Screen You can also access Microsoft File Explorer by tapping Start - Programs, and then selecting File Explorer.
Page 305: Utilities
Additional Programs Utilities Tap Utilities on the main demo screen for diagnostic options that ensure various aspects of the terminal are functioning correctly. Figure B-9. Utilities Screen • Configure accesses the Control Panel screen. • Calibrate allows you to re-calibrate the screen. •...
Page 306: Configure
PDT 8000 Series Product Reference Guide Configure Tap Configure on the Utilities screen to access the Control Panel, where you can specify settings for your terminal. Figure B-10. Control Panel Screen About Tap About on the Control Panel to view the version of the Control Panel.
Page 307 Additional Programs System Versions Tap System Versions to view version information for the applications on your terminal. Figure B-12. System Versions Screen On the System Versions screen: • Platform indicates the operating system running on the terminal (Pocket PC). • OS Version specifies the version of the operating system.
Page 308 PDT 8000 Series Product Reference Guide Unique Unit ID Tap Unique Unit ID on the Control Panel to view the terminal’s unique unit ID (a 16-byte hex number identifier), and the version numbers for RCM (Resource Coordinator Manager) API, Rescoord (Resource Coordinator) DLL, UUID DLL, and Temperature DLL.
Page 309 Additional Programs Toggle Persist to Yes to retain these changes made after a hard reset. Figure B-14. Persist Note: Not all options support Permanent Persistence. Touch Calibrate Select Touch Calibrate to re-align the screen. Figure B-15. Align Screen B-15...
Page 310 PDT 8000 Series Product Reference Guide Printer Settings Select Printer Settings on the Control Panel to select the printer you’ll use with the terminal, and specify printer settings. Figure B-16. Printer Settings Screen • Selected Printer allows you to select the printer to use. To change the printer, tap the Selected Printer field to scroll through the available printers.
Page 311 Additional Programs Communication Settings Select Comm Settings on the Control Panel to specify the settings to use when communicating with other devices. Figure B-17. Communication Settings Screen Tap Port to select the appropriate communication settings to be used by ActiveSync. Scroll through the communication settings to select the appropriate value.
Page 312 PDT 8000 Series Product Reference Guide Display Settings Select Display Settings on the Control Panel to customize the display contrast and backlight. Figure B-18. Display Settings Screen • Tap Intensity to increment the intensity value. The terminal’s display changes along with the value.
Page 313 Additional Programs Audio Settings Select Audio Settings on the Control Panel to specify the beeper volume and view the version numbers for the Audio and Notify APIs. Figure B-19. Audio Settings Screen • Tap Beeper Volume to toggle the beeper volume between low, medium, and high. As you change the value, the beeper sounds to demonstrate the level.
Page 314 PDT 8000 Series Product Reference Guide Scanner Settings Select Scanner Settings on the Control Panel to specify scanner-related parameters. Figure B-20. Scanner Settings Screen • Selected Scanner displays the value of the selected scanner. • Tap Reader Parameters to view and modify the values of various reader parameters.
Page 315 Additional Programs • Scan Direction • Feedback • Supported Fmts • Max Image Rect • Tap Scanner Version to view the version numbers for the hardware, decoder, PPD, MDD, and API. Refer to the Help file on the SDK for details on the available parameter options. S24 Settings Select S24 Settings on the Control Panel to specify S24-related parameters.
Page 316: Ce Apps
PDT 8000 Series Product Reference Guide CE Apps Tap CE Apps on the main menu to access the following standard Windows CE applications: • Note Taker • Calculator • Tasks • Calendar • Solitaire. Figure B-22. CE Apps Screen About Select the About button on the demo’s main screen to view information about the demo...
Page 317: Appendix Cgsm Demo Program
GPRS parameters. GSM Demo Installation 1. Download GSM Demo Application to your host computer from http://devzone.symbol.com. 2. Establish an ActiveSync connection between the host computer and the terminal. Depending on the accessory used for the connection, see the appropriate section Chapter 4, Communications.
Page 318: Gsm Demo Screens
PDT 8000 Series Product Reference Guide GSM Demo Screens To start GSM Demo: 1. Tap Start - Programs - File Explorer on your terminal. 2. Navigate to the Applications folder, and select GSM Demo. Main Screen When GSM Demo opens, it opens the internal serial port to the GSM modem and attempts to register with a network.The following screen displays:.
Page 319: Dial # Screen
GSM Demo Program Dial # Sets dial properties and places call (see Dial # Screen on page C-3). Send SMS Launches the Send SMS screen so you can send a message to another terminal or modem (see Send SMS Screen on page C- Read SMS Displays a message from another terminal or modem (see...
Page 320: Send Sms Screen
PDT 8000 Series Product Reference Guide Send SMS Screen To send an SMS message: 1. Tap Send SMS on the main screen. Figure C-3. Send SMS Screen 2. Enter the phone number of the message recipient and the message. 3. Tap Send to send the message. A successful message screen displays.
Page 321 GSM Demo Program 1. Tap Read SMS on the main screen. The following screen displays, listing the messages available for viewing: Figure C-4. SMS Inbox Screen 2. Tap a message you’d like to read, then tap Read to open the message. Figure C-5.
Page 322: Gsm Demo Menu Commands
PDT 8000 Series Product Reference Guide GSM Demo Menu Commands This section explains the menu commands specific to GSM Demo, accessed from the bottom of the screen. File Menu Use the File menu to exit the GSM Demo application. Tap File - Exit.
Page 323: Enter Pin Address
GSM Demo Program On the Service center address screen, enter the new service center number in the New address field and tap Enter Address . Figure C-7. Service Center Address Screen Enter Pin Address Tap Enter PIN on the Settings screen to enter a new PIN number. Enter the PIN # in the Enter PIN number: field and tap Enter Pin .
Page 324: Change Band Screen
PDT 8000 Series Product Reference Guide Change Band Screen Tap Change Band on the Settings screen to make any changes. Tap Change to register the change. Figure C-9. Change Band Screen Note: The modem resets (power cycles) when you change the band,...
Page 325: Change Power Mode Screen
GSM Demo Program Change Power Mode Screen Tap Change Power Mode if you want to enable the low power mode on the modem. On the Change Mode Dialog screen, select the desired power mode and tap Change . If Low Power Mode is selected, enter the desired number of seconds in the Seconds before low power mode field.
Page 326: Gprs Parameters Screen
PDT 8000 Series Product Reference Guide GPRS Parameters Screen PDP Context Tab Figure 3-11. GPRS Parameters - PDP Context Tab Field Name Description Table Version System generated. Contains internal version number representing the structure of the registry file. Context ID Each set of parameters is collectively called a context.
Page 327 GSM Demo Program Field Name Description Header Compression Information obtained from service provider. • If provider supports header compression, select No. • If provider supports header compression, select Yes. Current Active Context Select the number representing the context you want to use for your connection.
Page 328 PDT 8000 Series Product Reference Guide Field Name Description Mean Information obtained from service provider. A parameter indicating the mean throughput octet rate per minute. Req. Qos. Tab Figure 3-13. GPRS Parameters - Req. Qos. Tab Field Name Description Precedence Information obtained from service provider.
Page 329: Help Menu
GSM Demo Program Help Menu The Help menu provides information about your GSM modem. Figure C-14. GSM Demo Help Menu About Screen Select About on the Help menu for version information regarding the GSM Demo. Figure C-15. GSM Demo About Screen C-13...
Page 330: Modem Info Screen
PDT 8000 Series Product Reference Guide Modem Info Screen Select Modem Info on the Help menu for specific modem information. Figure C-16. GSM Demo Modem Info Screen DLL Info Select DLL Info on the Help menu for specific DLL information.
Page 331: Appendix D Technical Specifications
Appendix D Technical Specifications Environment The following table summarizes the terminal’s intended operating environment. PDT 8000, 8046 PDT 8037 PDT 8056 Operating Temperature -10° C to 50° C (14° F to 122° F) Storage Temperature -25° C to 70° C (-13° F to 158° F) Charging Temperature 0°...
Page 332: Com Port Definitions
PDT 8000 Series Product Reference Guide COM Port Definitions COM Port Definition COM1 Serial Cable COM2 PCMCIA/CF Serial COM3 IRCOMM COM4 IRDA COM5 Reserved (64MB RAM configuration) USB Cable (128MB RAM configuration) COM6 Reserved COM7 Powered Serial Cable COM8 Reserved...
Page 333: Pin-Outs
Technical Specifications Pin-Outs The ActiveSync Port shown below represents the port on the bottom of the terminal. Pin 1 Figure D-1. ActiveSync Port (COM1) Table D-1. ActiveSync Port (COM1) Pin-Outs Description +5V DC NC (64MB RAM configuration) VBUS (128MB RAM configuration) NC (64MB RAM configuration) D+ (128MB RAM configuration) NC (64MB RAM configuration)
Page 334 PDT 8000 Series Product Reference Guide...
Page 335: Appendix E Keyboard Maps
Appendix E Keyboard Maps Introduction This appendix contains the keyboard map for the keyboard configuration of the terminal. Each key is listed in the table with its value, depending on the state of the keyboard. As shown below, when the key is pressed on the keyboard, the default state displays the number ‘1’.
Page 336: Keyboard
PDT 8000 Series Product Reference Guide Keyboard Figure E-1. Terminal Keyboard Table E-1. Keyboard Functionality ASCII Code Value Default State Shift State (Decimal) (Decimal) Up arrow Page up Power Left Arrow...
Page 337 Keyboard Maps Table E-1. Keyboard Functionality (Continued) ASCII Code Value Default State Shift State (Decimal) (Decimal) Decrease Backlight App Key 1 App 1 VK_F13 Right Arrow Increase Backlight To Shift Down Arrow Page down App Key 2 App2 toggle backlight App Key 3 App3...
Page 338 PDT 8000 Series Product Reference Guide Table E-1. Keyboard Functionality (Continued) ASCII Code Value Default State Shift State (Decimal) (Decimal) toggle backlight Clear Calibration Screen VK_F4 VK_F5...
