Quick Start - D-Link GO-DSL-N150 User Manual

User Manual
GO-DSL-N150
3.2.3.2 ADSL Statistics

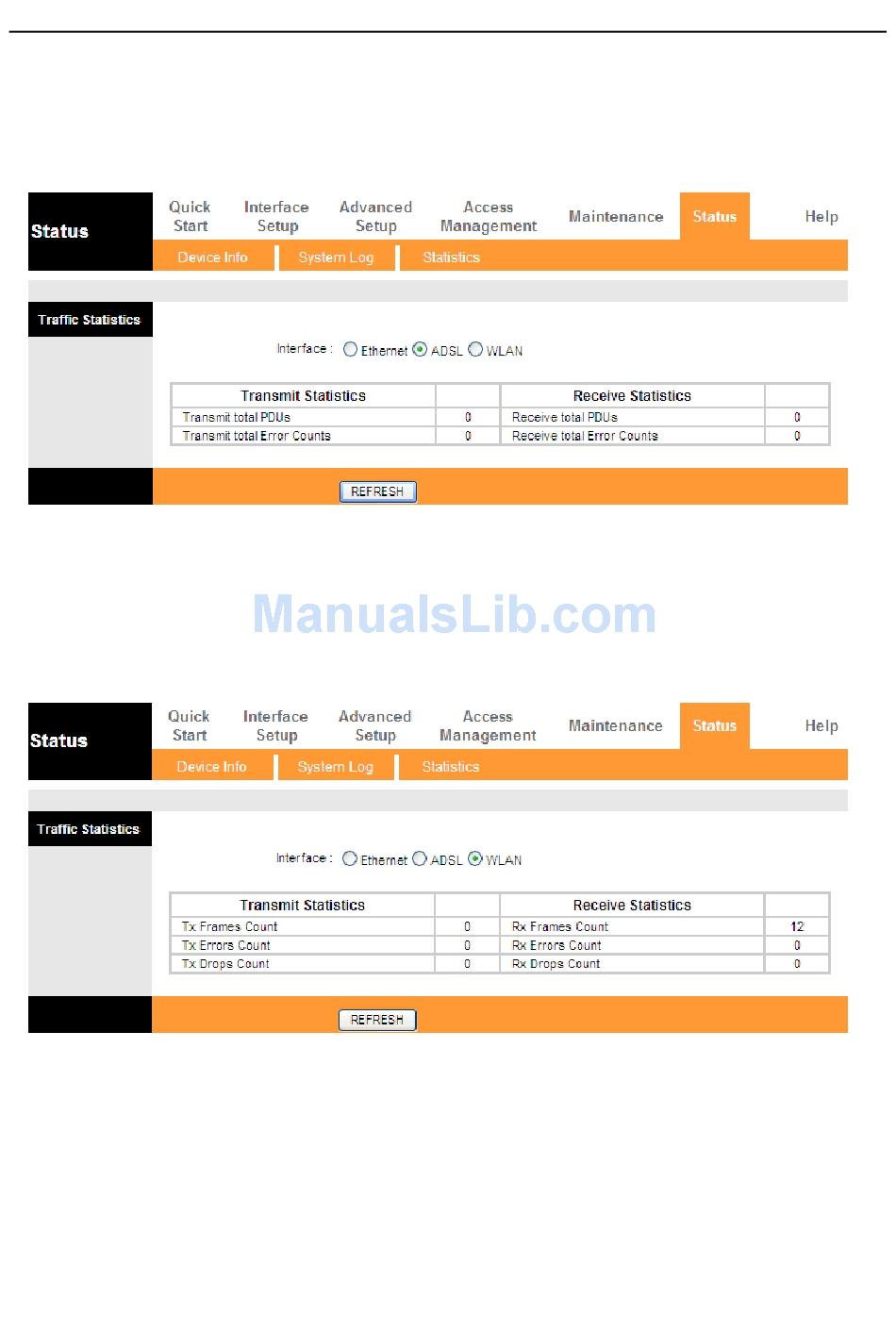

In the Traffic Statistic page, click ADSL and the page shown in the following
figure appears. In this page, you can view the ADSL line statistics such as total
PDUs and total Error Counts.
3.2.3.3 WLAN Statistics
In the Traffic Statistic page, click WLAN and the page shown in the following
figure appears. In this page, you can view the statistics such as Transmitted
Frame, Errors or Drops.

3.3 Quick Start

The Quick Start page will guide you to configure the ADSL router to connect to
your ISP (Internet Service Provider). The following sections describe these
various configuration parameters. Whether you configure these parameters or
use the default ones, click NEXT to enable your Internet connection.
11
