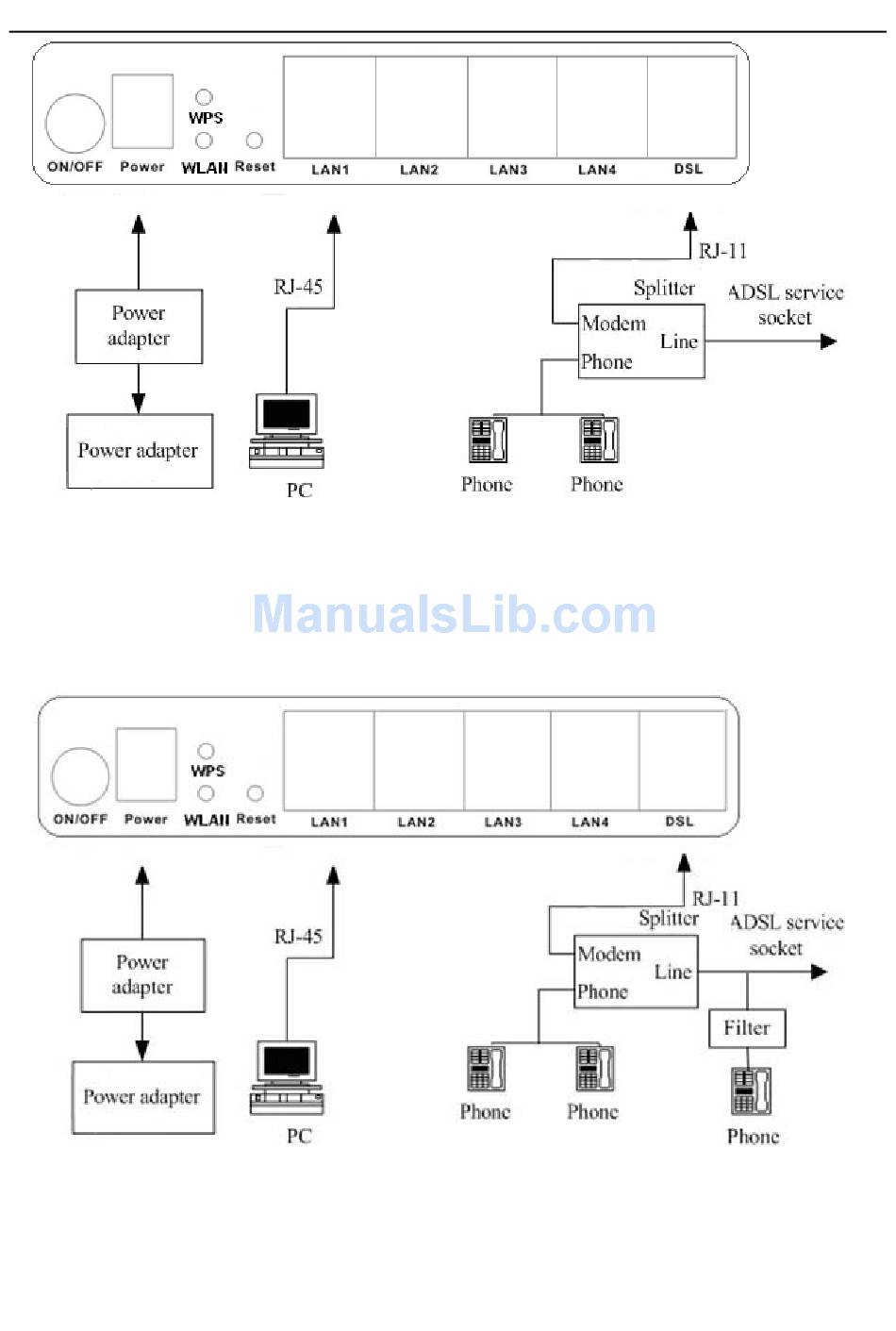

Figure 1 Connection diagram (Without connecting telephone sets before the splitter)
Connection 2
Figure 2 shows the connection when the splitter is installed close to the router.
Figure 2 Connection diagram (Connecting a telephone set before the splitter)
