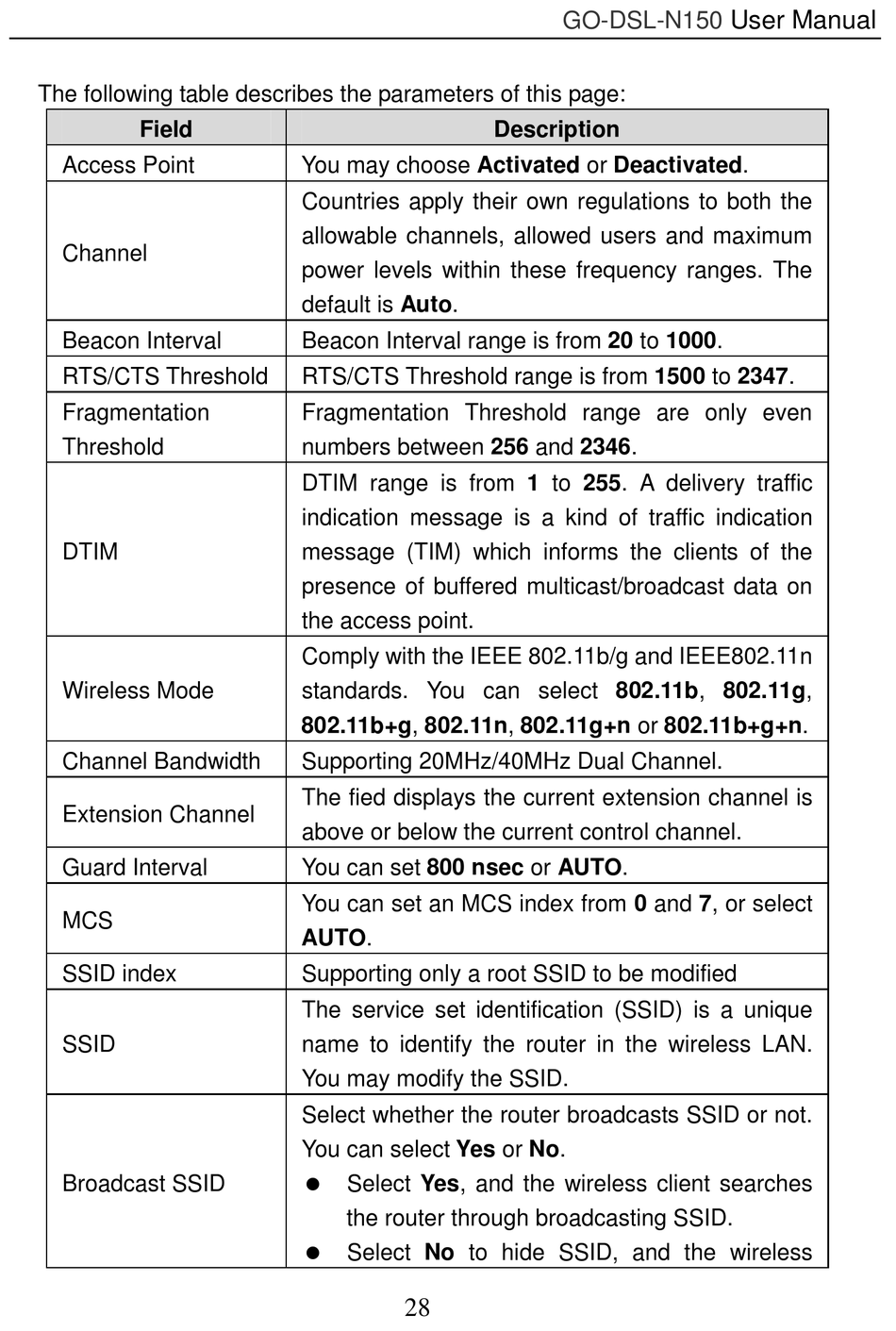

The following table describes the parameters of this page:
Field
Access Point
Channel
Beacon Interval
RTS/CTS Threshold
Fragmentation
Threshold
DTIM
Wireless Mode
Channel Bandwidth
Extension Channel
Guard Interval
MCS
SSID index
SSID
Broadcast SSID
You may choose Activated or Deactivated.
Countries apply their own regulations to both the
allowable channels, allowed users and maximum
power levels within these frequency ranges. The
default is Auto.
Beacon Interval range is from 20 to 1000.
RTS/CTS Threshold range is from 1500 to 2347.
Fragmentation Threshold range are only even
numbers between 256 and 2346.
DTIM range is from 1 to 255. A delivery traffic
indication message is a kind of traffic indication
message (TIM) which informs the clients of the
presence of buffered multicast/broadcast data on
the access point.
Comply with the IEEE 802.11b/g and IEEE802.11n
standards. You can select 802.11b, 802.11g,
802.11b+g, 802.11n, 802.11g+n or 802.11b+g+n.
Supporting 20MHz/40MHz Dual Channel.
The fied displays the current extension channel is
above or below the current control channel.
You can set 800 nsec or AUTO.
You can set an MCS index from 0 and 7, or select
AUTO.
Supporting only a root SSID to be modified
The service set identification (SSID) is a unique
name to identify the router in the wireless LAN.
You may modify the SSID.
Select whether the router broadcasts SSID or not.
You can select Yes or No.
 Select Yes, and the wireless client searches
the router through broadcasting SSID.
 Select No to hide SSID, and the wireless
