Replacement Parts

HP zx6000 Workstation Replacement Parts

This section provides information on the zx6000 workstation replacement parts. An exploded
view of the parts and a parts list is included.

zx6000 Workstation Parts Illustrations

This view provides parts identification illustrations. See the replacement parts list to identify part
numbers.
1
24
21

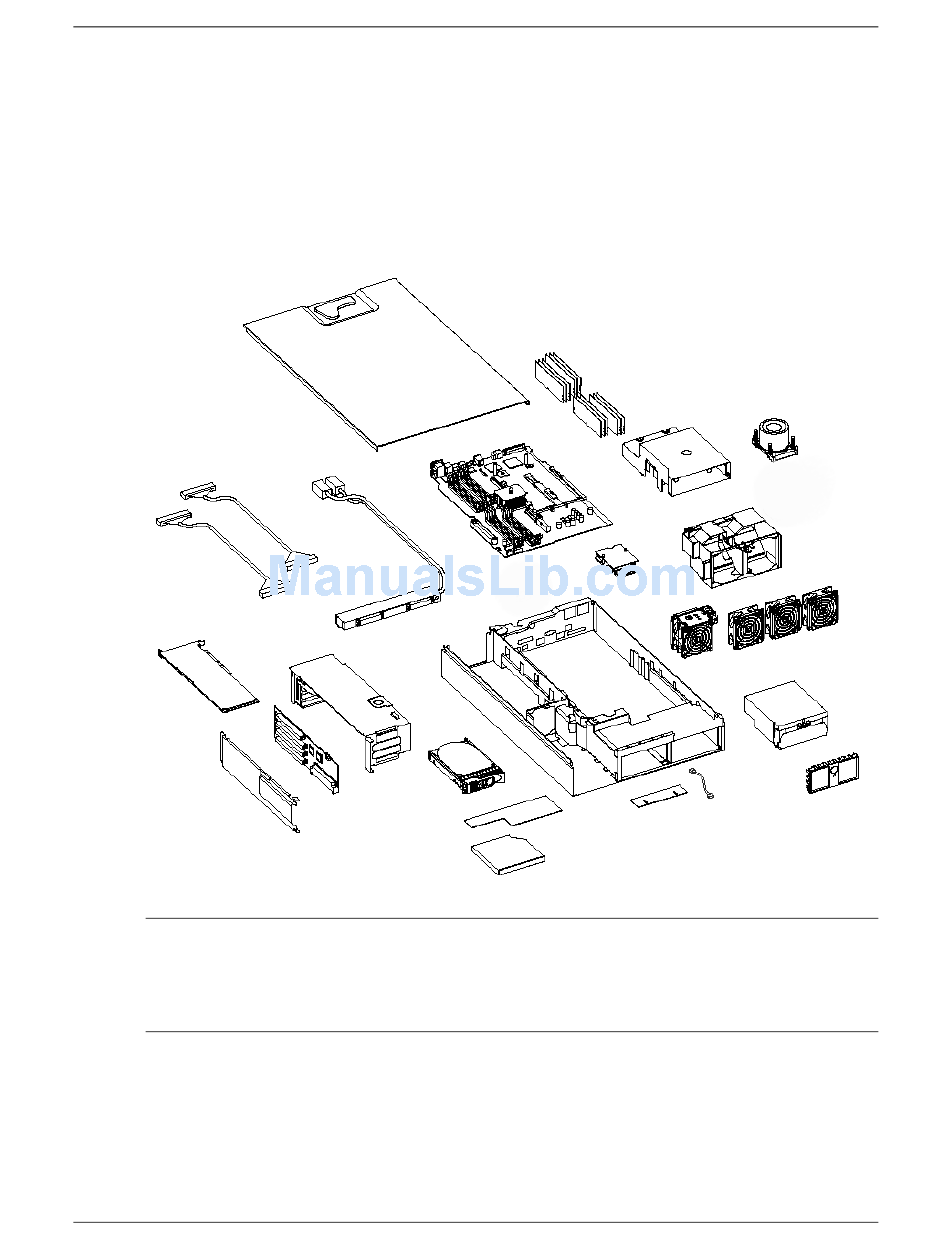

Exploded View of zx6000 Parts

NOTE: Use the correct fans for the server, as shown by footnotes in the diagram
above:
1. Pedestal-mount server
2. Rack-mount server
A–138
23
22
19
20
19
