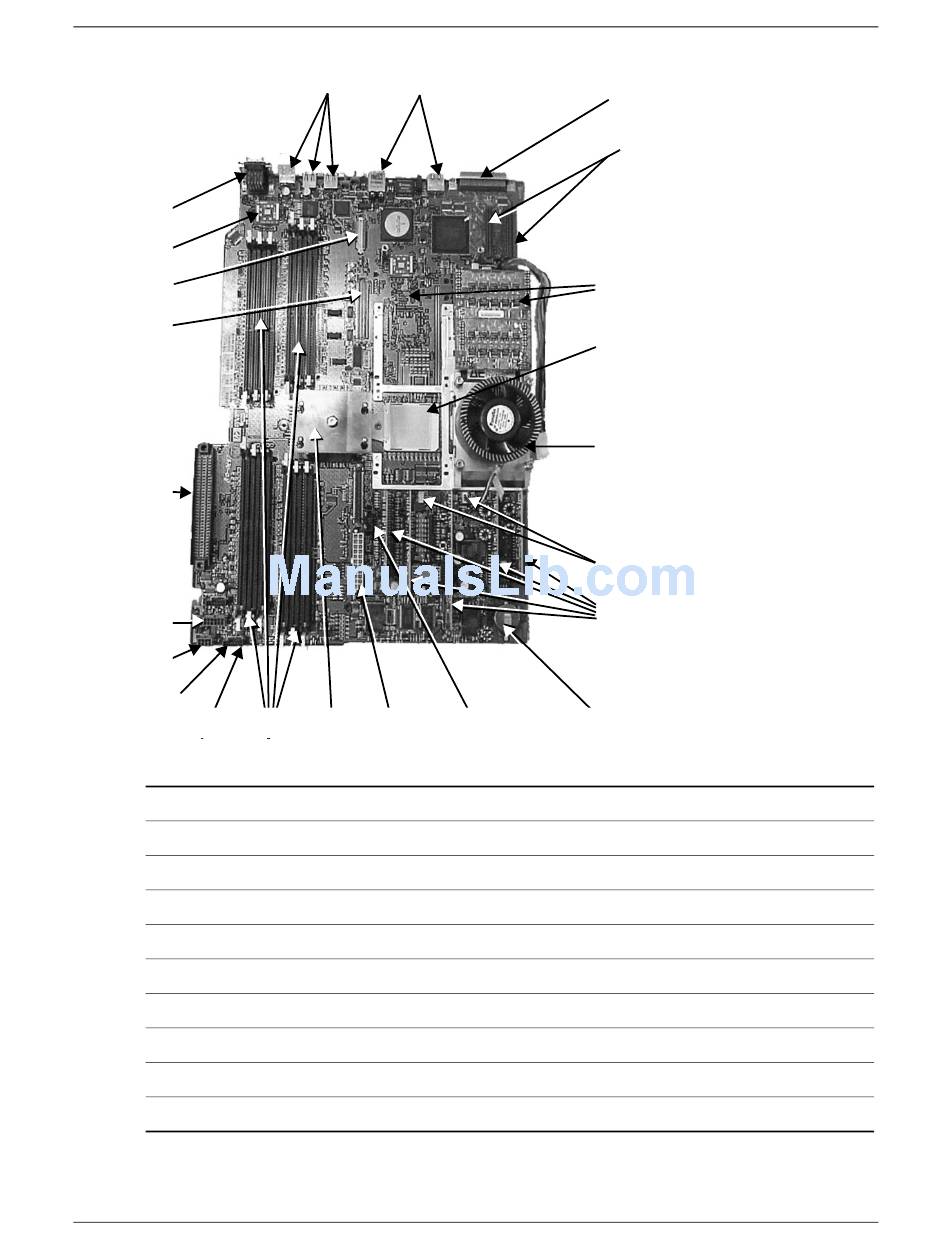

System Board Connectors and Slots (front of server at bottom of photo)

1 External SCSI connector
2 SCSI connectors A & B
3 Processor power Pod(s)
4 CPU1 (empty socket)
5 CPU0 (processor under Turbo Fan)
6 Turbo fan power connectors
7 Five VRM cards
8 Battery
9 System fan connector
10 Main power connector
HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide
23
22
12 1 1 10
Removing and Replacing Components
1
2
3
4
5
6
7
9 8
13 Status panel connector
14 Control and standby power connector
15 SCSI backplane power connector
16 PCI/Memory fan cable connector
17 PCI/AGP backplane connector
18 Optical drive connector
19 iLO MP card connector
20 HP zx1 I/O adapter
21 Serial ports (2)
22 USB connectors (4)
