Removing the iLO MP Card
To remove the iLO MP card, follow these steps:
1. Record the network settings from your iLO MP card before beginning this task.
2. Power off the server, disconnect all power and external cables and remove the covers.
3. Unscrew the two power connector mounting screws (1) and remove the power connector
plate (2) from the back of the server.

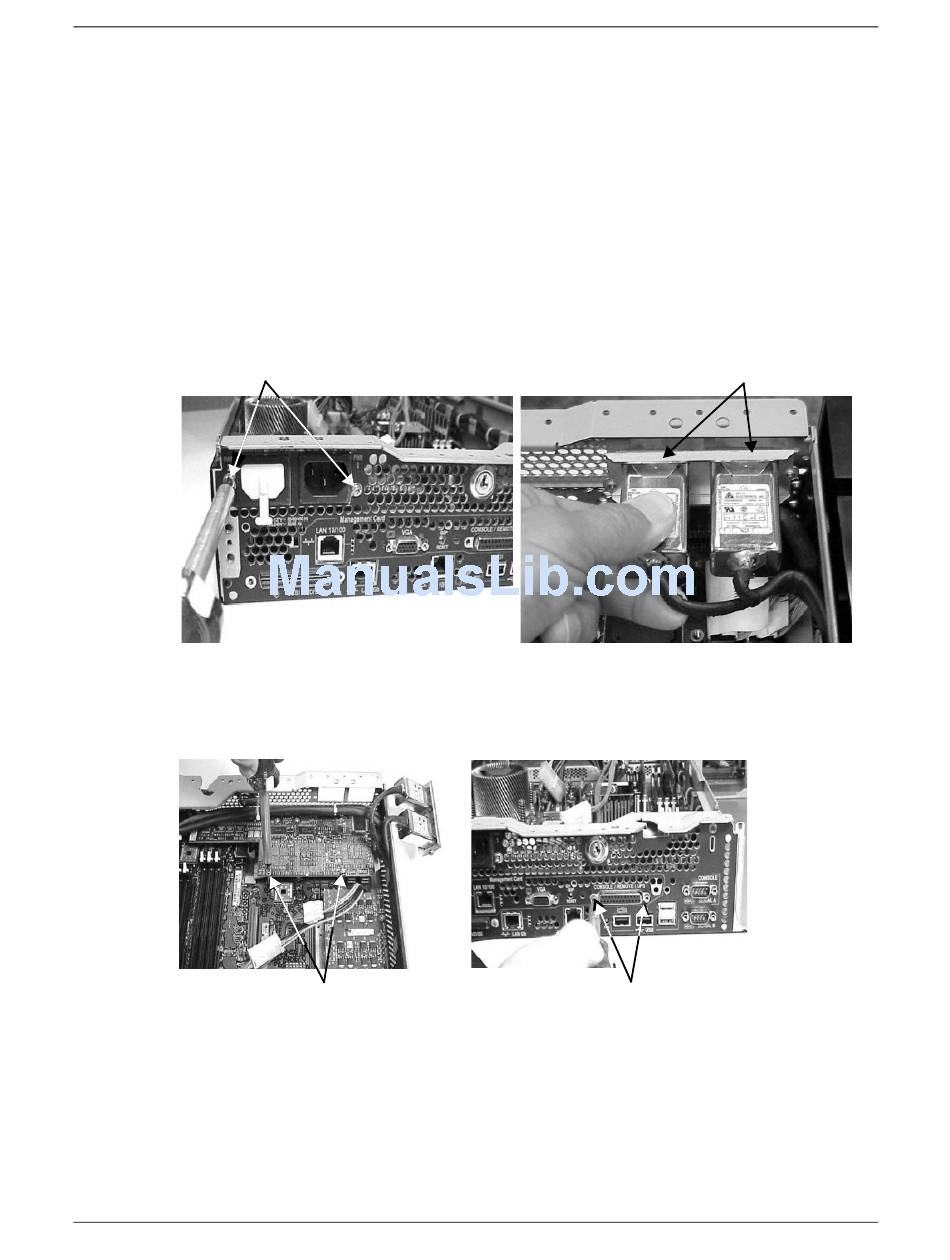

Removing the Power Connectors

4. Unscrew the two mounting screws that connect the iLO MP card to the internal chassis post
(1) and the two external mounting screws that are located on both sides of the 25-pin serial
connector (2).

Unscrew the iLO MP Card Mounting Screws

5. Disconnect the iLO MP card connector.
