Removing and Replacing Components

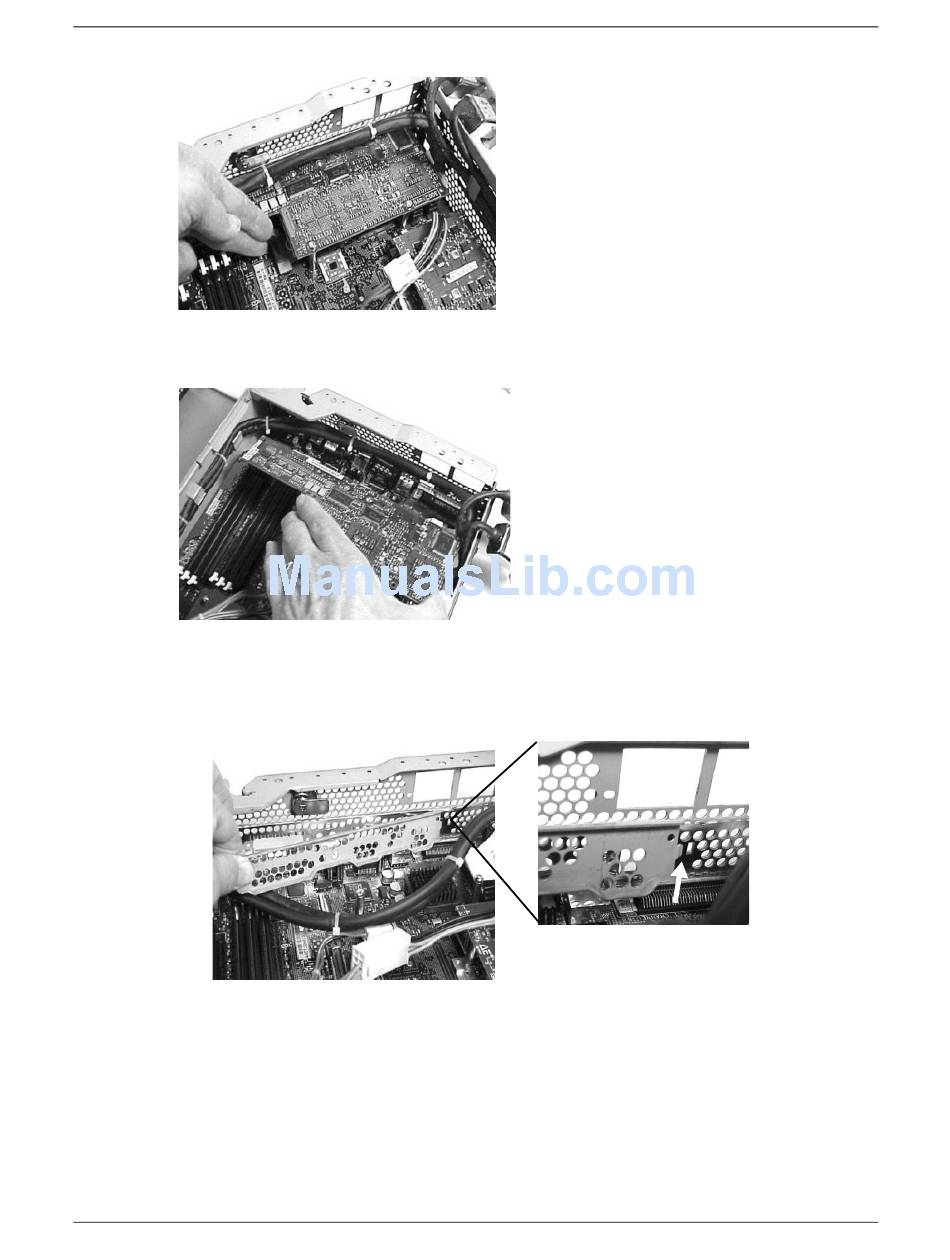

Disconnecting the iLO MP Card Connector

6. Remove the iLO MP card from the server by grasping it by its edges.

Removing the Card

7. Replace the iLO MP card blank, if available, on the chassis. This blank is used to fill the
holes left by the LAN, 15-pin VGA and 25-pin serial connectors.
a. Insert the blank retaining tab into the slot on the chassis.

Aligning the iLO MP Card Blank
