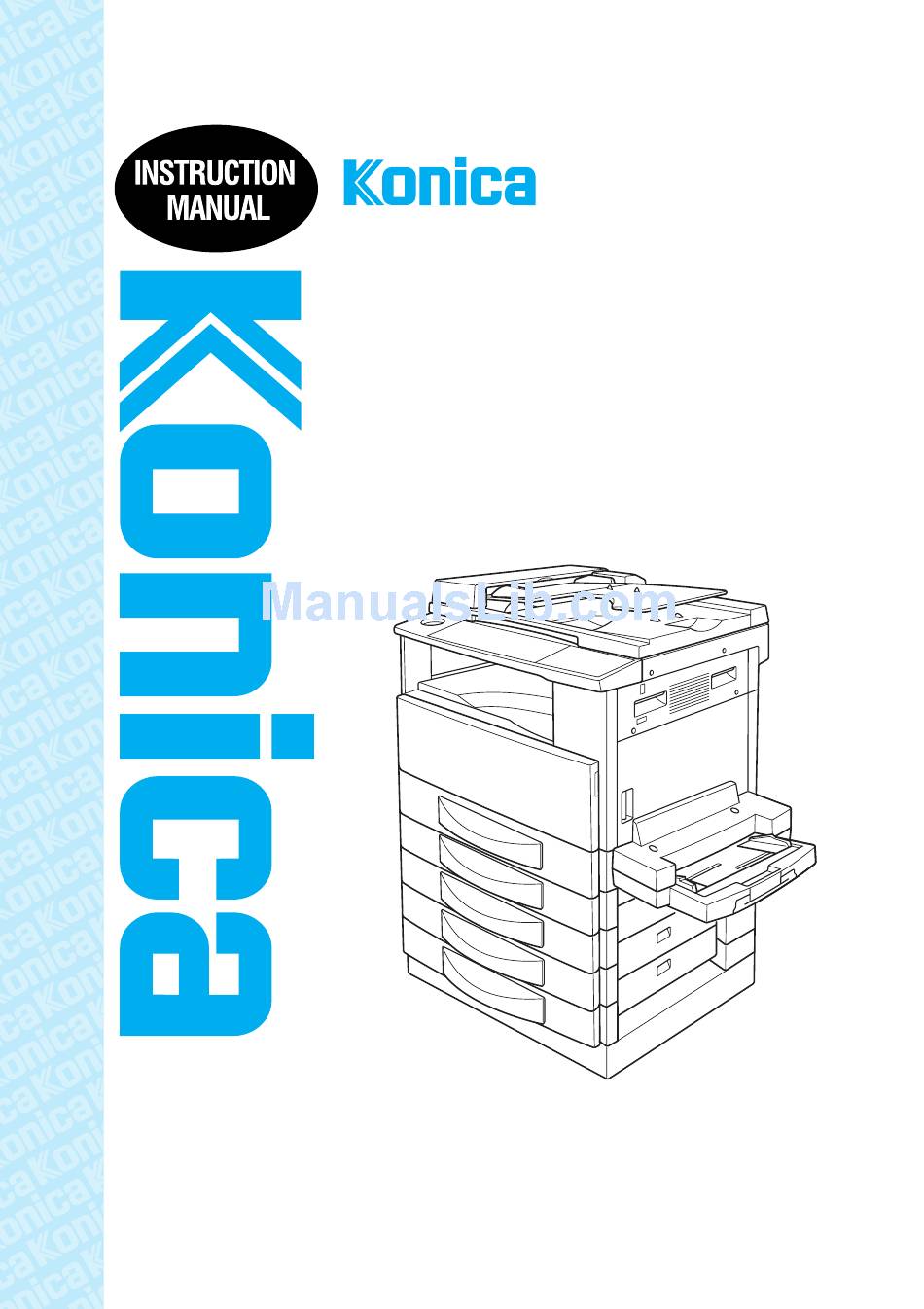

  • Page 1 7115F/ 7118F (FK-117)

  • Page 2: Energy Star

    ® Energy Star ® As an ENERGY STAR Partner, we have determined that this machine ® meets the ENERGY STAR Guidelines for energy efficiency. ® What is an ENERGY STAR Product? ® An ENERGY STAR product has a special feature that allows it to automatically switch to a “low-power mode”...

  • Page 3: Table Of Contents

    “Width” and “Length” ..............1-12 Paper Orientation ................1-12 Precautions Installation Precautions..............2-1 Installation site ................2-1 Power source ..................2-1 Space Requirements...............2-2 Operation Precautions..............2-3 Operating Environment ..............2-3 Proper Use ..................2-3 Transporting the Machine ...............2-4 Care of Machine Supplies ...............2-4 Legal Restrictions on Copying ............2-5 Konica 7115F/7118F...
  • Page 4 Required Settings ................. 3-33 Checking the Initial Settings ............3-33 To set the current date and time........... 3-34 To specify the user fax number ............ 3-35 To program the user name ............3-36 Specifying the Phone Dialing System........... 3-37 Konica 7115F/7118F...
  • Page 5 To make copies using the AMS setting.........4-21 To make copies using a specific zoom setting......4-22 To make copies using the “X/Y ZOOM” function......4-23 Specifying the Copy Density (“Density Set” function)....4-25 To make copies after specifying a copy density......4-26 Konica 7115F/7118F...
  • Page 6 To fax by entering the fax number directly using the KEYPAD ..6-11 To fax using one-touch dialing............6-12 To fax using speed dialing............6-13 To fax using group dialing ............6-14 To fax using program dialing ............6-15 Konica 7115F/7118F...
  • Page 7 To cancel a queued document............7-19 Reception Methods ..............7-21 Manual Reception .................7-21 To receive a fax manually .............7-21 Memory Reception ................7-21 Mailbox Reception.................7-22 To retrieve a document from a mailbox.........7-22 Polling Reception ................7-23 To receive a fax using polling reception........7-23 Konica 7115F/7118F...
  • Page 8 Specifying Administrative Settings (“ADMIN. MANAGEMENT” Menu) ..........9-19 To select the “ADMIN. MANAGEMENT” menu ......9-20 To set the “AUTO SHUT OFF” function........9-21 To turn on/off user (section) management ........9-22 To register user (section) ID numbers .......... 9-23 Konica 7115F/7118F...
  • Page 9 To change/delete a programmed broadcast transmission ..10-17 To change/delete a programmed timer transmission....10-19 To change/delete a programmed mailbox transmission .....10-20 To change/delete a programmed polling reception.....10-22 To change/delete a programmed relay initiation transmission..10-23 Setting Up Batch Transmissions (“BATCH TX” function)....10-25 Konica 7115F/7118F...
  • Page 10 To select the “REPORTING” menu ..........10-50 To set the “ACTIVITY REPORT” function ........10-51 To set the “RESERV.REPORT” function........10-52 To set the “TX RESULT REPORT” function....... 10-52 To set the “RX RESULT REPORT” function ......10-53 viii Konica 7115F/7118F...
  • Page 11 To clear a misfeed in the Automatic Document Feeder ....12-15 12.5 Main Error Messages and Their Remedies......12-18 13 Troubleshooting 13.1 When Incorrect Copies Are Produced ........13-1 13.2 When Copying Is Not Performed Correctly ......13-4 13.3 When Faxing Is Not Performed Correctly .........13-5 Faxes Cannot Be Sent ..............13-5 Konica 7115F/7118F...
  • Page 12 Faxes Cannot Be Received............13-6 Calls Cannot Be Sent ..............13-7 14 Appendix 14.1 Specifications ................14-1 Main Unit Konica 7115/7115F/7118/7118F ........14-1 Automatic Document Feeder DF-217........... 14-2 Paper Feed Cabinet PF-121............14-3 Shifting Unit IS-101............... 14-3 Job Tray IT-102 ................14-3 Multiple Bypass Tray MT-102............

  • Page 13: Introduction

    Note that some of the illustrations of the machine used in the Instruction Manual may be different from what you actually see on your machine. * The Konica 7115/7118 have only the optional FK-117 Fax Kit for Konica 7115/7118 installed.

  • Page 14: Safety Information

    This symbol warns against possible high temperature. A diagonal line indicates a prohibited course of action. This symbol warns against dismantling the device. A black circle indicates an imperative course of action. This symbol indicates you must unplug the device. Konica 7115F/7118F...

  • Page 15: Warning

    • If this product has been dropped or its cover damaged, immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your authorized Konica Service Representative. If you keep on us- ing it as is, fire or electrical shock could result.

  • Page 16: Caution

    Dust that accumulates between the plug terminals could cause a fire. • When unplugging the power cord, be sure to hold onto the plug. Pulling on the power cord could damage the cord, resulting in fire or electrical shock. Konica 7115F/7118F...

  • Page 17: Precautions For Routine Use

    • The cooling fan may be activated automatically, but this suggests no prob- lems. • Ni-MH (Nickel Metal Hydride) Batteries are installed inside machine as back up memory batteries. Please dispose according to local, state and federal regulations. Konica 7115F/7118F...

  • Page 18: For New Zealand

    3-wire-connected equipment might not respond to incoming ringing when attached to this port. For compliance with Telecom’s Specifications the “No. of Rings” setting must be within the range 3 to 10 in order that the automatic answering of Konica 7115F/7118F...

  • Page 19: Laser Safety

    The laser diode and the scanning polygon mirror are incorporated in the print head unit. The print head unit is NOT A FIELD SERVICE ITEM: Therefore, the print head unit should not be opened under any circumstances. Print Head Konica 7115F/7118F...

  • Page 20: Laser Safety Label

    This is a semiconductor laser. The maximum power of the laser diode is 5 mW and the wavelength is 770-795 nm. Laser Safety Label A laser safety label is attached to the outside of the machine as shown be- low. Konica 7115F/7118F...

  • Page 21: Warning Label

    Notice for Ni-MH Batteries Ni-MH (Nickel Metal Hydride) Batteries are installed inside machine as back up memory batteries. Please dispose according to local, state and federal regulations. Konica 7115F/7118F...

  • Page 22: About The Instruction Manual

    Text formatted in this style pro- vides additional assistance. ➜ Text formatted in this style describes the action that will ensure the desired results are achieved. [ ] key The names of keys on the Control Panel are written as shown above. 1-10 Konica 7115F/7118F...

  • Page 23: Explanation Of Basic Concepts And Symbols

    During printing, paper is supplied from the right side of the machine and fed into the Exit Tray on top with the printed surface of the page facing down. The paper feed direction is shown by the arrows in the diagram below. Konica 7115F/7118F 1-11...

  • Page 24: Width" And "Length

    “L” or Crosswise ( If the width (A) of the paper is longer than the length (B), the paper has a horizontal or landscape orientation, indicated by either “C” or 1-12 Konica 7115F/7118F...

  • Page 25: Precautions

    A location that does not put the operator in the direct airflow of exhaust from the machine A location that is not near any kind of heating devices Power source The power source requirements are as follows. Voltage Fluctuation: Within ±10% Frequency Fluctuation: Within ±3 Hz Konica 7115F/7118F...

  • Page 26: Space Requirements

    Precautions Space Requirements To ensure easy machine operation, supply replacement, and mainte- nance, adhere to the recommended space requirements detailed below. Konica 7115/7115F 1038 Konica 7118/7118F 1038 Unit: mm Note Be sure to allow a clearance of 100 mm or more at the back of the machine, and 150 mm or more at the right of the machine for the removal of misfed papers.

  • Page 27: Operation Precautions

    A negligible amount of ozone is generated during normal operation of this machine. An unpleasant odor may, however, be detected in poorly ventilated rooms during extensive machine operations. ➜ For a comfortable operating environment, it is recommended that the room be well ventilated. Konica 7115F/7118F...

  • Page 28: Transporting The Machine

    Transporting the Machine If you need to transport the machine over a long distance, consult your authorized Konica Service Representative. Care of Machine Supplies Use the following precautions when handling the machine supplies (toner, paper, etc.).

  • Page 29: Legal Restrictions On Copying

    You are prohibited under any circumstances to copy domestic or foreign currency. In addition, you are prohibited to copy works of art without the permission of the copyright owner. When in doubt about the nature of a document, consult with legal counsel. Konica 7115F/7118F...
  • Page 30 Precautions Konica 7115F/7118F...

  • Page 31: Before Making Copies Or Faxing

    The main copy functions available with this machine are listed below. For details on their operation, refer to the pages indicated. Copying (p. 5-1) Single-sided copies “2 in 1” copy function “4 in 1” copy function “Dual Page” function Konica 7115F/7118F...
  • Page 32 Before Making Copies or Faxing “Zoom” function (p. 4-21) Reduced/full-sized/enlarged “X/Y Zoom” function (p. 4-23) Konica 7115F/7118F...
  • Page 33 Before Making Copies or Faxing Output (p. 5-5) “Sort” function “Group” function Crisscross output (sorting) Crisscross output (grouping) Note The required options differ depending on the desired copy function. Konica 7115F/7118F...
  • Page 34 Before Making Copies or Faxing Special features “Erase” function (p. 5-9) “Reverse Image” function (p. 5-12) “Image Shift” function (p. 5-13) Konica 7115F/7118F...
  • Page 35 Before Making Copies or Faxing “Mixed Original” function (p. 4-2) Mixed originals Note The “Mixed Original” function is only available when an Automatic Document Feeder is installed. Konica 7115F/7118F...

  • Page 36: Available Fax Features

    Before Making Copies or Faxing Available Fax Features Sending Broadcast transmission (p. 7-4) Timer transmission (p. 7-7) Relay initiation transmission (p. 7-11) Polling transmission (p. 7-16) Transmission request Send Konica 7115F/7118F...
  • Page 37 Before Making Copies or Faxing Receiving Memory reception (p. 7-21) Polling reception (p. 7-23) Transmission request Receive Mailbox reception (p. 7-22) Mailbox Mailbox ID transmission (F code) Print Forwarding (p. 10-46) Konica 7115F/7118F...

  • Page 38: Components And Their Functions

    250 sheets of copy paper. (With the Konica 7115F, one can be installed; with the Konica 7118F, up to four can be installed.) Shifting Unit IS-101 (optional) Sorts or groups pages according to the specified Output function.
  • Page 39 Adjusts the height when a Paper Feed Cabinet is mounted. Fax Kit for Konica 7115/7118 FK-117 (optional) Install onto the Konica 7115/7118 in order to send and received faxes. Printer Controller IP-413 (optional) Internal printer controller that allows this machine to be connected to a computer and used as a printer.

  • Page 40: Part Names And Their Functions

    Before Making Copies or Faxing Part Names and Their Functions Main Unit *The illustration above shows the optional Original Cover Kit installed. 3-10 Konica 7115F/7118F...
  • Page 41 When manually feeding a document, position it on the Platen Glass so that it can be scanned. Position the document face down on the glass. (p. 4-5) Control Panel Used to start copying or to make various settings. (p. 3-18) Konica 7115F/7118F 3-11...

  • Page 42: Inside Of Main Unit

    Description Imaging Unit Creates the copy image. Replacement of the Imaging Unit must be performed by your authorized Konica Service Representative. Toner Bottle Holder Opened when replacing the toner bottle. Pressure Lever Used when clearing paper misfeeds in the fusing unit.

  • Page 43: Automatic Document Feeder (Optional)

    Adjusted to the size of the document. (p. 4-1) Document Feeder Cover Opened when clearing document misfeeds. (p. 12-15) (Doc. Feed Cover) Document Feeder Tray Holds the documents to be scanned; load documents face up. (p. 4-1) Konica 7115F/7118F 3-13...

  • Page 44: Multiple Bypass Tray (Optional)

    Before Making Copies or Faxing Multiple Bypass Tray (Optional) Part Name Description Bypass Tray Holds up to 50 sheets (plain paper) or 20 sheets (special paper) of paper. (p. 4-17) Bypass Tray Extender Pulled out when large-sized paper is loaded. 3-14 Konica 7115F/7118F...

  • Page 45: Paper Feed Cabinet (Optional)

    Paper Feed Cabinet (Optional) Part Name Description 2nd Tray Holds up to 250 sheets of paper (plain paper). With the Konica 7118/7118F, up to four Paper Feed 3rd Tray Cabinets can be installed. With the Konica 7115/7115F, one Paper Feed Cabinet 4th Tray can be installed.

  • Page 46: Shifting Unit (Optional)

    Before Making Copies or Faxing Shifting Unit (Optional) Part Name Description Copy Tray Collects fed-out copies that have been sorted. 3-16 Konica 7115F/7118F...

  • Page 47: Job Tray (Optional)

    Job Tray (Optional) With the Job Tray installed Part Name Description Copy Tray Lamp Lights up when paper is fed into the Upper Copy Tray. Upper Copy Tray Collects computer printouts or received faxes. Lower Copy Tray Collects copies. Konica 7115F/7118F 3-17...

  • Page 48: Names Of Control Panel Parts And Their Functions

    • MACHINE SETTING, PAPER SOURCE SETTING, USER MAINTENANCE, ADMIN. MANAGEMENT, COPY SETTING 1 & 2, FAX REGISTRATION, TX OPERATION, RX OPERATION, COM.SETTING, REPORTING, INITIAL USER DATA Refer to “Initial Set Mode – Fax Functions” on page 10-1. 3-18 Konica 7115F/7118F...
  • Page 49 Used to select between the “2 in 1” and the “4 in 1” copy functions. [OUTPUT] key Used to select a copy Output function. One-touch dial keys • Used to dial previously programmed fax numbers. • Used to enter text such as a name. Konica 7115F/7118F 3-19...
  • Page 50 • Stops the fax transmission or reception. [POWER SAVE] key Press to enter Power Save mode. (p. 3-25) [COPY] key Press to enter Copy mode. The indicator lights up in green to indicate that the machine is in Copy mode. 3-20 Konica 7115F/7118F...
  • Page 51 Confirms the current setting. [NO/CLEAR] key Erases the entered numbers and letters. Returns to the previous screen. Display Displays setting menus, error messages, and specified settings such as the number of copies, the zoom ratio and fax numbers. Konica 7115F/7118F 3-21...

  • Page 52: Display Indications

    “ [X/Y]” indicates that the “X/Y Zoom” function is selected. Menu or function name • Displays the current menu, function or settings. • Error messages are displayed when errors occur. Messages Displays messages such as operating instructions. 3-22 Konica 7115F/7118F...

  • Page 53: Symbol List

    The machine is being called. Sending The document is being sent. Receiving A document is being received. In standby for timer A document is queued for timer transmission. transmission In standby for polling A document is queued for polling transmission. transmission Konica 7115F/7118F 3-23...

  • Page 54: Useful Operations

    For details, refer to “To set the “AUTO RESET” function” on page 9-4. Note While in Fax mode, the machine resets itself one minute after the last key was pressed, regardless of the “AUTO RESET” function setting. 3-24 Konica 7115F/7118F...

  • Page 55: Power Save Mode (Preheat Mode)

    If a document is loaded and the [START] key is pressed after the machine is turned on but before it is ready to begin copying, the machine queues the job and automatically starts copying after it has finished warming up. Konica 7115F/7118F 3-25...

  • Page 56: Interrupting Copy Jobs

    If ID numbers have been specified, the machine cannot be used unless the ID number is entered first. ID number input screen: In order to use this function, the ID numbers must be specified with the “COPY TRACK” function from the “ADMIN. MANAGEMENT” menu (p. 9-23). 3-26 Konica 7115F/7118F...

  • Page 57: To Enter An Id Number

    Printer Controller. Scanning From the Computer If the enclosed TWAIN Driver is installed, the machine can be used as a scanner for a computer. For operating instructions, refer to the Readme (PDF) enclosed with the TWAIN Driver. Konica 7115F/7118F 3-27...

  • Page 58: Power Switch And Default Settings

    Set mode. For details, refer to “Specifying Machine Settings (“MACHINE SETTING” Menu)” on page 9-2. Turning the Machine On and Off To turn the machine ON ➜ Set the Power Switch to “|”. To turn the machine OFF ➜ Set the Power Switch to “O”. 3-28 Konica 7115F/7118F...

  • Page 59: Turning The Machine On

    Reception mode: Automatic reception Transmission source: Within document The default settings can be customized using the functions in the Initial Set mode (“9 Initial Set Mode – Copy Functions” and “10 Initial Set Mode – Fax Functions”). Konica 7115F/7118F 3-29...

  • Page 60: Entering Text

    _ (underscore) - (hyphen) ∗ & &# /!=?$%[]’^`{}|˜()” ,:;<> ÄäÖöÜüáÉéíóúÅÎàçÆ Ñ¿Øøß (space) (deletes) * Repeatedly press the one-touch dial key to scroll through the corresponding characters and symbols listed until the desired character appears in the display. 3-30 Konica 7115F/7118F...

  • Page 61: Inputting Example

    NAME=NJ Of Press the key. NAME=NJ Of_ Press the [def] key 3 times. NAME=NJ Off Press the [ghi] key 3 times. NAME=NJ Offi Press the [abc] key 3 times. NAME=NJ Offic Press the [def] key twice. NAME=NJ Office Konica 7115F/7118F 3-31...
  • Page 62 If the same one-touch dial key is needed to enter two characters in a row, press the [ ] key after selecting the first character. (Refer to the example in previous page.) To enter a space, press one-touch dial key [26]. 3-32 Konica 7115F/7118F...

  • Page 63: Selecting And Checking Initial Settings

    Checking the Initial Settings Since each function has been set during production, their settings should be checked, then changed as necessary. (Refer “9 Initial Set Mode – Copy Functions” to and “10 Initial Set Mode – Fax Functions”.) Konica 7115F/7118F 3-33...

  • Page 64: To Set The Current Date And Time

    To return to the main screen, press the [AUTO RESET] key. Note The time setting of this machine automatically switches to daylight savings time during the period indicated below. From 2 am on the first Sunday of April to 2 am on the last Sunday of October 3-34 Konica 7115F/7118F...

  • Page 65: To Specify The User Fax Number

    Using the KEYPAD, enter the user fax number. ❍ If you wish to correct the entered number, press the [NO] key, and then enter the new number. Press the [ENTER] key. The “INITIAL USER DATA” menu appears again. Konica 7115F/7118F 3-35...

  • Page 66: To Program The User Name

    Enter the user name using the one- touch dial keys. ❍ For details on entering text, refer to “Entering Text” on page 3-30. Press the [ENTER] key. The “INITIAL USER DATA” menu appears again. 3-36 Konica 7115F/7118F...

  • Page 67: Specifying The Phone Dialing System

    Using the [ ] and [ ] keys, select either “TONE” (for tone dialing) or “PULSE” (for pulse dialing), and then press the [YES] key. If “PULSE” was selected, select either “10pps” or “20pps”, and then press the [YES] key. The “COMM.SETTING” menu appears again. Konica 7115F/7118F 3-37...

  • Page 68: Specifying The Phone Wiring System

    (Private Branch Exchange), and then press the [YES] key. If “PBX” was selected, use the KEYPAD to enter the number that should be dialed to access the outside line, and then press the [ENTER] key. The “COMM.SETTING” menu appears again. 3-38 Konica 7115F/7118F...

  • Page 69: Copy Paper

    Width: 90 mm to 297 mm Length: 140 mm to 432 mm Paper capacity Plain or recycled paper: 50 sheets Special paper: 20 sheets For details on loading the paper, refer to “When the Message “LOAD PAPER” Appears” on page 12-1. Konica 7115F/7118F 3-39...
  • Page 70 If F4 paper with a size other than the default F4 size (210 mm × 330 mm) is loaded, the setting must be changed. For details, contact your authorized Konica Service Representative. Do not load paper of different sizes into the same paper tray.
  • Page 71 Paper that has been decorated with foil or embossing Paper of a non-standard shape (not rectangular) Paper that is bound with glue, staples or paper clips Paper with labels attached Paper with ribbons, hooks, buttons, etc. attached Konica 7115F/7118F 3-41...

  • Page 72: Print Area

    ❍ Not exposed to fire ❍ Not exposed to high humidity ❍ Not extremely dusty Unwrapped paper should be stored in a plastic bag in a cool, dry location. Keep paper out of the reach of children. 3-42 Konica 7115F/7118F...

  • Page 73: Original Documents

    Capacity: 60 g/m to 90 g/m 432 mm Platen Glass Sheet documents, books, and A3 L to A5 L large objects Document width: Up to 297 mm Maximum weight: 3 kg Document length: Up to 432 mm Konica 7115F/7118F 3-43...

  • Page 74: Precautions For Loading Documents Into The Automatic Document Feeder

    Scan without closing the Original Cover or Automatic Document Feeder. In addition, do not press down extremely hard on the document, otherwise the machine may be damaged. (The Platen Glass can only resist a weight of up to 3 kg) 3-44 Konica 7115F/7118F...

  • Page 75: Basic Copy Operations

    Automatic Document Feeder are A3 L, B4 L, A4 L, A4 C, A5 L, Letter L, Letter C and F4. If paper of other sizes or non- standard sizes is loaded, the size cannot be detected or it may be detected incorrectly. Konica 7115F/7118F...

  • Page 76: To Load Documents Of Mixed Sizes

    Copies (APS) Precautions for loading documents of mixed sizes: ✔ Documents of different sizes can be copied only if all pages have the same width. For example: A document consisting of A3 L and A4 C size pages Konica 7115F/7118F...
  • Page 77 ➜ Be sure to adjust the Document Guide Plates so that they are against the edges of the document, otherwise the document may not be fed in straight. Press the [ORIGINAL] key to light the “MIXED ORIGINAL” indicator. Konica 7115F/7118F...
  • Page 78 Press the [APS/AMS] key until the “APS” function is selected. ❍ Check that “AUTO” appears in the bottom line of the screen. Press the [START] key to begin feeding and copying the loaded document pages, starting from the top page. Konica 7115F/7118F...

  • Page 79: With The Platen Glass

    Carefully close the Original Cover, or the Automatic Document Feeder if it is installed. Select the desired copy settings. For details, refer to “Making Copies” on page 4-9 and “Advanced Copy Operations” on page 5-1. Press the [START] key to copy the document. Konica 7115F/7118F...

  • Page 80: To Position Translucent Or Transparent Documents

    Carefully close the Original Cover, or the Automatic Document Feeder if it is installed. Select the desired copy settings. For details, refer to “Making Copies” on page 4-9 and “Advanced Copy Operations” on page 5-1. Press the [START] key to copy the document. Konica 7115F/7118F...

  • Page 81: To Position A Book

    Original Cover or Automatic Document Feeder, do not look directly at the bright light that may shine through the Platen Glass. Although the light that shines through the Platen Glass is bright, it is not a laser beam and, therefore, is not as dangerous. Konica 7115F/7118F...
  • Page 82 Press the [ORIGINAL] key to light the “DUAL PAGE” indicator. Select the desired copy settings. For details, refer to “Making Copies” on page 4-9 and “Advanced Copy Operations” on page 5-1. Press the [START] key to copy the document. Konica 7115F/7118F...

  • Page 83: Making Copies

    Press the [COPY] key to enter Copy mode. Load the document to be copied. ❍ Refer to “Loading the Document” on page 4-1. Select the desired copy settings. ❍ Paper (p. 4-11) ❍ Zoom (p. 4-21) ❍ Copy density (p. 4-25) Konica 7115F/7118F...
  • Page 84 1 and 99. Press the [START] key. The set number of copies are made. To stop copying before the set number of copies have been made, press the [STOP] key. 4-10 Konica 7115F/7118F...

  • Page 85: Selecting The Paper Source

    If necessary, specify any other copy settings. ❍ Zoom (p. 4-21) ❍ Copy density (p. 4-25) Enter the number of copies to be made on the KEYPAD, and then press the [START] key. Konica 7115F/7118F 4-11...

  • Page 86: To Copy With A Manually Selected Paper Size

    If necessary, specify any other copy settings. ❍ Zoom (p. 4-21) ❍ Copy density (p. 4-25) Enter the number of copies to be made on the KEYPAD, and then press the [START] key. 4-12 Konica 7115F/7118F...

  • Page 87: To Copy Onto Special Paper (1St Tray)

    “PAPER SOURCE SETUP” menu of the Initial Set mode (“To specify the size of paper loaded into the 1st Tray (“TRAY1 PAPER” function)” on page 9-14). Depending on the paper type set for the “TRAY1 PAPER” function, the screen changes as shown below. Postcards or cards OHP transparencies Konica 7115F/7118F 4-13...

  • Page 88: Making Copies On Manually Fed Paper

    However, if the Multiple Bypass Tray (optional) is installed, up to 50 sheets of paper can be loaded and fed manually. For cards, postcards and OHP transparencies, up to 20 sheets can be loaded. 4-14 Konica 7115F/7118F...

  • Page 89: Copying Onto Manually Fed Paper

    Press the [YES] key. Using the [ ] and [ ] keys, select the size of paper loaded. ❍ If “OHP” was selected in step 3, set the paper size to A4 C or A4 L. Konica 7115F/7118F 4-15...
  • Page 90 To copy onto more pages using the same settings, feed paper into the Manual Bypass Tray to begin making copies automatically. To make continuous copies onto cards, postcards or OHP transparencies, load them into the 1st Tray. (“To load paper into the 1st Tray” on page 12-1) 4-16 Konica 7115F/7118F...

  • Page 91: To Copy Using The Multiple Bypass Tray

    Press the [NO] key, and then use the [ ] and [ ] keys to select the type of paper loaded. Press the [YES] key. Using the [ ] and [ ] keys, select the size of paper loaded. Konica 7115F/7118F 4-17...
  • Page 92 If “OHP” was selected in step 3, set the paper size to A4 C or A4 L. Press the [ENTER] key. If necessary, specify any other copy settings. ❍ Zoom (p. 4-21) ❍ Copy density (p. 4-25) Press the [START] key. 4-18 Konica 7115F/7118F...

  • Page 93: To Copy Onto A Custom Paper Size

    The paper length can be set between 140 mm and 432 mm. ❍ If you wish to correct the entered setting, press the [NO] key, and then use the KEYPAD to enter the new number. Press the [ENTER] key. Konica 7115F/7118F 4-19...
  • Page 94 [NO] key, and then use the KEYPAD to enter the new number. Press the [ENTER] key. If necessary, specify any other copy settings. ❍ Zoom (p. 4-21) ❍ Copy density (p. 4-25) Press the [START] key. 4-20 Konica 7115F/7118F...

  • Page 95: Specifying A Zoom Setting

    Load the document to be copied. ❍ Refer to “Loading the Document” on page 4-1. Press the [APS/AMS] key until the “AMS” function is selected. ❍ Check that “AUTO” appears in the top line of the screen. Konica 7115F/7118F 4-21...

  • Page 96: To Make Copies Using A Specific Zoom Setting

    0.01 increments. If necessary, specify any other copy settings. ❍ Paper (p. 4-11) ❍ Copy density (p. 4-25) Enter the number of copies to be made on the KEYPAD, and then press the [START] key. 4-22 Konica 7115F/7118F...

  • Page 97: To Make Copies Using The "X/Y Zoom" Function

    Press the [NO] key to return to the zoom ratio before it was changed. ❍ The zoom ratio can be changed by using the [LENS] key. The zoom ratios that can be selected are shown in the step above. Konica 7115F/7118F 4-23...
  • Page 98 Basic Copy Operations If necessary, specify any other copy settings. ❍ Paper (p. 4-11) ❍ Copy density (p. 4-25) Enter the number of copies to be made on the KEYPAD, and then press the [START] key. 4-24 Konica 7115F/7118F...

  • Page 99: Specifying The Copy Density ("Density Set" Function)

    “LIGHT” may produce a very faint copy, select the appropriate level depending on the document. “PHOTO” setting: Select this setting when copying documents with many areas with varying halftones, such as photos. Konica 7115F/7118F 4-25...

  • Page 100: To Make Copies After Specifying A Copy Density

    If necessary, specify any other copy settings. ❍ Paper (p. 4-11) ❍ Zoom (p. 4-21) Enter the number of copies to be made on the KEYPAD, and then press the [START] key. 4-26 Konica 7115F/7118F...

  • Page 101: Interrupting Copy Jobs

    Remove the current document, and then load the other document that you wish to copy. If necessary, specify any other copy settings. ❍ Paper (p. 4-11) ❍ Zoom (p. 4-21) ❍ Copy density (p. 4-25) Konica 7115F/7118F 4-27...
  • Page 102 After the other document is copied, press the [INTERRUPT] key. The “INTERRUPT” indicator goes off, and all copy functions return to their previous settings. Reload the document that was removed in step 2. Press the [START] key to continue the interrupted copy job. 4-28 Konica 7115F/7118F...

  • Page 103: Advanced Copy Operations

    ❍ Important: This function is only available when the Automatic Document Feeder is installed. “Dual Page” function: Documents Copies A single-sided copy is produced from each of the two pages of an open book. Konica 7115F/7118F...

  • Page 104: To Make Copies Using The "2 In 1" (Or "4 In 1") Copy Function

    “4 IN 1 COPY ORDER” function” on page 9-39. The manufacturer’s default setting is “PATTERN1”. If necessary, specify any other copy settings. Enter the number of copies to be made on the KEYPAD, and then press the [START] key. Konica 7115F/7118F...

  • Page 105: To Make Copies Using The "Dual Page" Function

    “Fold” erase setting Copies Documents The pages are copied with a blank area along the binding. ❍ “Frame” and “Fold” erase Documents settings Copies The pages are copied with blank areas framing the text and along the binding. Konica 7115F/7118F...
  • Page 106 The width of the erased area for the “Frame” setting can be changed using the “ERASE SETTING” function in the Initial Set mode (p. 9-36). If necessary, specify any other copy settings. Enter the number of copies to be made on the KEYPAD, and then press the [START] key. Konica 7115F/7118F...

  • Page 107: Output Copies ("Sort" And "Group" Functions)

    “Sort” function: Copies Documents The copies are automatically divided into sets with each set containing a copy of each page. “Group” function: Copies The copies are automatically Documents divided into stacks containing all copies of the same page. Konica 7115F/7118F...

  • Page 108: Sorting

    Multiple Bypass) must be installed. Note For crisscross sorting, paper of the same size and type must be loaded horizontally in one paper tray and vertically in another tray. Crisscross sorting is not possible if the Shifting Unit is installed. Konica 7115F/7118F...

  • Page 109: Grouping

    Multiple Bypass) must be installed. Note For crisscross grouping, paper of the same size and type must be loaded horizontally in one paper tray and vertically in another tray. Crisscross grouping is not possible if the Shifting Unit is installed. Konica 7115F/7118F...

  • Page 110: Specifying Output

    Are neither the “Sort” nor the “Group” indicators lit? ➜ The “Non-sort” setting is selected. If necessary, specify any other copy settings. Enter the number of copies to be made on the KEYPAD, and then press the [START] key. Konica 7115F/7118F...

  • Page 111: Erasing Sections Of Copies

    Note This setting is only available when the “Dual Page” function is set. If the “Dual Page” function is set, the “Frame” and the “Fold” erase settings can be combined (p. 5-3). Konica 7115F/7118F...

  • Page 112: Precautions On The Erased Margin Location

    Advanced Copy Operations Precautions on the Erased Margin Location The location of the erased area in the copy depends on how the document is positioned. “Erase” Platen Glass Automatic Document Feeder setting Left Frame 5-10 Konica 7115F/7118F...

  • Page 113: Setting The "Erase" Function

    “ERASE SETTING” function in the Initial Set mode (p. 9-36). If necessary, specify any other copy settings. Enter the number of copies to be made on the KEYPAD, and then press the [START] key. Konica 7115F/7118F 5-11...

  • Page 114: Reverse Image Copying

    Refer to “Loading the Document” on page 4-1. Press the [REVERSE IMAGE] key to light the “REVERSE IMAGE” indicator. If necessary, specify any other copy settings. Enter the number of copies to be made on the KEYPAD, and then press the [START] key. 5-12 Konica 7115F/7118F...

  • Page 115: Making Copies For Filing ("Image Shift" Function)

    The width of the binding margin can be changed using the “MARGIN SETTING” function in the Initial Set mode (p. 9-36). If necessary, specify any other copy settings. Enter the number of copies to be made on the KEYPAD, and then press the [START] key. Konica 7115F/7118F 5-13...

  • Page 116: Programmed Copy Jobs

    [YES] key. Note If a copy program has already been stored under the selected program number, the previous copy settings are deleted and replaced with the new ones. 5-14 Konica 7115F/7118F...

  • Page 117: To Recall A Copy Program

    Refer to “Loading the Document” on page 4-1. Press the [JOB RECALL] key. Using the [ ] and [ ] keys, select the program number of the copy program that you wish to recall, and then press the [YES] key. Press the [START] key. Konica 7115F/7118F 5-15...
  • Page 118 Advanced Copy Operations 5-16 Konica 7115F/7118F...

  • Page 119: Faxing

    When using the Automatic Document Feeder, as many as 50 sheets of A3-size plain paper can be loaded. The scanning area is 2 mm from the leading edge to 2 mm from the trailing edge of the document. Konica 7115F/7118F...
  • Page 120 Make sure that any ink, correction fluid, etc. is completely dry before 10 mm faxing the document. Any part of the document within 10 mm from any side of the page cannot be scanned. 10 mm 10 mm 10 mm Konica 7115F/7118F...

  • Page 121: Basic Faxing

    Press the [START] key to begin scanning and sending the fax. ❍ To stop the transmission, press the [STOP] key. Once transmission is finished, a beep is sounded. If the fax could not be sent, the transmission result report is printed (p. 10-50). Konica 7115F/7118F...
  • Page 122 If the fax could not be sent correctly after redialing, the transmission result report is printed. Konica 7115F/7118F...

  • Page 123: To Fax Documents Positioned On The Platen Glass

    If necessary, change the “Resolution” setting (p. 6-8). Using the KEYPAD, enter the fax number of the recipient, and then press the [YES] key. ❍ The fax number of a previously programmed recipient can also be specified. Refer to “Dialing” on page 6-10. Konica 7115F/7118F...
  • Page 124 Press the [START] key to begin sending the fax. ❍ To stop the transmission, press the [STOP] key. Once transmission is finished, a beep is sounded. If the fax could not be sent, the transmission result report is printed (p. 11-3). Konica 7115F/7118F...

  • Page 125: If The Memory Becomes Full While Scanning Fax Documents

    If the transmission is cancelled, the data for the scanned pages is deleted. After the other fax transmission or reception is finished, check the amount of memory available, and then try sending the fax again. Konica 7115F/7118F...

  • Page 126: Transmission Settings

    Super Fine + Photo To specify the resolution Position the document to be faxed. Press the [RESOLUTION] key until the resolution that matches the document is selected. ❍ Repeatedly pressing the [RESOLUTION] key changes the setting as shown below. Konica 7115F/7118F...
  • Page 127 If the Photo or Super Fine + Photo setting is specified, the fax may be sent with a decreased resolution depending on the quality of the recipient’s fax machine or whether the document size is larger than the paper loaded in the recipient’s fax machine. Konica 7115F/7118F...

  • Page 128: Dialing

    6 seconds after the prefix for international calls is dialed. If a connection still cannot be made, send the fax manually (p. 7-1). 6-10 Konica 7115F/7118F...

  • Page 129: To Fax By Entering The Fax Number Directly Using The Keypad

    If the machine is connected to a PBX line and the outside line access number has been specified in the communication settings (p. 3-38), enter “#” to dial the outside line access number automatically. Press the [START] key to begin scanning and sending the fax. Konica 7115F/7118F 6-11...

  • Page 130: To Fax Using One-Touch Dialing

    The machine automatically starts scanning the document and sending the fax. If the wrong one-touch dial key has been pressed, press the [STOP] key either while dialing or sending the fax to stop the transmission. 6-12 Konica 7115F/7118F...

  • Page 131: To Fax Using Speed Dialing

    KEYPAD to enter the 3-digit speed dial number. Has the wrong speed dial number been entered? ➜ Press the [NO] key, and then enter the correct number. Press the [START] key to begin scanning and sending the fax. Konica 7115F/7118F 6-13...

  • Page 132: To Fax Using Group Dialing

    The machine automatically starts scanning the document and sending the fax. If the wrong one-touch dial key has been pressed, press the [STOP] key either while dialing or sending the fax to stop the transmission. 6-14 Konica 7115F/7118F...

  • Page 133: To Fax Using Program Dialing

    If the wrong one-touch dial key has been pressed, press the [STOP] key either while dialing or sending the fax to stop the operation. To cancel a timer transmission, select “CANCEL RESERV.” from the “FUNCTION” menu (p. 7-19). Konica 7115F/7118F 6-15...

  • Page 134: To Fax Using Combination Dialing

    The remainder of the fax number can also be specified using the one-touch dial keys or the speed dial numbers. If it is specified using the one-touch dial keys, the machine automatically starts scanning the document and sending the fax. 6-16 Konica 7115F/7118F...

  • Page 135: To Fax Using The Tel Book

    Search for the desired recipient by entering part (or all) of the name programmed. For details on performing the search, refer to “To search the tel book” on page 6-18. Press the [START] key to begin scanning and sending the fax. Konica 7115F/7118F 6-17...

  • Page 136: To Search The Tel Book

    ➜ After “(0)” is displayed, the screen allowing you to enter the search text appears. To narrow down the search results even further, press the [YES] key, and then enter more search text. Press the [ENTER] key. 6-18 Konica 7115F/7118F...

  • Page 137: To Redial The Last Recipient Called

    Load the document into the Automatic Document Feeder. If necessary, change the “Resolution” setting (p. 6-8). Press the [REDIAL/PAUSE] key. The fax number of the last recipient called is displayed. Press the [START] key to begin scanning and sending the fax. Konica 7115F/7118F 6-19...

  • Page 138: Receiving

    ❍ If the entire fax does not fit in the memory, the remainder of the document is not received. ❍ If the memory becomes full, no more documents can be received. 6-20 Konica 7115F/7118F...
  • Page 139 “To specify the size of paper loaded into the 1st Tray (“TRAY1 PAPER” function)” on page 9-14.) ❍ When the paper type is set to “OHP” or “CARD” ❍ When the paper size is set to “SIZE INPUT” Konica 7115F/7118F 6-21...

  • Page 140: Checking Transmission Results

    If the [NO] key is pressed twice while the transmission results are displayed, the main screen appears. ❍ To print the transmission result report, press the [START] key. After the transmission result report is printed, the main screen appears. 6-22 Konica 7115F/7118F...

  • Page 141: Fax Transmission/Reception Methods

    If the fax is to be sent after talking on the telephone, use the Automatic Document Feederr. Manual transmission is possible if a telephone (either purchased or rented) is connected to the TEL port of this machine. Konica 7115F/7118F...

  • Page 142: To Send A Fax Manually

    Replace the telephone receiver. ❍ To stop the transmission, press the [STOP] key. If the [ON-HOOK] key is pressed instead of picking up the telephone receiver, the speaker can be used for manual transmission in the same way as described above. Konica 7115F/7118F...

  • Page 143: Batch Transmission

    Press the one-touch dial key programmed with the desired batch transmission settings. The machine automatically starts scanning the document, then automatically sends it at the specified time. To cancel a batch transmission, select “CANCEL RESERV.” from the “FUNCTION” menu (p. 7-19). Konica 7115F/7118F...

  • Page 144: Broadcast Transmission

    Position the document to be faxed. If necessary, change the “Resolution” setting (p. 6-8). Press the [FAX SET] key. Press the [1] key from the KEYPAD. Press the [FAX SET] key once to select “BROADCAST”, and then press the [ENTER] key. Konica 7115F/7118F...
  • Page 145 Press the [NO] key to delete the current selection. (This is valid only before the recipient is set by pressing the [YES] key.) Press the [START] key. A message appears, allowing you to select whether or not to check the recipients. Konica 7115F/7118F...
  • Page 146 Check the recipient, and then press the [YES] key. ❍ To delete the displayed recipient, press the [CLEAR] key. After all recipients have been checked, “Fin.=START” appears in the display. Press the [START] key to begin scanning and sending the fax. Konica 7115F/7118F...

  • Page 147: Timer Transmission

    Press the [FAX SET] key. Press the [2] key from the KEYPAD. Press the [FAX SET] key twice to select “TIMER TX”, and then press the [ENTER] key. A screen appears, allowing you to specify the transmission time. Konica 7115F/7118F...
  • Page 148 [NO] key, and then enter the correct time. Specify the fax number of the recipient. ❍ Refer to “Dialing” on page 6-10. Press the [START] key. The machine scans the document, then enters transmission standby mode. Konica 7115F/7118F...

  • Page 149: Mailbox Transmission

    Press the [FAX SET] key 3 times to select “MAILBOX TX”, and then press the [ENTER] key. Specify the recipient, and then press the [ENTER] key. ❍ Refer to “Dialing” on page 6-10. A screen appears, allowing you to specify the mailbox ID. Konica 7115F/7118F...
  • Page 150 ❍ If you wish to correct the password, press the [NO] key, and then enter the new number. Press the [START] key to begin scanning and sending the fax. 7-10 Konica 7115F/7118F...

  • Page 151: Relay Initiation Transmission

    If necessary, change the “Resolution” setting (p. 6-8). Press the [FAX SET] key. Press the [7] key from the KEYPAD. Press the [FAX SET] key 7 times to select “RELAY INITIATE”, and then press the [ENTER] key. Konica 7115F/7118F 7-11...
  • Page 152 ❍ If you wish to correct the password, press the [NO] key, and then enter the new number. Press the [START] key to begin scanning and sending the fax. 7-12 Konica 7115F/7118F...

  • Page 153: Relay Broadcast Transmission

    ID must first be programmed (p. 10-31). In order to fax using relay broadcast transmission, the receiving stations (final recipients) must be programmed in a relay box (p. 10-31). The document is printed at the receiving stations. Konica 7115F/7118F 7-13...

  • Page 154: Direct Transmission

    Press the [9] key from the KEYPAD. Press the [FAX SET] key 9 times to select “TX MODE”, and then press the [ENTER] key. Using the [ ] and [ ] keys, select “ADF TX”, and then press the [YES] key. 7-14 Konica 7115F/7118F...
  • Page 155 When transmission is finished, the transmission mode returns to the default setting. Memory transmission is the default transmission mode. To keep the transmission mode set to direct transmission, set Initial Set mode function “DEFAULT TX” to “ADF TX” (p. 10-38). Konica 7115F/7118F 7-15...

  • Page 156: Polling Transmission

    To allow only one polling transmission request, then delete the document from the memory, select “SINGLE”. ❍ To allow multiple polling transmission requests, select “MULTI”. The document is stored in the memory until it has been deleted. 7-16 Konica 7115F/7118F...
  • Page 157 If you do not wish to set a password, continue with step 8. ❍ The password can be set to any number between 0000 and 9999. Press the [START] key. The machine scans the document, then enters standby mode. Konica 7115F/7118F 7-17...

  • Page 158: To Delete A Document From The Polling Transmission Setup

    Press the [CLEAR] key to delete from the memory the document set for polling transmission. ❍ To keep the polling transmission setting, press the [YES] key. Press the [NO] key twice to return to the main screen. 7-18 Konica 7115F/7118F...

  • Page 159: Cancelling (Deleting) A Document Queued In The Memory For Transmission

    The following types of job are displayed. MEMORY: Memory transmission B-CAST: Broadcast transmission TIMER: Timer transmission M.B. TX: Mailbox transmission POLL-TX: Polling transmission POLL-RX: Polling reception RELAY: Relay initiation transmission or relay broadcast transmission FORWARD: Fax forwarding Konica 7115F/7118F 7-19...
  • Page 160 “CANCEL RESERV.” appears in the display. To delete another queued job, press the [8] key, and then repeat steps 3 and 4. ❍ If you are finished deleting jobs, press the [NO] key to return to the main screen. 7-20 Konica 7115F/7118F...

  • Page 161: Reception Methods

    Memory reception is set using the corresponding Initial Set mode function. For details on changing the setting, refer to “To select the memory reception mode (“MEMORY RX MODE” function)” on page 10-42. Konica 7115F/7118F 7-21...

  • Page 162: Mailbox Reception

    Press the [FAX SET] key 4 times to select “PRINT MAILBOX RX”, and then press the [ENTER] key. A screen appears, allowing you to enter the mailbox ID. Using the KEYPAD, enter the 4-digit mailbox ID, and then press the [ENTER] key. 7-22 Konica 7115F/7118F...

  • Page 163: Polling Reception

    Refer to step 5 of “To fax using broadcast transmission” on page 7-4. To enter the polling ID and password, press the [ ] key. ❍ If there is no need to enter a polling ID and password, skip to step 7. Konica 7115F/7118F 7-23...
  • Page 164 Check the fax numbers, and then press the [YES] key. ❍ To delete the displayed fax number, press the [CLEAR] key. ❍ After all fax numbers have been checked, “Fin.=START” appears in the display. Press the [START] key. 7-24 Konica 7115F/7118F...

  • Page 165: Using F Codes

    Ask your partner, if their machine can process F CODE transmissions. If one-touch dial keys or speed dial numbers are programmed with F codes (sub-addresses and SID), the appropriate F code can quickly be transmitted to the recipient/caller. Konica 7115F/7118F 7-25...

  • Page 166: Using Mailboxes

    Refer to “Setting Up Mailboxes (“MAILBOX” function)” on page 10-29. If one-touch dial keys or speed dial numbers are programmed with F codes, the appropriate F code can quickly be transmitted. Refer to “Mailbox Transmission” on page 7-9. 7-26 Konica 7115F/7118F...

  • Page 167: Specifying F Codes

    Press the [ ] key, and then use the KEYPAD to enter the SID. ❍ A number up to 20 digits long can be entered for the SID. Press the [START] key to begin scanning and sending the fax. Konica 7115F/7118F 7-27...

  • Page 168: Programming Recipients

    Press the [ ] key, and then use the KEYPAD to enter the SID. ❍ A number up to 20 digits long can be entered for the SID. Press the [ENTER] key. Then, continue specifying other program settings. 7-28 Konica 7115F/7118F...

  • Page 169: Expanded Functions By Connecting A Computer

    Serial Port Settings Bits/sec.: 19200 or 38400 (auto baud rate) Data bit: 8 bits Parity: None Stop bit: Flow control: Hardware control (CTS/RTS Signal) RS-232C serial cable (terminated in a female 9-pin D-Sub connector on both ends) Pin assignment Konica 7115F/7118F...

  • Page 170: Setting Up For Pc Scanning

    NT 4.0, or Windows 2000 TWAIN-compatible image-processing software (such as, Adobe Photoshop) 9-pin RS232C interface cable The specifications are the same as the PC Faxing one. For details, refer to the Readme (PDF) included with the TWAIN Driver. Konica 7115F/7118F...

  • Page 171: Initial Set Mode - Copy Functions

    This chapter describes the various Initial Set mode functions that can be used to set copy-related functions. Note Depending on the options installed, some functions may not be available. If an unavailable functions is selected, an error message appears. Konica 7115F/7118F...

  • Page 172: Specifying Machine Settings ("Machine Setting" Menu)

    INITIAL MODE This function can be used to set the mode (Copy mode or Fax mode) that the machine starts up in or returns to after the Control Panel is reset. • The manufacturer’s default setting is “COPY”. Konica 7115F/7118F...

  • Page 173: To Select The "Machine Setting" Menu

    6 LCD CONTRAST 7 BUZZER VOLUME 8 LANGUAGE 9 INITIAL MODE If, at any time, you wish to quit setting a “MACHINE SETTING” function, press the [NO] key. When the message “STOP SETTING?” appears, press the [YES] key to quit. Konica 7115F/7118F...

  • Page 174: To Set The "Auto Reset" Function

    If “OFF” was selected, the “MACHINE SETTING” menu appears again. Using the [ ] and [ ] keys, select “0.5”, “1”, “2”, “3”, “4” or “5”, and then press the [YES] key. The “MACHINE SETTING” menu appears again. Konica 7115F/7118F...

  • Page 175: To Set The "Power Save Mode" (Preheat Mode) Function

    [ENTER] key. ❍ The timer can be set between 1 min. and 240 min. ❍ If you wish to correct the setting, press the [NO] key, and then enter the new number. The “MACHINE SETTING” menu appears again. Konica 7115F/7118F...

  • Page 176: To Set The "Auto Shut Off" Function

    [ENTER] key. ❍ The timer can be set between 15 min. and 240 min. ❍ If you wish to correct the setting, press the [NO] key, and then enter the new number. The “MACHINE SETTING” menu appears again. Konica 7115F/7118F...

  • Page 177: To Specify The Adf (Automatic Document Feeder) Scanning Image Quality ("Density(Adf)" Function)

    9-3. Press the [4] key from the KEYPAD to select “DENSITY(ADF)”. Using the [ ] and [ ] keys, select either “MODE1” or “MODE2”, and then press the [YES] key. The “MACHINE SETTING” menu appears again. Konica 7115F/7118F...

  • Page 178: To Specify The Printing Density ("Print Density" Function)

    Press the [6] key from the KEYPAD to select “LCD CONTRAST”. Using the [ ] and [ ] keys, select one of the four settings between “LIGHT” and “DARK”, and then press the [YES] key. The “MACHINE SETTING” menu appears again. Konica 7115F/7118F...

  • Page 179: To Set The "Buzzer Volume" Function

    “MACHINE SETTING” menu” on page 9-3. Press the [8] key from the KEYPAD to select “LANGUAGE”. Using the [ ] and [ ] keys, select the desired language, and then press the [ENTER] key. The “MACHINE SETTING” menu appears again. Konica 7115F/7118F...

  • Page 180: To Set The "Initial Mode" Function

    9-3. Press the [9] key from the KEYPAD to select “INITIAL MODE”. Using the [ ] and [ ] keys, select either “COPY” or “FAX”, and then press the [YES] key. The “MACHINE SETTING” menu appears again. 9-10 Konica 7115F/7118F...

  • Page 181: Setting Up The Paper Sources ("Paper Source Setup" Menu)

    “ENABLE”: Paper and tray can be automatically selected. “DISABLE” & “CONTINUOUS”: Paper cannot be automatically selected, but tray can be automatically selected. “DISABLE” & “FIXED”: Paper and tray cannot be automatically selected. • The manufacturer’s default setting is “ENABLE”. Konica 7115F/7118F 9-11...

  • Page 182: To Select The "Paper Source Setup" Menu

    1 INCH/METRIC 2 TRAY1 PAPER 3 AUTO SELECT If, at any time, you wish to quit setting a “PAPER SOURCE SETTING” function, press the [NO] key. When the message “STOP SETTING?” appears, press the [YES] key to quit. 9-12 Konica 7115F/7118F...

  • Page 183: To Specify The Automatic Paper Size Detection Units ("Inch/Metric" Function)

    Using the [ ] and [ ] keys, select a paper tray, and then press the [ENTER] key. Using the [ ] and [ ] keys, select either “METRIC” or “INCH”, and then press the [YES] key. The “PAPER SOURCE SETUP” menu appears again. Konica 7115F/7118F 9-13...

  • Page 184: To Specify The Size Of Paper Loaded Into The 1St Tray ("Tray1 Paper" Function)

    However, when the length is set between 421 mm and 432 mm, the maximum width that can be set is 279 mm. ❍ If you wish to correct the setting, press the [NO] key, and then enter the new number. 9-14 Konica 7115F/7118F...
  • Page 185 However, when the width is set between 280 mm and 297 mm, the maximum length that can be set is 420 mm. ❍ If you wish to correct the setting, press the [NO] key, and then enter the new number. The “PAPER SOURCE SETUP” menu appears again. Konica 7115F/7118F 9-15...

  • Page 186: To Set The "Auto Select" Function

    Using the [ ] and [ ] keys, select either “FIXED” (does not allow automatic paper source switching) or “CONTINUOUS” (allows automatic paper source switching), and then press the [YES] key. The “PAPER SOURCE SETUP” menu appears again. 9-16 Konica 7115F/7118F...

  • Page 187: Specifying User-Managed Service Tasks ("User Management" Menu)

    Press the [ ] key twice to select “USER MANAGEMENT”, and then press the [ENTER] key. Using the [ ] and [ ] keys, select “DRUM DEHUMIDIFY”, and then press the [ENTER] key. Drum drying begins, and the main screen appears. Konica 7115F/7118F 9-17...

  • Page 188: To Perform The "Toner Replenisher" Function

    Toner replenishing begins, and the main screen appears. Note While the toner is being replenished, do not turn off the machine or open the Front Cover. If the density of the toner is suitable, do not perform the toner replenishing operation. 9-18 Konica 7115F/7118F...

  • Page 189: Specifying Administrative Settings ("Admin. Management" Menu)

    * For details, consult with the service representative. Note The registering and setup of the administrator access number should be performed by the Konica Service Representative. For details, contact the Konica Service Representative. The administrator of this machine should be sure not to lose the administrator access number.

  • Page 190: To Select The "Admin. Management" Menu

    [ENTER] key. If, at any time, you wish to quit setting an “ADMIN. MANAGEMENT” function, press the [NO] key. When the message “STOP SETTING?” appears, press the [YES] key to quit. 9-20 Konica 7115F/7118F...

  • Page 191: To Set The "Auto Shut Off" Function

    If “AUTO SHUT OFF” is set to “DISABLE”, the auto power off function will operate. Note that once the power has been turned off, it will not be possible to receive faxes or perform printing from the computer. Konica 7115F/7118F 9-21...

  • Page 192: To Turn On/Off User (Section) Management

    Using the [ ] and [ ] keys, select “COPY TRACK MODE”, and then press the [ENTER] key. Using the [ ] and [ ] keys, select either “ON” or “OFF”, and then press the [YES] key. The “ADMIN. MANAGEMENT” menu appears again. 9-22 Konica 7115F/7118F...

  • Page 193: To Register User (Section) Id Numbers

    ID number to be registered. When you are finished registering ID numbers, press the [NO] key. The “ADMIN. MANAGEMENT” menu appears again. Note If you try to register more than 20 ID numbers, the message “UP TO 20 SECTIONS” appears. Konica 7115F/7118F 9-23...

  • Page 194: To Change/Delete User (Section) Id Numbers

    A confirmation message appears, asking whether or not to keep the registered ID number. To change/delete the ID number, press the [NO] key. ❍ To keep the currently registered ID number, press the [YES] key. 9-24 Konica 7115F/7118F...
  • Page 195 After the message “ID NO. XXX EDITED” appears, a screen appears, allowing you to enter the next ID number to be changed/deleted. When you are finished changing/ deleting ID numbers, press the [NO] key. The “ADMIN. MANAGEMENT” menu appears again. Konica 7115F/7118F 9-25...

  • Page 196: To Display/Clear The Total Count For A Specific Account

    KEYPAD. ❍ When clearing the counter for a specific account (section), the ID (section) number for that account should be selected. The total count for the selected account (section) is displayed. 9-26 Konica 7115F/7118F...
  • Page 197 After the counter is cleared, press the [YES] key. ❍ After clearing the counter, if you wish to reset the counter to the previous count, press the [INTERRUPT] key. The “COPY TRACK DATA” function appears again. Konica 7115F/7118F 9-27...

  • Page 198: To Print The Total Counts For All Accounts (Sections)

    Using the [ ] and [ ] keys, select “DISPLAY”, and then press the [ENTER] key. Press the [START] key. The total counts for all accounts (sections) are printed on Letter-size paper. After 2 seconds, the “COPY TRACK DATA” function appears again. 9-28 Konica 7115F/7118F...

  • Page 199: To Clear The Total Counts For All Accounts

    “CLEAR”, and then press the [YES] key. A confirmation message appears, asking whether or not to clear all counters. Press the [ENTER] key. After the message “SECTION COUNTER CLEARED” appears, the “COPY TRACK DATA” function appears again. Konica 7115F/7118F 9-29...

  • Page 200: To Set The "Remote Monitor" Function

    MANAGEMENT” menu appears again. ❍ If “FULL” was selected, a screen appears, allowing you to enter the password. Using the KEYPAD, enter the 4-digit password, and then press the [ENTER] key. The “ADMIN. MANAGEMENT” menu appears again.s 9-30 Konica 7115F/7118F...
  • Page 201 20 mm (in units of 1 mm) the width that is erased when making copies with the “Erase” function set to “Left”, “Top” and “Frame”. • The manufacturer’s default setting for the “Left”, “Top” and “Frame” erase settings is 10 mm. Konica 7115F/7118F 9-31...

  • Page 202: To Select The "Copy Setting 1" Menu

    • The manufacturer’s default setting is “ON”. To select the “COPY SETTING 1” menu Press the [INITIAL SET] key. Press the [ ] key 4 times to select “COPY SETTING 1”. 9-32 Konica 7115F/7118F...

  • Page 203: To Set The "Paper Priority" Function

    Half Letter L (Invoice L), Letter C, Letter L, Legal L, 11 × 14, 11 × 17, F4, 1st Tray, 2nd Tray, 3rd Tray*, 4th Tray*, 5th Tray*, Multiple Bypass Tray *Only with Konica 7118/7118F The “COPY SETTING 1” menu appears again. Konica 7115F/7118F...

  • Page 204: To Set The "Density Priority" Function

    Press the [3] key from the KEYPAD to select “DENSITY LEVEL(A)”. Using the [ ] and [ ] keys, select one of the three settings between “LIGHT” and “DARK”, and then press the [YES] key. The “COPY SETTING 1” menu appears again. 9-34 Konica 7115F/7118F...

  • Page 205: To Set The Manual Density Level Density Level(M)" Function)

    Press the [5] key from the KEYPAD to select “BINDING POS.”. Using the [ ] and [ ] keys, select either “LEFT” or “RIGHT”, and then press the [YES] key. The “COPY SETTING 1” menu appears again. Konica 7115F/7118F 9-35...

  • Page 206: To Specify The Binding Width ("Margin Setting" Function)

    Refer to “To select the “COPY SETTING 1” menu” on page 9-32. Press the [7] key from the KEYPAD to select “ERASE SETTING”. Using the [ ] and [ ] keys, select “LEFT”, “TOP” or “FRAME”, and then press the [YES] key. 9-36 Konica 7115F/7118F...

  • Page 207: To Select The "Copy Setting 2" Menu

    4 4 IN 1 COPY ORDER 5 CRISSCROSS MODE If, at any time, you wish to quit setting a “COPY SETTING 2” function, press the [NO] key. When the message “STOP SETTING?” appears, press the [YES] key to quit. Konica 7115F/7118F 9-37...

  • Page 208: To Set The "Mixed Original" Function

    Press the [2] key from the KEYPAD to select “COPY PRIORITY”. Using the [ ] and [ ] keys, select “APS”, “AMS” or “MANUAL”, and then press the [YES] key. The “COPY SETTING 2” menu appears again. 9-38 Konica 7115F/7118F...

  • Page 209: To Set The "4 In 1 Copy Order" Function

    Press the [4] key from the KEYPAD to select “4 IN 1 COPY ORDER”. Using the [ ] and [ ] keys, select either “PATTERN1” or “PATTERN2”, and then press the [YES] key. The “COPY SETTING 2” menu appears again. Konica 7115F/7118F 9-39...

  • Page 210: To Set The "Crisscross Mode" Function

    Press the [5] key from the KEYPAD to select “CRISSCROSS MODE”. Using the [ ] and [ ] keys, select either “ON” or “OFF”, and then press the [YES] key. The “COPY SETTING 2” menu appears again. 9-40 Konica 7115F/7118F...

  • Page 211: Programming Fax Settings ("Fax Registration" Menu)

    MAILBOX This function can be used to specify mailbox IDs in order to receive faxes with mailbox reception only if the mailbox ID sent by the caller matches the mailbox ID set on this machine. Konica 7115F/7118F 10-1...

  • Page 212: To Select The "Fax Registration" Menu

    6 MAILBOX 7 RELAY BOX If, at any time, you wish to quit programming, changing or deleting a “FAX REGISTRATION” function, press the [NO] key. When the message “STOP REGISTRATION?” appears, press the [YES] key to quit. 10-2 Konica 7115F/7118F...

  • Page 213: Setting Up One-Touch Dialing ("One-Touch Dial" Function)

    KEYPAD. A maximum of 27 numbers can be programmed. A list of the information programmed in the one-touch dial keys can be printed out. Refer to “Outputting a report/list (“PRINT REPORT” menu)” on page 11-3. Konica 7115F/7118F 10-3...

  • Page 214: To Program A One-Touch Dial Key

    (p. 6-16). ❍ If you wish to change the fax number, press the [NO] key, and then enter the correct number. ❍ For details on F codes (sub-address and SID), refer to “Using F codes” on page 7-25. 10-4 Konica 7115F/7118F...
  • Page 215 Using the [ ] and [ ] keys, select the desired modem speed. Press the [YES] key. The settings are registered. To program another one-touch dial key, repeat steps 3 through 11. Press the [NO] key to finish programming. The “FAX REGISTRATION” menu appears again. Konica 7115F/7118F 10-5...

  • Page 216: To Change/Delete A Programmed One-Touch Dial Key

    To delete the programmed settings, press the [NO] key. The “FAX REGISTRATION” menu appears again. ❍ To change the group dialing or program dialing settings, refer to page 10-14 and page 10-17. 10-6 Konica 7115F/7118F...
  • Page 217 10-4. When you are finished making changes, press the [YES] key. To change the settings of another one-touch dial key, repeat steps 3 through 7. Press the [NO] key to return to the “FAX REGISTRATION” menu. Konica 7115F/7118F 10-7...

  • Page 218: Setting Up Speed Dialing ("Speed Dial" Function)

    Refer to “To select the “FAX REGISTRATION” menu” on page 10-2. Press the [2] key from the KEYPAD to select “SPEED DIAL”. Using the KEYPAD, enter the 3-digit speed dial number (ex. 011) that you wish to program. 10-8 Konica 7115F/7118F...
  • Page 219 Enter the name of the programmed number. ❍ For details on entering text, refer to “Entering Text” on page 3-30. ❍ Text up to 20 characters long can be entered for the name. Press the [ENTER] key. Konica 7115F/7118F 10-9...
  • Page 220 Using the [ ] and [ ] keys, select the desired modem speed. Press the [YES] key. The settings are registered. To program another speed dial number, repeat steps 3 through 11. Press the [NO] key to finish programming. The “FAX REGISTRATION” menu appears again. 10-10 Konica 7115F/7118F...

  • Page 221: To Change/Delete A Programmed Speed Dial Number

    If the [YES] key is pressed, the corresponding settings programmed in group dialing or program dialing are changed. If the [NO] key is pressed, the corresponding settings programmed in group dialing or program dialing are deleted. Konica 7115F/7118F 10-11...
  • Page 222 10-4. When you are finished making changes, press the [YES] key. ❍ To change the settings of another speed dial number, repeat steps 3 through 7. Press the [NO] key to return to the “FAX REGISTRATION” menu. 10-12 Konica 7115F/7118F...

  • Page 223: Setting Up Group Dialing ("Group Dial" Function)

    By using the one-touch dial keys or the speed dial numbers, specify the recipients. Do you wish to cancel the current selection? ➜ Press the [NO] key, and then specify the correct recipient. Konica 7115F/7118F 10-13...

  • Page 224: To Change/Delete A Programmed Group Of Fax Numbers

    Select the “FAX REGISTRATION” menu. ❍ Refer to “To select the “FAX REGISTRATION” menu” on page 10-2. Press the [3] key from the KEYPAD to select “GROUP DIAL”. Press the one-touch dial key that you wish to change or delete. 10-14 Konica 7115F/7118F...
  • Page 225 The next fax number is displayed. When you are finished making changes, press the [START] key. To change the settings of another group of fax numbers, repeat steps 3 through 8. Press the [NO] key to return to the “FAX REGISTRATION” menu. Konica 7115F/7118F 10-15...

  • Page 226: Setting Up Program Dialing ("Program Dial" Function)

    ❍ Refer to “To select the “FAX REGISTRATION” menu” on page 10-2. Press the [4] key from the KEYPAD to select “PROGRAM DIAL”. Press the one-touch dial key ([24] through [27]) programmed with the desired function. 10-16 Konica 7115F/7118F...

  • Page 227: To Change/Delete A Programmed Broadcast Transmission

    The “FAX REGISTRATION” menu appears again. To change/delete a programmed broadcast transmission Select the “FAX REGISTRATION” menu. ❍ Refer to “To select the “FAX REGISTRATION” menu” on page 10-2. Press the [4] key from the KEYPAD to select “PROGRAM DIAL”. Konica 7115F/7118F 10-17...
  • Page 228 [YES] key. The next recipient is displayed. When you are finished making changes, press the [START] key. ❍ Other program dialing settings can be programmed or changed. Press the [NO] key to return to the “FAX REGISTRATION” menu. 10-18 Konica 7115F/7118F...

  • Page 229: To Change/Delete A Programmed Timer Transmission

    To change the transmission time, press the [CLEAR] key, and then use the KEYPAD to enter the correct time. If you do not wish to change the transmission time, press the [YES] key. The recipient is displayed. Konica 7115F/7118F 10-19...

  • Page 230: To Change/Delete A Programmed Mailbox Transmission

    10-2. Press the [4] key from the KEYPAD to select “PROGRAM DIAL”. Press the one-touch dial key ([24] through [27]) programmed with the mailbox transmission that you wish to change or delete. Press the [NO] key. 10-20 Konica 7115F/7118F...
  • Page 231 To change the password, press the [CLEAR] key, and then use the KEYPAD to enter the new password. Press the [YES] key. Other program dialing settings can be changed. Press the [NO] key to return to the “FAX REGISTRATION” menu. Konica 7115F/7118F 10-21...

  • Page 232: To Change/Delete A Programmed Polling Reception

    ❍ To add a recipient, in the screen containing “Fin.=START”, specify a recipient using the one-touch dial keys or the speed dial numbers, or by entering a fax number using the KEYPAD. The next recipient is displayed. 10-22 Konica 7115F/7118F...

  • Page 233: To Change/Delete A Programmed Relay Initiation Transmission

    10-2. Press the [4] key from the KEYPAD to select “PROGRAM DIAL”. Press the one-touch dial key ([24] through [27]) programmed with the relay initiation transmission that you wish to change or delete. Press the [NO] key. Konica 7115F/7118F 10-23...
  • Page 234 To change the password, press the [CLEAR] key, and then use the KEYPAD to enter the new password. Press the [YES] key. Other program dialing settings can be changed. Press the [NO] key to return to the “FAX REGISTRATION” menu. 10-24 Konica 7115F/7118F...

  • Page 235: Setting Up Batch Transmissions ("Batch Tx" Function)

    Press the [5] key from the KEYPAD to select “BATCH TX”. Press the one-touch dial key programmed with the recipient that you wish to send the batch transmission fax to. A screen appears, allowing you to specify the transmission time. Konica 7115F/7118F 10-25...
  • Page 236 ➜ An error message appears. Using the KEYPAD, enter the desired transmission time, and then press the [ENTER] key. Press the [NO] key to return to the “FAX REGISTRATION” menu. 10-26 Konica 7115F/7118F...

  • Page 237: To Change The Batch Transmission Setting

    Press the [CLEAR] key, and then use the KEYPAD to enter the new transmission time. When you are finished making changes, press the [YES] key. Press the [NO] key to return to the “FAX REGISTRATION” menu. Konica 7115F/7118F 10-27...

  • Page 238: To Delete The Batch Transmission Setting

    Press the [CLEAR] key. A confirmation message appears, asking whether or not to delete the batch transmission setting. Press the [YES] key. The “SELECT REGIST. KEY” screen appears again. 10-28 Konica 7115F/7118F...

  • Page 239: Setting Up Mailboxes ("Mailbox" Function)

    ID, and then press the [ENTER] key. ❍ The mailbox ID can be set to any number between 0000 and 9999. ❍ If you wish to change the mailbox ID, press the [NO] key, and then enter the new number. Konica 7115F/7118F 10-29...

  • Page 240: To Delete A Mailbox

    Press the [6] key from the KEYPAD to select “MAILBOX”. Using the KEYPAD, enter the number of the mailbox that you wish to delete. Press the [NO] key. A screen appears, allowing you to enter the mailbox ID. 10-30 Konica 7115F/7118F...

  • Page 241: Setting Up Relay Boxes ("Relay Box" Function)

    Therefore, before using this function, be sure that a one-touch dial key or a speed dial number is programmed with the fax number of the report recipient. Konica 7115F/7118F 10-31...

  • Page 242: To Program The Relay Box

    0000 and 9999. ❍ If you wish to change the password, press the [NO] key, and then enter the new password. ❍ If no password is to be specified, press the [ENTER] key without entering anything. 10-32 Konica 7115F/7118F...
  • Page 243 Repeat this step until all desired receiving stations are specified. ❍ To delete the currently selected recipient, press the [NO] key. When you are finished specifying all receiving stations, press the [START] key. The “FAX REGISTRATION” menu appears again. Konica 7115F/7118F 10-33...

  • Page 244: To Delete The Relay Box

    Press the [NO] key. The specified relay box is deleted. To delete another relay box, repeat steps 3 and 4. Press the [AUTO RESET] key. The main screen appears again. 10-34 Konica 7115F/7118F...

  • Page 245: Specifying Transmission Settings ("Tx Operation" Menu)

    • The manufacturer’s default setting is “DISABLE”. To select the “TX OPERATION” menu Press the [INITIAL SET] key. The first screen of the Initial Set mode appears. Press the [ ] key 7 times to select “TX OPERATION”. Konica 7115F/7118F 10-35...

  • Page 246: To Specify The Default Scanning Contrast ("Scan Contrast" Function)

    Press the [1] key from the KEYPAD to select “SCAN CONTRAST”. Using the [ ] and [ ] keys, select one of the five settings between “LIGHT” and “DARK”, and then press the [YES] key. The “TX OPERATION” menu appears again. 10-36 Konica 7115F/7118F...

  • Page 247: To Specify The Default Resolution Setting ("Resolution" Function)

    Using the [ ] and [ ] keys, select the desired halftone setting, and then press the [YES] key. ❍ The halftone settings appear as follows. NORM: Normal FINE: Fine S/F: Super Fine The “TX OPERATION” menu appears again. Konica 7115F/7118F 10-37...

  • Page 248: To Set The "Default Tx" Function

    Press the [5] key from the KEYPAD to select “OT-DIAL IN COPY”. Using the [ ] and [ ] keys, select either “DISABLE” or “ENABLE”, and then press the [YES] key. The “TX OPERATION” menu appears again. 10-38 Konica 7115F/7118F...

  • Page 249: Specifying Reception Settings ("Rx Operation" Menu)

    Do not forward (“OFF”): The document is not forwarded • The manufacturer’s default setting is “OFF”. * In order to forward the document to an e-mail address, the optional Internet Fax & Network scan kit is required. Konica 7115F/7118F 10-39...
  • Page 250 (A paper tray that cannot be used for supplying paper can also be specified.) This function is only available when an optional paper tray is installed. 10-40 Konica 7115F/7118F...

  • Page 251: To Select The "Rx Operation" Menu

    If, at any time, you wish to quit setting/changing an “RX OPERATION” function, press the [NO] key. When the message “STOP SETTING?” appears, press the [YES] key to quit. To exit the “RX OPERATION” menu, press the [AUTO RESET] key. The main screen appears again. Konica 7115F/7118F 10-41...

  • Page 252: To Select The Memory Reception Mode ("Memory Rx Mode" Function)

    Using the KEYPAD, enter the 4-digit password used to cancel memory reception, and then press the [ENTER] key. ❍ If no password is to be specified, press the [ENTER] key without entering anything. The “RX OPERATION” menu appears again. 10-42 Konica 7115F/7118F...

  • Page 253: To Cancel Memory Reception

    “RX OPERATION” menu appears again. Using the KEYPAD, enter the 4-digit password, and then press the [ENTER] key. All received documents stored in the memory are printed, and the “RX OPERATION” menu appears again. Konica 7115F/7118F 10-43...

  • Page 254: To Set The "No.of Rings" Function

    “REDUCTION RX”. Using the [ ] and [ ] keys, select “ON” (print the document reduced), “OFF” (split the printout) or “CUT” (discard any excess), and then press the [YES] key. The “RX OPERATION” menu appears again. 10-44 Konica 7115F/7118F...

  • Page 255: To Set The "Rx Print" Function

    Press the [5] key from the KEYPAD to select “RX MODE”. Using the [ ] and [ ] keys, select either “AUTO RX” or “MANUAL RX”, and then press the [YES] key. The “RX OPERATION” menu appears again. Konica 7115F/7118F 10-45...

  • Page 256: To Set The "Forward" Function

    [YES] key. The “RX OPERATION” menu appears again. An e-mail address can be specified as a forwarding location only when the optional Internet Fax & Network scan kit is installed. 10-46 Konica 7115F/7118F...

  • Page 257: To Set The "Footer" Function

    Using the [ ] and [ ] keys, select a paper tray, and then press the [ENTER] key. Using the [ ] and [ ] keys, select either “DISABLE” or “ENABLE”, and then press the [YES] key. The “RX OPERATION” menu appears again. Konica 7115F/7118F 10-47...

  • Page 258: Specifying Communication Settings ("Comm.setting" Menu)

    For a PBX system, the outside line access number (or extension number) must be specified. For details on setting the “TONE/PULSE” and “PSTN/PBX” functions, refer to “Specifying the Phone Dialing System” on page 3-37 and “Specifying the Phone Wiring System” on page 3-38. 10-48 Konica 7115F/7118F...

  • Page 259: To Set The "Line Monitor" Function

    From the KEYPAD, press the [2] key. A screen appears, allowing you to select the monitoring volume. Using the [ ] and [ ] keys, select “HIGH”, “LOW” or “OFF”, and then press the [YES] key. The “COMM.SETTING” menu appears again. Konica 7115F/7118F 10-49...

  • Page 260: Specifying Report Output ("Reporting" Menu)

    • The manufacturer’s default setting is “OFF”. To select the “REPORTING” menu Press the [INITIAL SET] key. The first screen of the Initial Set mode appears. Press the [ ] key 10 times to select “REPORTING”. 10-50 Konica 7115F/7118F...

  • Page 261: To Set The "Activity Report" Function

    10-50. Press the [1] key from the KEYPAD to select “ACTIVITY REPORT”. Using the [ ] and [ ] keys, select either “ON” or “OFF”, and then press the [YES] key. The “REPORTING” menu appears again. Konica 7115F/7118F 10-51...

  • Page 262: To Set The "Reserv.report" Function

    10-50. Press the [3] key from the KEYPAD to select “TX RESULT REPORT”. Using the [ ] and [ ] keys, select either “ON” or “OFF”, and then press the [YES] key. The “REPORTING” menu appears again. 10-52 Konica 7115F/7118F...

  • Page 263: To Set The "Rx Result Report" Function

    10-50. Press the [4] key from the KEYPAD to select “RX RESULT REPORT”. Using the [ ] and [ ] keys, select either “ON” or “OFF”, and then press the [YES] key. The “REPORTING” menu appears again. Konica 7115F/7118F 10-53...
  • Page 264 Initial Set Mode – Fax Functions 10-54 Konica 7115F/7118F...

  • Page 265: Checking Transmission Results

    This count shows the total number of scans made since this machine was installed. TX PAGES This count shows the total number of pages faxed since this machine was installed. RX PAGES This count shows the total number of fax pages received since this machine was installed. Konica 7115F/7118F 11-1...

  • Page 266: To Check The Counters

    Using the [ ] and [ ] keys, select the counter that you wish to check. Press the [YES] key to return to the “MACHINE COUNTER” menu. Press the [NO] key to return to the main screen. 11-2 Konica 7115F/7118F...

  • Page 267: Outputting A Report/List ("Print Report" Menu)

    The reception/transmission result reports can be checked on screen. For details on viewing the transmission result, refer to “To check the transmission result” on page 6-22. The following reports and lists can be printed. Konica 7115F/7118F 11-3...

  • Page 268: Transmission Result Report

    DESTINATION STATION PAGE DURATION MODE RESULT 0001 Oct.19 16:32 TX--- AAA NEWYORK 00h01min16s 012345678 0002 Oct.19 18:00 ---RX AAA TOKYO 00h02min21s 098765432 0002 Oct.19 18:00 ---RX AAA TOKYO 00h02min48s 098765432 0003 Oct.19 19:12 TX--- HEAD OFFICE 00h00min56s 024682468 11-4 Konica 7115F/7118F...

  • Page 269: Queued Job List

    OCT.20’2001 SP-003 ABCDEF 024682468 33.6 NOV.12’2001 SP-004 POST OFFICE 0224466880 14.4 NOV.12’2001 SUB:#5678 List of Programmed Keys The group dialing and program dialing settings specified for one-touch dial keys are printed in numerical order of the keys. Konica 7115F/7118F 11-5...

  • Page 270: Relay Box List

    This function is only available when the Printer Controller (optional) is installed. The list of the printer settings is printed. PCL Font List This function is only available when the Printer Controller (optional) is installed. The PCL font list is printed. 11-6 Konica 7115F/7118F...

  • Page 271: When The Message "Load Paper" Appears

    To load paper into the 1st Tray Pull out the 1st Tray. Paper Take-up Roller Have the necessary precautions been observed when pulling out the tray? ➜ Be careful not to touch the surface of the Paper Take-up Roller with your hands. Konica 7115F/7118F 12-1...
  • Page 272 [ ] mark. Slide the paper guides against the edges of the paper. Is the paper guide positioned correctly? ➜ Make sure that the paper guides are pushed up against the edges of the paper. Close the paper tray. 12-2 Konica 7115F/7118F...

  • Page 273: To Load Paper Into The 2Nd Tray

    Have the necessary precautions been observed when loading the paper? ➜ Do not load so many much paper that the top of the stack is higher than the [ ] mark. Konica 7115F/7118F 12-3...

  • Page 274: To Load Paper Into The Multiple Bypass Tray

    [ ] mark. ➜ Make sure that the paper is not curled (rolled). Adjust the Bypass Tray Extender and the paper guides to fit the size of the paper. 12-4 Konica 7115F/7118F...

  • Page 275: When The Message "Toner Empty" Appears

    For details, contact your authorized Konica Service Representative. Do not throw away the used toner bottle. Instead, keep it so that it can be collected by your authorized Konica Service Representative. To replace the toner bottle Open the Front Cover.
  • Page 276 Do you know the special precautions to be used when peeling off the seal? ➜ Slowly peel off the seal, as some toner may puff out from the bottle. 12-6 Konica 7115F/7118F...
  • Page 277 Do you know what to do if the copy image density is still low immediately after the Toner Bottle has been replaced with a new one? ➜ Perform the “TONER REPLENISHER” function in the Initial Set mode (p. 9-18). Konica 7115F/7118F 12-7...

  • Page 278: When The Message "Paper Jam" Appears

    The area around the fusing unit is extremely hot. ➜ Touching any part other than the specified levers may result in burns. CAUTION There are hooks on the back of the guide plate. ➜ Touching any part other than the paper may result in injuries. 12-8 Konica 7115F/7118F...
  • Page 279 ➜ Only touch the green part of the guide plate when pressing it down. ➜ Do not touch the PC Drum (green), otherwise a malfunction PC Drum could result. Konica 7115F/7118F 12-9...
  • Page 280 Return the Pressure Levers to their original positions. Close the Side Cover of the main unit. Pull out the 1st Tray, and then remove all paper from the tray. Load the paper into the tray again. 12-10 Konica 7115F/7118F...
  • Page 281 Error Messages Slide the paper guides against the edges of the paper. Is the paper guide positioned correctly? ➜ Make sure that the paper guides are pushed up against the edges of the paper. Close the 1st Tray. Konica 7115F/7118F 12-11...

  • Page 282: To Clear A Paper Misfeed In The Paper Feed Cabinet

    Error Messages To clear a paper misfeed in the Paper Feed Cabinet Open the Side Cover of the Paper Feed Cabinet. Slowly pull out the paper. Close the Side Cover of the Paper Feed Cabinet. 12-12 Konica 7115F/7118F...

  • Page 283: To Clear A Paper Misfeed In The Multiple Bypass Tray

    Slowly pull out the paper. Transfer Roller Have the necessary precautions been observed when pulling out the paper? ➜ Do not touch the Transfer Roller, otherwise a malfunction could result. Close the Side Cover of the main unit. Konica 7115F/7118F 12-13...
  • Page 284 Error Messages Load the paper into the Bypass Tray again. 12-14 Konica 7115F/7118F...

  • Page 285: When The Message "Original Doc.jam" Appears

    Remove the misfed document according to the following procedure. To clear a misfeed in the Automatic Document Feeder Open the Document Feeder Cover. Remove all document pages from the Document Feeder Tray. Konica 7115F/7118F 12-15...
  • Page 286 Error Messages Lift open the Automatic Document Feeder. While turning the Document Feed Knob in the direction of the arrow, slowly pull out the document. Close the Automatic Document Feeder and the Document Feeder Cover. 12-16 Konica 7115F/7118F...
  • Page 287 Load the documents removed in step 2 back into the tray. Note If “RETURN 1 (2) ORIG. to ADF and PRESS START KEY” appears on the display, also load the one or two document pages that caused the paper misfeed. Konica 7115F/7118F 12-17...

  • Page 288: Main Error Messages And Their Remedies

    PAPER EMPTY The selected paper tray has Load paper of the specified run out of paper. size into the specified paper (Flashing alternately) “#” indicates the paper tray, tray. and “XXX” indicates the LOAD PAPER (#XXX) paper size. 12-18 Konica 7115F/7118F...

  • Page 289: Error Messages

    “#” indicates the paper tray, Check if a custom paper size RESET PAPER (#XXX) and “XXX” indicates the has been entered, and paper size. correct the paper size using the appropriate Initial Set mode function. Konica 7115F/7118F 12-19...
  • Page 290 ∗ MEM.FULL/RX While receiving a fax, the size Retrieve all received faxes ∗ CANCEL of the data for the scanned stored in the memory. image has exceeded the capacity of the memory. 12-20 Konica 7115F/7118F...
  • Page 291 Contact your authorized replaced. Konica Service Representative. MACHINE TROUBLE Some problem occurred in Turn the machine off, then on the machine. again. (Flashing alternately) If the error is still displayed, contact your authorized (C####) Konica Service Representative. Konica 7115F/7118F 12-21...
  • Page 292 Error Messages 12-22 Konica 7115F/7118F...

  • Page 293: When Incorrect Copies Are Produced

    The copy is blurry. The copy paper is damp. Replace the paper. (p. 12-1) The document was not Position the document so pressed close enough that it is pressed closely against the Platen Glass. against the Platen Glass. (p. 4-5) Konica 7115F/7118F 13-1...

  • Page 294: Troubleshooting

    (with a reduced zoom ratio). size of the selected paper. (p. 4-22) Otherwise, select the “AMS” function to reduce the copy to the selected paper size. (p. 4-21) 13-2 Konica 7115F/7118F...
  • Page 295 The Document Guide Slide the Document Guide Plates are not slid up Plates against the edges of against the edges of the the document. document. Curled paper was loaded Flatten the paper before into the paper tray. loading it. Konica 7115F/7118F 13-3...

  • Page 296: When Copying Is Not Performed Correctly

    The machine cannot be turned The power supply cord has Plug the power supply cord been unplugged from the into the electrical outlet. electrical outlet. The breaker for the Close the breaker for the electrical circuit has been electrical circuit. tripped. 13-4 Konica 7115F/7118F...

  • Page 297: When Faxing Is Not Performed Correctly

    Check the number. telephone calls is being dialed. There is a problem with the Contact the recipient. recipient's fax machine (it is out of paper, it is not set to receive faxes automatically, it is turned off, etc.). Konica 7115F/7118F 13-5...

  • Page 298: Faxes Cannot Be Received

    Black streaks appear through There is a problem with the Check that the machine can the copy. telephone connection or make clean copies. If it can, with the caller’s fax have the caller send the fax machine. again. 13-6 Konica 7115F/7118F...

  • Page 299: Calls Cannot Be Sent

    (p. 10-49) recipient/caller’s voice. The ringing of the telephone is The ringer volume of the Adjust the ringer volume of too low (loud). connected telephone is set the connected telephone. too low (loud). Konica 7115F/7118F 13-7...
  • Page 300 Troubleshooting 13-8 Konica 7115F/7118F...

  • Page 301: Specifications

    Appendix Appendix 14.1 Specifications Main Unit Konica 7115/7115F/7118/7118F * Only when FK-117 Fax Kit for Konica 7115/7118 installed Specification Konica 7115/7115F Konica 7118/7118F Type Desktop Platen Stationary Photo conductor Copying system Digital laser copying Developing system Dry, 2-Component Magnetic Brush Developing...

  • Page 302: Automatic Document Feeder Df-217

    Size Width: 590 mm Depth: 611 mm Height: 487 mm Weight 40 kg (including 1 kg for the FK-117 FAX Kit for Konica 7115/7118) Standard Memory Fax: 4 MB (Can be increased to a maximum of 12 MB) Copier:32 MB (Can be increased to a maximum of 48 MB)

  • Page 303: Paper Feed Cabinet Pf-121

    A4 size (stacked up to 22 mm high) Special paper: 10 sheets Lower Copy Tray: Plain or recycled paper: 150 A4-size sheets, 75 sheets of other than A4 size Special paper: 20 sheets Power consumption Less than 63 W Konica 7115F/7118F 14-3...

  • Page 304: Multiple Bypass Tray Mt-102

    Length: 140 mm to 432 mm Paper capacity Plain or recycled paper: 50 sheets Special paper: 20 sheets Power consumption Less than 9 W Size Width: 436 mm Depth: 489 mm Height: 137 mm Weight 2.7 kg 14-4 Konica 7115F/7118F...

  • Page 305: List Of Initial Set/Function/Confirm Menu Commands

    (For each paper tray) DISABLE/ENABLE FIXED/CONTINUE 3 USER MANAGEMENT DRUM DEHUMIDIFY — TONER REPLENISHER — 4 ADMIN. MANAGEMENT AUTO SHUT OFF DISABLE/ENABLE COPY TRACK COPY TRACK MODE (ON/OFF) ACCESS NO. REG. COPY TRACK DATA (DISPLAY/ CLEAR) REMOTE MONITOR LIMITED/FULL/OFF Konica 7115F/7118F 14-5...
  • Page 306 × × A5 C/11 17 L/11 14 L/LG L/ LT L/HL L/LT C/HL C/1ST/2ND/ 3RD*/4TH*/5TH*/MULTI BYPASS (* Only with Konica 7118/7118F) DENSITY PRIORITY AUTO/MANUAL/PHOTO DENSITY LEVEL(A) LIGHT to DARK (3 levels) DENSITY LEVEL(M) LIGHT to DARK (5 levels) BINDING POS.

  • Page 307: Function Menu Commands

    5 POLLING TX SINGLE/MULTI, polling ID and password 6 POLLING RX Caller, polling ID and password 7 RELAY INITIATE Recipient, relay box ID and password 8 CANCEL RESERV. Select job 9 TX MODE Memory transmission/direct transmission and recipient Konica 7115F/7118F 14-7...
  • Page 308 RX PAGES PRINT REPORT TX RESULT REPORT RX RESULT REPORT ACTIVITY REPORT MEMORY DATA LIST MEMORY IMAGE LIST ONE TOUCH LIST SPEED DIAL LIST KEY SETTING LIST RELAY BOX LIST MACHINE STATUS CONFIGURATION PAGE PCL FONT LIST 14-8 Konica 7115F/7118F...

  • Page 309: Care Of The Machine

    Platen Glass ➜ Clean the Platen Glass by wiping it with a soft, dry cloth. Document Pad ➜ Clean the surface of the document pad by wiping it with a soft cloth dampened with alcohol. Konica 7115F/7118F 14-9...

  • Page 310: Control Panel

    Control Panel ➜ Clean the Control Panel by wiping it with a soft, dry cloth. CAUTION Incorrectly cleaning the Control Panel keys may damage them. Never use mild household detergent or glass cleaner to clean the Control Panel. 14-10 Konica 7115F/7118F...

  • Page 311: Function Combination Table

    If paper is loaded into the manual bypass tray, the function set first takes precedence. The functions can be combined only with the “Dual Page” function. – There is no operation that combines the functions. In this system, the functions cannot be combined. Konica 7115F/7118F 14-11...

  • Page 312: Paper Size And Zoom Ratio Tables

    210 mm 301 mm × × Letter 8-1/2 216 mm 279 mm × × Government Letter 10-1/2 203 mm 267 mm × × Quarto 203 mm 254 mm × × Statement Invoice 5-1/2 8-1/2 140 mm 216 mm 14-12 Konica 7115F/7118F...

  • Page 313: Zoom Ratios

    1.22 × 0.81 × 257 mm 364 mm × × 0.57 14-1/4 × 0.70 × 0.50 × 1.15 × 0.81 × 182 mm 257 mm × × 0.57 7-1/4 × 0.70 × 1.63 × 1.15 × 1.41 Konica 7115F/7118F 14-13...
  • Page 314 1.21 × Letter 0.84 × 8-1/2 × × Invoice 0.65 215.9 mm 330.2 mm × × 1.30 × × 1.07 × Letter Invoice 0.64 × 8-1/2 × × × 1.29 215.9 mm 279.4 mm × × 1.27 14-14 Konica 7115F/7118F...
  • Page 315 × × Invoice 2.00 × 5-1/2 8-1/2 × × × 1.64 139.7 mm 215.9 mm × Legal 1.54 × 1.50 × Letter 1.29 Zoom ratio=Paper size/Document size 1 inch = 25.4 mm 1 mm = 0.0394 inch Konica 7115F/7118F 14-15...

  • Page 316: Power Outages

    If a telephone not powered by electricity is connected to the machine, the telephone can be used, even during a power outage. The telephone where documents are stored for two hours cannot be used to make or receive calls. 14-16 Konica 7115F/7118F...

  • Page 317: Glossary

    This is a function that allows scanned images to be sent to a computer via a network. They can also be sent as e-mail messages or uploaded to FTP servers. On-hook dialing Dials without the hand set picked up. Press the [ON-HOOK] key to use this function. Konica 7115F/7118F 14-17...
  • Page 318 A signal used on the telephone line; used when calling on a push-button line or using push-button services. By pressing the [ ] key in the KEYPAD, touch-tone signals are used, even if a dial phone line is connected. 14-18 Konica 7115F/7118F...
  • Page 319 Automatic reception ................6-20 Batch transmission ................7-3 Setup ..................10-25 Book transmission ................7-1 Broadcast transmission ...............7-4 Buzzer volume ..................9-9 Cancelling queued document ............7-19 Cancelling settings ................3-24 Care of the machine ................14-9 Combination dialing ................6-16 Communication settings Monitoring volume ..............10-49 Components ..................3-8 Konica 7115F/7118F 15-1...
  • Page 320 Default settings ................3-29 Dialing ....................6-10 Direct transmission ................7-14 Document misfeed ................12-15 Documents for transmission ............... 6-1 Drum dehumidifying ................9-17 Dual Page ................... 5-3 Entering text ..................3-30 Erase function ..................5-9 Error messages ................12-18 15-2 Konica 7115F/7118F...
  • Page 321 Interrupting copy jobs .............. 3-26 4-27 Job Tray .....................14-3 Language setting .................9-9 LCD contrast ..................9-8 Legal restrictions on copying ...............2-5 Loading documents ................4-1 Automatic Document Feeder ............4-1 Books .....................4-7 Mixed sizes ..................4-2 OHP transparencies ...............4-6 Platen Glass ...................4-5 Konica 7115F/7118F 15-3...
  • Page 322 Job Tray ..................3-17 Multiple Bypass Tray ..............3-14 Paper Feed Cabinet ..............3-15 Shifting Unit ................. 3-16 Output copies ..................5-5 Grouping ..................5-7 Sorting ................... 5-6 Paper Feed Cabinet ................14-3 Paper feeding ..................1-11 15-4 Konica 7115F/7118F...
  • Page 323 Queued copy jobs ................3-25 Queued jobs report ................10-52 Reception result report ..............10-53 Reception settings Footer printing ................10-47 Forwarding setup ...............10-46 Memory reception mode ............10-42 Number of rings .................10-44 Printing mode ................10-45 Reception mode .................10-45 Reduced printing ................10-44 Konica 7115F/7118F 15-5...
  • Page 324 Transmission settings Default transmission mode ............10-38 Resolution ................. 10-37 Scanning contrast ..............10-36 Turning on/off ..................3-28 User fax number ................3-35 User management Administrative settings ..............9-22 User name ..................3-36 User-managed service tasks ............9-17 15-6 Konica 7115F/7118F...
  • Page 325 Index Zoom setting ..................4-21 AMS .....................4-21 X/Y zoom function ................4-23 Konica 7115F/7118F 15-7...
  • Page 326 Index 15-8 Konica 7115F/7118F...
  • Page 327 MANUFACTURER ONICA CORPORATION TOKYO JAPAN 4506-7772-01 Printed in China 2002. 3...

This manual is also suitable for:

7118fFk-117

Table of Contents
